Lexus IS250 2015 Owner's Manual

4507-3. Do-it-yourself maintenance
IS350/250_U (OM53C50U)

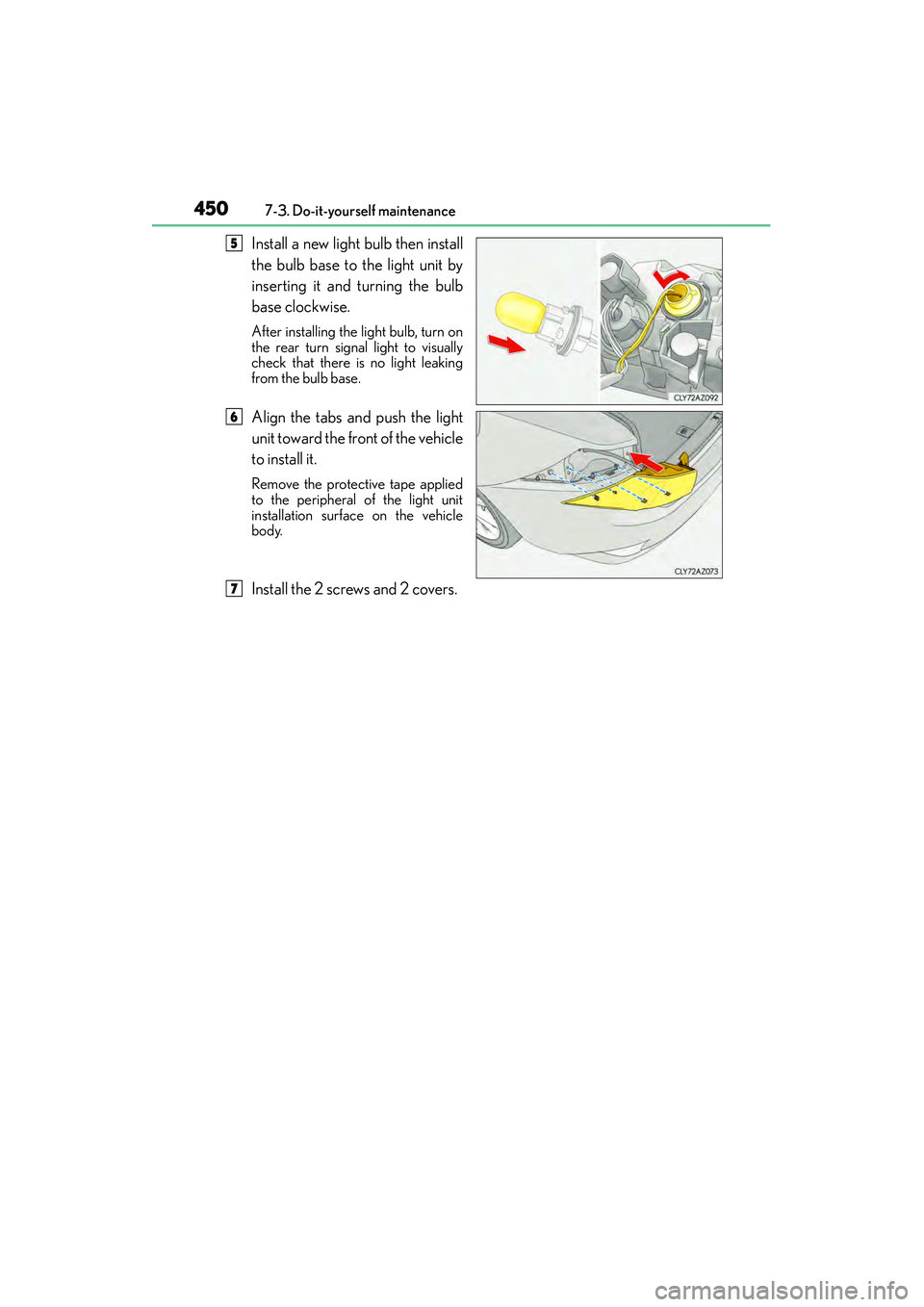

Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
After installing the light bulb, turn on
the rear turn signal light to visually
check that there is no light leaking
from the bulb base.
Align the tabs and push the light
unit toward the front of the vehicle
to install it.
Remove the protective tape applied
to the peripheral of the light unit
installation surface on the vehicle
body.
Install the 2 screws and 2 covers.
5
6
7

4517-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/250_U (OM53C50U)

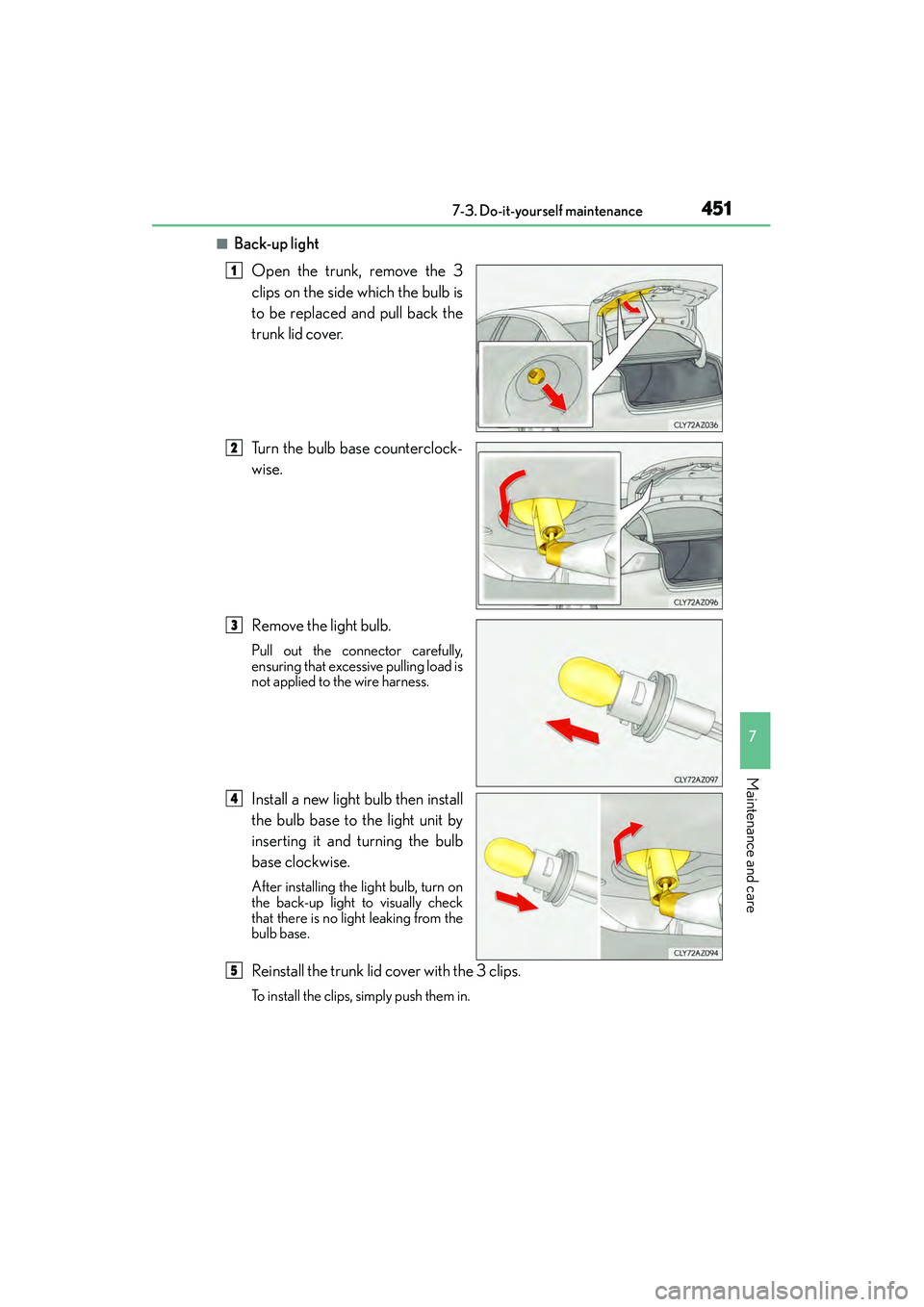

■Back-up lightOpen the trunk, remove the 3
clips on the side which the bulb is
to be replaced and pull back the
trunk lid cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Pull out the connector carefully,
ensuring that excessive pulling load is
not applied to the wire harness.
Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
After installing the light bulb, turn on
the back-up light to visually check
that there is no light leaking from the
bulb base.
Reinstall the trunk lid cover with the 3 clips.
To install the clips, simply push them in.
1
2
3
4
5

4527-3. Do-it-yourself maintenance
IS350/250_U (OM53C50U)
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer.
●Headlights
●Parking lights and daytime running lights
●Side marker lights
●Side turn signal lights
●Fog lights (if equipped)
●Outer foot lights
●Stop/tail lights
●Tail lights
●High mounted stoplight
●License plate lights
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficie nt, the bulbs may not come on, or may go out
temporarily. The discharge bulbs will come on when normal power is restored.
■LED Lights
The lights other than the discharge headlights (if equipped), front turn signal lights, rear
turn signal lights, back-up light and outer foot lights each consist of a number of LEDs. If
any of the LEDs burn out, take your vehicle to your Lexus dealer to have the light
replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact your Lexus dealer for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing the front turn signal lights (vehicles with LED headlights)
When the washer fluid filler opening is removed with a large amount of washer fluid con-
tained in the washer tank, washer fluid ma y spill onto the vehicle and cleaning may be
required.
■When replacing light bulbs
→ P. 4 4 3

4537-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/250_U (OM53C50U)
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning off the
lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is unavoid-
able to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or water entering the headlight unit. This may damage the head-
lights or cause condensation to build up on the lens.
■Discharge headlights (if equipped)
●Contact your Lexus dealer before replacing the discharge headlights (including light
bulbs).
●Do not touch the discharge headlight’s high voltage socket when the headlights are
turned on.
An extremely high voltage of 30000 V will be discharged and could result in death
or serious injury by electric shock.
●Do not attempt to take apart or repair the headlight bulbs, connectors, power supply
circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.
●Vehicles with discharge headlights:
While the headlights are turned on, and for a
short time after they have been turned off,
metal components at the rear of the headlight
assembly will be extremely hot. To prevent
burns, do not touch these metal components
until you are certain they have cooled down.
Metal components

4547-3. Do-it-yourself maintenance
IS350/250_U (OM53C50U)

455
When trouble arises8
IS350/250_U (OM53C50U)
8-1. Essential informationEmergency flashers .................. 456
If your vehicle has to be stopped in an
emergency................................. 457
8-2. Steps to take in an emergency
If your vehicle needs to be towed ...........................................458
If you think something is wrong ........................................... 464
Fuel pump shut off system ...... 465
If a warning light turns on or a warning buzzer
sounds.......................................... 466
If a warning message is displayed......................................472
If you have a flat tire...................486
If the engine will not start ........ 496
If the shift lever cannot be shifted from P............................ 498
If the electronic key does not operate properly ............. 499
If the vehicle battery is discharged .................................502
If your vehicle overheats .........506
If the vehicle becomes stuck .............................................509

456
IS350/250_U (OM53C50U)8-1. Essential information

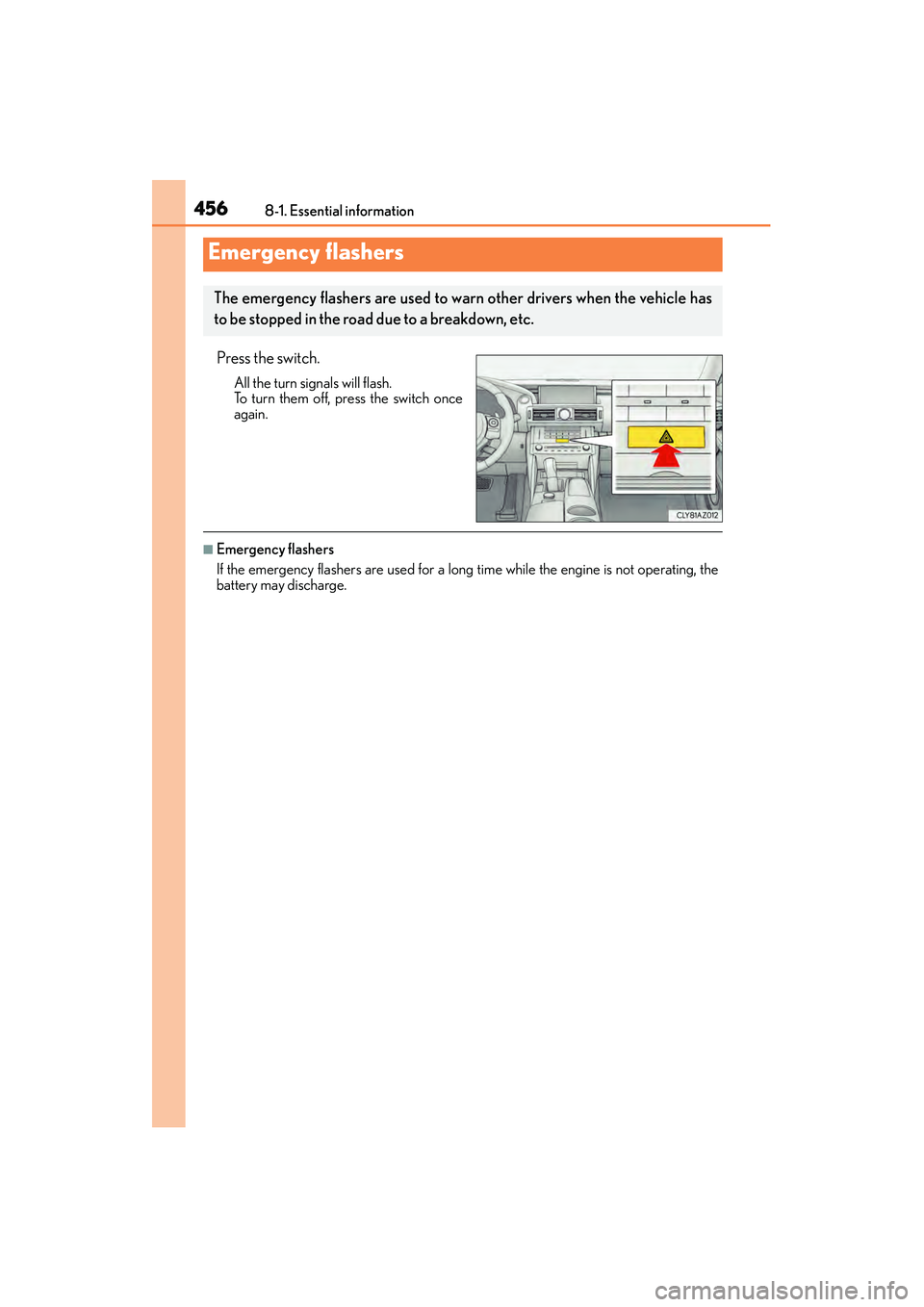

Press the switch.
All the turn signals will flash.
To turn them off, press the switch once
again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not operating, the
battery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.

4578-1. Essential information
8
When trouble arises
IS350/250_U (OM53C50U)
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to
slow the vehicle.
Shift the shift lever to N.
XIf the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
XIf the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as
much as possible.
To stop the engine, press and hold
the engine switch for 2 consecutive
seconds or more, or press it briefly 3
times or more in succession.
Stop the vehicle in a safe place by the road.

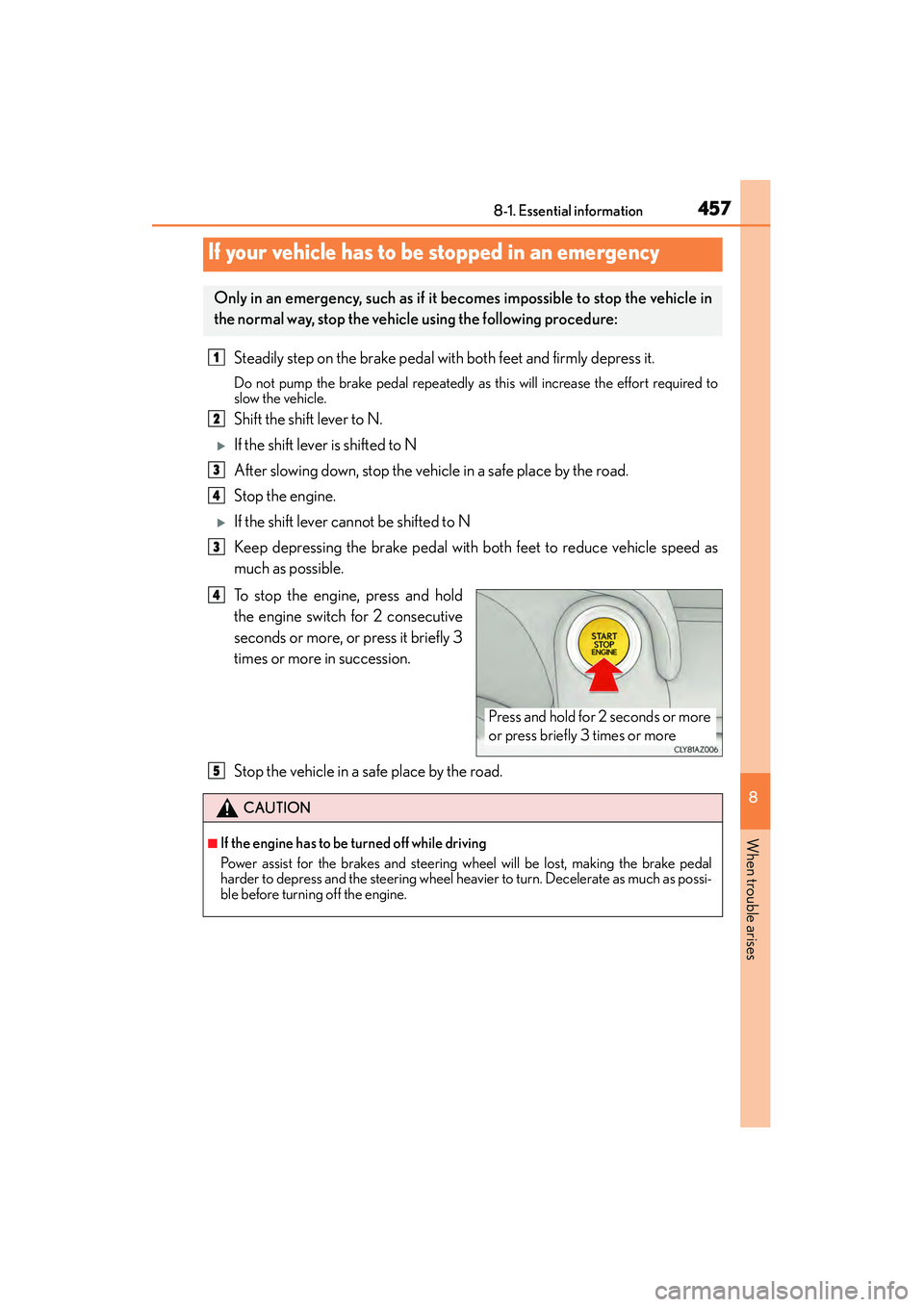

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the vehicle in
the normal way, stop the vehicle using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more
or press briefly 3 times or more
4
CAUTION
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lo st, making the brake pedal
harder to depress and the steering wheel heavier to turn. Decelerate as much as possi-
ble before turning off the engine.
5

458
IS350/250_U (OM53C50U)8-2. Steps to take in an emergency
The following may indicate a problem with your transmission. Contact your
Lexus dealer or commercial towing service before towing.
●The engine is running but the vehicle will not move.
●The vehicle makes an abnormal sound.
If your vehicle needs to be towed
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or commercial towing servic
e, using a lift-type truck or flatbed
truck.
Use a safety chain system for all towing , and abide by all state/provincial and
local laws.
Situations needs to contact dealers before towing

4598-2. Steps to take in an emergency
8
When trouble arises
IS350/250_U (OM53C50U)
Do not tow with a sling-type truck to
prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
XFrom the frontXFrom the rear
Use a towing dolly under the rear
wheels. Use a towing dolly under the front
wheels.
