1524-1. Before driving
IS350/250_U (OM53C50U)
NOTICE
■When driving the vehicle
●Do not depress the accelerator and brake pedals at the same time during driving, as
this may restrain driving torque.
●Do not use the accelerator pedal or depress the accelerator and brake pedals at the
same time to hold the vehicle on a hill.
■When parking the vehicle
Always shift the shift lever to P. Failure to do so may cause the vehicle to move or the
vehicle may accelerate suddenly if the accelerator pedal is accidentally depressed.
■Avoiding damage to vehicle parts
●Do not turn the steering wheel fully in either direction and hold it there for an
extended period of time.
Doing so may damage the power steering motor.
●When driving over bumps in the road, drive as slowly as possible to avoid damaging
the wheels, underside of the vehicle, etc.
■If you get a flat tire while driving
A flat or damaged tire may cause the follo wing situations. Hold the steering wheel
firmly and gradually depress the brake pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds or vibrations.
●The vehicle will lean abnormally.
Information on what to do in case of a flat tire ( →P. 4 8 6 )
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause the
following serious damage to the vehicle:
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to have
your Lexus dealer check the following:
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, transmission,
transfer (AWD models), differential, etc.
●Lubricant condition for the propeller shaft, bearings and suspension joints (where
possible), and the function of all joints, bearings, etc.

5179-1. Specifications
9
Vehicle specifications
IS350/250_U (OM53C50U)
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Lexus dealer.
Your Lexus vehicle is filled with “Toyota Genu ine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of match-
ing quality to satisfy the above specification. Please contact your Lexus dealer for further
details.
Automatic transmission
IS250IS350
Fluid capacity*2WD7.9 qt. (7.5 L, 6.6 Imp. qt.)10.0 qt. (9.5 L, 8.4 Imp. qt.)
AW D9.9 qt. (9.4 L, 8.3 Imp. qt.)10.6 qt. (10.0 L, 8.8 Imp. qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transm ission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.
Front differential (AWD models)
Oil capacity 0.74 qt. (0.70 L, 0.61 Imp. qt.)
Oil type and viscosityHypoid gear oil API GL-5
Above 0°F (-18 °C): SAE90
Below 0 °F (-18° C): SAE80W or SAE80W-90
Rear differential
Oil capacityIS2501.20 qt. (1.15 L, 1.01 Imp. qt.)
IS3501.42 qt. (1.35 L, 1.19 Imp. qt.)
Oil type and viscosityToyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

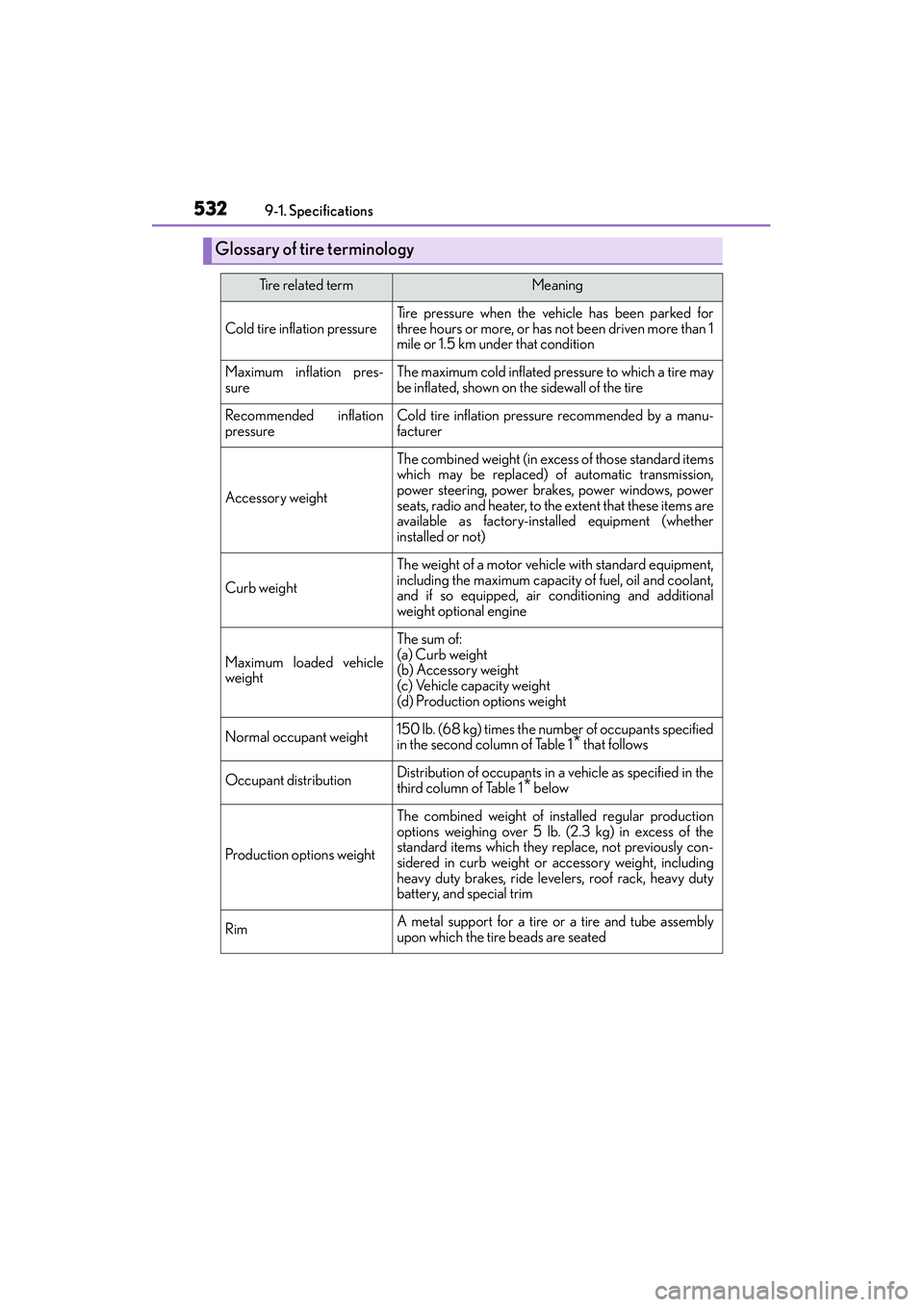

5329-1. Specifications
IS350/250_U (OM53C50U)
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more than 1
mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire may
be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a manu-
facturer
Accessory weight
The combined weight (in excess of those standard items
which may be replaced) of automatic transmission,
power steering, power brakes, power windows, power
seats, radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equipment,
including the maximum capacity of fuel, oil and coolant,
and if so equipped, air conditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants specified
in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in the
third column of Table 1
* below
Production options weight
The combined weight of in stalled regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously con-
sidered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated

570Alphabetical index
IS350/250_U (OM53C50U)
Emergency flashers ............................. 456
Engine .........................................................514ACCESSORY mode....................... 160
Compartment ....................................... 413
Engine switch ........................................ 159
Hood ........................................................... 411
How to start the engine ................... 159
Identification number ........................ 513
If the engine will not start............... 496
Ignition switch (engine switch)..... 159
Overheating ........................................ 506
Engine coolant......................................... 417
Capacity .................................................. 516
Checking..................................................417
Preparing and checking before winter ................................... 260
Engine coolant temperature gauge ..........................................................81
Engine immobilizer system ................. 69
Engine oil ...................................................414 Capacity .................................................. 514
Checking................................................. 414
Preparing and checking before winter ................................... 260
Engine switch .......................................... 159
Enhanced VSC ..................................... 240
EPS (Electronic Power Steering) ..........241
Function ....................................................241
Warning light ....................................... 467
Event data recorder (EDR) ...................10 First-aid kit storage belt......................374
Flat tire ...................................................... 486
Floor mats....................................................26
Fluid
Automatic transmission.................... 517
Brake......................................................... 518
Washer ................................................... 422
Fog lights..................................................... 181 Replacing light bulbs ....................... 452
Switch ......................................................... 181
Wattage ...................................................521
Footwell light .......................................... 368 Wattage ...................................................521
Front passenger occupant classification system ............................ 47
Front personal lights ........................... 369 Wattage ...................................................521
Front seats................................................. 120 Adjustment..............................................120
Cleaning................................................. 399
Correct driving posture .................... 28
Driving position memory................. 123
Head restraints .....................................128
Power easy access system ............. 123
Seat heaters .......................................... 367
Seat position memory ....................... 123
Seat ventilators.................................... 367F
