rear view mirror Lexus IS250 2015 TIPS FOR THE NAVIGATION SYSTEM / LEXUS 2015 IS250/350 (OM53C50U) Owner's Manual

3596-1. Using the air conditioning system
6
Interior features
IS350/250_U (OM53C50U)
■Fan speed setting
Press to increase the fan speed.
Press to decrease the fan speed.
■Change the airflow mode
To change the airflow, press .
The air outlets used are switched each time the button is pressed.
■Other functions
●Switching between outside air and recirculated air modes (P. 3 6 1 )
●Defogging the windshield ( P. 3 6 2 )
●Defogging the rear window and outside rear view mirrors ( P. 3 6 2 )
With a Lexus Display Audio
Adjust the left-hand side temper-
ature setting.
Adjust the fan speed setting
Select to set auto mode on/off, fan
off and displaying the option con-
trol screen ( P. 3 6 0 )
Select the air flow mode
Adjust the right-hand side temperature setting
Move the Lexus Display Audio controller left/right to select the desired item
( to ).
When , or is selected:
Move the controller forward/backward or turn it left/right for adjusting.
When or is selected:
Move the controller forward/backward or turn it left/right to select a screen
button, then press the controller.
Air conditioning control screen
1
2
3
4
5
1
15
2125
34

3626-1. Using the air conditioning system
IS350/250_U (OM53C50U)
■Defogging the windshield
Defoggers are used to defog the windshield and front side windows.
Press .
Set the outside/recirculated air mode button to outside air mode if the recirculated
air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and tempera-
ture up.
To return to the previous mode, press
again when the windshield is
defogged.
■Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window, and to remove raindrops, dew
and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
■Windshield wiper de-icer (if equipped)
This feature is used to prevent ice fr om building up on the windshield and
wiper blades.
Tu r n s o n /o f f .
The indicator comes on when the
windshield wiper de-icer is on.
The windshield de-icer will automati-
cally turn off after a period of time.

3656-1. Using the air conditioning system
6
Interior features
IS350/250_U (OM53C50U)
■When the outside temperature falls to nearly 32F (0 C)
The dehumidification function may not operate even when is pressed or “A/C” is
selected.
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditio ning system to the outside air mode.
●During use, various odors from inside and outside the vehicle may enter into and accu-
mulate in the air conditioning system. This may then cause odor to be emitted from the
vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air mode prior to turning the vehicle off.
• The start timing of the blower may be dela yed for a short period of time immediately
after the air conditioning system is started in automatic mode.
■Air conditioning filter
 P. 4 3 7
■Customization
Settings (e.g. A/C Auto switch operation) can be changed.
(Customizable features P. 5 4 3 )
CAUTION
■To prevent the windshield from fogging up
●Do not use during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can cause
the outer surface of the windshield to fog up, blocking your vision.
■To prevent burns
●Do not touch the rear view mirror surfaces when the outside rear view mirror defog-
gers are on.
●Do not touch the glass at lower part of the wi ndshield or to the side of the front pillars
when the windshield wiper de-icer is on.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the engine is
stopped.
●Do not place anything on the instrument
panel which may cover th e air outlets. Other-
wise, air flow may be obstructed, preventing
the windshield defoggers from defogging.

3876-4. Using the other interior features
6
Interior features
IS350/250_U (OM53C50U)

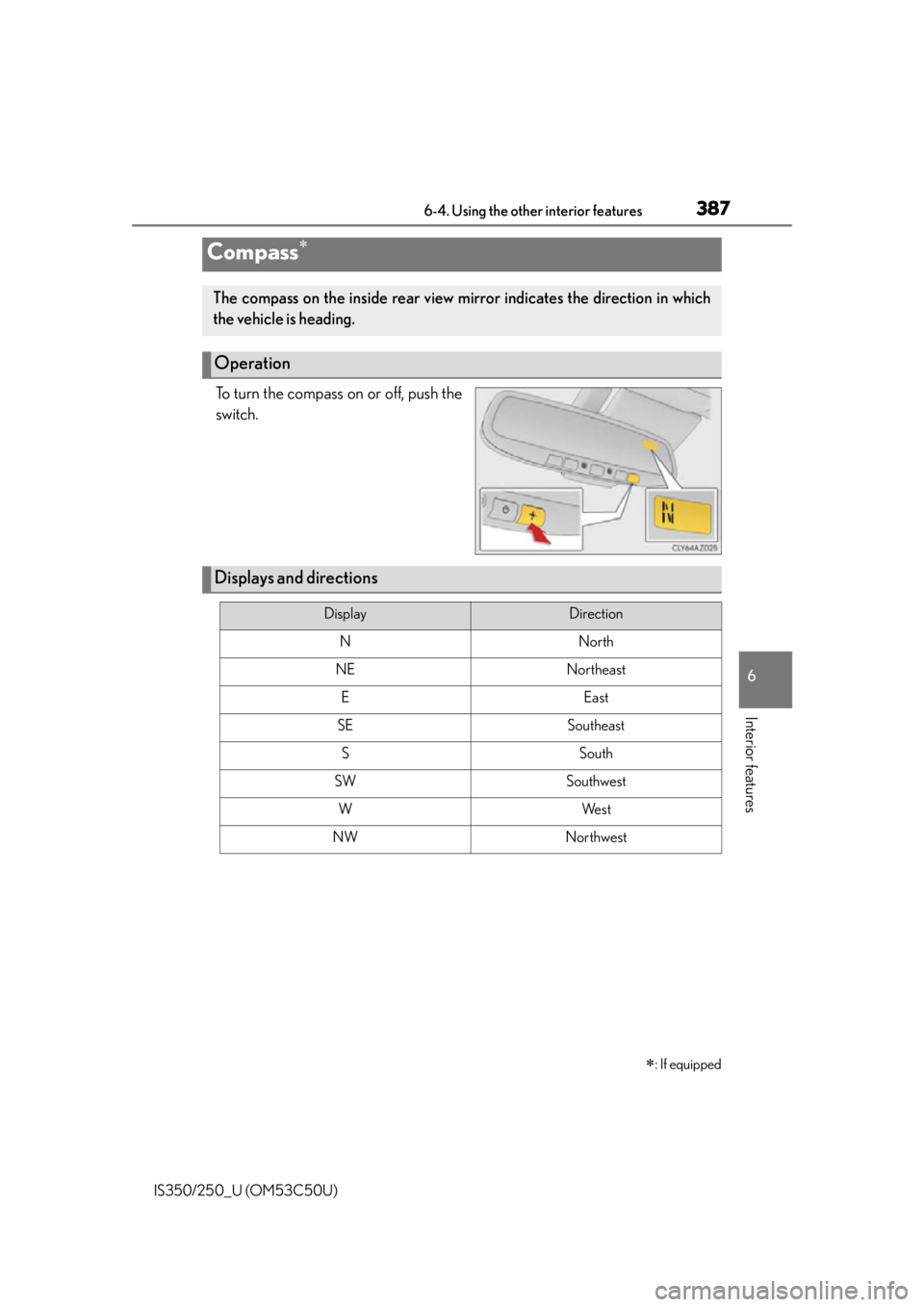

To turn the compass on or off, push the
switch.
Compass
: If equipped
The compass on the inside rear view mirror indicates the direction in which
the vehicle is heading.
Operation
Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWe s t
NWNorthwest

3896-4. Using the other interior features
6
Interior features
IS350/250_U (OM53C50U)
■Circling calibration
When “C” appears on the display,
drive the vehicle at 5 mph (8 km/h)
or less in a circle until a direction is
displayed.
If there is not enough space to drive
in a circle, drive around the block
until the direction is displayed.
■Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth's magnetic field is subject to interference by
artificial magnetic fields (underground car park/parking lot, under a steel tower,
between buildings, roof car park/parking lot, near an intersection, near a large vehicle,
etc.).
●The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
●The battery has been disconnected.
●A door is open.
CAUTION
■While driving the vehicle
Do not adjust the display. Adjust the di splay only when the vehicle is stopped.
■When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the neighborhood. Do
not violate any local traffic rules while performing circling calibration.
NOTICE
■To avoid compass malfunctions
Do not place magnets or any metal object s near the inside rear view mirror.
Doing this may cause the compass sensor to malfunction.
■To ensure normal operation of the compass
●Do not perform circling calibration of th e compass in a place where the earth's mag-
netic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate electric systems (moon roof, power windows, etc.)
as they may interfere with the calibration.

568Alphabetical index
IS350/250_U (OM53C50U)
Daytime running light system ............ 174
DefoggerFront windshield .................................362
Outside rear view mirrors .............362
Rear window ........................................362
Differential Front differential ................................... 517
Rear differential .................................... 517
Dimension .................................................512
Dinghy towing......................................... 158
Display Drive information .................................. 87
Dynamic radar cruise control....... 196
LDA (Lane Departure Alert) ...... 209
Multi-information display ..................86
Warning message ............................. 472
Distance ...................................................... 88
Do-it-yourself maintenance ............. 409
Door courtesy lights Location ................................................. 368
Wattage ................................................... 521 Doors ..........................................................103
Automatic door locking and unlocking system ................... 106
Door glasses ......................................... 138
Door lock................................................ 105
Open door warning buzzer ..........104
Open door warning light .............. 467
Outside rear view mirrors ..............135
Rear door child-protector ............. 106
Drive information .....................................87
Drive info 1/Drive info 2 ....................... 88
Driver’s seat position memory.......... 123
Driving ........................................................ 146 Break-in tips ........................................... 147
Correct driving posture .................... 28
Driving mode select switch ...........237
Procedures .............................................146
Winter drive tips ................................ 260
Dynamic radar cruise control ........... 196
D

571Alphabetical index
IS350/250_U (OM53C50U)
Front turn signal lights ..........................170Replacing light bulbs ........... 446, 448
Turn signal lever .................................. 170
Wattage ................................................... 521
Fuel .............................................................. 188 Capacity .................................................. 514
Fuel gauge ................................................. 81
Fuel pump shut off system............ 465
Information ............................................ 522
Refueling..................................................188
Type ................................................ 188, 514
Warning light ....................................... 467
Fuel consumption Average fuel economy ...................... 87
Current fuel consumption ................ 87
Fuel filler door ......................................... 188 If the fuel filler door cannot be opened .......................... 190
Refueling..................................................188
Fuel gauge ....................................................81
Fuel pump shut off system................. 465
Fuses ............................................................441
Garage door opener .......................... 382
Gauges ..........................................................81
Gear positions ........................................ 168
Glove box .................................................. 371
Glove box light ........................................ 371 Hands-free system
(for cellular phone)............................. 319
HD Radio
® system .............................. 289
Head restraints........................................ 128
Headlights ................................................. 173 Discharge headlights precautions ....................................... 453
Light switch............................................. 173
Replacing light bulbs ....................... 452
Wattage ................................................... 521
Headlights cleaner ................................ 182
Heaters Air conditioning system .................358
Heated steering wheel ................... 366
Outside rear view mirrors ............ 362
Seat heaters .......................................... 367
Hill-start assist control ....................... 240
Hood .............................................................411 Open ...........................................................411
Hooks Cargo hooks ....................................... 374
Coat hooks ............................................ 381
Retaining hooks (floor mat)............. 26
Horn............................................................. 132
G
H

572Alphabetical index
IS350/250_U (OM53C50U)
I/M test .....................................................408
IdentificationEngine ....................................................... 513
Vehicle ..................................................... 513
Ignition switch (engine switch)......... 159
Illuminated entry system .................... 369
Immobilizer system................................. 69
Indicators .................................................... 78
Initialization Maintenance........................................ 403
Moon roof .............................................. 143
Multi-information display ................. 88
Power windows ................................... 139
Tire pressure warning system................................ 424
Initiators (tire pressure warning system)................................. 430
Inside door handle lights ................... 368
Inside rear view mirror .........................133
Instrument panel light control ............ 84
Interior lights........................................... 369 Wattage ................................................... 521
Intuitive parking assist........................... 214
Jack Positioning a floor jack ......................412
Vehicle-equipped jack ...................487
Jack handle ..................................................487
Jam protection function Moon roof ...............................................142
Power windows ................................... 139 Keyless entry
Smart access system with push-button start.........103, 109
Wireless remote control.......103, 109
Keys .............................................................. 98 Battery-saving function ..................... 115
Electronic key ......................................... 98
Engine switch ........................................159
If the electronic key does not operate properly ........ 499
Key number plate ................................. 98
Keyless entry ........................................... 98
Mechanical key...................................... 99
Replacing the battery ...................... 439
Warning buzzer...................................104
Wireless remote control................... 98
Knee airbags ..............................................36
I
J
K

574Alphabetical index
IS350/250_U (OM53C50U)
MaintenanceDo-it-yourself maintenance......... 409
General maintenance .................... 405
Maintenance data ............................... 512
Maintenance requirements...........402
Maintenance system ..............................88
Malfunction indicator lamp .............. 466
Master warning light ........................... 467
Meter Changing the display..........................83
Indicators................................................... 78
Instrument panel light control .........84
Meters.......................................................... 81
Multi-information display ..................86
Warning lights ........................................ 77
Micro dust and pollen filter ................361
Mirrors Inside rear view mirror ..................... 133
Outside rear view mirror defoggers ...........................................362
Outside rear view mirrors .............. 135
Vanity mirrors ...................................... 377 MMS (Multimedia messaging
service)................................................... 327
Mobile Assistant .................................... 272
Moon roof ...................................................141 Door lock linked moon roof operation...................... 142
Jam protection function.................... 142
Operation..................................................141
MP3 disc ................................................. 295
Multi-information display..................... 86 Audio system-linked ........................... 86
Drive information.................................. 87
Dynamic radar cruise control .......196
LDA (Lane Departure Alert).......209
Navigation system-linked ................ 86
Settings ......................................................88
Switching the display .......................... 87
Warning message..............................472
Navigation system
*
Needle ......................................................... 88
Noise from under vehicle ........................8
M
N

575Alphabetical index
IS350/250_U (OM53C50U)
Odometer ....................................................81
OilEngine oil................................................. 514
Front differential oil............................. 517
Rear differential oil .............................. 517
Opener Hood ........................................................... 411
Trunk ......................................................... 109
Outer foot lights Location ................................................. 368
Replacing light bulbs ........................452
Wattage ................................................... 521
Outside rear view mirrors ................. 135 Adjusting and folding........................ 135
Blind spot monitor............................. 252
Linked mirror function when reversing ................................. 136
Mirror position memory ...................123
Outside rear view mirror defoggers ............................362
Outside temperature...............................81
Overheating, Engine .......................... 506 Paddle shift switches............................. 166
Parking assist sensors
(intuitive parking assist).................... 214
Parking brake .......................................... 172
Parking lights ........................................... 173 Light switch............................................. 173
Replacing light bulbs ....................... 452
PCS (Pre-Collision System).............246 Function .................................................. 246
PCS OFF switch .................................247
Warning light ....................................... 467
Personal lights ....................................... 369 Wattage ................................................... 521
Pop-up display ......................................... 88
Power easy access system ................. 123
Power outlet ........................................... 378
Power steering (Electric power steering system) .................................. 241 Warning light ....................................... 467
Power windows.......................................138 Door lock linked window operation ...........................140
Jam protection function....................139
Operation............................................... 138
Window lock switch ......................... 138
Pre-Collision System (PCS).............246 Function .................................................. 246
PCS OFF switch .................................247
Warning light ....................................... 467
OP
*: For vehicles with a navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL”.
