5038-2. Steps to take in an emergency
8
When trouble arises
IS350/250_U (OM53C50U)
Connect the jumper cables according to the following procedure:Connect a positive jumper cable clamp to the positive (+) battery terminal
on your vehicle.
Connect the clamp on the other end of the positive cable to the positive (+)
battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery terminal on the
second vehicle.
Connect the clamp at the other end of the negative cable to a solid, station-
ary, unpainted metallic point away from the battery and any moving parts,
as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximately 5 minutes to recharge the battery of
your vehicle.
Open and close any of the doors of your vehicle with the engine switch off.
Maintain the engine speed of the second vehicle and start the engine of your
vehicle by turning the engine switch to IGNITION ON mode.
Once the vehicle’s engine has started, remove the jumper cables in the exact
reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at your Lexus dealer as soon
as possible.3
1
2
3
4
4
5
6
7
Page 504 of 584

5048-2. Steps to take in an emergency
IS350/250_U (OM53C50U)
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period, such as in heavy traffic.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle is not
in use, due to natural discharge and the draining effects of certain electrical appliances. If
the vehicle is left for a long time, the battery may discharge, and the engine may be
unable to start. (The battery recharges automatically during driving.)
■When recharging or replacing the battery
●Make sure that the key is not inside the vehicle when recharging or replacing the bat-
tery. The key may be locked in the vehicle if the alarm is activated. ( P. 7 2 )
●In some cases, it may not be possible to unlock the doors using the smart access system
with push-button start when the battery is discharged. Use the wireless remote control
or the mechanical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but will
start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was discharged.
Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery discharged, be
especially careful when reconnecting the battery.

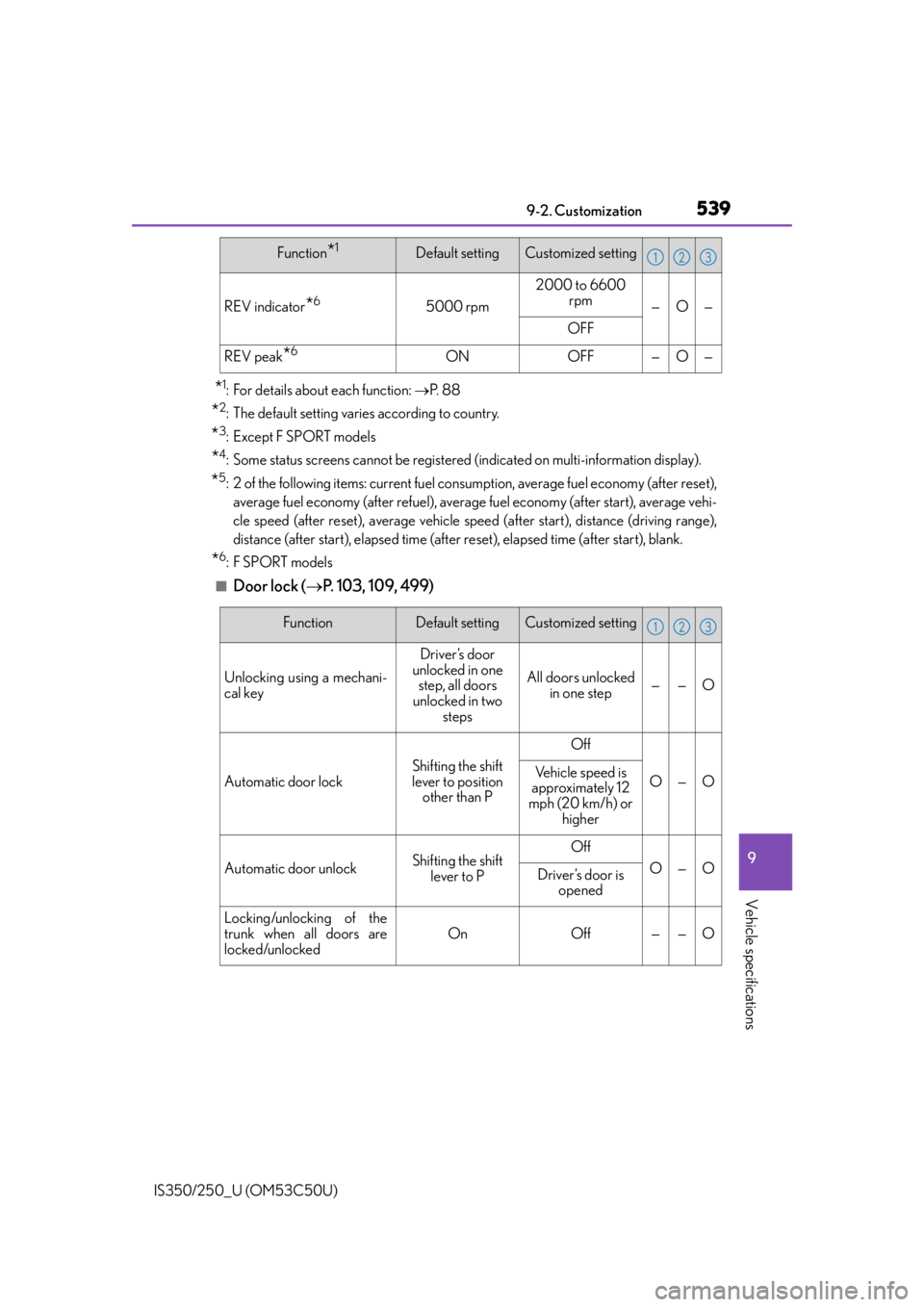

Page 539 of 584

5399-2. Customization
9
Vehicle specifications
IS350/250_U (OM53C50U)
*1: For details about each function: P. 8 8
*2: The default setting varies according to country.
*3:Except F SPORT models
*4: Some status screens cannot be registered (indicated on multi-information display).
*5: 2 of the following items: current fuel consumption, average fuel economy (after reset),
average fuel economy (after refuel), average fuel economy (after start), average vehi-
cle speed (after reset), average vehicle speed (after start), distance (driving range),
distance (after start), elapsed time (after reset), elapsed time (after start), blank.
*6:F SPORT models
■Door lock ( P. 103, 109, 499)
REV indicator*65000 rpm
2000 to 6600
rpm
—O—
OFF
REV peak*6ONOFF—O—
Function*1Default settingCustomized setting123
FunctionDefault settingCustomized setting
Unlocking using a mechani-
cal key
Driver’s door
unlocked in one step, all doors
unlocked in two
steps
All doors unlocked in one step——O
Automatic door lock
Shifting the shift
lever to position other than P
Off
O—OVehicle speed is
approximately 12
mph (20 km/h) or
higher
Automatic door unlockShifting the shift lever to POff
O—ODriver’s door is opened
Locking/unlocking of the
trunk when all doors are
locked/unlockedOnOff——O
123
Page 540 of 584

5409-2. Customization
IS350/250_U (OM53C50U)
■Smart access system with push-button start and wireless remote control
( P. 103, 109)
■Smart access system with push-button start ( P. 103, 109, 114)
■Wireless remote control ( P. 98, 103, 109)
FunctionDefault settingCustomized setting
Operation buzzer volume5OffO—O1 to 7
Operation signal (Emer-
gency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
Off
O—O30 seconds
120 seconds
Open door warning buzzerOnOff——O
123
FunctionDefault settingCustomized setting
Smart access system with
push-button startOnOff——O
Smart door unlockingDriver’s doorAll the doorsO—O
Number of consecutive
door lock operations2 timesAs many as desired——O
123
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
Driver’s door
unlocked in one step, all doors
unlocked in two
steps
All doors unlocked in one stepO—O
Trunk unlocking operationPress and hold (short)
One short press
——O
Push twice
Press and hold (long)
Off
Alarm (panic mode)OnOff——O
123
Page 565 of 584

565Alphabetical index
IS350/250_U (OM53C50U)
Alarm .............................................................. 71
Anchor brackets ...................................... 58
Antennas (smart access system with push-button start) ....................... 114
Anti-lock Brake System (ABS)....... 240 Function ..................................................240
Warning light ...................................... 466
Approach warning (dynamic radar cruise control) ......................... 201
Armrest .................................................... 379
Assist grip ................................................. 381
Audio input...............................................274
Audio system.......................................... 266 Audio input............................................ 274
AUX port/USB port........................ 274
Bluetooth
® audio.................................317
CD player ..............................................295
iPod ............................................................ 301
MP3/WMA/AAC disc .................295
Optimal use ..........................................282
Portable music player ..................... 308
Radio ....................................................... 289
Steering wheel audio switch .......... 271
USB memory ...................................... 304 Automatic headlight leveling
system ...................................................... 174 Warning light ....................................... 467
Automatic High Beam ......................... 176
Automatic light control system ...................................................... 173
Automatic transmission....................... 164 If the shift lever cannot be shifted from P ............498
M mode .................................................... 167
Paddle shift switches..........................166
AUX port ................................................. 274
Average fuel economy ..........................87
Average vehicle speed..........................87
Page 569 of 584

569Alphabetical index
IS350/250_U (OM53C50U)
E-mail......................................................... 327
Eco drive mode ..................................... 237
Eco Driving Indicator............................. 90
Eco Driving Indicator Light ................. 88
EDR (Event data recorder) ...................10
Elapsed time .............................................. 87
Electric Power Steering (EPS) .........241Function ....................................................241
Warning light ....................................... 467
Electronic key ........................................... 98 Battery-saving function ...................... 115
If the electronic key does not operate properly............................ 499
Replacing the battery .......................439 Emergency, in case of
If the electronic key does not operate properly ........ 499
If the engine will not start ............... 496
If the shift lever cannot be shifted from P ............498
If the vehicle battery is discharged.........................................502
If the warning buzzer sounds ................................................. 466
If the warning light turns on .......... 466
If the warning message is displayed .........................................472
If you have a flat tire ..........................486
If you think something is wrong .............................................. 464
If your vehicle becomes stuck..................................................... 509
If your vehicle has to be stopped in an emergency.......... 457
If your vehicle needs to be towed .......................................458
If your vehicle overheats ............... 506
E
Page 570 of 584

570Alphabetical index
IS350/250_U (OM53C50U)
Emergency flashers ............................. 456
Engine .........................................................514ACCESSORY mode....................... 160
Compartment....................................... 413
Engine switch ........................................ 159
Hood ........................................................... 411
How to start the engine ................... 159
Identification number ........................ 513
If the engine will not start............... 496
Ignition switch (engine switch)..... 159
Overheating ........................................ 506
Engine coolant......................................... 417 Capacity .................................................. 516
Checking..................................................417
Preparing and checking before winter ................................... 260
Engine coolant temperature gauge ..........................................................81
Engine immobilizer system ................. 69
Engine oil ...................................................414 Capacity .................................................. 514
Checking................................................. 414
Preparing and checking before winter ................................... 260
Engine switch .......................................... 159
Enhanced VSC ..................................... 240
EPS (Electronic Power Steering) ..........241 Function ....................................................241
Warning light ....................................... 467
Event data recorder (EDR) ...................10 First-aid kit storage belt......................374
Flat tire ...................................................... 486
Floor mats....................................................26
Fluid
Automatic transmission .................... 517
Brake......................................................... 518
Washer ................................................... 422
Fog lights..................................................... 181 Replacing light bulbs ....................... 452
Switch ......................................................... 181
Wattage ................................................... 521
Footwell light .......................................... 368 Wattage ................................................... 521
Front passenger occupant classification system ............................ 47
Front personal lights ........................... 369 Wattage ................................................... 521
Front seats ................................................. 120 Adjustment..............................................120
Cleaning................................................. 399
Correct driving posture .................... 28
Driving position memory................. 123
Head restraints .....................................128
Power easy access system ............. 123
Seat heaters .......................................... 367
Seat position memory ....................... 123
Seat ventilators.................................... 367F
Page 578 of 584

578Alphabetical index
IS350/250_U (OM53C50U)
Shift lever ...................................................164Automatic transmission ................... 164
If the shift lever cannot be shifted from P ........... 498
Shift lock system.................................... 498
Shift position and gear position ...........81
Side airbags ............................................... 37
Side marker lights................................... 173 Light switch .............................................173
Replacing light bulbs ........................452
Side mirrors ............................................. 135 Adjusting and folding........................ 135
BSM (Blind Spot Monitor)............ 252
Linked mirror function when reversing ................................. 136
Mirror position memory ...................123
Side turn signal lights ............................170 Replacing light bulbs ........................452
Turn signal lever .................................. 170
Slip indicator........................................... 467
Smart access system with push-button start ........................ 114 Antenna location ................................... 114
Entry functions ........................... 103, 109
Starting the engine ............................. 159 SMS (Short message service) .........327
Snow mode............................................... 165
Snow tires .................................................262
Spare tire ................................................. 486
Inflation pressure..................................519
Storage location ................................. 487
Spark plug ................................................. 516
Specifications........................................... 512
Speedometer .............................................. 81
Speed indicator........................................ 88
Steering lock ............................................. 161 Column lock release .......................... 161
Steering wheel ......................................... 131 Adjustment................................................131
Audio switches ..................................... 271
Heated steering wheel ................... 366
Power easy access system ............. 123
Steering wheel position memory .............................. 123
Stop lights Replacing light bulbs ....................... 452
Storage feature ..................................... 370
Stuck If the vehicle becomes stuck....... 509
Sun visors.................................................. 377
