LEXUS IS250 2016 Owners Manual

151
2-2. Instrument cluster
2

When driving
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data, including the current outside air temperature.
lTrip information (→P. 152)
Displays driving range, fuel con-
sumption and other cruising
related information.
lSatellite switch mode display
(→P. 260)
This switch is used to configure
various function settings.
lIntuitive parking assist dis-
play (if equipped) (→P. 180)
Automatically displayed when
using intuitive parking assist.
lDynamic radar cruise con-
trol display (if equipped)
(→P. 170)
Automatically displayed when
using dynamic radar cruise con-
trol.
lWarning messages
(→P. 392)
Automatically displayed when a
malfunction occurs in one of the
vehicle’s systems.

152
2-2. Instrument cluster
Trip information
Without navigation system
Display items can be switched by
pushing the “DISP” switch.
With navigation system
nOutside temperature
Displays the outside air temperature.
The temperature range that can be displayed is from
-40°F (40°C) to 122°F (50°C).
When the temperature drops to 37°F (3°C), the dig-
its of the display will flash for 10 seconds.

153
2-2. Instrument cluster
2

When driving
nDriving range
nAverage fuel consumption
nAverage fuel consumption after refueling
nCurrent fuel consumption
nAverage vehicle speed
Displays the estimated maximum distance that can
be driven with the quantity of fuel remaining.

154
2-2. Instrument cluster
nGear position display
(vehicles with an automatic transmission only)
Indicates the current gear, and the range of gears
that is available when the shift lever is in the D or S
position. the gear range is shown by the number of
dots (•) and the current gear is shown as a number.
The transmission automatically selects the gears
within the driver selected gear range.
In the illustration to the left, a range of 6 available gears
(1 through 6) has been selected by the driver. (The shift
lever is in the D or S position with 6 ranges enabled) It is
possible for the transmission to automatically select
between all 6 of the gears. In this case, the transmission
has selected third gear.
nSystem check display
After switching the “ENGINE START STOP” switch to IGNITION ON mode,
“CHECK” is displayed while system operation is checked. When the system check
is complete, “COMPLETED” is displayed before returning to the normal screen.
nOutside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
lWhen stopped, or driving at low speeds (less than 12 mph [20 km/h])
lWhen the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)

155
2-2. Instrument cluster
2

When driving
CAUTION
nThe information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver's shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in personal
death or injury.

156
2-3. Operating the lights and windshield wipers
Headlight switch
Turning on the high beam headlights
With the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You can
flash the high beams with the head-
lights on or off.
The headlights can be operated manually or automatically.
The side marker, parking,
tail, license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
The headlights, parking
lights and other lights
turn on and off automati-
cally.
(When the “ENGINE
START STOP” switch is
in IGNITION ON
mode)
U.S.A.CANADA

157
2-3. Operating the lights and windshield wipers
2

When driving
AFS (vehicles with discharge headlights)
AFS (Adaptive Front-lighting System) improves visibility at intersections
and on curves by automatically adjusting the level of the headlights
according to vehicle speed and the degree of the tire angle that are con-
trolled by steering input.
Operates at speeds of 6 mph (10 km/h) or higher.
nDeactivating AFS
How to switch: →P. 2 6 0
“AFS OFF” turns on when the AFS is deactivated.
nDaytime running light system
To make your vehicle more visible to other drivers, the headlights turn on automati-
cally (at a reduced intensity) whenever the engine is started and the parking brake
is released. Daytime running lights are not designed for use at night.
nHeadlight control sensor
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.

158
2-3. Operating the lights and windshield wipers
nAutomatic light off system
lWhen the headlights comes on: The headlights and tail lights turn off 30 sec-
onds after a door is opened and closed if the “ENGINE START STOP” switch
has been switched to ACCESSORY mode or turned OFF. (The light turns off
immediately if on the key is pressed after all doors are locked.)
lWhen only the tail lights come on: The tail lights turn off automatically if the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF and driver’s door is opened.
To turn the lights on again, switch to IGNITION ON mode, or turn the light switch
off once and then back to or .
nAutomatic headlight leveling system (vehicles with discharge headlights)
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
nIf “AFS OFF” flashes... (vehicles with discharge headlights)
It may indicate a malfunction in the system. Contact your Lexus dealer.
nCustomization that can be configured at Lexus dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 4 6 1 )
NOTICE
nTo prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.

159
2-3. Operating the lights and windshield wipers
2

When driving

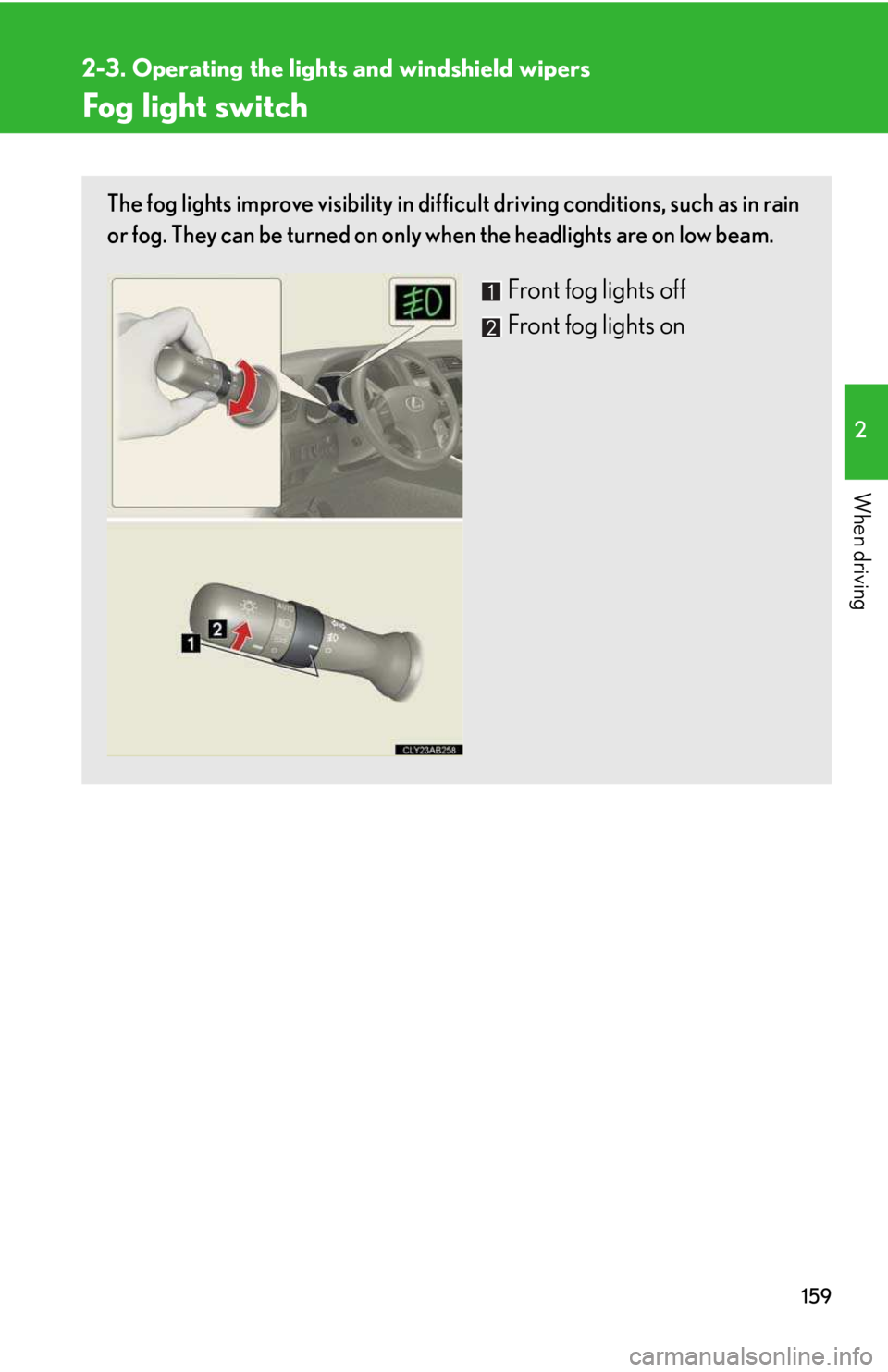

Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain
or fog. They can be turned on only when the headlights are on low beam.
Front fog lights off
Front fog lights on

160
2-3. Operating the lights and windshield wipers

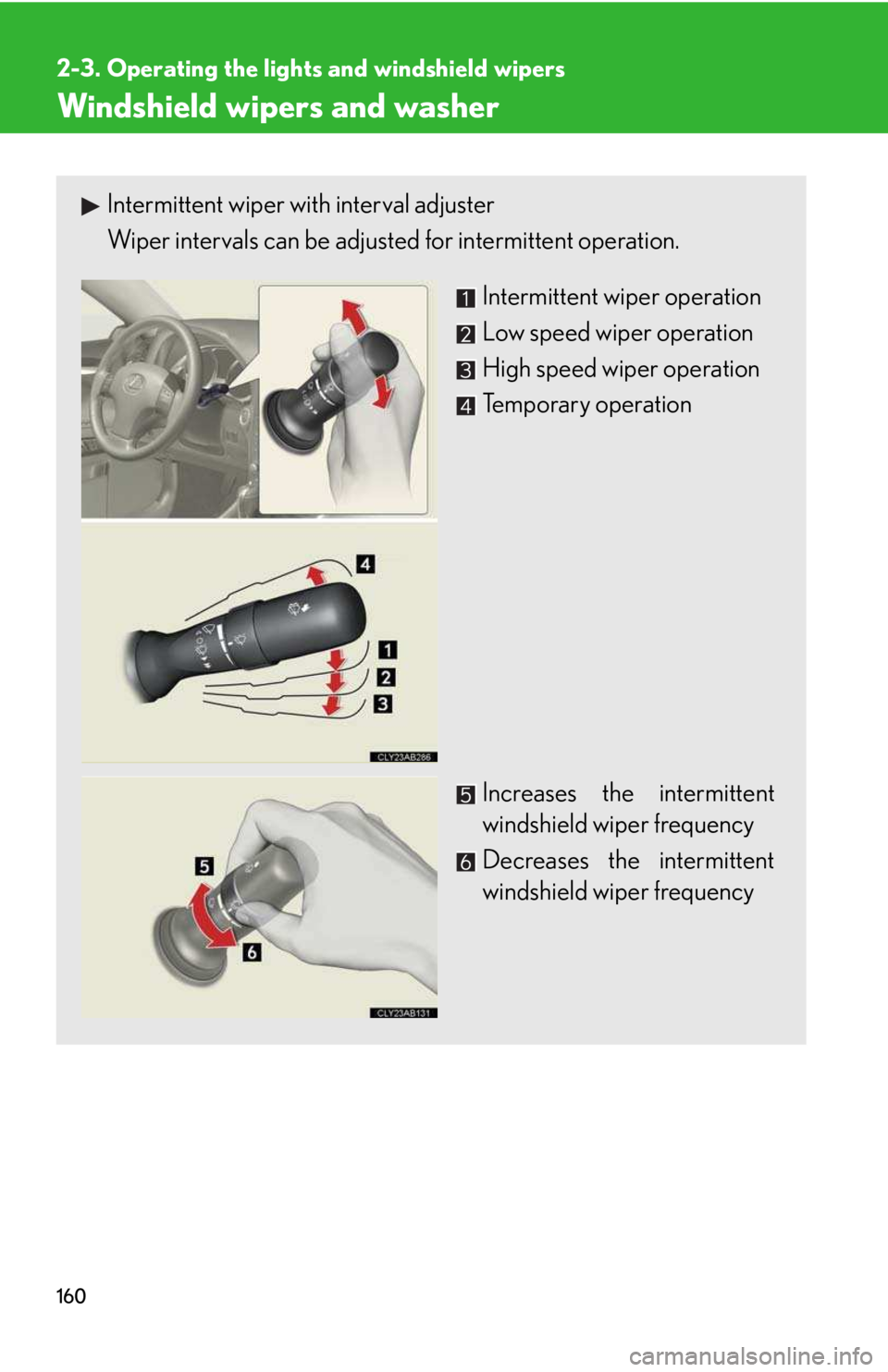

Windshield wipers and washer
Intermittent wiper with interval adjuster
Wiper intervals can be adjusted for intermittent operation.
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
