498
5-2. Steps to take in an emergency
CAUTION
■Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the vehicle
suddenly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the jack.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greate r than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working on or
near the vehicle may be injured.
■Replacing a flat tire
Observe the following precautions to reduce the risk of death or serious injury.
●Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened, leading to
bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts
to loosen and the wheel may fall off, causing a serious accident. Remove any oil or
grease from the wheel bolts or wheel nuts.
●Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m, 10.5
kgf•m) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and the wheels
may fall off, which could lead to an accident causing death or serious injury.

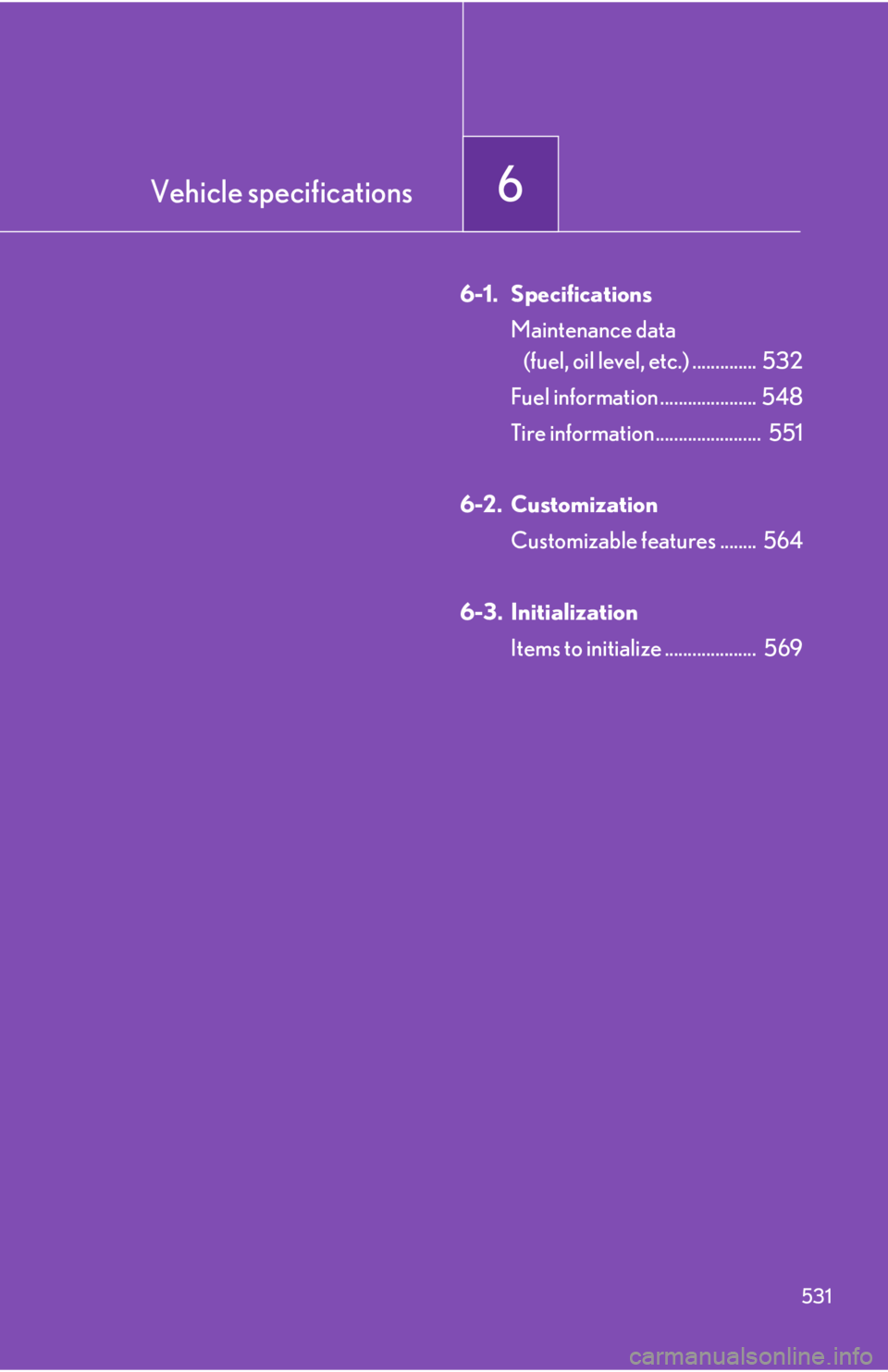

Vehicle specifications6
531
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) .............. 532
Fuel information ..................... 548
Tire information....................... 551
6-2. Customization Customizable features ........ 564
6-3. Initialization Items to initialize .................... 569

532
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1: Unladen vehicle
*2: Vehicle with 17 inch disk wheels
*3: Vehicle with 18 inch disk wheels
Overall length182.5 in. (4635 mm)
Overall width70.9 in. (1800 mm)
Overall height *155.7 in. (1415 mm)
Wheelbase107.4 in. (2730 mm)
Tr e a d
Front60.4 in. (1535 mm)
Rear60.4 in. (1535 mm)*2
60.0 in. (1525 mm)*3
Vehicle capacity weight
(Occupants + luggage)660 lb. (295 kg)

536
6-1. Specifications
Lubrication system■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
The 5W portion of the oil viscosity rating indicates a characteristic of the oil
which allows cold startability. Oils with a lower value before the W allow for eas-
ier starting of the engine in cold weather.
The 30 in 5W-30 indicates the oil viscosit y when the oil is at its operating tem-
perature. An oil with a higher viscosity may be better suited if the vehicle is oper-
ated at high speeds, or un der extreme load conditions.
Oil capacity
Drain and refill
(Reference)
without filter
with filter
6.2 qt. (5.9 L, 5.2 Imp. qt.)
6.6 qt. (6.3 L, 5.5 Imp. qt.)
Outside temperature

537
6-1. Specifications
6
Vehicle specifications
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval Com-
mittee) Certification Mark is added to some oil containers to help you
select the oil you should use.
Cooling system
Capacity9.6 q t .
(9.1 L, 8.0 Imp. qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili- cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.

539
6-1. Specifications
6
Vehicle specifications
Differential
*: “Toyota Genuine Differential Gear Oil” is filled in your Lexus vehicle at factory
fill. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equiva-
lent of matching quality to satisfy the above specification. Please contact your
Lexus dealer for further details.
Automatic transmission
*: The fluid capacity is provided as a reference. If replacement is necessary, con- tact your Lexus dealer.
Oil capacity
IS350C:
1.42 qt. (1.35 L, 1.19 Imp. qt.)
IS250C: 1.20 qt. (1.15 L, 1.01 Imp. qt.)
Oil type and viscosity*“Toyota Genuine Differential Gear Oil LT 75W-85
GL-5” or equivalent
Fluid capacity*
IS350C: 8.3 qt. (7.9 L, 6.9 Imp. qt.)
IS250C:
7.9 qt. (7.5 L, 6.5 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by vibra-
tion, and ultimately damage the auto matic transmission of your vehicle.

540
6-1. Specifications
Manual Transmission
Clutch
Gear oil capacity1.9 qt. (1.8 L, 1.6 Imp. qt.)
Gear oil typeAPI GL-5
Recommended gear oil viscositySAE75W-90
NOTICE
Using manual transmission gear oil other than “Toyota Genuine Manual Transmission
Gear Oil API GL-5” may cause occurrence of gear noise or other deterioration.
Clutch free play0.2  0.6 in. (5  15 mm)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3

557
6-1. Specifications
6
Vehicle specifications
■Temperature A, B, C
The temperature grades are A (the hi ghest), B, and C, representing
the tire's resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Mo tor Vehicle Safety Standard No. 139.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excess ive loading, either separately or in
combination, can cause heat build up and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine

569
6
Vehicle specifications
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Engine oil maintenance
data (U.S.A. only)After changing engine oilP. 4 0 1
Tire pressure warning
system
• When changing the tire inflation pressure by changing traveling
speed.
• When changing the tire size.
P. 4 1 2
The following item must be initialized for normal system operation in cases
such as after the battery is reconnected, or maintenance is performed on
the vehicle.

583
Alphabetical index
EngineCompartment ..................................... 398
Engine switch ........................................ 142
Hood ....................................................... 395
How to start the engine.................... 142
Identification number....................... 533
If the engine will not start ...............503
Ignition switch........................................ 142
Overheating...........................................515
Engine compartment cover............. 400
Engine coolant Capacity................................................. 537
Checking ............................................... 404
Preparing and checking before winter .................................... 220
Engine coolant temperature gauge .......................................................160
Engine immobilizer system ..................93
Engine oil Capacity................................................. 536
Checking .................................................401
Preparing and checking before winter .................................... 220
Engine oil maintenance data ........... 403
EPS............................................................. 204
Event data recorder............................. 467 Floor mat ................................................. 358
Fluid
Brake ....................................................... 406
Washer ...................................................... 411
Fog lights Switch......................................................... 177
Wattage .................................................. 547
Foot well lights ...................................... 338
Front fog lights Switch......................................................... 177
Wattage .................................................. 547
Front passenger occupant classification system ............................. 111
Front passenger's seat belt reminder light........................................471
Front seats Adjustment .................................................51
Driving position memory ..................56
Seat position memory ........................60
Front turn signal lights Switch........................................................ 156
Wattage .................................................. 547
Fuel Capacity ................................................ 535
Fuel gauge.............................................. 160
Fuel pump shut off system............ 466
Information ........................................... 548
Refueling....................................................90
Fuel door .....................................................90
Fuel filler door ...........................................90
Fuel pump shut off system ................. 466
Fuses .......................................................... 433F
