3-6. Using the storage featuresList of storage fe atures.............. 340
• Glove box ................................... 340
• Console box ................................. 341
• Cup holders................................. 343
3-7. Other interior features Sun visors......................................... 346
Vanity mirror .................................. 347
Clock ................................................ 348
Satellite switches .......................... 349
Ashtrays ........................................... 352
Cigarette lighter .......................... 353
Power outlet ................................... 354
Seat heaters and ventilators .................................... 355
Floor mat......................................... 358
Trunk features................................ 359
Garage door opener.................. 362
Compass......................................... 368
Safety Connect ............................. 372 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior.................. 380
Cleaning and protecting the vehicle interior ................... 383
4-2. Maintenance Maintenance requir ements .... 386
General maintena nce ............... 388
Emission inspection and maintenance (I/M)
programs ....................................... 391
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................................. 392
Hood ................................................. 395
Positioning a floor jack............... 396
Engine compartment................. 398
Tires .................................................... 412
Tire inflation pressure................. 422
Wheels ............................................. 426
Air conditioning filter.................. 428
Electronic key battery ................. 431
Checking and replacing fuses ................................................ 433
Headlight aim ................................ 448
Light bulbs ...................................... 450
4Maintenance and care

398
4-3. Do-it-yourself maintenance
Engine compartment
IS350C
Battery (P. 4 0 8 )
Engine oil level dipstick (P. 4 0 1 )
Engine oil filler cap (P. 4 0 1 )
Brake fluid reservoir (P. 4 0 6 )
Fuse boxes ( P. 433)Washer fluid tank
(P. 411)
Electric cooling fans
Condenser ( P. 4 0 6 )
Radiator ( P. 4 0 6 )
Engine coolant reservoir (P. 4 0 4 )

399
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250C
Battery (P. 4 0 8 )
Engine oil level dipstick (P. 4 0 1 )
Engine oil filler cap (P. 4 0 1 )
Brake fluid reservoir (P. 4 0 6 )
Fuse boxes ( P. 433)Washer fluid tank
(P. 411)
Electric cooling fans
Condenser ( P. 4 0 6 )
Radiator ( P. 4 0 6 )
Engine coolant reservoir (P. 4 0 4 )

433
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch OFF.
Engine compartment (type B fu se box): Remove the engine
compartment cover. ( P. 400)
Open the fuse box cover.
Engine compartment (type A fuse box)
Push the tabs in and lift the lid
off.
Engine compartment (type B fuse box)
Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3

435
4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
STEP5
STEP6

436
4-3. Do-it-yourself maintenance
Removing the front controller (engine compartment: type B fuse box)Lift the lid off while pushing the
tabs on either side.
Type CNormal fuse
Blown fuse
Contact your Lexus dealer.
Type DNormal fuse
Blown fuse
Contact your Lexus dealer.

437
4-3. Do-it-yourself maintenance
4
Maintenance and care

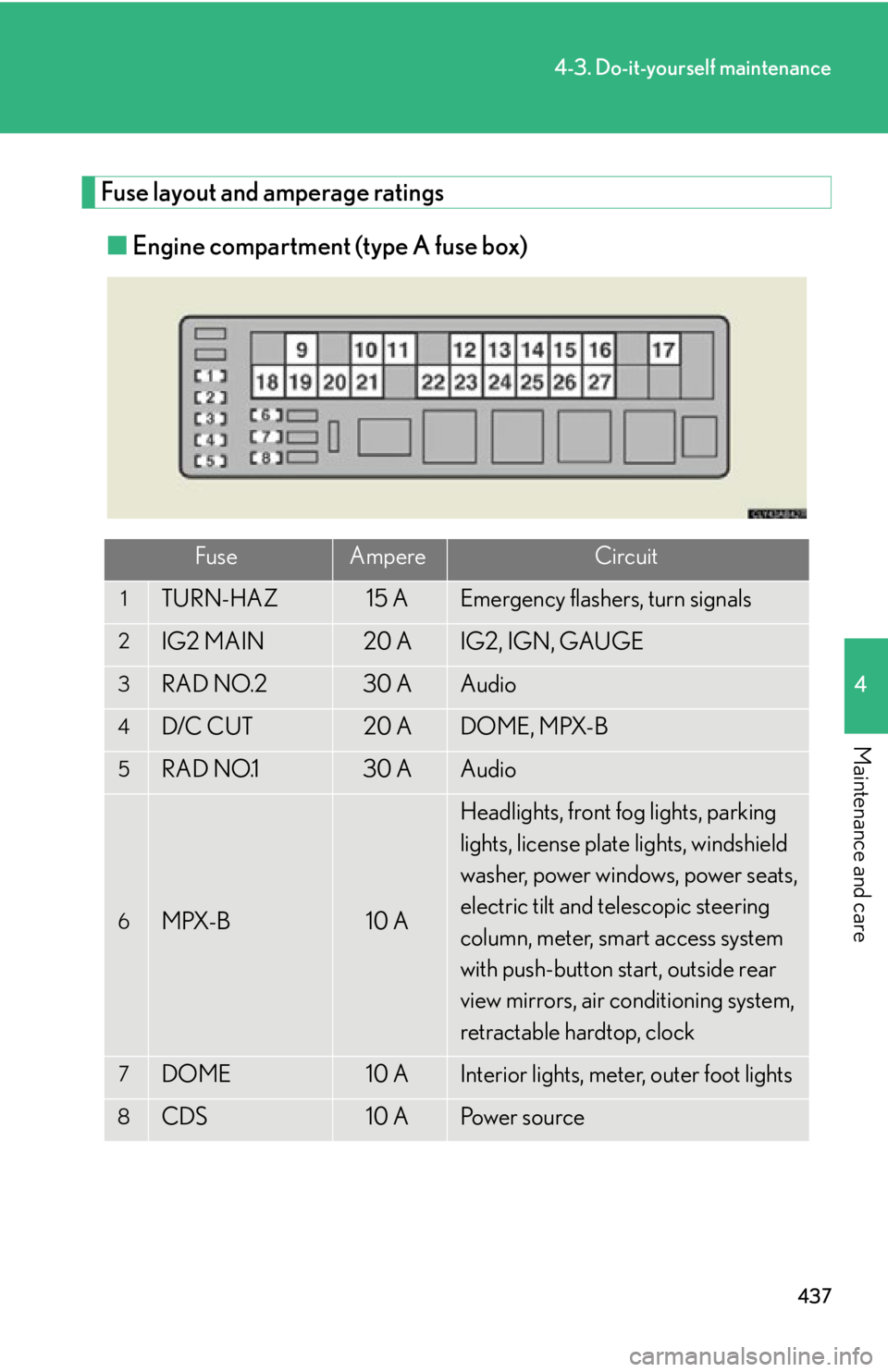

Fuse layout and amperage ratings■ Engine compartment (type A fuse box)
FuseAmpereCircuit
1TURN-HAZ15 AEmergency flashers, turn signals
2IG2 MAIN20 AIG2, IGN, GAUGE
3RAD NO.230 AAudio
4D/C CUT20 ADOME, MPX-B
5RAD NO.130 AAudio
6MPX-B10 A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, power windows, power seats,
electric tilt and telescopic steering
column, meter, smart access system
with push-button start, outside rear
view mirrors, air conditioning system,
retractable hardtop, clock
7DOME10 AInterior lights, mete r, outer foot lights
8CDS10 APo w e r s o u r c e

440
4-3. Do-it-yourself maintenance
■Engine compartment (type B fuse box)
FuseAmpereCircuit
1SPARE30 ASpare fuse
2SPARE25 ASpare fuse
3SPARE10 ASpare fuse
4FR CTRL-B25 AHeadlight high beam, HORN
5A/F15 AExhaust system
6ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
7ALT-S7. 5 ACharging system
8TEL10 ALexus Enform
9STR LOCK25 ASteering lock system
10H-LP CLN30 AHeadlight cleaner
11A/C COMP7. 5 AAir conditioning system
12DEICER25 A
13FR CTRL-AM30 AWASHER, FR TAIL, FR FOG

444
4-3. Do-it-yourself maintenance
■Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APo w e r s e a t
2DOOR DL15 A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 A
Stop lights, multipor t fuel injection sys-
tem/sequential multip ort fuel injection
system, VDIM, shift lock system
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO.310 AAudio
7GAUGE7. 5 AMeter
8IGN10 A
SRS airbag system, steering lock sys-
tem, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, stop lights, smart access system
with push-button start, occupant
detection system
9ACC7. 5 A
Audio, clock, air conditioning system,
navigation system, outside rear view
mirrors, smart access system with
push-button start, glove box light,
console box light

447
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
