TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ...................................................... 24
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 28
Wireless remote control .............. 40
Doors.................................................... 43
Trunk..................................................... 47
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ........................................... 51
Driving position memory (driver’s seat) ................................. 56
Seat position memory (front passenger’s seat) ............. 60
Head restraints................................. 62
Seat belts ............................................ 65
Steering wheel.................................. 72
Anti-glare inside rear view mirror ................................................ 74
Outside rear view mirrors ........... 75 1-4. Opening and closing the
windows and retractable
hardtop
Power windows................................ 78
Retractable hardtop........................ 81
1-5. Refueling Opening the fuel tank cap........... 90
1-6. Theft deterrent system Engine immobilizer system ......... 93
Alarm.................................................... 95
Theft prevention labels (U.S.A.) ............................................. 97
1-7. Safety information Correct driving posture ............... 98
SRS airbags ..................................... 100
Front passenger occupant classification system ..................... 111
Child restraint sy stems ................. 116
Installing child restraints ............. 120
1Before driving

10
A

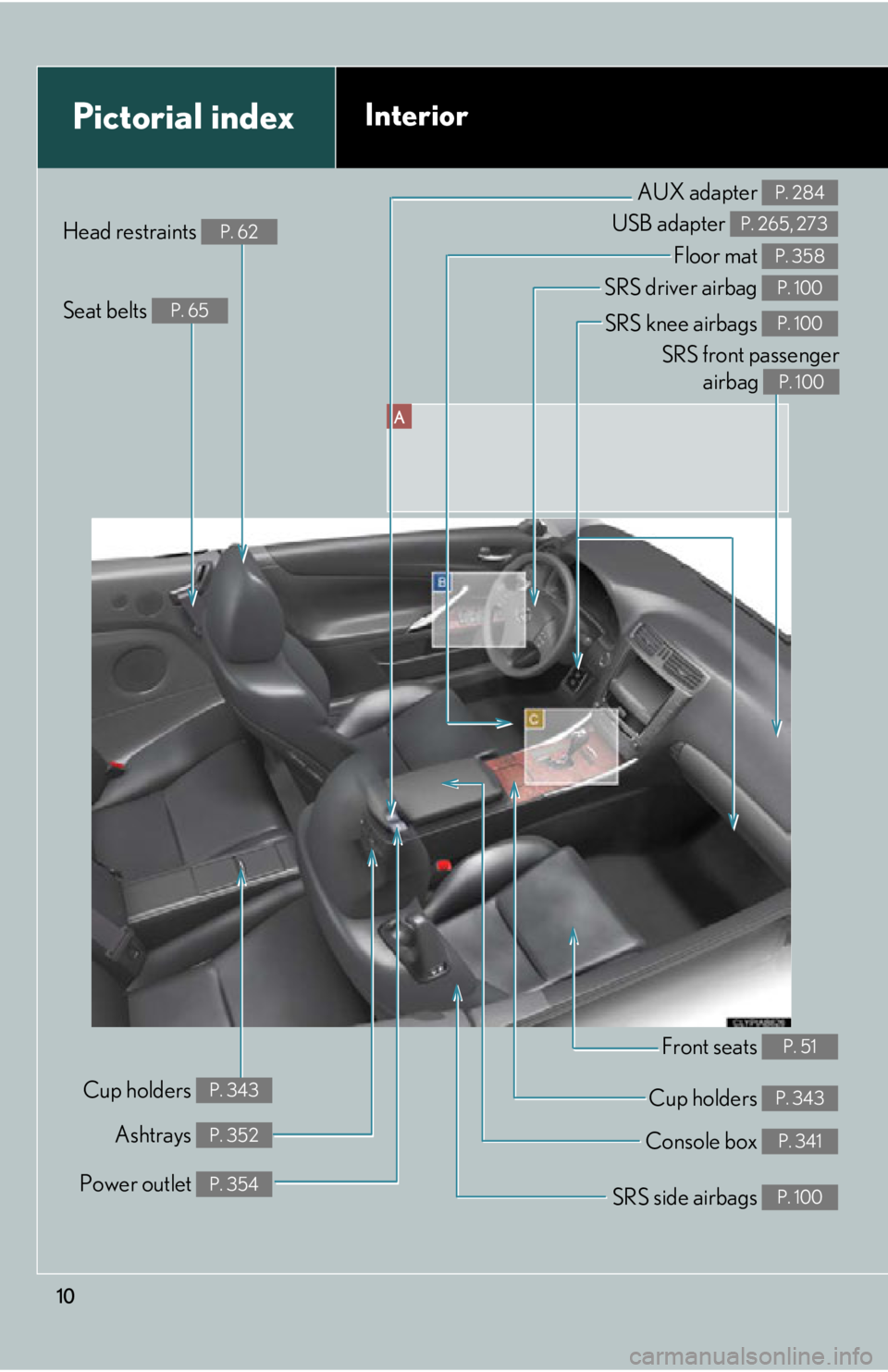

Pictorial indexInterior
SRS knee airbags P. 100
SRS driver airbag P. 100
Floor mat P. 358
Front seats P. 51
Cup holders P. 343
SRS side airbags P. 100
Console box P. 341
Power outlet P. 354
Ashtrays P. 352
AUX adapter
USB adapter P. 284
P. 265, 273Head restraints P. 62
Seat belts P. 65
SRS front passenger airbag
P. 100
Cup holders P. 343

Before driving1
23
1-1. Key informationKeys ............................................... 24
1-2. Opening, closing and locking the doors and
trunk
Smart access system with push-button start ................... 28
Wireless remote control ........ 40
Doors ............................................ 43
Trunk ............................................. 47
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats .................................... 51
Driving position memory (driver’s seat) ........................... 56
Seat position memory (front passenger’s seat) ........ 60
Head restraints .......................... 62
Seat belts ..................................... 65
Steering wheel ........................... 72
Anti-glare inside rear view mirror ............................... 74
Outside rear view mirrors ...... 75 1-4. Opening and closing
the windows and
retractable hardtop
Power windows .......................... 78
Retractable hardtop ................. 81
1-5. Refueling Opening the fuel tank cap ..... 90
1-6. Theft deterrent system Engine immobilizer system.... 93
Alarm............................................ 95
Theft prevention labels (U.S.A.)...................................... 97
1-7. Safety information Correct driving posture ......... 98
SRS airbags .............................. 100
Front passenger occupant classification system............... 111
Child restraint systems ........... 116
Installing child restraints....... 120

51
1
Before driving
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Seat position switch
Seatback angle switch
Seat cushion (front) angle switch
Vertical height adjustment switch
Lumbar support switch
Seatback fold lever
Entering or exiting the rear seats
Ty p e A
Ty p e B

52
1-3. Adjustable components (seats, mirrors, steering wheel)
Entering/exiting the rear seats
Type A  Switch-operated “Front, Fold & Return” Seat
Moving the front seat forward or ba ckward using the switch enables
passengers to enter or exit the rear seats smoothly and easily.
■ When entering/exiting the rear seats
Press the fold switch once. The
seatback of the front seat will fold
and the seat will move forward.
For safety reasons, the seat will be
stopped at a position slightly
behind the most-forward position.
To move the seat further to the
most-forward position, press and
hold the switch again after the seat
is stopped.
■Returning the front seats to the original position
Press the return switch once. The
seatback of the front seat will
return to the upright position and
the seat will move backward.
For safety reasons, if the front seat
was originally positioned close to
the rear seat, the seat will be
stopped at a position slightly in
front of the original position. To
return the seat to its original posi-
tion, press the return switch again.
After the seat is returned to the
original position, pressing and
holding the return switch again
moves the seat further backward.

53
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Type B  Seat slide switches (passenger’s seat only)
Press and hold the switch to move
the seat forward.
Fold the seatback using either of
the seatback fold levers.
STEP1
STEP2

54
1-3. Adjustable components (seats, mirrors, steering wheel)
■Switch-operated “Front, Fold & Return” Seat
●If any seat adjustment switch or driv ing position memory switch is operated
after the seat is moved to the forward and fold position using the “Front, Fold &
Return” seat switch, the seat cannot be returned using the “Front, Fold & Return”
seat switch. Use a switch other than the “Front, Fold & Return” seat switch to
return the seat.
●The switch-operated “Front, Fold & Return” seat cannot operate when:
• A person or item of luggage is on th e seat or the seat belt is fastened.
• The vehicle is moving.
●Operation of the Switch-operated “Front, Fold & Return” Seat will stop if:
• The “Front, Fold & Return” seat switch is pressed again.
• Any seat adjustment switch or drivin g position memory switch is pressed.
• A person enters the seat or an item of luggage is put on the seat (during for-
ward movement only).
• The vehicle starts off.
• The seat belt is fastened (during forward movement only).
■When the seatback is fully reclined
Do not use the seatback fold lever to rais e the front seat as this may prevent the
seatback from locking in place.
If the seatback will not lock, press and ho ld the seatback angle switch forward for a
few seconds to change the memorized seat position. Raise the seatback by hand
and check that it locks in position as normal.

55
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CAUTION
■Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion to reduce
the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen or your neck may contact the shoulder belt, increas-
ing the risk of death or serious injury in the event of an accident.
■Retuning the folded seatback to the upright position
Pull the seatback up by hand.
If the seatback angle switch is used to return the seatback, the seat may not be
locked in position, resulting in an accident.
After returning the seat, rock the seat back and forth to ensure that it is securely
locked in position.
■When the vehicle is moving
Do not operate the seatback fold levers.
■Switch-operated “Front, Fold & Return” Seat
●Before operating the switch, ensure that no surrounding passengers or objects
are caught in the seat. Seat operation will not stop automatically, even if some-
thing becomes caught in the seat. This ma y result in death or serious injury.
●Do not operate the switch while the vehicle is moving.

56
1-3. Adjustable components (seats, mirrors, steering wheel)
Driving position memory (driver’s seat)
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button. It is also possible to set this function to activate auto-
matically when the doors are unlocked.
Three different driving positions can be entered into memory.
■ Entering a position to memory
Switch to IGNITION ON mode.
Adjust the driver’s seat, steeri ng wheel, and outside rear view
mirrors to the desired positions.
Push the “SET” button, then
within 3 seconds push button
“1”, “2” or “3” until you hear a
beep.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■Recalling the memorized position
Vehicles with an automatic transmis sion: Check that the shift lever is
set in P.
Vehicles with a manual transmissi on: Check that the parking brake is
set.
Switch to IGNITION ON mode.
STEP1
STEP2
STEP3
STEP1

: If equipped

57
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Linking driving position memory with door unlock operationRecord your driving position to butto n “1”, “2” or “3” before performing
the following.
Using the wireless remote control Close the driver's door and turn the “ENGINE START STOP”
switch OFF.
While the desired button (“1”, “2”
or “3”) press on the wireless
remote control until the signal
beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.
Open one of the doors.
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and th e alarm will automatically be set.
In case that the alarm is trigger ed, immediately stop the alarm.
( P. 9 5 )
To recall the memorized posi-
tion, push button “1”, “2” or “3”
until you hear a beep. STEP2
STEP1
STEP2
STEP3
