435
4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
STEP5
STEP6

436
4-3. Do-it-yourself maintenance
Removing the front controller (engine compartment: type B fuse box)Lift the lid off while pushing the
tabs on either side.
Type CNormal fuse
Blown fuse
Contact your Lexus dealer.
Type DNormal fuse
Blown fuse
Contact your Lexus dealer.

437
4-3. Do-it-yourself maintenance
4
Maintenance and care
Fuse layout and amperage ratings■ Engine compartment (type A fuse box)
FuseAmpereCircuit
1TURN-HAZ15 AEmergency flashers, turn signals
2IG2 MAIN20 AIG2, IGN, GAUGE
3RAD NO.230 AAudio
4D/C CUT20 ADOME, MPX-B
5RAD NO.130 AAudio
6MPX-B10 A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, power windows, power seats,
electric tilt and telescopic steering
column, meter, smart access system
with push-button start, outside rear
view mirrors, air conditioning system,
retractable hardtop, clock
7DOME10 AInterior lights, mete r, outer foot lights
8CDS10 APo w e r s o u r c e

438
4-3. Do-it-yourself maintenance
9E/G-B60 AFR CTRL-B, ETCS, ALT-S, A/F, TEL,
STR LOCK
10ABS150 AVDIM
11RH J/B-B30 AFR DOOR RH, AM2
12MAIN30 AH-LP R LWR, H-LP L LWR
13STARTER30 ASmart access system with push-button
start
14LH J/B-B30 AFR DOOR LH, SECURITY
15P/I-B60 AINJ, F/PMP, EFI
16EPS80 APower steering
17ALT150 A
LH J/B-AM, E/G-AM, GLW PLG2,
HEATER, FAN1, FAN2, ABS2, RH
J/B-AM, GLW PLG1, RR R/B-AM
18RR R/B-AM80 A
DEFOG, PSB, ROOF RH, ROOF
LH, LGG RH, LGG LH, LGG LCK
RH, LGG LCK LH, P-TRAY MAIN,
P-T R AY S I D E
19GLW PLG150 APTC heater
20RH J/B-AM80 A
OBD, STOP SW, TI&TE, FR P/SEAT
RH, RAD NO.3, ECU-IG RH,
RH-IG, FR S/HTR RH, ACC, CIG,
PWR OUTLET, DOOR DL
21ABS230 AVDIM
22FA N 240 AElectric cooling fans
23FA N 140 AElectric cooling fans
24HEATER50 AAir conditioning system
25GLW PLG250 APTC heater
FuseAmpereCircuit

439
4-3. Do-it-yourself maintenance
4
Maintenance and care

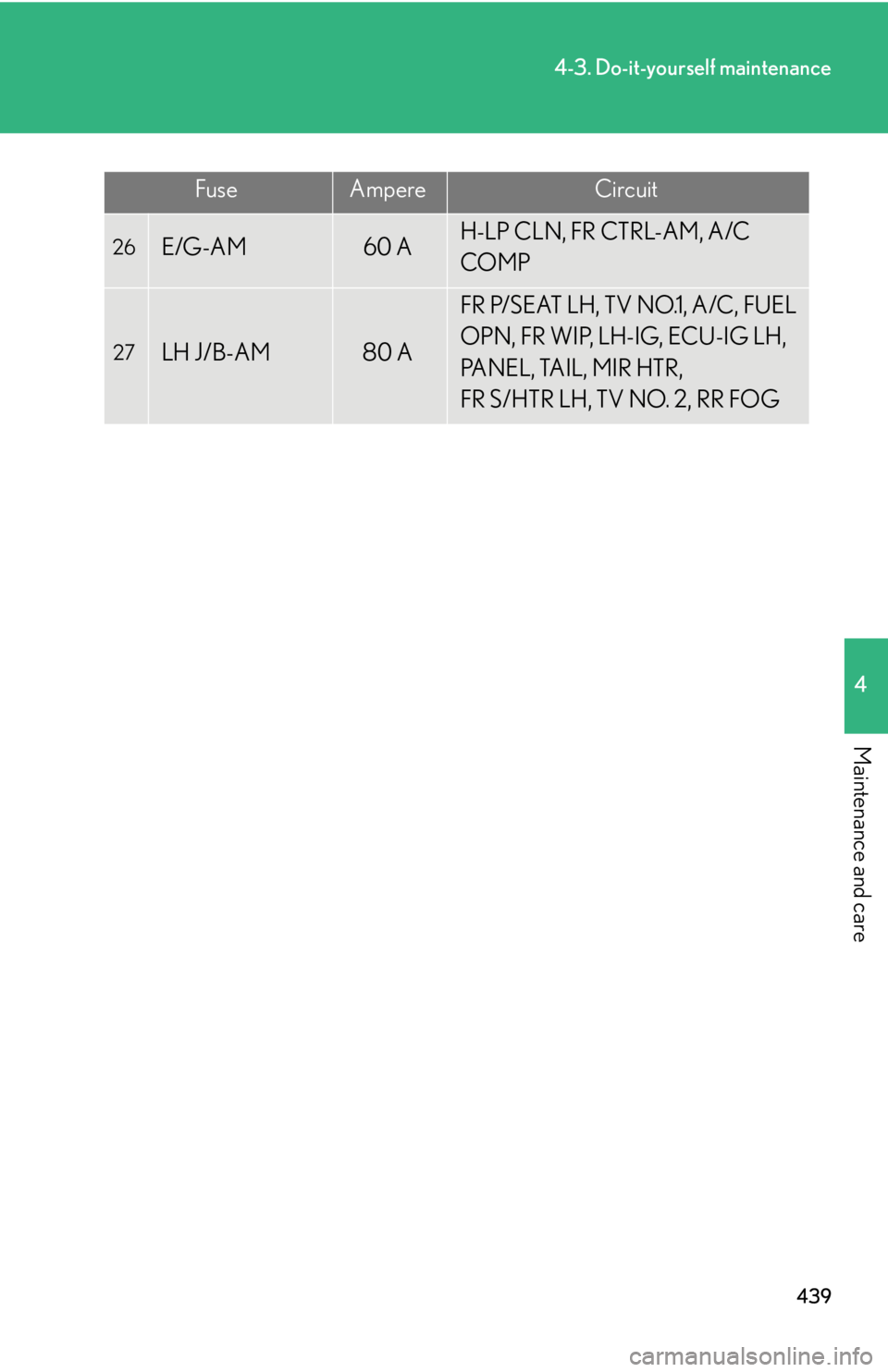

26E/G-AM60 AH-LP CLN, FR CTRL-AM, A/C
COMP
27LH J/B-AM80 A
FR P/SEAT LH, TV NO.1, A/C, FUEL
OPN, FR WIP, LH-IG, ECU-IG LH,
PANEL, TAIL, MIR HTR,
FR S/HTR LH, TV NO. 2, RR FOG
FuseAmpereCircuit

440
4-3. Do-it-yourself maintenance
■Engine compartment (type B fuse box)
FuseAmpereCircuit
1SPARE30 ASpare fuse
2SPARE25 ASpare fuse
3SPARE10 ASpare fuse
4FR CTRL-B25 AHeadlight high beam, HORN
5A/F15 AExhaust system
6ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
7ALT-S7. 5 ACharging system
8TEL10 ALexus Enform
9STR LOCK25 ASteering lock system
10H-LP CLN30 AHeadlight cleaner
11A/C COMP7. 5 AAir conditioning system
12DEICER25 A
13FR CTRL-AM30 AWASHER, FR TAIL, FR FOG

441
4-3. Do-it-yourself maintenance
4
Maintenance and care
14IG210 A
Ignition system, multiport fuel injec-
tion system/sequential multiport fuel
injection system
15EFI NO.210 AFuel system, exhaust system
16H-LP R LWR15 AHeadlight low beam (right)
17H-LP L LWR15 AHeadlight low beam (left)
18F/ P M P25 AFuel system
19EFI25 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, EFI NO. 2
20INJ20 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
21H-LP UPR15 AHeadlight high beams
22HORN10 AHorns
23WA S H E R20 AWindshield washer
24FR TAIL10 AParking lights, front side marker lights
25FR FOG15 AFront fog lights
FuseAmpereCircuit

442
4-3. Do-it-yourself maintenance
■Driver’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APo w e r s e a t
2A/C7. 5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO.110 ADisplay
5FUEL OPN10 AFuel filler door opener
6TV NO.27. 5 A
7TA I L10 ATail lights, license plate lights, parking
lights, side marker lights
8PA N E L7. 5 A
Air conditioning system, display,
clock, cigarette lighter, power steer-
ing, headlight cleaner, retractable
hardtop, ECT, ETCS, seat heaters and
ventilators, trunk opener, outside rear
view mirrors, shift lever light, traction
control, audio, instrument panel light
control
9RR FOG7. 5 A

443
4-3. Do-it-yourself maintenance
4
Maintenance and care
10ECU-IG LH10 A
Cruise control, air conditioning sys-
tem, power steering, rain sensor, anti-
glare inside rear view mirror, shift lock
system, tire inflation pressure warning
system, vehicle stability control
11FR S/HTR LH15 ASeat heaters and ventilators, air condi-
tioning system
12FR DOOR LH20 APower windows, outside rear view
mirrors
13SECURITY7. 5 ASmart access system with push-button
start
14H-LP LVL7. 5 AAFS
15LH-IG10 A
Charging system, headlight cleaner,
rear window defogger, electric cool-
ing fans, emergency flashers, turn sig-
nal lights, back-up lights, stop lights,
mirror heaters, seat belt pretensioner,
intuitive parking assist, cruise control,
PTC heater, exhaust system, smart
access system with push-button start
16FR WIP30 AWindshield wipers
FuseAmpereCircuit

444
4-3. Do-it-yourself maintenance
■Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APo w e r s e a t
2DOOR DL15 A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 A
Stop lights, multipor t fuel injection sys-
tem/sequential multip ort fuel injection
system, VDIM, shift lock system
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO.310 AAudio
7GAUGE7. 5 AMeter
8IGN10 A
SRS airbag system, steering lock sys-
tem, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, stop lights, smart access system
with push-button start, occupant
detection system
9ACC7. 5 A
Audio, clock, air conditioning system,
navigation system, outside rear view
mirrors, smart access system with
push-button start, glove box light,
console box light
