sat nav Lexus IS250C 2010 Do-It-Yourself Maintenance / LEXUS 2010 IS350C/IS250C OWNERS MANUAL QUICK GUIDE (OM53836U)

2
Hands-free System For Cellular Phone (without navigation system)Bluetooth® phone pairing .......................................................................................................... 51
Calling by number .........................................................................................................................52
Calling by name................................................................................................................ ..............52
Calling by speed dial .......................................................................................................... ..........53
Phonebook transfer ............................................................................................................. .........54
Changing the registered name............................. ...................................................................55
Registering a speed dial....................................................................................................... .......56
Head Restraints ................................................................................................................ ..................... 13
Headlights ...............................................................................................................................................25
Instrument Panel Light Control................................................................................................. ..... 26
Intuitive Parking Assist....................................................................................................... ................. 21
Keys ........................................................................................................................... ...................................8
Lexus Enform with Safety Connect .............................................................................................. 7 2
Manual Transmission............................................................................................................ ................17
Multi-information Display ...................................................................................................... ............ 18
Navigation System Register home .................................................................................................................. ............... 32
Destination input  Search by address ........................................................................33
Destination input  Search points of interest by name ..........................................35
Destination input  Search points of interest by category ...................................36
Destination input  Search points of interest by telephone number ............... 37
Power Windows .................................................................................................................. ................. 74
Retractable Hardtop ............................................................................................................ .............. 75
Safety Connect ................................................................................................................. .................... 70
Satellite Switches............................................................................................................. ...................... 19
Seat belts..................................................................................................................... .............................. 13
Seats .............................................................................................................................................................11
Smart Access System with Push-button Start ...... ...................................................................... 9
Speech Command System Basic operation................................................................................................................ ............... 64
Command list ................................................................................................................... ...............65
Theft Deterrent System ......................................................................................................... ............. 10
Touch Screen (with navigation system) Display ........................................................................................................................ ........................30
Screen scroll operation ........................................................................................................ ........ 31
Setting a route ................................................................................................................ .................. 31
Trunk.......................................................................................................................................................... 78
Turn Signal Lever .................................................................................................................................20
Windshield Wipers and Washer ................................................................................................... 27

21
ETCS Switch (Manual Transmission)
An indicator comes on when in snow mode.
Press again to return to normal mode.
Intuitive Parking Assist (If Equipped)
Owners of models equipped with a navigation system should refer to the “Navigation System
Owner's Manual”.
■Turning the system on and off
The system can be turned on and off using the satellite switch. ( P.1 9 )
■Screen display
Sensors are used to detect obstacles near the
vehicle. The distance to a detected obstacle is
shown by the number of indicator bars.
Indicates obstacles detected by the corner
sensors
Indicates obstacles detected by the back sen-
sors
Use the ETCS switch to change to snow mode when starting or accelerating on snow-
covered roads or other slippery surfaces.
The system uses a screen display and buzzer to inform the driver of obstacles near the
vehicle when parking or driving at low speed.
1
2

45
■XM® NavWeather
The XM® NavWeather service that allows the navigation system to display weather infor-
mation on the map is available if your satellite radio tu ner can receive weather information.
For details, refer to the “Navig ation System Owner's Manual”.
To receive the XM
® NavWeather service, a subscription to the XM® Satellite Radio with
NavWeather is necessary.
The XM
® NavWeather is available in the contiguo us 48 U.S. states. For details about the
XM
® NavWeather service coverage area, refer to www.xmradio.com.
● How to activate the XM® NavWeather service
To receive the XM
® NavWeather service, it is necessary to activate the service. To activate
the service, an extra fee is required in addition to subscription fees for the XM
® Satellite
Radio. For details about service and activation, call XM
® Listener Care Center at 1-877-
515-3987.
Customers should have their radio ID ready; th e radio ID can be found by selecting “channel
000” on the radio.
XM
® Satellite Radio has the responsibility for a ll fees and service, they are subject to
change.
The following operatio ns can be performed.
● Show XM
® NavWeather information
● Weather information
● Weather warnings

46
Audio System (with navigation system)
The button positions, shapes and screen may slightly vary depending on the type of the
audio system.
■ Basic operation
Displays the audio control screen
Sound quality modes
Audio sources
Type A
AM
FM: AM radio/FM radio
S AT: Satellite radio
DISC: DVD player (if equipped)
CD: CD player (if equipped)
AUX•USB: Auxiliary audio device/USB
memory/iPod
®/Bluetooth®
audio player
Type B
AM: AM radio
FM: FM radio
DISC: DVD player
AUX: Auxiliary audio device/USB mem-
ory/iPod
®
Power/Volume
■Radio
Displays the audio control screen
Station presets
Scanning radio stations
Radio tuner
Station select
Seek
1
2
3
4
1
2
3
4
5
6

57
Audio System (without navigation system)
■Basic operation
Ty p e A Sound quality modes
Automatic Sound Levelizer (ASL)
Mute
Audio sources
AM
FM: AM radio/FM radio
S AT: Satellite radio
CD•AUX: CD player/Auxiliary audio
device/USB memory/iPod
®/
Bluetooth
® audio player
Power/Volume
Ty p e B Sound quality modes
Automatic Sound Levelizer (ASL)
Mute
Audio sources
AM: AM radio
FM: FM radio
CD: CD player
AUX: Auxiliary audio device/USB mem-
ory/iPod
®
Power/Volume
1
2
3
4
5
1
2
3
4
5

68
AUDIO
To Turn Audio On or Off, SAY:“A u d i o O N ”
“Audio OFF”
To Change the Audio Mode, SAY:
FM, AM, Radio, Satellite
Radio, Auxiliary, CD*,
CD Changer*, DVD**,
DVD Changer**,
Bluetooth
® Audio,
iPod
®, USB Audio
*For systems w/o NAV **For systems w/NAV
To Change to a different CD/DVD track, SAY:“Track Up”, “Track
Down” or “Previous
Tr a c k ”
To Change to a different CD/DVD, SAY:“Disc Up” “Disc Down”
To C h a n g e R a d i o Stations, SAY:
“Seek Up” or “Seek
Down”
“Type Up” or “Type
Down”
To Operate Satellite RadioXM Controls, SAY:“Satellite Radio” and then SAY:
“Select
Channel
Number”
“Select
Channel
Name”
(English only)
“Select
Channel
Ty p e ”
(English only)
“Command
List” and then SAY:“Seek Up” or
“Seek Down”
“Type Up” or
“Type Down”

72

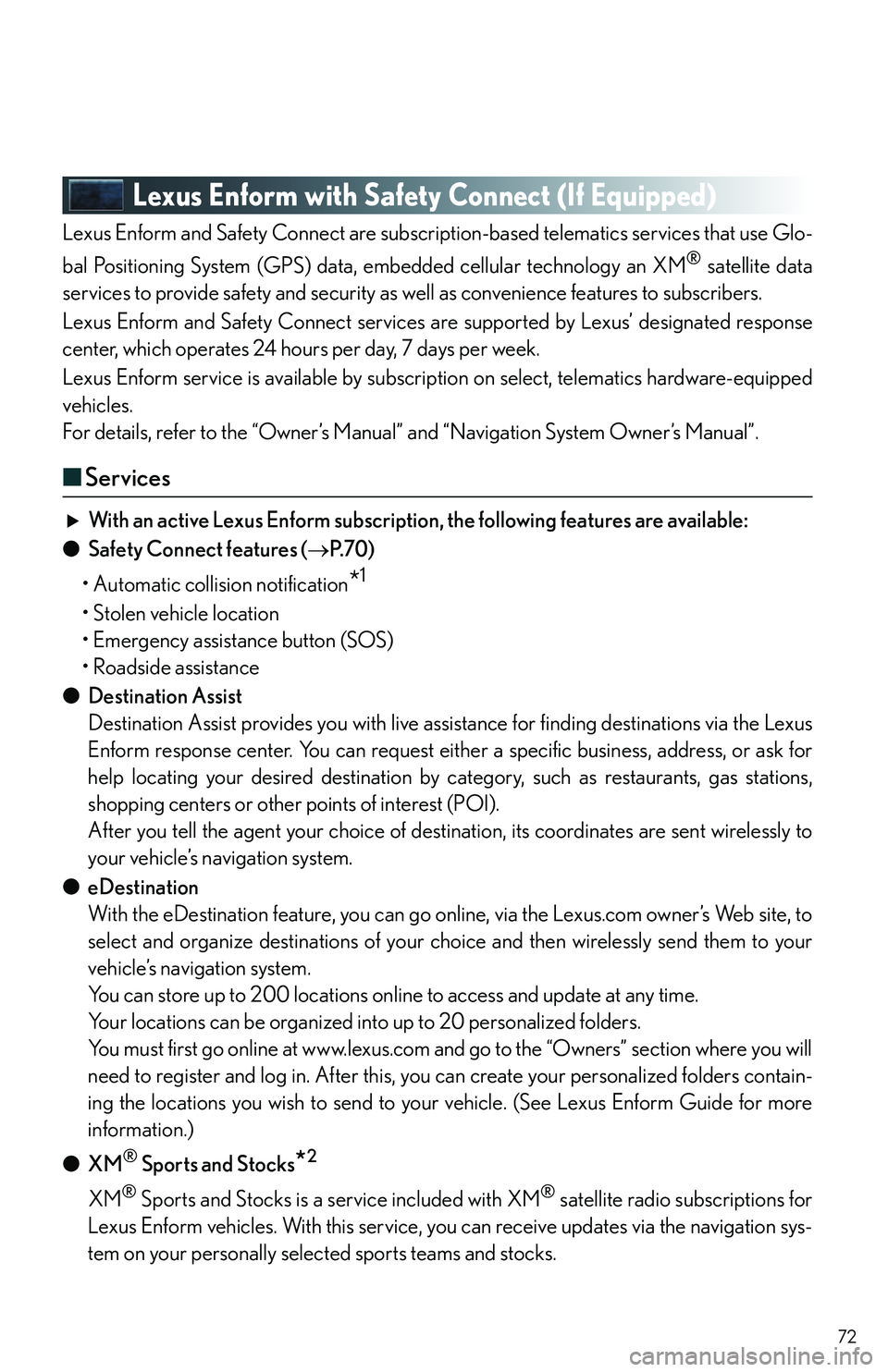

Lexus Enform with Safety Connect (If Equipped)
Lexus Enform and Safety Connect are subscription-based telematics services that use Glo-
bal Positioning System (GPS) data, embedded cellular technology an XM
® satellite data
services to provide safety and security as well as convenience features to subscribers.
Lexus Enform and Safety Connect services ar e supported by Lexus’ designated response
center, which operates 24 hours per day, 7 days per week.
Lexus Enform service is available by subscrip tion on select, telematics hardware-equipped
vehicles.
For details, refer to the “Owner’s Manual ” and “Navigation System Owner’s Manual”.
■Services
With an active Lexus Enform subscription, the following features are available:
● Safety Connect features ( P. 7 0 )
• Automatic collision notification
*1
• Stolen vehicle location
• Emergency assistance button (SOS)
• Roadside assistance
● Destination Assist
Destination Assist provides you with live assistance for finding destinations via the Lexus
Enform response center. You can request either a specific business, address, or ask for
help locating your desired destination by ca tegory, such as restaurants, gas stations,
shopping centers or other points of interest (POI).
After you tell the agent your choice of destination, its coordinates are sent wirelessly to
your vehicle’s navigation system.
● eDestination
With the eDestination feature, you can go online, via the Lexus.com owner’s Web site, to
select and organize destinations of your choice and then wirelessly send them to your
vehicle’s navigation system.
You can store up to 200 locations online to access and update at any time.
Your locations can be organized into up to 20 personalized folders.
You must first go online at www.lexus.com an d go to the “Owners” section where you will
need to register and log in. After this, you can create your personalized folders contain-
ing the locations you wish to send to your vehicle. (See Lexus Enform Guide for more
information.)
● XM
® Sports and Stocks*2
XM® Sports and Stocks is a service included with XM® satellite radio subscriptions for
Lexus Enform vehicles. With this service, you can receive updates via the navigation sys-
tem on your personally select ed sports teams and stocks.

73
●XM NavWeather™*3
The subscription-based XM NavWeather™ service allows the navigation system to dis-
play weather information on the map.
● XM
® NavTraffic*3
The subscription-based XM® NavTraffic service allows the navigation system to display
traffic information on the map.
The following navigation-based Lexus Enform features are available without a sub-
scription:
● Lexus Insider
Lexus Insider is an optional service that can send audio messages, or articles, to partici-
pating owner’s vehicles via the navigation sy stem. Potential Lexus Insider subjects might
include, for example, Lexus vehicle technology tips, updates on regional Lexus events, or
audio excerpts from Lexus Magazine articles. Up to 20 articles can be stored at a time.
● Voice Command
The voice command system enables you to op erate the navigation system, audio system
and hands-free system by giving a command.
*1: U.S. Patent No. 7,508,298 B2
*2: Available at no extra charge with an active XM® satellite radio subscription.
*3: Available via separate XM® subscription(s).
■ Subscription
After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services. A variety of subscription terms is available for purchase.
Contact your Lexus dealer, call 1-800-25 -LEXUS (1-800-255-3987), or push the
“Destination Assist” button in your vehicle for further subscription details. XM NavTraffic
®
and XM NavWeather™ require separate XM® subscription(s). XM® Sports and Stocks is
available with an XM
® Satellite Radio subscrip tion. After a 90-day free trial, you must set
up the appropriate XM
® subscription(s) to continue receiving these services.
