start Lexus IS250C 2010 Owner's Guide

59
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
10_IS250C/350C_U
■Canceling the linked door unlock operationClose the driver's door and turn the “ENGINE START STOP” switch
OFF.
Using the wireless remote control: While pushing the “SET” button, press on the wireless remote control until the signal beeps.
Using the door lock switch: While pressing the “SET” button, press the
lock or unlock side on the door lock switch until the signal beeps.
■Operating the driving position memo ry after turning the “ENGINE START
STOP” switch OFF
Memorized positions (except for the steering wheel positions) can be activated up
to 180 seconds after the driver's door is opened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch OFF.
■To cancel seat position recall
Perform any of the following operations.
●Push the “SET” button.
●Push button “1”, “2” or “3”.
●Adjust the seat using the switches (only cancels seat position recall).
■If the battery is disconnected
The memorized positions are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
child restraint system, or squeeze your body against the steering wheel.
STEP1
STEP2

61
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
10_IS250C/350C_U
■Operating the seat position memory after turning the “ENGINE START STOP”
switch OFF
Memorized position can be activated up to 180 seconds after the front passenger
door is opened, even after turning the “ENGINE START STOP” switch OFF.
■To cancel seat position recall
Perform any of the following operations.
●Push the “SET” button.
●Push button “1”, “2” or “3”.
●Adjust the seat position using the switches.
■If the battery is disconnected
The memorized positions are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
child restraint system.

72
1-3. Adjustable components (seats, mirrors, steering wheel)
10_IS250C/350C_U

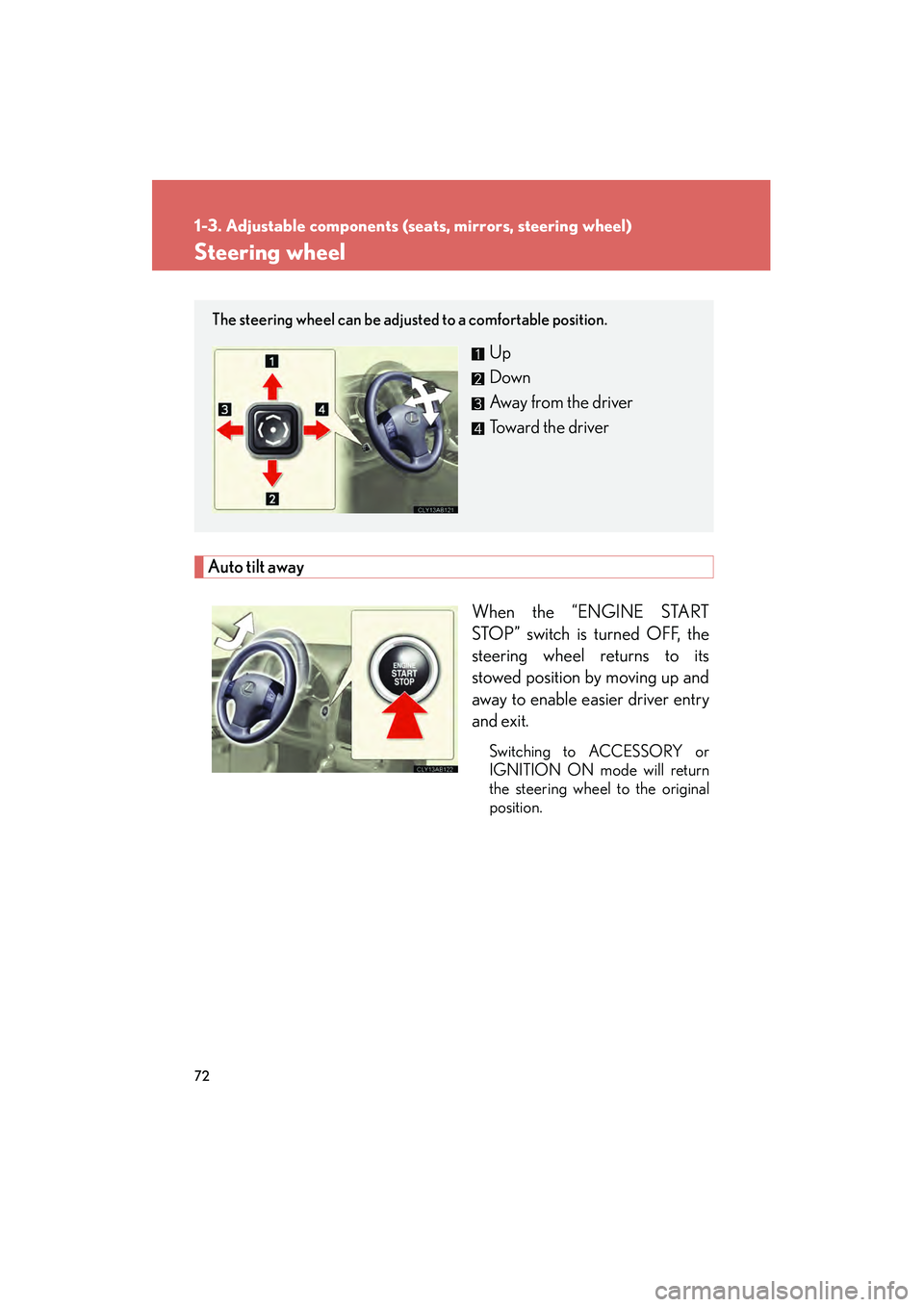

Steering wheel
Auto tilt awayWhen the “ENGINE START
STOP” switch is turned OFF, the
steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
Switching to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position.
The steering wheel can be adjusted to a comfortable position.
Up
Down
Away from the driver
Toward the driver

73
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
10_IS250C/350C_U
■The steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■Automatic adjustment of the steering position (vehicles with driving position
memory)
A desired steering position can be entered to memory and recalled automatically
by the driving position memory. (→P. 5 6 )
■Customization that can be configured at Lexus dealer
It is possible to deactivate the auto tilt-away function.
(Customizable features →P. 5 5 7 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.

74
1-3. Adjustable components (seats, mirrors, steering wheel)
10_IS250C/350C_U
Anti-glare inside rear view mirror
■To prevent sensor error
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting in death
or serious injury.
In automatic mode, sensors are used to detect the headlights of vehicles
behind and automatically reduce the reflected light.
Turns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
The anti-glare mirror default
mode is automatic. The anti-
glare mirror is automatically set
to automatic whenever the
“ENGINE START STOP” switch
is turned to IGNITION ON
mode.
To ensure that the sensors operate properly,
do not touch or cover them.

75
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
10_IS250C/350C_U
Outside rear view mirrors
■The mirrors can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. (→P. 2 3 8 )
■Folding back the mirrors
■One-touch adjustment of the mirror angle
(vehicles with driving position memory)
A desired mirror face angle can be entered to memory and adjusted automatically
by the driving position memory. (→P. 5 6 )
Mirror angle can be adjusted using the switch.
Select a mirror to adjust
(“L”: left or “R”: right)
Adjust the mirror up, down,
in, or out using the switch
Push back in the direction of the vehicle's
rear.

79
1-4. Opening and closing the windows and retractable hardtop
1
Before driving
10_IS250C/350C_U
■The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Door lock linked window operation
The power windows can be opened using the wireless remote control. (→P. 4 0 )
■Front side window open/close function linked to rear side window operation
When a rear side window is opened, the adjacent front side window will also open
slightly. The front side window cannot be closed completely while the rear side win-
dow is open.
■Operating the power windows after turning the “ENGINE START STOP” switch
OFF
The power windows can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. They cannot, however, be operated once either side door is opened.
■Jam protection function (front windows)
If an object becomes caught between the window and the body, window travel is
stopped and the window is opened slightly.
■Window operation during retractable hardtop operation
When the retractable hardtop is partially open (during opening or closing opera-
tion), the power window switches are disabled.
■Customization that can be configured at Lexus dealer
Settings of the linked wireless remote control operation can be changed.
(Customizable features →P. 5 5 7 )

85
1-4. Opening and closing the windows and retractable hardtop
1
Before driving
10_IS250C/350C_U
Retractable hardtop operation control linked to the intuitive parking
assist (vehicles with an intuitive parking assist)
This function detects if there is an obstruction behind the vehicle and reg-
ulates retractable hardtop operation according to the vehicle’s distance
from that obstruction.
This function is merely designed to assist the driver and is not a guarantee
of the safety of the area behind the vehicle. The driver should always
check the vehicle’s surroundings with their own eyes before operating the
retractable hardtop.
■ Operation controls according to each detection area
Area within approximately
1.2 ft. (35 cm) of the vehicle
Area approximately
1.2 ft. (35 cm) to 1.5 ft. (45 cm)
away from the vehicle
Areas within approximately
0.8 ft. (25 cm) of the vehicle
Areas approximately
0.8 ft. (25 cm) to
1.3 ft. (37.5 cm) away from the
vehicle
This function only operates in the
areas indicated in the illustration.
Therefore, obstructions too close
to the sensors cannot be detected.
●If an obstruction is detected in area or when the switch is oper-
ated
A buzzer will sound and a message will be shown in the multi-informa-
tion display to alert the driver.
If the switch is held up or down for 3 seconds while the message is being dis-
played, retractable hardtop operation will start normally.

86
1-4. Opening and closing the windows and retractable hardtop
10_IS250C/350C_U●
If an obstruction is detected in area or when the switch is oper-
ated
A buzzer will sound twice and a message will be shown in the multi-
information display. Retractable hardtop operation will not activate.
If the switch is released and then operated again within 2 seconds, the buzzer
will sound again and a message will be shown in the multi-information display
to alert the driver. If the switch is held up or down for 3 seconds, retractable
hardtop operation will start normally.
If an obstruction is detected in area or while the trunk lid is operat-
ing, a buzzer will sound twice and a message will be shown in the multi-
information display. Retractable hardtop operation will be suspended for
safety reasons.
Ensure that no obstructions are near the vehicle and then operate the
switch again.
■Operating conditions
●The vehicle is stopped.
●The engine is running. (Operation while the engine is not running is possible if
the “ENGINE START STOP” switch is in IGNITION ON mode, but for optimal
operation the engine should be running.)
●The trunk lid is closed.
●The trunk opener main switch is on. (→ P. 4 7 )
●The luggage cover in the trunk is properly set. ( →P. 8 2 )
When the vehicle is on an incline or an uneven surface, the retractable hardtop may
not activate properly.
If the intuitive parking assist detect an obstruction behind the vehicle, the retract-
able hardtop may not operate.
■Switch operation when the operating conditions are not met
Even if all of the operating conditions are not met, when the switch is operated with
the vehicle stopped and the retractable hardtop fully closed, the following opera-
tions can be performed:
●Holding the switch up closes all the side windows.
●Holding the switch down opens all the side windows.

87
1-4. Opening and closing the windows and retractable hardtop
1
Before driving
10_IS250C/350C_U
■When a message appears and the retractable hardtop does not operate
Check the message contents and perform the recommended procedure, then
operate the switch again. (→P. 4 7 5 )
■Retractable hardtop operation control linked to the intuitive parking assist
●This function will activate when the intuitive parking assist is on. ( →P. 3 4 9 )
●Once the trunk lid has been fully opened, this function will be disabled.
●The trunk lid can be closed even when an obstruction is detected by operating
the retractable hardtop operation switch in the opposite direction.
■If the intuitive parking assist is dirty or malfunctioning
If a message is shown in the multi-information display indicating that a sensor is mal-
functioning or needs to be cleaned, the retractable hardtop cannot be operated
normally. To start retractable hardtop operation, turn the intuitive parking assist off
and operate the switch for the retractable hardtop again, or hold the switch up or
down for 6 seconds or more. In this case, retractable hardtop operation control
linked to the intuitive parking assist-sensor will not function.
■Customization that can be configured at a Lexus dealer
Setting of the intuitive parking assist linked function can be changed.
(Customizable features →P. 5 5 7 )
