10_IS250C/350C_U
5
3-6. Using the storage featuresList of storage features.............. 340
• Glove box ................................... 340
• Console box ................................. 341
• Cup holders................................. 343
3-7. Other interior features Sun visors......................................... 346
Vanity mirror .................................. 347
Clock ................................................ 348
Satellite switches .......................... 349
Ashtrays ........................................... 352
Cigarette lighter .......................... 353
Power outlet ................................... 354
Seat heaters and ventilators .................................... 355
Floor mat......................................... 358
Trunk features................................ 359
Garage door opener.................. 362
Compass......................................... 368 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior................... 374
Cleaning and protecting the vehicle interior .................... 377
4-2. Maintenance Maintenance requirements .... 380
General maintenance ................ 382
Emission inspection and maintenance (I/M)
programs ..................................... 385
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................. 386
Hood ................................................ 389
Positioning a floor jack.............. 390
Engine compartment.................. 392
Tires ................................................... 406
Tire inflation pressure.................. 416
Wheels ............................................. 420
Air conditioning filter.................. 422
Electronic key battery ................ 425
Checking and replacing fuses ................................................ 427
Headlight aim ................................ 442
Light bulbs....................................... 444
4Maintenance and care

230
10_IS250C/350C_U
3-1. Using the air conditioning system and defogger
Automatic air conditioning system
Using the automatic modePress .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature setting.
Press to switch to automa tic mode. (IS350C only)
Automatically switches between outside air and recirculated air modes.
Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
With navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner's Manual”.
Without navigation system
Automatic mode
Driver’s side temperature
setting display Changes the air outlets used
Off Fan speed
Airflow display
Fan speed display
Passenger’s side
temperature setting displayMicro dust and
pollen filter
Driver's side
temperature control
Air conditioning on/off switch Outside air or recirculated modeWindsh ield defo gger
Passenger’s side
temperature control
Dual operation switch
STEP1
STEP2

234
3-1. Using the air conditioning system and defogger
10_IS250C/350C_U

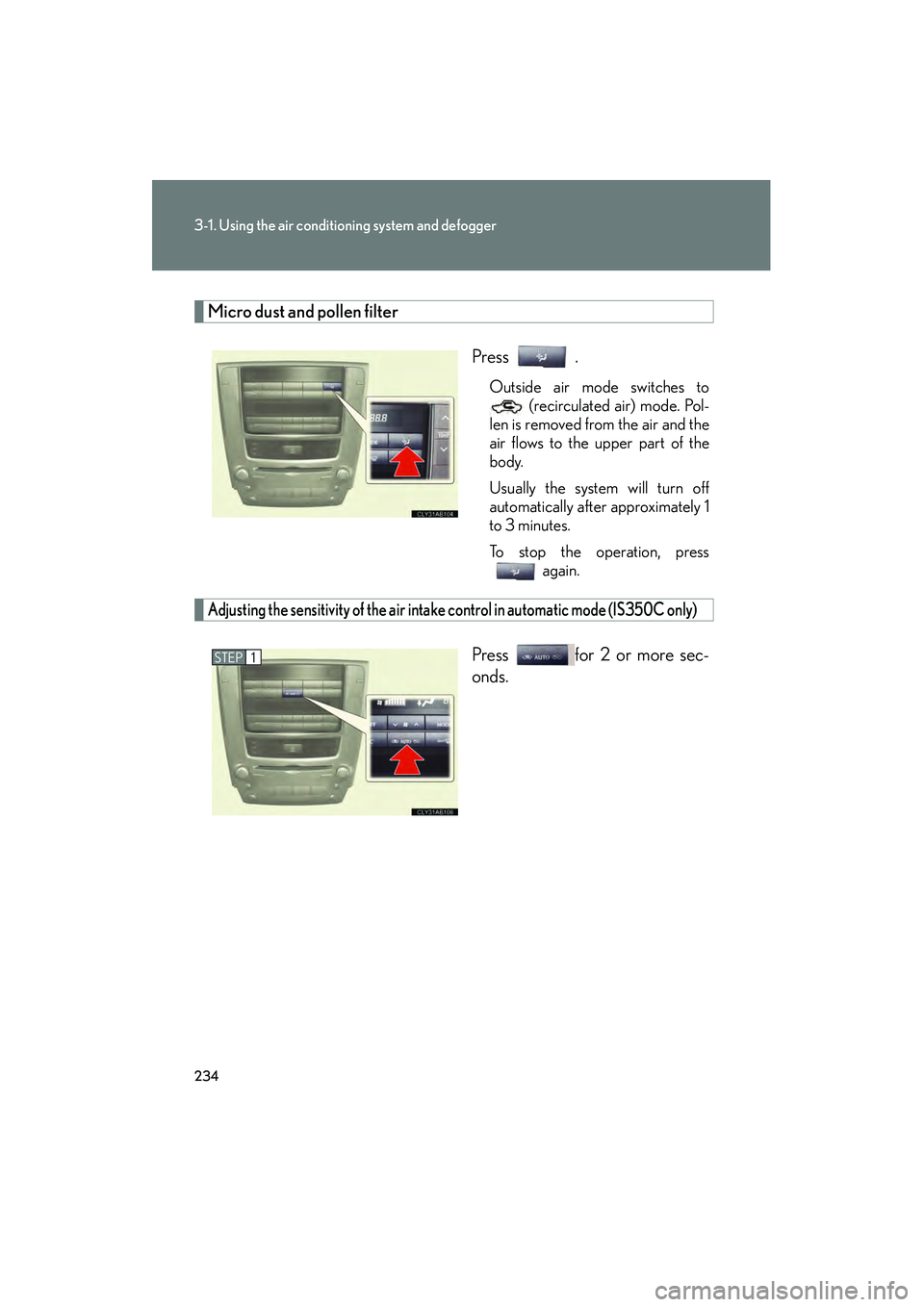

Micro dust and pollen filterPress .
Outside air mode switches to (recirculated air) mode. Pol-
len is removed from the air and the
air flows to the upper part of the
body.
Usually the system will turn off
automatically after approximately 1
to 3 minutes.
To stop the operation, press again.
Adjusting the sensitivity of the air intake control in automatic mode (IS350C only)
Press for 2 or more sec-
onds.STEP1

237
3-1. Using the air conditioning system and defogger
3
Interior features
10_IS250C/350C_U
■When the indicator light on flashes
Press and turn off the air conditioning system before turning it on once
more. There may be a problem in the air conditioning system if the indicator light
continues to flash. Turn the air conditioning system off and have it inspected by your
Lexus dealer.
■Automatic mode for air intake control (IS350C only)
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes. When the
retractable hardtop is opened, recirculated air mode is automatically selected.
■Micro dust and pollen filter
●In order to prevent the window from fogging up when the outside air is cold, the
following may occur.
• Outside air mode does not switch to .
• The air conditioning system operates automatically.
• The operation cancels after 1 minute.
●In rainy weather, the windows may fog up. Press .
CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The dif-
ference between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.
NOTICE
■To prevent battery discharge
Do not leave the automatic air conditioning system on longer than necessary when
the engine is off.

Maintenance and care4
373
10_IS250C/350C_U
4-1. Maintenance and careCleaning and protecting the vehicle exterior............. 374
Cleaning and protecting the vehicle interior .............. 377
4-2. Maintenance Maintenance requirements ....................... 380
General maintenance ......... 382
Emission inspection and maintenance (I/M)
programs............................... 385 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions ........................... 386
Hood .......................................... 389
Positioning a floor jack ......... 390
Engine compartment ........... 392
Tires............................................ 406
Tire inflation pressure............ 416
Wheels ...................................... 420
Air conditioning filter ........... 422
Electronic key battery.......... 425
Checking and replacing fuses ...................... 427
Headlight aim ......................... 442
Light bulbs................................ 444

388
4-3. Do-it-yourself maintenance
10_IS250C/350C_U
CAUTION
■When working near the electric cooling fan or radiator grille
Be sure the “ENGINE START STOP” switch is OFF.
With the “ENGINE START STOP” switch in IGNITION ON mode, the electric
cooling fan may automatically start to run if the air conditioning is on and/or the
coolant temperature is high. (→P. 400)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in the eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also a backfire could cause a fire in the engine compartment.

422
4-3. Do-it-yourself maintenance
10_IS250C/350C_U
Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to main-
tain air conditioning efficiency.
■ Removal method
Set the air conditioning system to recirculated mode.
The air conditioning filter case cannot be removed with the system in
the outside air mode.
Turn the “ENGINE START STOP” switch OFF.
Open the glove box. Lift and
remove the partition.
Remove the filter cover.
Remove the filter case.
STEP1
STEP2
STEP3
STEP4
STEP5

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
10_IS250C/350C_U
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance sched-
ule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, please refer to the “Owner's
Manual Supplement/Scheduled Maintenance”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
■Cleaning method
If the filter is dirty, clean by blow-
ing compressed air through the
filter from the downward side.
Hold the air gun 2 in. (5 cm)
from the filter and blow for
approximately 2 minutes at
72 psi (500 kPa, 5.0 kgf/cm
2
or bar).
If it is not available, have the
filter cleaned by your Lexus
dealer.
■ Replacement method
Remove the air conditioning fil-
ter from the filter case and
replace it with a new one.
The “↑UP” marks shown on the
filter and the filter case should
be pointing up.

424
4-3. Do-it-yourself maintenance
10_IS250C/350C_U

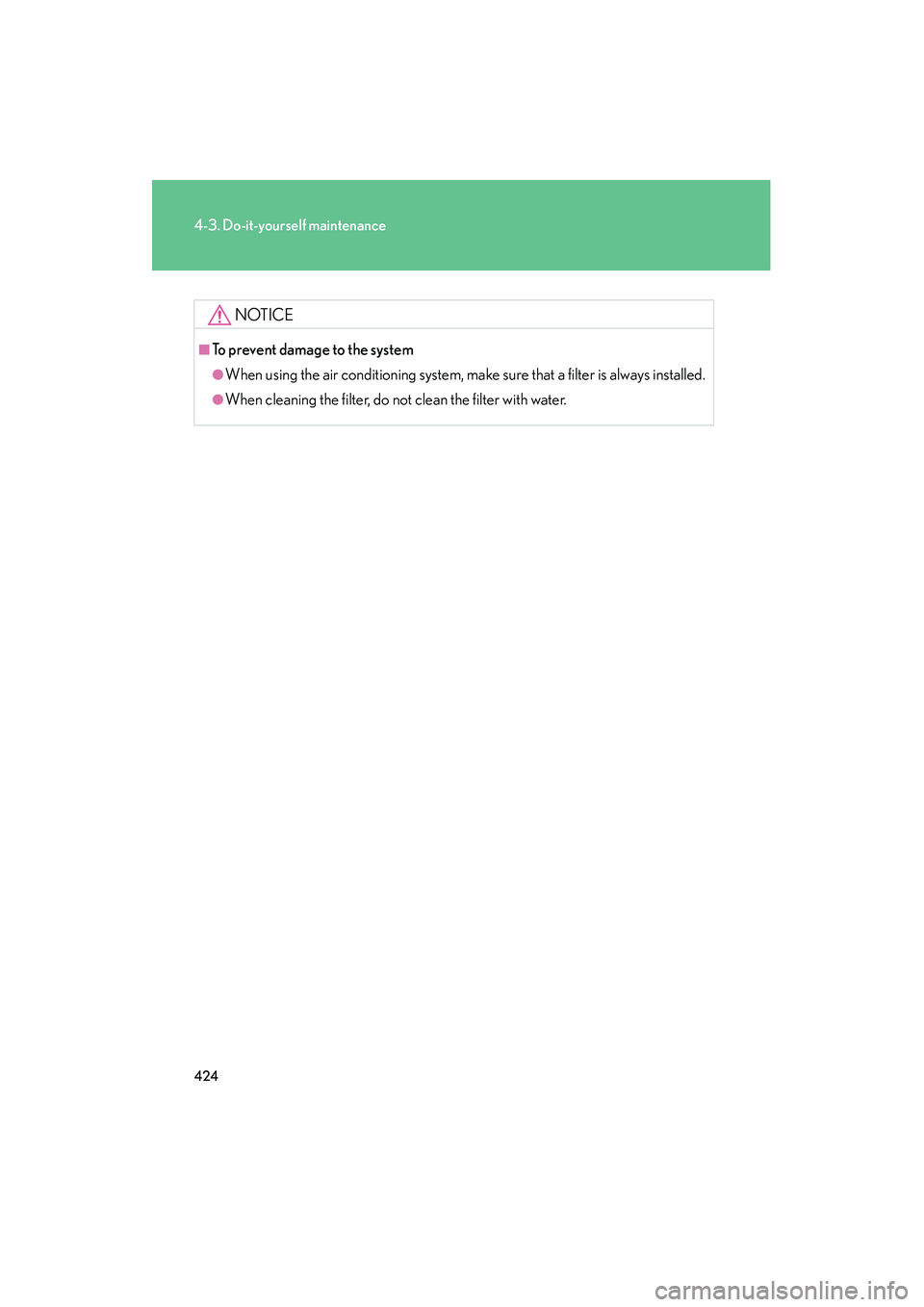

NOTICE
■To prevent damage to the system
●When using the air conditioning system, make sure that a filter is always installed.
●When cleaning the filter, do not clean the filter with water.

572
10_IS250C/350C_U
Alphabetical index
Alphabetical index
A/C ............................................................230
ABS.............................................................204
AFS ...............................................................174
Adaptive front lighting system ..........174
Air conditioning filter .......................... 422
Air conditioning systemAir conditioning filter ....................... 422
Automatic air conditioning system .................................................. 230
Airbags
Airbag operating conditions..........102
Airbag precautions for your child........................................................ 106
Airbag warning light ........................ 464
Front passenger occupant classification system........................... 111
General airbag pr ecautions ......... 106
Locations of airbags.......................... 100
Modification and disposal of airbags .................................................... 110
Proper driving posture ........... 98, 106
Side airbag operating conditions............................................ 103
Side airbag precautions .................. 106
SRS airbags ........................................... 100
Alarm ............................................................95
Antenna .................................................... 247
Anti-lock brake system ......................204
Ashtrays ....................................................352
Audio input ..............................................284 Audio system
Antenna................................................... 247
AUX adapter ...................................... 284
Bluetooth
® audio ............................. 289
CD player/changer ......................... 250
iPod
® player ....................................... 265
MP3/WMA disc................................257
Optimal use ......................................... 282
Portable music player ..................... 284
Radio ........................................................ 242
Steering wheel audio switch........ 286
USB memory player ........................ 273
Automatic air conditioning system .................................................... 230
Automatic headlight leveling system ......................................................175
Automatic light control system......... 173
Automatic transmission Automatic transmission ................... 147
If the shift lever cannot be shifted from P................................... 499
S mode ....................................................... 151
AUX adapter ......................................... 284
