garage door opener Lexus IS250C 2010 Owner's Manual
[x] Cancel search | Manufacturer: LEXUS, Model Year: 2010, Model line: IS250C, Model: Lexus IS250C 2010Pages: 586, PDF Size: 31.62 MB
Page 6 of 586

1
2
3
4
5
6
7
10_IS250C/350C_U
5
3-6. Using the storage featuresList of storage features.............. 340
• Glove box ................................... 340
• Console box ................................. 341
• Cup holders................................. 343
3-7. Other interior features Sun visors......................................... 346
Vanity mirror .................................. 347
Clock ................................................ 348
Satellite switches .......................... 349
Ashtrays ........................................... 352
Cigarette lighter .......................... 353
Power outlet ................................... 354
Seat heaters and ventilators .................................... 355
Floor mat......................................... 358
Trunk features................................ 359
Garage door opener.................. 362
Compass......................................... 368 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior................... 374
Cleaning and protecting the vehicle interior .................... 377
4-2. Maintenance Maintenance requirements .... 380
General maintenance ................ 382
Emission inspection and maintenance (I/M)
programs ..................................... 385
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................. 386
Hood ................................................ 389
Positioning a floor jack.............. 390
Engine compartment.................. 392
Tires ................................................... 406
Tire inflation pressure.................. 416
Wheels ............................................. 420
Air conditioning filter.................. 422
Electronic key battery ................ 425
Checking and replacing fuses ................................................ 427
Headlight aim ................................ 442
Light bulbs....................................... 444
4Maintenance and care
Page 12 of 586

10_IS250C/350C_U
11
Compass P. 368
Garage door opener switches P. 362
Anti-glare inside rear view mirror P. 74
Personal lights P. 339
Interior lights P. 339
Vanity mirrors P. 347
Sun visors P. 346
A
Page 230 of 586

Interior features3
229
10_IS250C/350C_U
3-3. Using the Bluetooth®
audio system
Bluetooth
® audio system ... 289
Using the Bluetooth
®
audio system ......................... 292
Operating a Bluetooth
®
enabled portable
player ...................................... 297
Setting up a Bluetooth
®
enabled portable
player ..................................... 300
Bluetooth
® audio system
setup ........................................ 306
3-4. Using the hands-free phone system
(for mobile phones)
Hands-free system for mobile phones ...................... 307
Using the hands-free system
(for mobile phones)............... 311
Making a phone call ............... 319
Setting a mobile phone........ 323
Security and system setup ....................................... 328
Using the phone book.......... 332 3-5. Using the interior lights
Interior lights list .................... 338
• Interior light .......................... 339
• Personal lights ..................... 339
3-6. Using the storage features List of storage features......... 340
• Glove box .............................. 340
• Console box .......................... 341
• Cup holders .......................... 343
3-7. Other interior features Sun visors ................................. 346
Vanity mirror ........................... 347
Clock ......................................... 348
Satellite switches ................... 349
Ashtrays.................................... 352
Cigarette lighter .................... 353
Power outlet ............................ 354
Seat heaters and ventilators ............................. 355
Floor mat .................................. 358
Trunk features ......................... 359
Garage door opener ............ 362
Compass .................................. 368
Page 363 of 586

362
3-7. Other interior features
10_IS250C/350C_U
Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufactured
under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink
compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
■ Programming the HomeLink
Point the remote control transmit-
ter for the device 1 to 3 in. (25 to
75 mm) from the HomeLink
but-
tons.
Keep the HomeLink indicator
light in view while programming.
The garage door opener can be pr ogrammed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security systems,
and other devices.
STEP1
Page 365 of 586

364
3-7. Other interior features
10_IS250C/350C_U■
Programming a Rolling Code system (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with the
steps listed below.
Locate the training button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor.
Refer to the operation manual supplied with the garage door opener
motor for the location of the training button.
Press the training button.
Following this step, you have 30 seconds in which to initiate step 3
below.
Press and hold the vehicle's programmed HomeLink button for
2 seconds and release it. Repeat this step once again. The garage
door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
signal and operate the garage door.
Repeat the steps above to program another rolling code system
for any of the remaining HomeLink buttons.
■ Programming an entry gate (for U.S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the HomeLink indicator light in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote control
button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
compatible trans-
ceiver start to flashing rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4
Page 367 of 586

366
3-7. Other interior features
10_IS250C/350C_U
Erasing the entire HomeLink memory (all three programs)Press and hold the 2 outside but-
tons for 10 seconds until the indi-
cator light flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
memory.
■Before programming
●Install a new battery in the remote control transmitter.
●The battery side of the remote control transmitter must be pointed away from
the HomeLink button.
■Certification for the garage door opener
This device complies with Part 15 of the FCC Rules and with RSS-210 of the IC
Rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
WARNING: This transmitter has been tested and complies with FCC and IC rules.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the device.

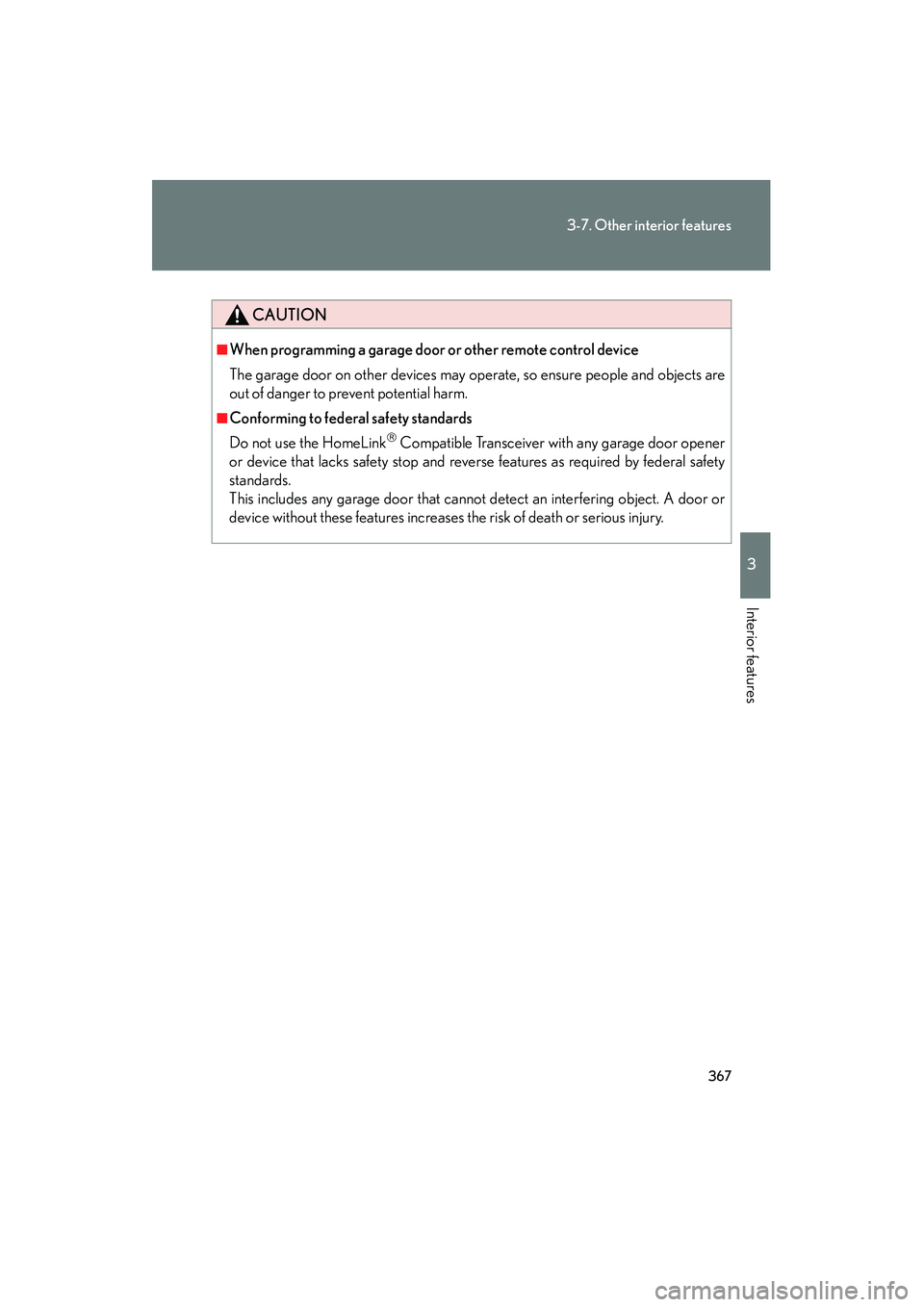

Page 368 of 586

367
3-7. Other interior features
3
Interior features
10_IS250C/350C_U
CAUTION
■When programming a garage door or other remote control device
The garage door on other devices may operate, so ensure people and objects are
out of danger to prevent potential harm.
■Conforming to federal safety standards
Do not use the HomeLink
Compatible Transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards.
This includes any garage door that cannot detect an interfering object. A door or
device without these features increases the risk of death or serious injury.
Page 576 of 586

575
Alphabetical index
10_IS250C/350C_U
Engine compartment cover............. 394
Engine coolantCapacity...................................................531
Checking ............................................... 398
Preparing and checking before winter .................................... 220
Engine coolant temperature gauge ....................................................... 159
Engine immobilizer system ..................93
Engine oil Capacity.................................................530
Checking ............................................... 395
Preparing and checking before winter .................................... 220
Engine oil maintenance data ............397
EPS............................................................. 204
Event data recorder.............................. 461
Floor mat.................................................. 358
Fluid Brake .......................................................400
Washer ................................................... 405
Fog lights Switch ........................................................ 176
Wattage ................................................... 541
Foot well lights....................................... 338
Front fog lights Switch ........................................................ 176
Wattage ................................................... 541 Front passenger occupant
classification system ............................. 111
Front passenger's seat belt reminder light...................................... 465
Front seats Adjustment .................................................51
Driving position memory ..................56
Seat position memory ........................60
Front turn signal lights Switch........................................................ 156
Wattage ................................................... 541
Fuel
Capacity .................................................529
Fuel gauge.............................................. 159
Fuel pump shut off system............ 460
Information ............................................542
Refueling....................................................90
Fuel door .....................................................90
Fuel filler door ...........................................90
Fuel pump shut off system.................460
Fuses .......................................................... 427
Garage door opener .......................... 362
Gauges ...................................................... 159
Glove box ................................................340
Glove box light ....................................... 341
F
G
