5
When trouble arises
539
5-2. Steps to take in an emergency
IS250C/350C_U

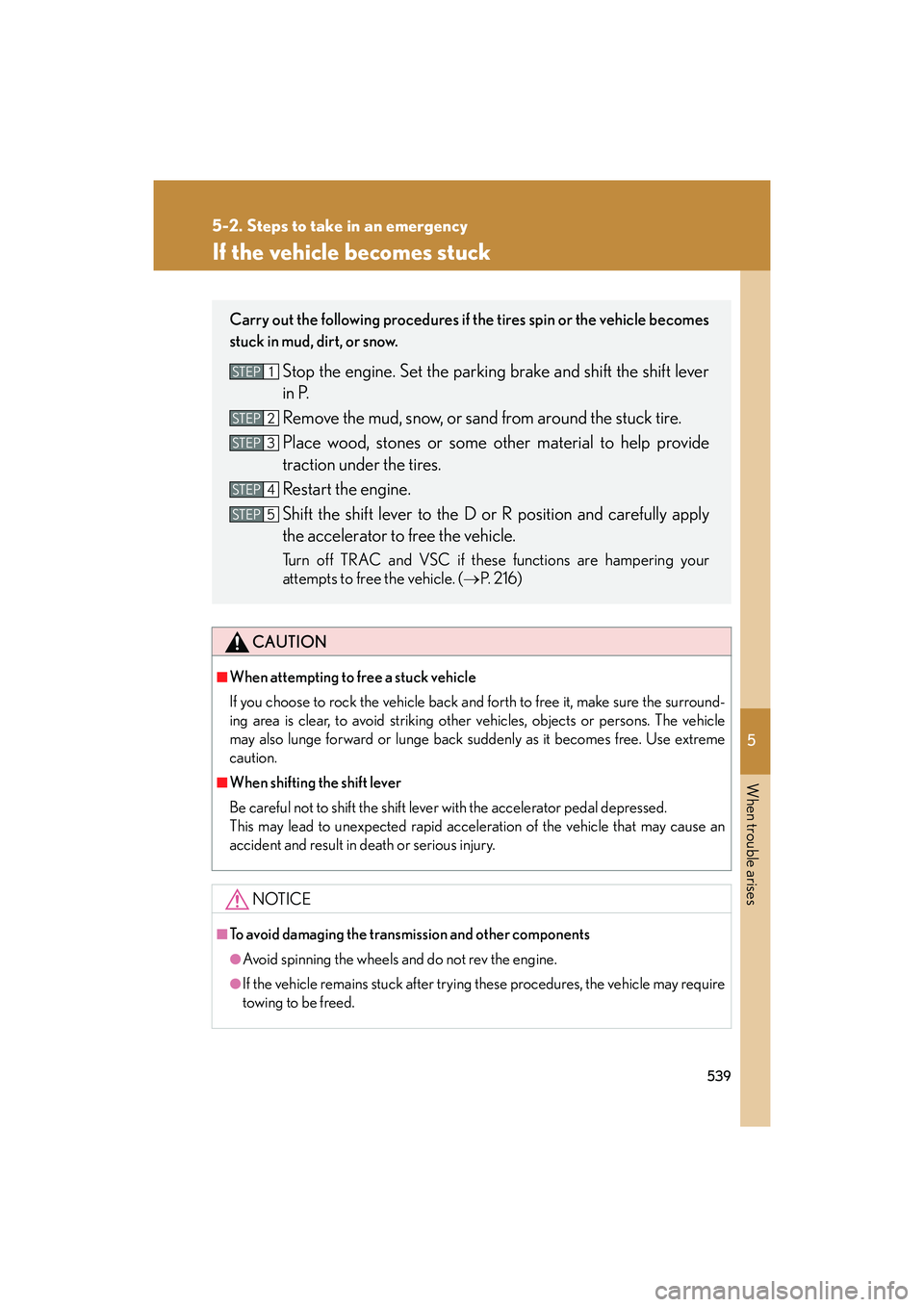

If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may also lunge forward or lunge back suddenly as it becomes free. Use extreme
caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
●If the vehicle remains stuck after trying these procedures, the vehicle may require
towing to be freed.
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and shift the shift lever
in P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Shift the shift lever to the D or R position and carefully apply
the accelerator to free the vehicle.
Turn off TRAC and VSC if these functions are hampering your
attempts to free the vehicle. (→P. 2 1 6 )
STEP1
STEP2
STEP3
STEP4
STEP5

540
5-2. Steps to take in an emergency
IS250C/350C_U
If the retractable hardtop does not close
Unlock the trunk. (→P. 5 1 )
Open the trunk fully.
If the retractable hardtop does not clos e when the switch is pressed, check
that all operating conditions are met. ( →P. 9 1 )
If the retractable hardtop will not close even though all operating condi-
tions have been met, there may be a malfunction. Immediately have the
vehicle inspected by your Lexus dealer.
As a temporary measure, the following procedure can be performed to
manually close the retractable hardtop.
■ Notes for manually closin g the retractable hardtop
● This procedure requires 2 people.
● There is some risk of damage to the vehicle during the procedure,
such as when applying considerable force or removing and
installing various parts. If you are unsure of how to perform this
procedure properly, it is recommended that you contact your
Lexus dealer.
● Protect your hands with gloves etc. when placing them in narrow
spaces.
● Before starting the procedure, turn the “ENGINE START STOP”
switch off.
STEP1
STEP2

5
When trouble arises
549
5-2. Steps to take in an emergency
IS250C/350C_U
■Parts removed during the manual closing procedure
Keep any parts removed during the procedure inside the vehicle and take all
removed parts and the vehicle to your Lexus dealer.
CAUTION
■When manually closing the retractable hardtop
Observe the following precautions:
●Stop the vehicle on a flat surface in a safe place.
●Set the parking brake and shift the shift lever to P.
●Ensure that there are no occupants inside the vehicle.
●Do not perform this procedure while there are strong winds blowing.
●Turn the “ENGINE START STOP” switch off.
●Be careful not to catch any part of your body or clothing in the moving parts.
●Some parts of this procedure may result in an injury if performed with bare hands.
Protect your hands with gloves or a piece of cloth when performing the proce-
dure.
NOTICE
■After the retractable hardtop has been closed manually
●Drive as slowly as possible. The trunk lid may not be closed securely, causing it to
open due to wind pressure while driving.
●After the procedure is performed, take the vehicle to your Lexus dealer as soon
as possible.

550
5-2. Steps to take in an emergency
IS250C/350C_U
If your vehicle has to be stopped in an emergency
CAUTION
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake pedal
harder to depress and the steering wheel heavier to turn. Decelerate as much as
possible before turning off the engine.
Only in an emergency, such as if it becomes impossible to stop the vehicle
in the normal way, stop the vehicle using the following procedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce vehi-
cle speed as much as possible.
Stop the engine by pressing and
holding the “ENGINE START
STOP” switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
STEP1
STEP2
STEP3
STEP4
STEP3
Press and hold for 2 seconds or more,
or press briefly 3 times or more
STEP4
STEP5

589
6-2. Customization
6
Vehicle specifications
IS250C/350C_U
Multi-information display (→P. 1 7 1 )
Intuitive park-
ing assist
(
→P. 2 0 8 )
Back sensor operation
display and buzzerOnOff
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.9 ft. (150 cm)2.0 ft. (60 cm)
Illumination
(
→P. 3 5 4 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedOnOff
Operation after the
“ENGINE START STOP”
switch is turned OFF
OnOff
Front foot well lightsOnOff
Shift lever lightOnOff
Outer foot lightOnOff
Available languageEnglish and French
ItemFunctionDefault settingCustomized
setting

613
Alphabetical index
IS250C/350C_U
Electric power steering ....................... 214
Electronic keyIf the electronic key does not operate properly ............................ 528
Emergency, in case of If a warning message is
displayed ........................................... 500
If the electronic key does not
operate properly ............................ 528
If the engine will not start ............... 524
If the retractable hardtop does not close .................................540
If the shift lever cannot be shifted from P ................................... 526
If the vehicle has a discharged battery.................................................. 532
If the warning buzzer sounds........ 491
If the warning light turns on ............ 491
If you have a flat tire ..........................513
If you lose your keys .........................527
If you think something is wrong................................................... 489
If your vehicle becomes stuck .... 539
If your vehicle has to be stopped in an emergency .........550
If your vehicle needs to be
towed ................................................... 483
If your vehicle overheats................ 536
Emergency flashers Switch ...................................................... 482 Engine
Compartment....................................... 416
Engine switch ......................................... 147
Hood ......................................................... 413
How to start the engine ....................147
Identification number ...................... 553
If the engine will not start................524
Ignition switch ........................................ 147
Overheating ........................................ 536
Engine compartment cover .............. 418
Engine coolant Capacity ................................................ 559
Checking ............................................... 423
Preparing and checking
before winter ....................................233
Engine coolant temperature
gauge......................................................... 161
Engine immobilizer system..................98
Engine oil Capacity ................................................ 556
Checking ...............................................420
Preparing and checking
before winter ....................................233
EPS .............................................................. 214
Event data recorder ............................... 22E
