light Lexus IS250C 2014 Owner's Manual

522
5-2. Steps to take in an emergency
IS250C/350C_U
If you have a flat tire (vehicles with run-flat tires)
■In some condition (such as at high temperatures)
You cannot continue driving for up to 100 miles (160 km).
■If you cannot distinguish between the standard tires and run-flat tires
Consult your Lexus dealer.
■Spare tire
A spare tire is not provided on the vehicle with run-flat tires.
■For the detailed information on run-flat tires
See the tire warranty book.
Take your vehicle to the nearest Lexus dealer or authorized tire dealer as
soon as possible.
■Run-flat tires (A “RFT” or “DSST” mark is molded on the sidewall)
You can continue driving a vehi-
cle with run-flat tires even if any
tire goes flat.
It is able to run for a maximum of
100 miles (160 km) at a speed
below 50 mph (80 km/h) after
the tire pressure warning light
comes on. (→ P. 4 9 3 )

524
5-2. Steps to take in an emergency
IS250C/350C_U
If the engine will not start
If the engine will not start even though correct starting procedures are
being followed (
→P. 147), consider each of the following points.
■The engine will not start even when the starter motor operates
normally.
One of the following may be the cause of the problem.
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. ( →P. 147)
● There may be a malfunction in the engine immobilizer system.
(→ P. 9 8 )
■ The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low vol-
ume.
One of the following may be the cause of the problem.
● The battery may be discharged. ( →P. 5 3 2 )
● The battery terminal connections may be loose or corroded.

5
When trouble arises
525
5-2. Steps to take in an emergency
IS250C/350C_U
■The starter motor does not turn ov er, the interior lights and head-
lights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( →P. 5 3 2 )
● There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.

532
5-2. Steps to take in an emergency
IS250C/350C_U
If the vehicle battery is discharged
The following procedures may be used to start the engine if the vehicle’s
battery is discharged.
You can call your Lexus dealer, or qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your Lexus following the steps
below.
Remove the engine compartment covers. ( →P. 4 1 8 )
Connecting the jumper cables.
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in the
illustration. Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Open and close any of the doors with the “ENGINE START
STOP” switch OFF.
STEP1
STEP2
STEP3
STEP4

5
When trouble arises
533
5-2. Steps to take in an emergency
IS250C/350C_U
■Avoiding a discharged battery
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehi-
cle is not in use, due to natural discharge and the draining effects of certain
electrical appliances. If the vehicle is left for a long time, the battery may dis-
charge, and the engine may be unable to start. (The battery recharges automat-
ically during driving.)
■When the battery is removed or discharged
Make sure that the key is not inside the vehicle when recharging or replacing the
battery. The key may be locked in the vehicle if the alarm is activated. (→P. 1 0 1 )
Maintain the engine speed of the second vehicle and turn the
“ENGINE START STOP” switch to IGNITION ON mode,
then start the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Lexus dealer
as soon as possible.STEP5
STEP6

534
5-2. Steps to take in an emergency
IS250C/350C_U

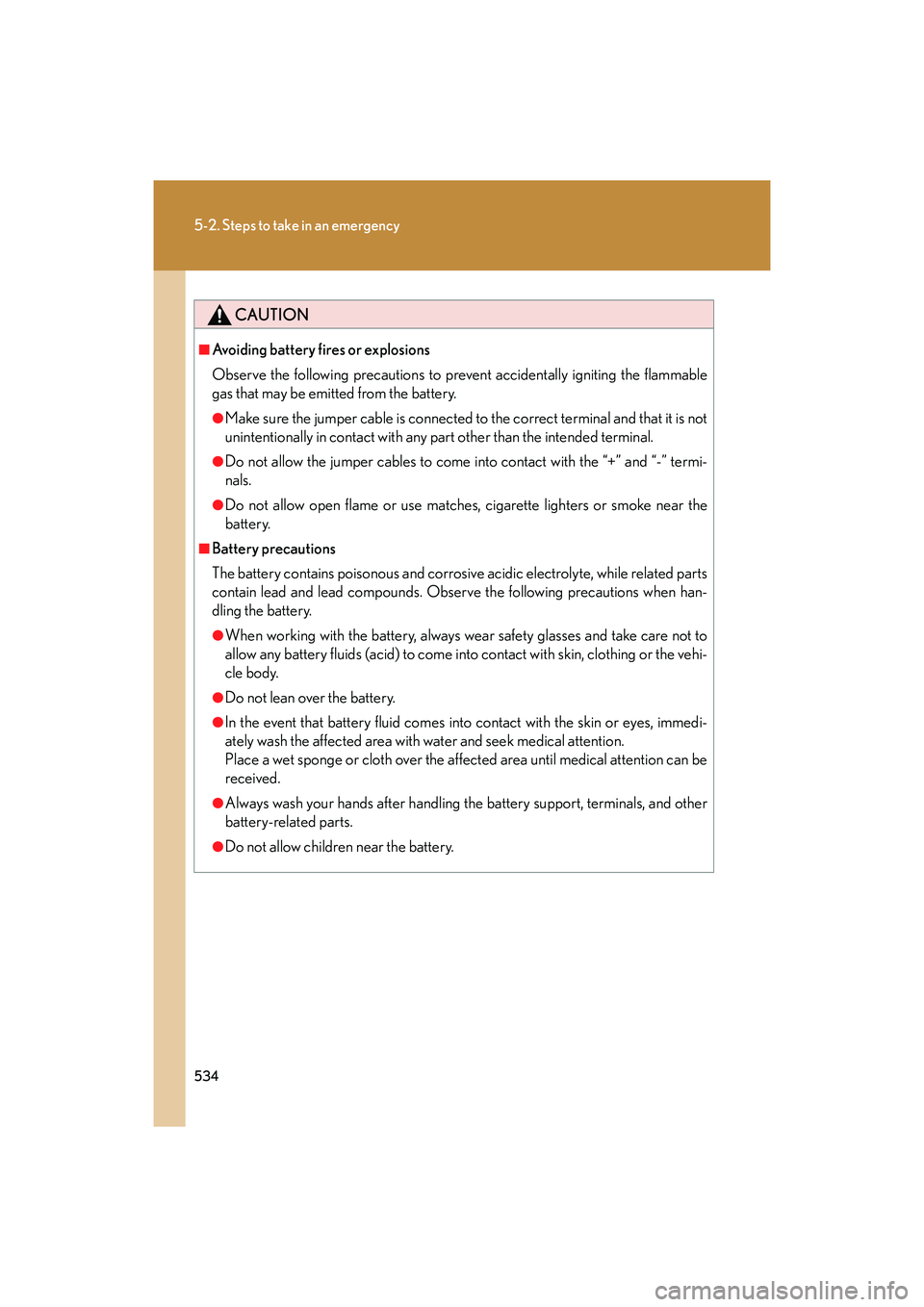

CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any part other than the intended terminal.
●Do not allow the jumper cables to come into contact with the “+” and “-” termi-
nals.
●Do not allow open flame or use matches, cigarette lighters or smoke near the
battery.
■Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related parts
contain lead and lead compounds. Observe the following precautions when han-
dling the battery.
●When working with the battery, always wear safety glasses and take care not to
allow any battery fluids (acid) to come into contact with skin, clothing or the vehi-
cle body.
●Do not lean over the battery.
●In the event that battery fluid comes into contact with the skin or eyes, immedi-
ately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the battery support, terminals, and other
battery-related parts.
●Do not allow children near the battery.

5
When trouble arises
547
5-2. Steps to take in an emergency
IS250C/350C_UHolding the parts in the same
places as those shown in the illus-
trations, carefully raise the rear
window panel until it comes into
contact with the roof panel.
Performing this procedure by hold-
ing parts other than those indi-
cated may result in damage to the
vehicle or serious injury.
If the rear window panel cannot be
raised, move it lightly up and down
2 or 3 times.
Be careful not to catch your hand
or fingers between the roof panel
and rear window panel.
Remove the rearward lock cover
located on the ceiling.
Insert the end of the hexagon
wrench and turn it clockwise as far
as possible to lock the rear window
panel and the roof panel.
Do not forcibly turn the wrench
beyond the stopping point.
STEP 20
STEP21
STEP22

560
6-1. Specifications
IS250C/350C_U
Ignition system
Electrical system
Spark plug
Make
GapDENSO FK20HBR11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage* at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(*: Voltage checked 20 minutes after
the engine and all the lights are turned
off)
Charging rates5 A max.

568
6-1. Specifications
IS250C/350C_U
Light bulbs
A: D4S discharge bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: HB3 halogen bulbs
E: Wedge base bulbs (clear)
F: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
High beam
Low/high beam (discharge bulbs)
Low beam (halogen bulbs)
9005D4S
H116035
55D
A B
Front turn signal lightsWY21W21C
Parking lights (vehicles with
halogen headlights)W5W5E
Front fog lightsH1155B
Rear turn signal lightsWY21W21C
Back-up lights92116E
Outer foot lights5E
Interior
Vanity lights1.5F
Tr u n k l i g h t5F
Interior light5E
Door courtesy lights5E

569
6-1. Specifications
6
Vehicle specifications
IS250C/350C_U
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
Your vehicle must use only unleaded gasoline.
IS250C
Premium unleaded gasoline with an octane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an octane rating lower than 91 may result in engine knocking. Per-
sistent knocking can lead to engine damage and should be corrected by
refueling with higher octane unleaded gasoline.
IS350C
Premium unleaded gasoline with an oc tane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an octane rating lower than 91 may result in engine knocking and
significantly reduced performance. Persistent knocking can lead to engine
damage and should be corrected by refueling with higher octane unleaded
gasoline.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.
