Lexus IS250C 2014 Owner's Manual

160
2-1. Driving procedures
IS250C/350C_U
Horn
To sound the horn, press on or
close to the mark.

161
2
When driving
IS250C/350C_U
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer and the tachometer gauge display may
differ depending on the model/type.

The following gauges, meters and display illuminate when the
“ENGINE START STOP” switch is in IGNITION ON mode.Speedometer
Displays the vehicle speed.
Multi-information display
→ P. 1 7 1
Tachometer
Displays the engine speed in revolutions per minute.
Tacho indicator
When the set engine speed is reached, this ring-shaped indicators comes
on in yellow. The indicator comes on in red when the engine speed
reaches a dangerous range.
Engine coolant temperature gauge
Displays the engine coolant temperature.

162
2-2. Instrument cluster
IS250C/350C_U
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted. Darker
Brighter
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven sincethe meter was last reset. Trip meters “A” and “B” can be
used to record and display different distances indepen-
dently.
Speed indicator
When the set speed is reached while driving, this ring-shaped indicator
comes on in yellow. The indicator comes on in red when the vehicle speed
reaches the dangerous range.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter and trip meter reset button
Switches between odometer and trip meter displays. Pushing and holding
the button will reset the trip meter when the trip meter is being displayed.

163
2-2. Instrument cluster
2
When driving
IS250C/350C_U
Speed and tacho indicators■ Turning the indicator on/off
Bring up the satellite switch mode
on the multi-information display.
Press “<”, “>” or the “ON/OFF”
button.
Select the item whose setting is to
be changed.
Press “<” or “>” to display the item
whose setting is to be changed.
Change the settings.
Press “ON/OFF” button to change
the settings.
STEP1
STEP2
STEP3

164
2-2. Instrument cluster
IS250C/350C_U■
Changing the indicator setting
The satellite switch can be used to change the set speed at which the
yellow speed or tacho indicator ring comes on.
The setting can be made only when the “ENGINE START STOP”
switch is in IGNITION ON mode and the vehicle is stopped.
Push “
<” or “>” to select the speed or tacho indicator set mode. ( ) Turn
the speed or tacho indicator to “ OFF” and then “ON” by pushing the
“ON/OFF” button. ( )
After one second, the mode enters
the indicator setting mode.
The speedometer or tachometer
needle moves to the previously set
speed.
STEP1

165
2-2. Instrument cluster
2
When driving

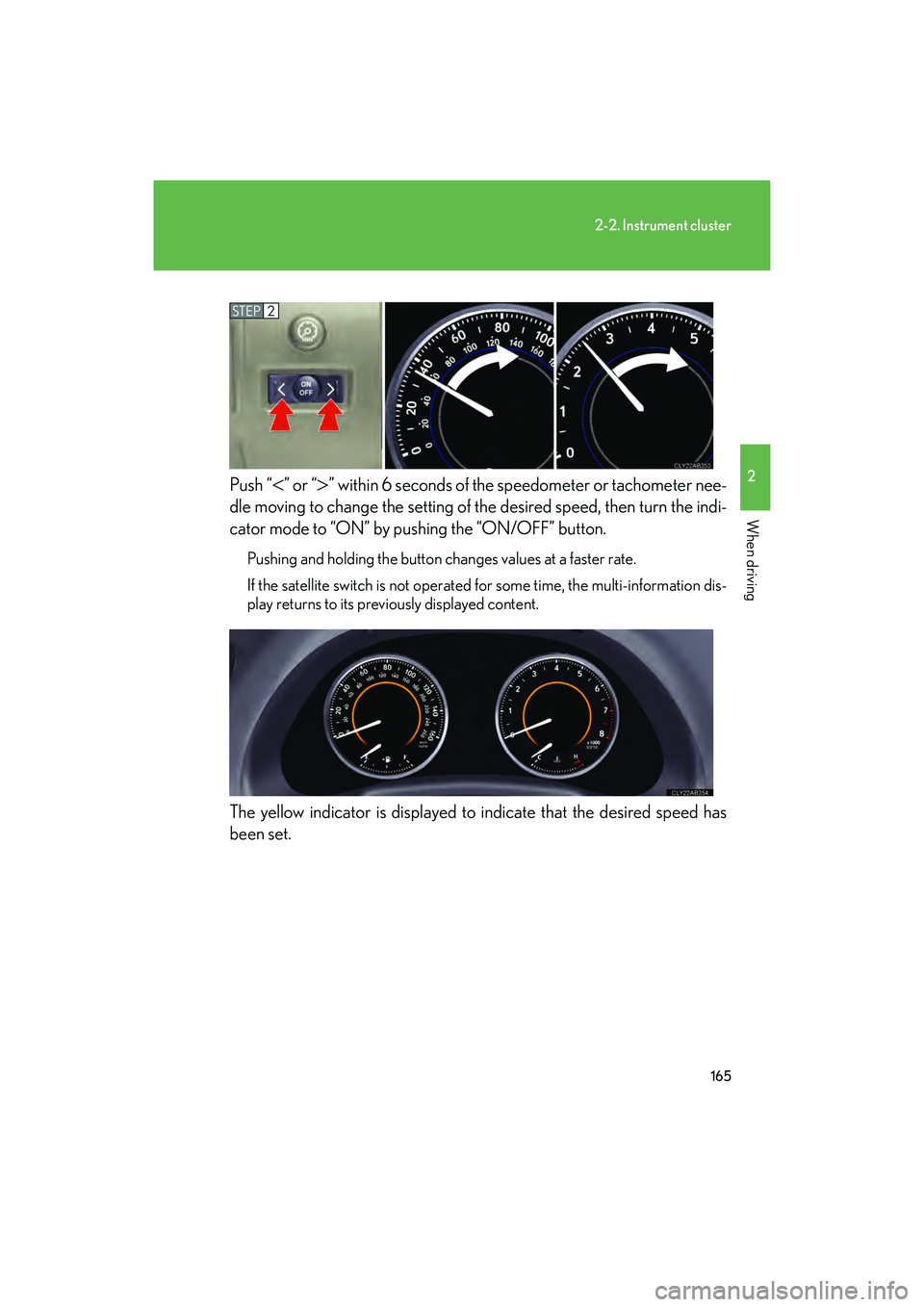

IS250C/350C_UPush “
<” or “>” within 6 seconds of the speedometer or tachometer nee-
dle moving to change the setting of the desired speed, then turn the indi-
cator mode to “ON” by pushing the “ON/OFF” button.
Pushing and holding the button changes values at a faster rate.
If the satellite switch is not operated for some time, the multi-information dis-
play returns to its previously displayed content.
The yellow indicator is displayed to indicate that the desired speed has
been set.
STEP2

166
2-2. Instrument cluster
IS250C/350C_U
■Speed indicator display conditions and vehicle speed setting range
Vehicle speed setting range: Approximately 30 to 100 mph (approximately 50 to 160 km/h)
When the maximum speed is selected, the speed indicator comes on only in red.
■Tacho indicator display conditions and engine speed setting range
Engine rpm setting range: Approximately 2000 to 6500 rpm (r/min)
When the maximum rpm is selected, the tacho indicator comes on only in red.
■The brightness of the instrument panel lights
When the headlight switch is turned to on, the brightness will be reduced slightly
unless the control dial is turned fully clockwise.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the ta chometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the temperature gauge is in the red zone (H). In
this case, immediately stop the vehicle in a safe place, and check the engine after
it has cooled completely. ( →P. 5 3 6 )

167
2-2. Instrument cluster
2
When driving
IS250C/350C_U

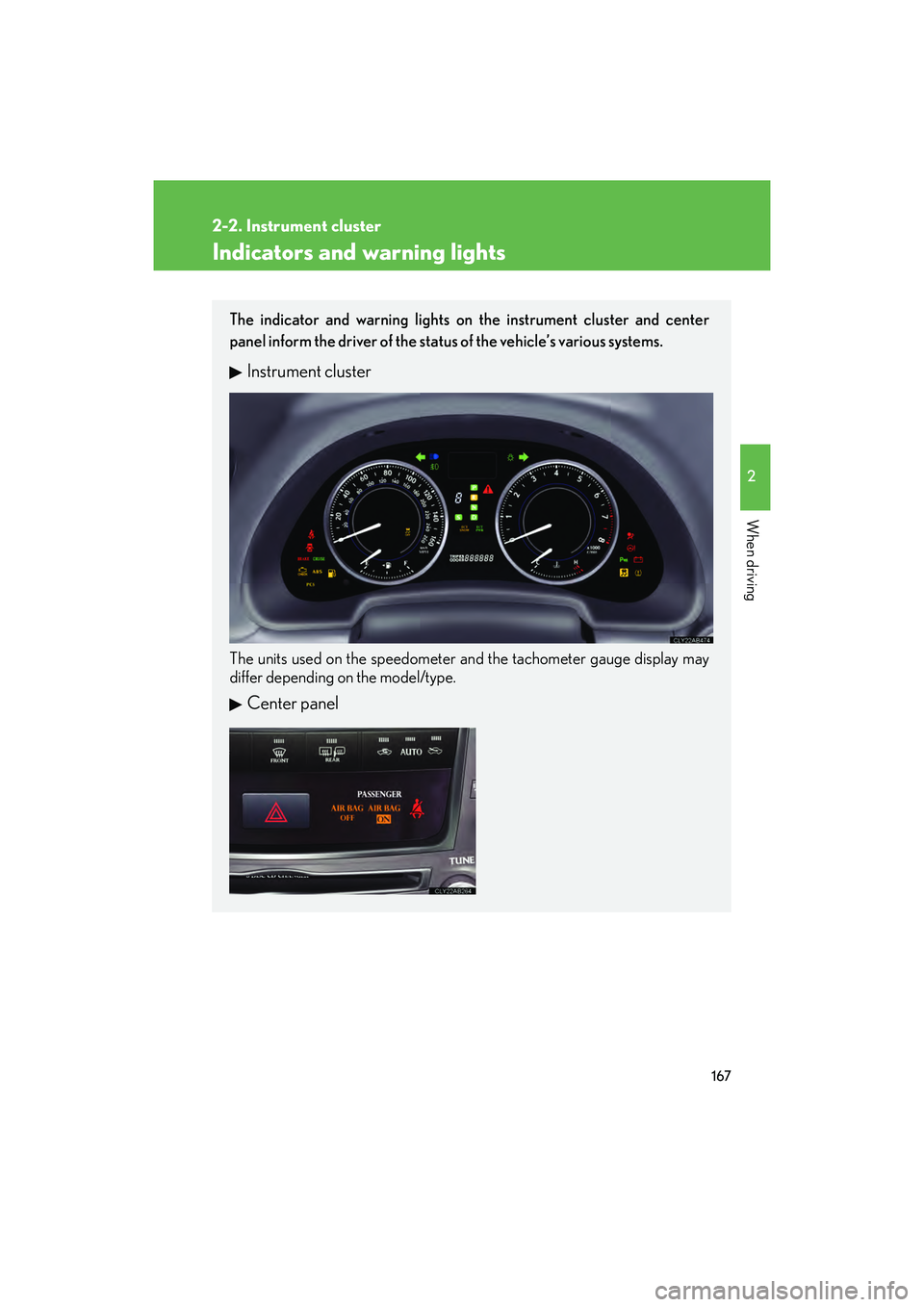

Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
The units used on the speedometer and the tachometer gauge display may
differ depending on the model/type.

Center panel

168
2-2. Instrument cluster
IS250C/350C_U
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(→ P. 1 5 8 )“ECT SNOW” indicator
(→ P. 1 5 2 )
Headlight high beam indi-
cator ( →P. 1 7 8 )“ECT PWR” indicator
(→ P. 1 5 2 )
(U.S.A.)
Headlight indicator
(→ P. 1 76 )Cruise control indicator
(→ P. 190, 194)
(Canada)
Tail light indicator
(→ P. 1 76 )
(if equipped)
Intuitive parking assist
indicator ( →P. 2 0 8 )
Front fog light indicator
(→ P. 1 8 0 ) Slip indicator ( →P. 2 1 5 )*1, 2

169
2-2. Instrument cluster
2
When driving
IS250C/350C_U
*1: These lights turn on when the “ENGINE START STOP” switch isturned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light flashes when the system is turned off. The light flashes quicklyto indicate that the system is operating.
Shift position and shift range indica-
tors ( →P. 151)
VSC off indicator
(→ P. 2 1 6 )
SRS airbag on-off indica-
tor ( →P. 117)
(if equipped)
Pre-collision system
warning light ( →P. 222)
*1
*1
*1, 3
