engine Lexus IS250C 2014 Owner's Manual

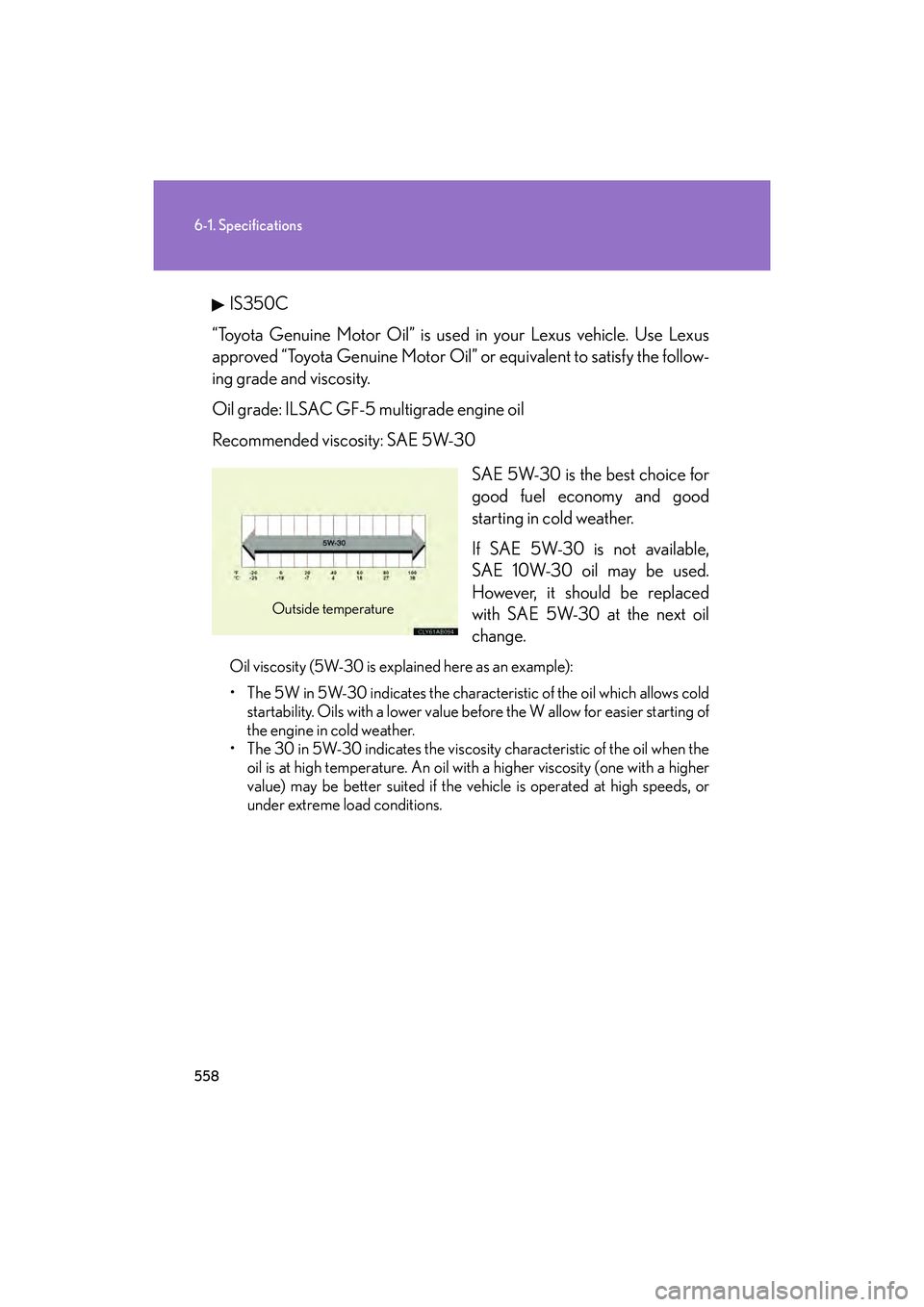

558
6-1. Specifications
IS250C/350C_U IS350C
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows coldstartability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
Outside temperature

560
6-1. Specifications
IS250C/350C_U
Ignition system
Electrical system
Spark plug
Make
GapDENSO FK20HBR11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage* at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(*: Voltage checked 20 minutes after
the engine and all the lights are turned
off)
Charging rates5 A max.

562
6-1. Specifications
IS250C/350C_U
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).
Pe d a l c l e a r a n c e *1
IS 350C
IS 250C4.13 in. (105 mm) Min.
4.3 in. (108 mm) Min.
Pedal free play0.04  0.08 in. (1.0  2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *27  9 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3

569
6-1. Specifications
6
Vehicle specifications
IS250C/350C_U
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
Your vehicle must use only unleaded gasoline.
IS250C
Premium unleaded gasoline with an octane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an octane rating lower than 91 may result in engine knocking. Per-
sistent knocking can lead to engine damage and should be corrected by
refueling with higher octane unleaded gasoline.
IS350C
Premium unleaded gasoline with an oc tane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an octane rating lower than 91 may result in engine knocking and
significantly reduced performance. Persistent knocking can lead to engine
damage and should be corrected by refueling with higher octane unleaded
gasoline.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

570
6-1. Specifications
IS250C/350C_U
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction through better performance.
■Lexus recommends the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to clean
and/or keep clean intake systems, per EPA’s lowest additives concentration pro-
gram.
●Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more
information on Top Tier Detergent Gasoline and a list of marketers, please go to
the official website www.toptiergas.com.
■Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.

572
6-1. Specifications
IS250C/350C_U
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems.
●IS250C: Use of unleaded gasoline with an octane rating lower than 91 may result
in engine knocking. Persistent knocking can lead to engine damage and should
be corrected by refueling with higher octane unleaded gasoline.
●IS350C: Use of unleaded gasoline with an octane rating lower than 91 may result
in engine knocking and significantly reduced performance. Persistent knocking
can lead to engine damage and should be corrected by refueling with higher
octane unleaded gasoline.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle's paint.

579
6-1. Specifications
6
Vehicle specifications
IS250C/350C_U■
Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire's resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No. 139.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine

589
6-2. Customization
6
Vehicle specifications
IS250C/350C_U
Multi-information display (→P. 1 7 1 )
Intuitive park-
ing assist
(
→P. 2 0 8 )
Back sensor operation
display and buzzerOnOff
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.9 ft. (150 cm)2.0 ft. (60 cm)
Illumination
(
→P. 3 5 4 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedOnOff
Operation after the
“ENGINE START STOP”
switch is turned OFF
OnOff
Front foot well lightsOnOff
Shift lever lightOnOff
Outer foot lightOnOff
Available languageEnglish and French
ItemFunctionDefault settingCustomized
setting

612
Alphabetical index
IS250C/350C_U
Cigarette lighter....................................370
CleaningExterior ...................................................396
Interior ...................................................... 401
Seat belts................................................ 402
Clock .........................................................365
Compass ..................................................384
Condenser .............................................. 425
Console box .......................................... 358
Cooling system
Engine overheating ..........................536
Cornering assist sensors .................. 208
Cruise control Cruise control ...................................... 190
Dynamic radar crui se control .......194
Cup holder ..............................................359
Customizable features ...................... 586 Daytime running light system ............178
Defogger*
Rear window ......................................... 251
Side mirror.............................................. 251
Dimension ............................................... 552
Dinghy towing........................................ 238
Display Dynamic radar crui se control....... 194
Satellite switch mode....................... 366
Trip information.....................................172
Warning message ............................500
Do-it-yourself maintenance .............. 410
Door courtesy lights Door courtesy lights ........................ 354
Wattage ................................................. 568
Doors
Door lock .................................32, 44, 47
Door windows........................................82
Side mirrors.............................................. 79
Driver's seat belt reminder light ..... 493
Driving Correct posture................................... 104
Procedures............................................. 138
Driving position memory........................ 61D

613
Alphabetical index
IS250C/350C_U
Electric power steering ....................... 214
Electronic keyIf the electronic key does not operate properly ............................ 528
Emergency, in case of If a warning message is
displayed ........................................... 500
If the electronic key does not
operate properly ............................ 528
If the engine will not start ............... 524
If the retractable hardtop does not close .................................540
If the shift lever cannot be shifted from P ................................... 526
If the vehicle has a discharged battery.................................................. 532
If the warning buzzer sounds........ 491
If the warning light turns on ............ 491
If you have a flat tire ..........................513
If you lose your keys .........................527
If you think something is wrong................................................... 489
If your vehicle becomes stuck .... 539
If your vehicle has to be stopped in an emergency .........550
If your vehicle needs to be
towed ................................................... 483
If your vehicle overheats................ 536
Emergency flashers Switch ...................................................... 482 Engine
Compartment....................................... 416
Engine switch ......................................... 147
Hood ......................................................... 413
How to start the engine ....................147
Identification number ...................... 553
If the engine will not start................524
Ignition switch ........................................ 147
Overheating ........................................ 536
Engine compartment cover .............. 418
Engine coolant Capacity ................................................ 559
Checking ............................................... 423
Preparing and checking
before winter ....................................233
Engine coolant temperature
gauge......................................................... 161
Engine immobilizer system..................98
Engine oil Capacity ................................................ 556
Checking ...............................................420
Preparing and checking
before winter ....................................233
EPS .............................................................. 214
Event data recorder ............................... 22E
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
