1
2
3
4
5
6
7
5
IS250C/350C_U
3-6. Using the storage featuresList of storage features............... 356
• Glove box .................................... 357
• Console box ............................... 358
• Cup holders................................. 359
• Auxiliary box ............................... 362
3-7. Other interior features Sun visors......................................... 363
Vanity mirror .................................. 364
Clock ................................................. 365
Satellite switches .......................... 366
Ashtrays ........................................... 369
Cigarette lighter ........................... 370
Power outlet .................................... 371
Seat heaters and ventilators ..................................... 372
Floor mat.......................................... 374
Trunk features................................ 375
Garage door opener.................. 378
Compass......................................... 384
Safety Connect ............................ 388 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior................... 396
Cleaning and protecting the vehicle interior ..................... 401
4-2. Maintenance Maintenance requirements ..... 404
General maintenance ................ 406
Emission inspection and maintenance (I/M)
programs ...................................... 409
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................... 410
Hood .................................................. 413
Positioning a floor jack................ 414
Engine compartment................... 416
Tires .................................................... 431
Tire inflation pressure.................. 441
Wheels ............................................. 445
Air conditioning filter.................. 447
Electronic key battery ................ 449
Checking and replacing fuses ................................................. 451
Headlight aim ................................ 466
Light bulbs....................................... 468
4Maintenance and care

IS250C/350C_U
15
Without navigation system (type A)
Clock
P. 365
Audio
system
P. 253
Air conditioning
system
P. 242
Rear window and out-
side rear view mirror
defoggers
P. 251
Security indicator
P. 98, 100
Emergency
flasher switch
P. 482
*1: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
A
Clock
P. 365
Audio
system
P. 253
Air conditioning
system
P. 242
Rear window and out-
side rear view mirror
defoggers
P. 251
Security indicator
P. 98, 100
Emergency
flasher switch
P. 482
Without navigation system (type B)

IS250C/350C_U
16
Pictorial indexInstrument panel
A
Navigation
system
*2
Clock P. 365
Audio system*2
Security indicator
P. 98, 100
Emergency flasher
switch
P. 482
Air conditioning
system
*2
With navigation system
Rear window and
outside rear view
mirror defoggers
*2

166
2-2. Instrument cluster
IS250C/350C_U
■Speed indicator display conditions and vehicle speed setting range
Vehicle speed setting range: Approximately 30 to 100 mph (approximately 50 to 160 km/h)
When the maximum speed is selected, the speed indicator comes on only in red.
■Tacho indicator display conditions and engine speed setting range
Engine rpm setting range: Approximately 2000 to 6500 rpm (r/min)
When the maximum rpm is selected, the tacho indicator comes on only in red.
■The brightness of the instrument panel lights
When the headlight switch is turned to on, the brightness will be reduced slightly
unless the control dial is turned fully clockwise.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the ta chometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the temperature gauge is in the red zone (H). In
this case, immediately stop the vehicle in a safe place, and check the engine after
it has cooled completely. ( →P. 5 3 6 )

Interior features3
241
IS250C/350C_U
3-3. Using the Bluetooth®
audio system
Bluetooth
® audio system ... 303
Using the Bluetooth
®
audio system ......................... 306
Operating a Bluetooth
®
enabled portable player ...... 311
Setting up a Bluetooth
®
enabled portable player ..... 315
Bluetooth
® audio system
setup ......................................... 321
3-4. Using the hands-free phone system
(for mobile phones)
Hands-free system for mobile phones ..................... 322
Using the hands-free system (for mobile phones)............. 326
Making a phone call .............. 335
Setting a mobile phone......... 339
Security and system setup ........................................ 344
Using the phone book.......... 348 3-5. Using the interior lights
Interior lights list .................... 354
• Interior light .......................... 355
• Personal lights ..................... 355
3-6. Using the storage features
List of storage features......... 356
• Glove box .............................. 357
• Console box ......................... 358
• Cup holders .......................... 359
• Auxiliary box ........................ 362
3-7. Other interior features Sun visors ................................. 363
Vanity mirror ........................... 364
Clock ......................................... 365
Satellite switches ................... 366
Ashtrays.................................... 369
Cigarette lighter .................... 370
Power outlet ............................. 371
Seat heaters and ventilators ............................. 372
Floor mat ................................... 374
Trunk features ......................... 375
Garage door opener ............ 378
Compass .................................. 384
Safety Connect ...................... 388

261
3-2. Using the audio system
3
Interior features
IS250C/350C_U
■When the battery is disconnected
Stations presets are erased.
■Radio antenna type
●Detachable antenna
To remove a detachable antenna, carefully turn it counterclockwise.
●Wire antenna
The radio antenna is mounted inside the windshield.
■Reception sensitivity
●Maintaining perfect radio reception at all times is difficult due to the continually
changing position of the antenna, differences in signal strength and surrounding
objects, such as trains, transmitters, etc.
●The radio antenna is mounted inside the windshield. To maintain clear radio
reception, do not attach metallic window tinting or other metallic objects to the
antenna wire mounted inside the windshield.
■XM® Satellite Radio
An XM
® Satellite Radio is a tuner designed exclusively to receive broadcasts pro-
vided under a separate subscription. Availability is limited to the 48 contiguous
states and 10 Canadian provinces.
●XM® subscriptions
For detailed information about XM® Satellite Radio or to subscribe:
U.S.A. 
Visit on the web at www.xmradio.com
or call 1-877-515-3987.
Canada 
Visit on the web at www.xmradio.ca
or call 1-877-515-3987.
●Radio ID
You will need the radio ID when activating XM
® service or reporting a prob-
lem. Select “CH000” using , and the receiver's 8-character ID number
will appear.
●Satellite tuner
The tuner supports only Audio Services (Music and Talk) and the accompany-
ing Text Information of XM
® Satellite Radio.

365
3-7. Other interior features
3
Interior features
IS250C/350C_U
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest hour.
*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00

421
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250C/350C_U■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection→ P. 5 5 6
Oil quantity
(Low → Full)1.6 qt. (1.5 L, 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3

455
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250C/350C_U

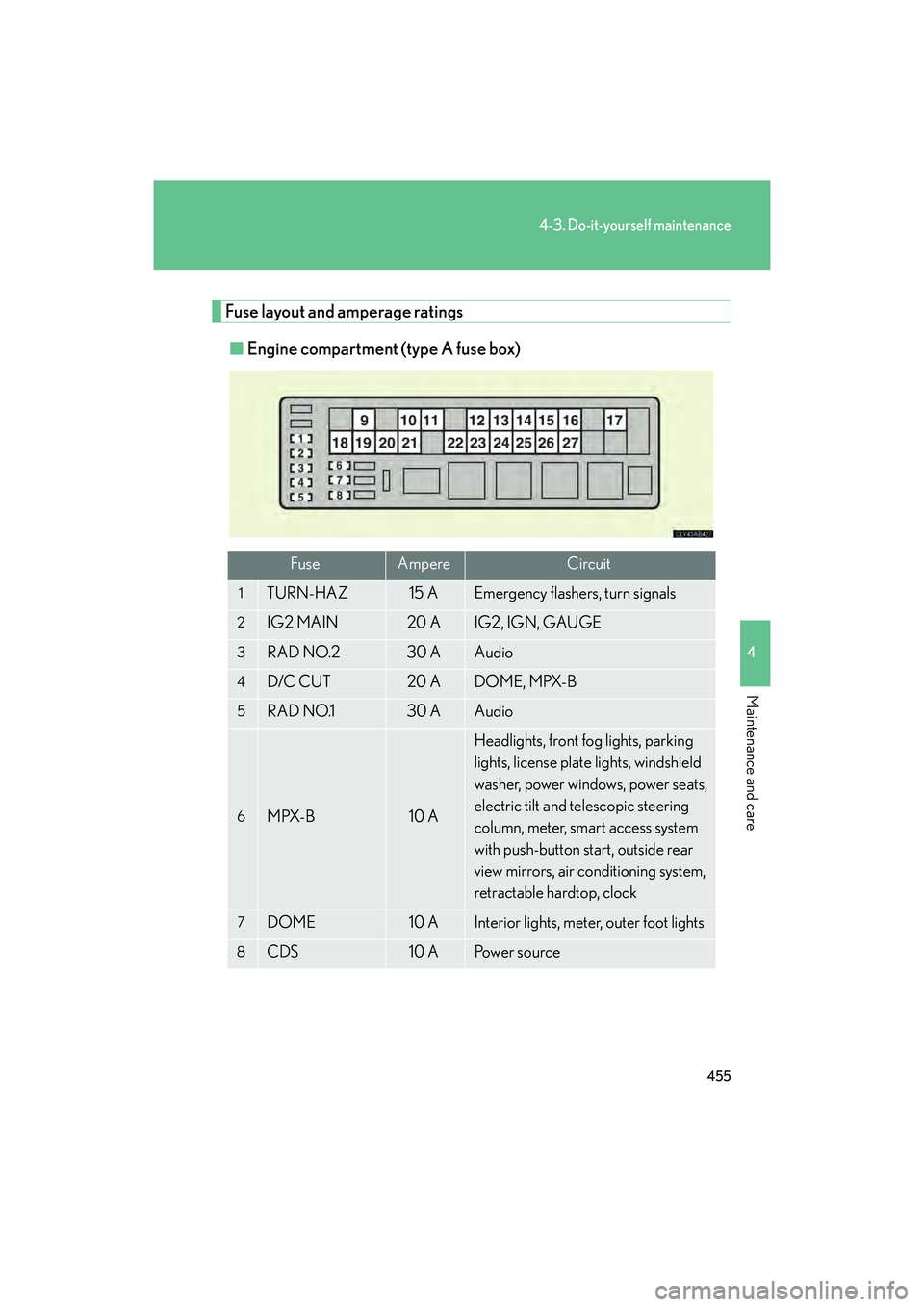

Fuse layout and amperage ratings■ Engine compartment (type A fuse box)
FuseAmpereCircuit
1TURN-HAZ15 AEmergency flashers, turn signals
2IG2 MAIN20 AIG2, IGN, GAUGE
3RAD NO.230 AAudio
4D/C CUT20 ADOME, MPX-B
5RAD NO.130 AAudio
6MPX-B10 A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, power windows, power seats,
electric tilt and telescopic steering
column, meter, smart access system
with push-button start, outside rear
view mirrors, air conditioning system,
retractable hardtop, clock
7DOME10 AInterior lights, meter, outer foot lights
8CDS10 APo w e r s o u rc e

460
4-3. Do-it-yourself maintenance
IS250C/350C_U■
Driver’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APo w e r s e a t
2A/C7. 5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO.110 ADisplay
5FUEL OPN10 AFuel filler door opener
6TV NO.27. 5 A
7TA I L10 ATail lights, license plate lights, parking
lights, side marker lights
8PA N E L7. 5 A
Air conditioning system, display,
clock, cigarette lighter, power steer-
ing, headlight cleaner, retractable
hardtop, ECT, ETCS, seat heaters and
ventilators, trunk opener, outside rear
view mirrors, shift lever light, traction
control, audio, instrument panel light
control
9RR FOG7. 5 A
