fuel pump Lexus IS250C 2014 Owner's Manual

TABLE OF CONTENTSIndex
6
IS250C/350C_U
5-1. Essential informationEmergency flashers.................... 482
If your vehicle needs to be towed............................................. 483
If you think something is wrong ............................................ 489
Fuel pump shut off system ....... 490
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds... .......................................... 491
If a warning message is displayed ...................................... 500
If you have a flat tire (vehicles with standard tires) .................... 513
If you have a flat tire (vehicles with run-flat tires) ...................... 522
If the engine will not start .......... 524
If the shift lever cannot be shifted from P .............................. 526
If you lose your keys .................... 527
If the electronic key does not operate properly .............. 528
If the vehicle battery is discharged ................................... 532
If your vehicle overheats .......... 536
If the vehicle becomes stuck............................................... 539
If the retractable hardtop does not close............................ 540 If your vehicle has to
be stopped in an
emergency .................................. 550
6-1. Specifications Maintenance data (fuel, oil level, etc.)..................... 552
Fuel information ............................ 569
Tire information............................. 573
6-2. Customization Customizable features.............. 586
6-3. Initialization Items to initialize .......................... 590
Reporting safety defects for U.S. owners........................... 592
Seat belt instructions for Canadian owners
(in French) ................................... 593
SRS airbag instructions for Canadian owners
(in French) .................................... 596
Headlight aim instructions for Canadian owners
(in French) ................................... 604
5When trouble arises
6Vehicle specifications
7For owners

When trouble arises5
481
IS250C/350C_U
5-1. Essential informationEmergency flashers.............. 482
If your vehicle needs to be towed................................ 483
If you think something is wrong ...................................... 489
Fuel pump shut off system.... 490 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... .................................. 491
If a warning message is displayed................................ 500
If you have a flat tire (vehicles with standard
tires) ......................................... 513
If you have a flat tire (vehicles with run-flat
tires) ........................................ 522
If the engine will not start .... 524
If the shift lever cannot be shifted from P ....................... 526
If you lose your keys .............. 527
If the electronic key does not operate properly.......... 528
If the vehicle battery is discharged ............................ 532
If your vehicle overheats ..... 536
If the vehicle becomes stuck........................................ 539
If the retractable hardtop does not close ...................... 540
If your vehicle has to be stopped in an
emergency ............................ 550

490
5-1. Essential information
IS250C/350C_U

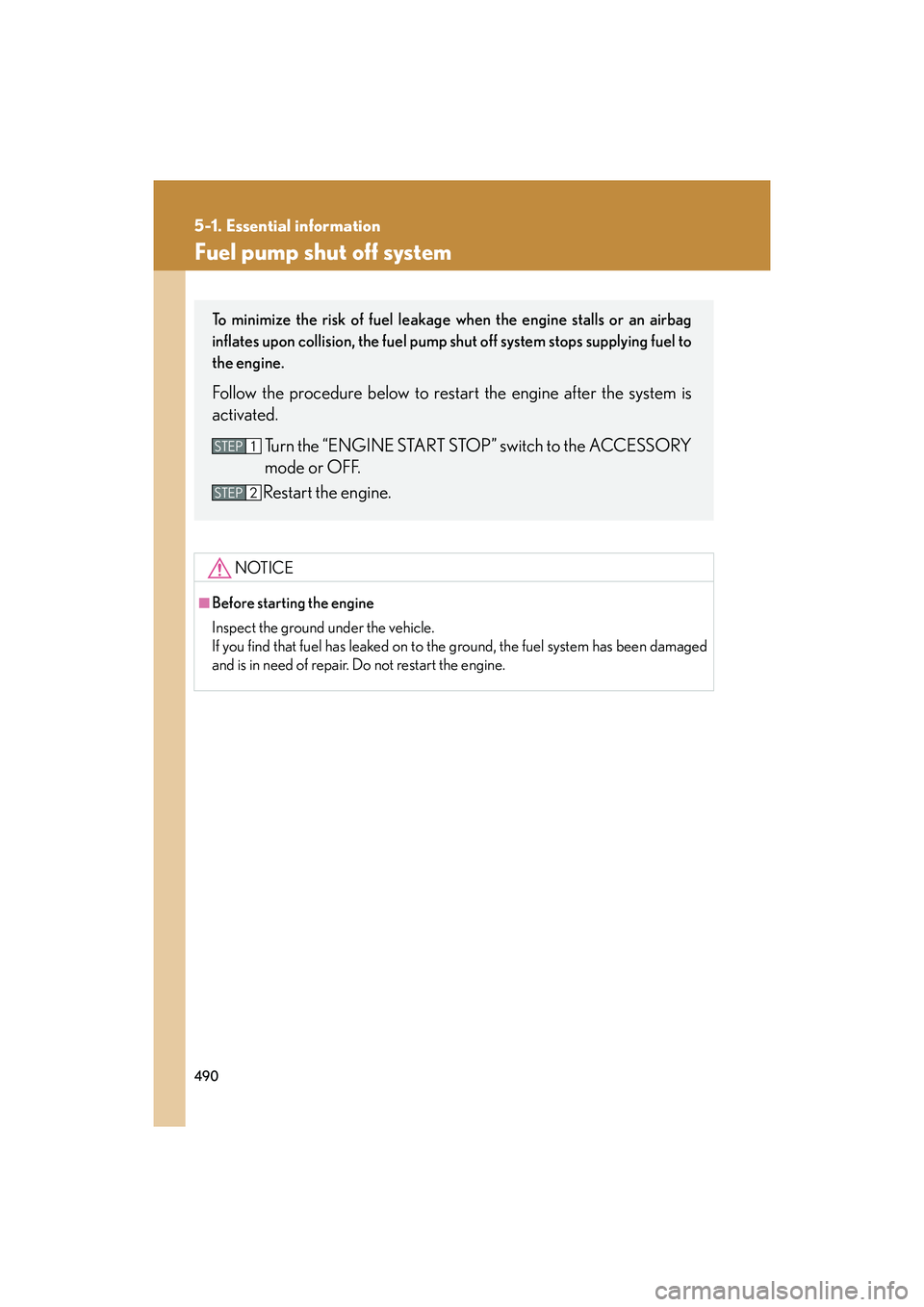

Fuel pump shut off system
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been damaged
and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an airbag
inflates upon collision, the fuel pump shut off system stops supplying fuel to
the engine.
Follow the procedure below to restart the engine after the system is
activated.
Turn the “ENGINE START STOP” switch to the ACCESSORY
mode or OFF.
Restart the engine.
STEP1
STEP2

569
6-1. Specifications
6
Vehicle specifications
IS250C/350C_U
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
Your vehicle must use only unleaded gasoline.
IS250C
Premium unleaded gasoline with an octane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an octane rating lower than 91 may result in engine knocking. Per-
sistent knocking can lead to engine damage and should be corrected by
refueling with higher octane unleaded gasoline.
IS350C
Premium unleaded gasoline with an oc tane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an octane rating lower than 91 may result in engine knocking and
significantly reduced performance. Persistent knocking can lead to engine
damage and should be corrected by refueling with higher octane unleaded
gasoline.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

571
6-1. Specifications
6
Vehicle specifications
IS250C/350C_U
■Lexus does not recommend blended gasoline
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87.
●Lexus DOES NOT recommend the use of gasoline containing methanol.
■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcyclopen-
tadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
●Use only gasoline containing a maxi-
mum of 10% ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 10% etha-
nol, including from any pump labeled
E15, E30, E50, E85 (which are only
some examples of fuel containing more
than 10% ethanol).DO NOT use gasoline contain-
ing more than 10% ethanol.(15% ethanol)
(50% ethanol)
(85% ethanol)

614
Alphabetical index
IS250C/350C_U
Floor mat .................................................. 374
FluidBrake........................................................ 425
Washer ...................................................430
Fog lights Switch ....................................................... 180
Wattage................................................. 568
Foot well lights .......................................354
Front fog lights Switch ....................................................... 180
Wattage................................................. 568
Front passenger occupant
classification system ............................ 117
Front passenger's seat belt
reminder light......................................493
Front seats
Adjustment............................................... 55
Driving position memory.................... 61
Seat position memory ........................ 65
Front turn signal lights
Switch ....................................................... 158
Wattage................................................. 568 Fuel
Capacity ................................................555
Fuel gauge ................................................ 161
Fuel pump shut off system ............ 490
Information ........................................... 569
Refueling ................................................... 95
Fuel door ..................................................... 95
Fuel filler door ........................................... 95
Fuel pump shut off system.................490
Fuses ............................................................451
Garage door opener .......................... 378
Gauges ........................................................ 161
Glove box ................................................ 357
Glove box light ...................................... 357
Hands-free system for mobile phone* ............................. 322
Hazard lights Switch...................................................... 482
Head restraints Adjusting .................................................. 67
Headlight aim ......................................... 467
Headlight cleaner.................................. 189F
G
H
