ALUMINUM WHEEL PRECAUTIONS
When installing aluminum wheels, check that the wheel
nuts are tight after driving your vehicle the first 1600 km
(1000 miles).
 If you have rotated, repaired, or changed your tires, check
that the wheel nuts are still tight after driving 1600 km (1000
miles).
 When using tire chains, be careful not to damage the
aluminum wheels.
 Use only the Lexus wheel nuts and wrench designed for
your aluminum wheels.
 When balancing your wheels, use only Lexus balance
weights or equivalent and a plastic or rubber hammer.
 As with any wheel, periodically check your aluminum
wheels for damage. If damaged, replace immediately.
SUSPENSION AND CHASSIS
CAUTION
Do not modify the suspension/chassis with lift kits,
spacers, springs, etc. It can cause dangerous handling
characteristics, resulting in loss of control.

CHASSIS
260

SECTION 6 ± 4
261
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking battery condition 266
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 269
. . . . . . . . . . . . . . . .
Checking the cartridge type fuses 271
. . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 272
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Checking the headlight aim 273
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

ELECTRICAL COMPONENTS
262
SPECIFICATIONS
± FUSE LOCATION

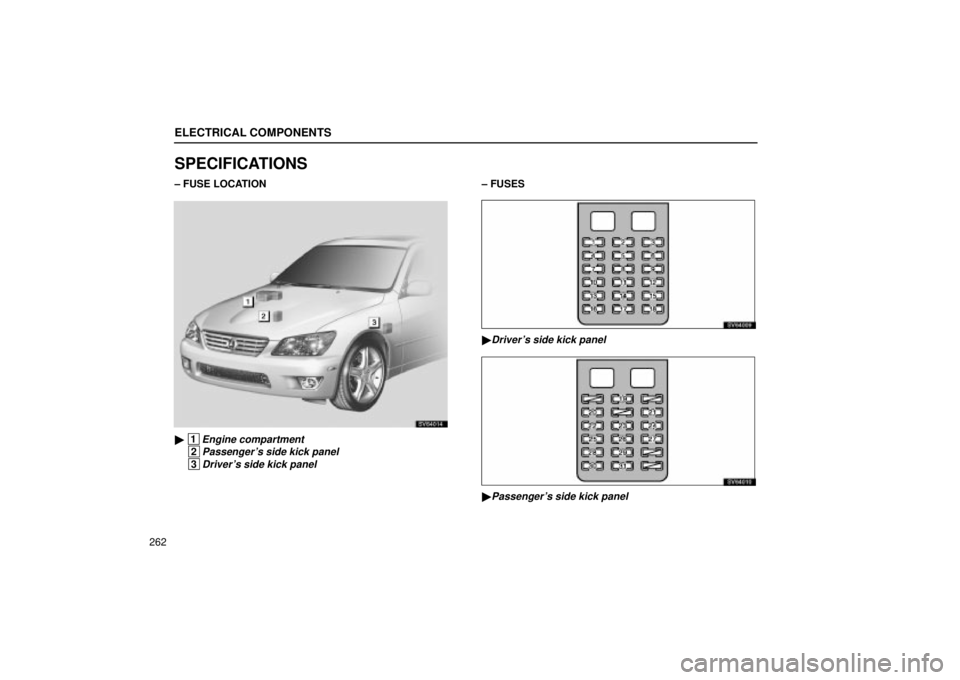

SV64014

1Engine compartment
2Passenger's side kick panel
3Driver's side kick panel
± FUSES
SV64009

Driver's side kick panel
SV64010

Passenger's side kick panel

ELECTRICAL COMPONENTS
263

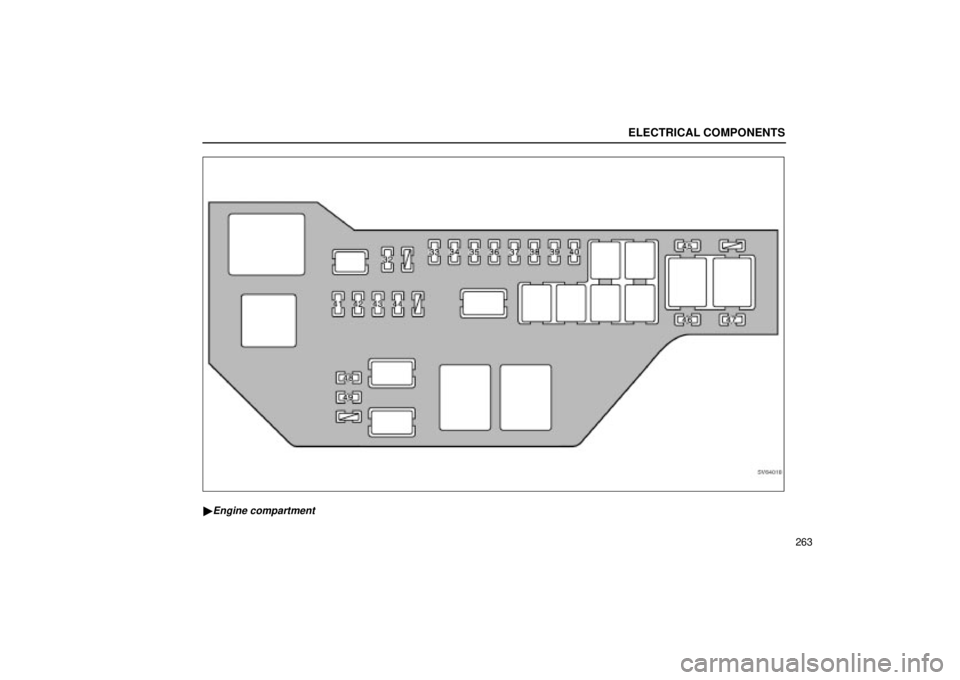

SV64018

Engine compartment

ELECTRICAL COMPONENTS
264
No.FUSEAMPERECIRCUIT
1 D FR P/W20Power window system
2 TAIL10Tail lights, Side marker lights,
License plate lights,
Parking lights
3 GAUGE10
Back±up lights, Power window,
Gauges and meters,
Service reminder indicators and
buzzers,
Emergency flashers,
Windshield defogger,
Outside rear view mirror
defogger
4 DOOR20Door lock system
5 PANEL7.5
Instrument panel lights,
Seat heater, Cigarette lighter,
Automatic transmission system,
Traction control system,
Rear fog light, Ashtray light
6 WASHER15Windshield washer,
Headlight cleaner
7 STARTER7.5Starting system
8 FR DEF20No circuit
9 A/C10Air conditioning system
10 SEAT HTR15Seat heater
11 CIG15Cigarette lighter, Power outlet
12 S/ROOF30Moon roof
No.FUSEAMPERECIRCUIT
13 ECU±IG10
Radiator fan,
Anti±lock brake system,
Moon roof, Shift lock system,
Air conditioning system,
Door lock system,
Headlight beam level control,
Theft deterrent system
14 SRS±ACC10SRS system
15 STOP15Stop lights, Shift lock system,
Anti±lock brake system
16 WIPER25Windshield wipers
17 RADIONO.210Audio, Air conditioning,
Outside rear view mirror,
Shift lock system
18 D P/SEAT30Power seat system
19 DOME7.5
Interior lights, Trunk light,
Vanity lights,
Ignition switch light, Map light,
Door courtesy lights
20 FR FOG15Fog lights
21 P FR P/W20Power window system
22 TV7.5Television
23 ECU±B27.5Theft deterrent system,
Door lock system
24 D RR P/W20Power window system
25 MIR HTR15Outside rear view mirror

ELECTRICAL COMPONENTS
265
No.FUSEAMPERECIRCUIT
26 MPX±B10
Power window system,
Air conditioning,
Gauges and meters,
Theft deterrent system
27 P RR P/W20Power window system
28 SRS±B7.5SRS system, Door lock system
29 P P/SEAT30Power seat system
30 OBD7.5On±board diagnosis system
31 IGN7.5
SRS system,
Multiport fuel injection
system/sequential multiport fuel
injection system,
Cruise control system
32 ECU±B120
Theft deterrent system,
Door lock system,
Interior light, Trunk light,
Vanity light, Ignition switch light,
Map light, Door courtesy lights,
Power window system,
Air conditioning,
Gauges and meters
33 ALT±S7.5Charging system
34 ETCS15Electronic throttle control
system
35 AM220
Starting system, SRS system,
Multiport fuel injection
system/sequential multiport fuel
injection system, Cruise control
system
36 HORN10Horn
No.FUSEAMPERECIRCUIT
37 TEL7.5Telephone
38 RADIONO.120Audio
39 TURN±HAZ15Turn signal lights
40 EFI25
Multiport fuel injection
system/sequential multiport fuel
injection system,
Emission control system,
Engine immobiliser system
41 DRL NO.230Daytime running light system
42 DRL NO.17.5Daytime running light system
43 H±LP L LW R15Left±hand headlight
(low beam), Fog lights
44 H±LP R LW R15Right±hand headlight
(low beam)
45 SPARESpare fuse
46 SPARESpare fuse
47 SPARESpare fuse
48 H±LP LUPR10Left±hand headlight
(high beam)
49 H±LP R UPR10
Right±hand headlight
(high beam),
Service reminder indicators and
buzzers

ELECTRICAL COMPONENTS
266
CHECKING BATTERY CONDITION
Precautions

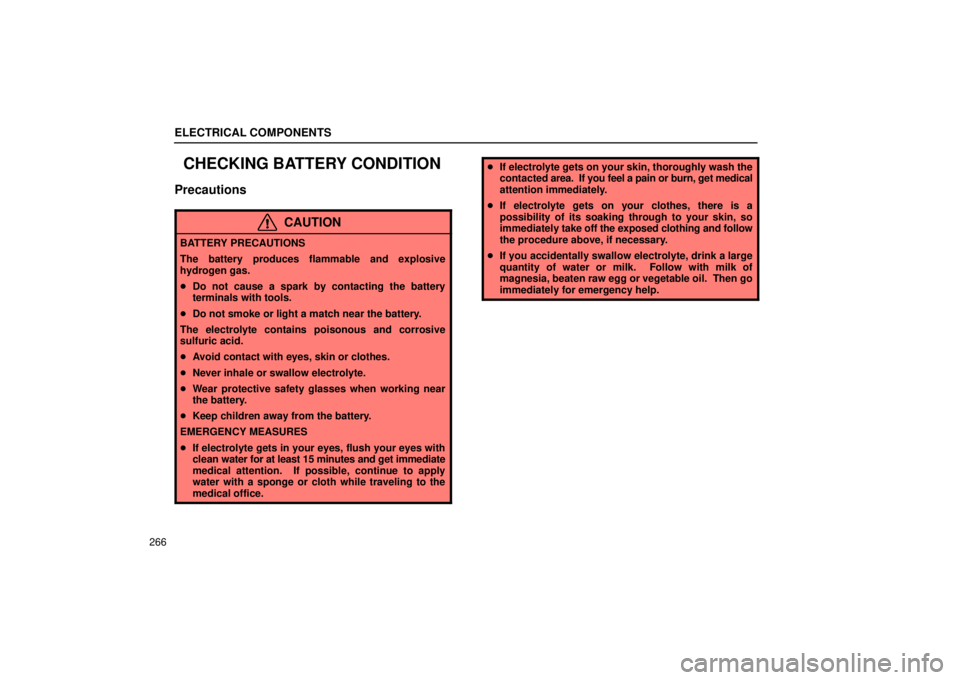

CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and explosive
hydrogen gas.
Do not cause a spark by contacting the battery
terminals with tools.
 Do not smoke or light a match near the battery.
The electrolyte contains poisonous and corrosive
sulfuric acid.
 Avoid contact with eyes, skin or clothes.
 Never inhale or swallow electrolyte.
 Wear protective safety glasses when working near
the battery.
 Keep children away from the battery.
EMERGENCY MEASURES
 If electrolyte gets in your eyes, flush your eyes with
clean water for at l east 15 minutes and get immediate
medical attention. If possible, continue to apply
water with a sponge or cloth while traveling to the
medical office.
 If electrolyte gets on your skin, thoroughly wash the
contacted area. If you feel a pain or burn, get medical
attention immediately.
 If electrolyte gets on your clothes, there is a
possibility of its soaking through to your skin, so
immediately take off the exposed clothing and follow
the procedure above, if necessary.
 If you accidentally swallow electrolyte, drink a large
quantity of water or milk. Follow with milk of
magnesia, beaten raw egg or vegetable oil. Then go
immediately for emergency help.

ELECTRICAL COMPONENTS
267
Checking battery exterior

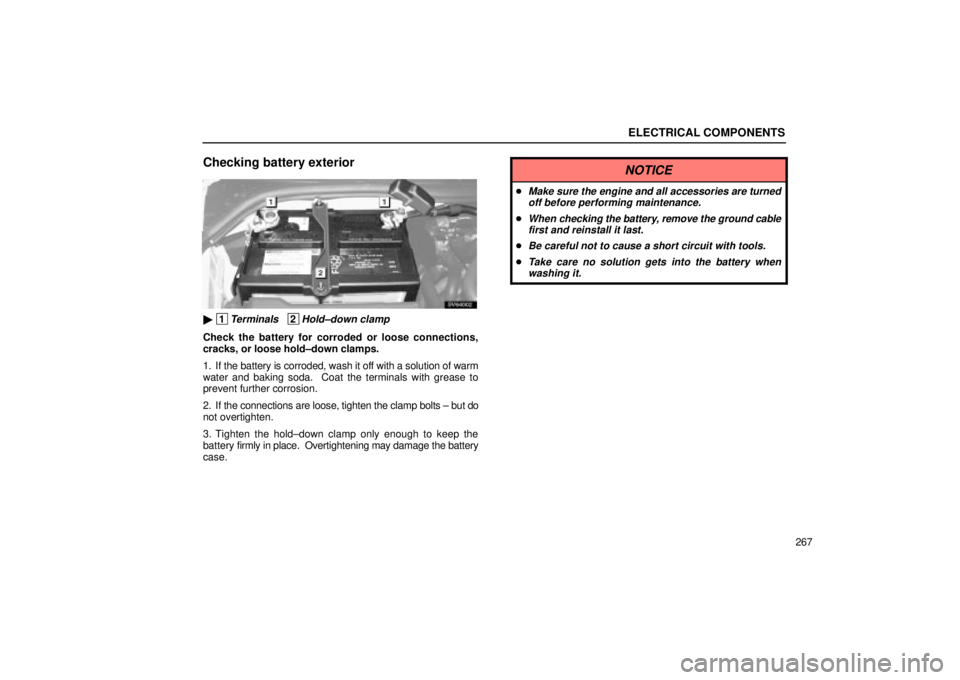

SV64002

1Terminals 2Hold±down clamp
Check the battery for corroded or loose connections,
cracks, or loose hold±down clamps.

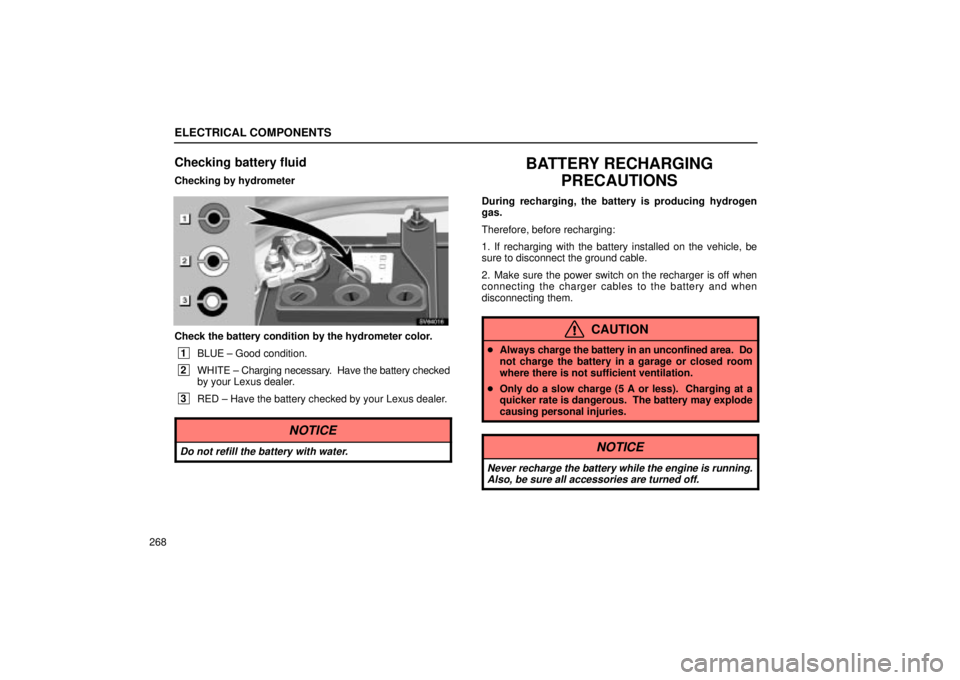

1. If the battery is corroded, wash it off with a solution of warm
water and baking soda. Coat the terminals with grease to
prevent further corrosion.
2. If the connections are loose, tighten the clamp bolts ± but do
not overtighten.
3. Tighten the hold±down clamp only enough to keep the
battery firmly in place. Overtightening may damage the battery
case.
NOTICE
Make sure the engine and all accessories are turned off before performing maintenance.
When checking the battery, remove the ground cable
first and reinstall it last.
Be careful not to cause a short circuit with tools.
Take care no solution gets into the battery when washing it.

ELECTRICAL COMPONENTS
268
Checking battery fluid
Checking by hydrometer
SV64016
Check the battery condition by the hydrometer color.
1BLUE ± Good condition.
2WHITE ± Charging necessary. Have the battery checked
by your Lexus dealer.
3RED ± Have the battery checked by your Lexus dealer.
NOTICE
Do not refill the battery with water.
BATTERY RECHARGING
PRECAUTIONS
During recharging, the battery is producing hydrogen
gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be
sure to disconnect the ground cable.
2. Make sure the power switch on the recharger is off when
connecting the charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an unconfined area. Do
not charge the battery in a garage or closed room
where there is not sufficient ventilation.
 Only do a slow charge (5 A or less). Charging at a
quicker rate is dangerous. The battery may explode
causing personal injuries.
NOTICE
Never recharge the battery while the engine is running.
Also, be sure all accessories are turned off.
