STARTING AND DRIVING
232
THREE-W AY CATALYTICCONVERTER
SV31040
Three-way catalytic converters are emission control
devices installed in the exhaust system.
It looks somewhat like a muffler, but its purpose is to reduce
pollutants in the exhaust gas.
CAUTION
Keep people and combustible materials away from
the exhaust pipe while the engine is running. The
exhaust gas is very hot.
 Do not drive, idle or park your vehicle over anything
that might burn easily such as grass, leaves, paper or
rags.
NOTICE
A large amount of unburned gases flowing into the three-way catalytic converter may cause it to overheatand create a fire hazard. To prevent this and otherdamage, observe the following precautions:
Use only unleaded gasoline.
Do not drive with an extremely low fuel level; runningout of fuel could cause the engine to misfire, creatingan excessive load on the three-way catalyticconverter.
Do not allow the engine to run at idle speed for morethan 20 minutes.
Avoid racing the engine.
Do not push-start or pull-start your vehicle.
Do not turn off the ignition while the vehicle ismoving.
Keep your engine in good running order.Malfunctions in the engine electrical system,electronic ignition system or fuel system could cause
an extremely high three-way catalytic converter temperature.
If the engine becomes difficult to start or stallsfrequently, take your vehicle in for a check-up assoon as possible. Remember, your Lexus dealer
knows your vehicle and its three-way catalyticconverter system best.
03 07.09

STARTING AND DRIVING
233

To ensure that the three-way catalytic converter and
the entire emission control system operate properly,your vehicle must receive the periodic inspectionsrequired by the Lexus Maintenance Schedule . Forscheduled maintenance information, refer to theºOwner's Manual Supplement/ScheduledMaintenance º.ENGINE EXHAUST CAUTION
CAUTION
 Avoid inhaling the engine exhaust. It contains
carbon monoxide, which is a colorless and odorless
gas. It can cause unconsciousness or even death.
 Make sure the exhaust system has no holes or loose
connections. The system should be checked from
time to time. If you hit something, or notice a change
in the sound of the exhaust, have the system checked
immediately.
 Do not run the engine in a garage or enclosed area
except for the time needed to drive the vehicle in or
out. The exhaust gases cannot escape, making this
a particularly dangerous situation.
 Do not remain for a long time in a parked vehicle with
the engine running. If it is unavoidable, however, do
so only in an unconfined area and adjust the heating
or cooling system to force outside air into the vehicle.
 Keep the trunk lid or back door closed while driving.
An open or unsealed trunk lid or back door may
cause exhaust gases to be drawn into the vehicle.
03 07.09

STARTING AND DRIVING
234

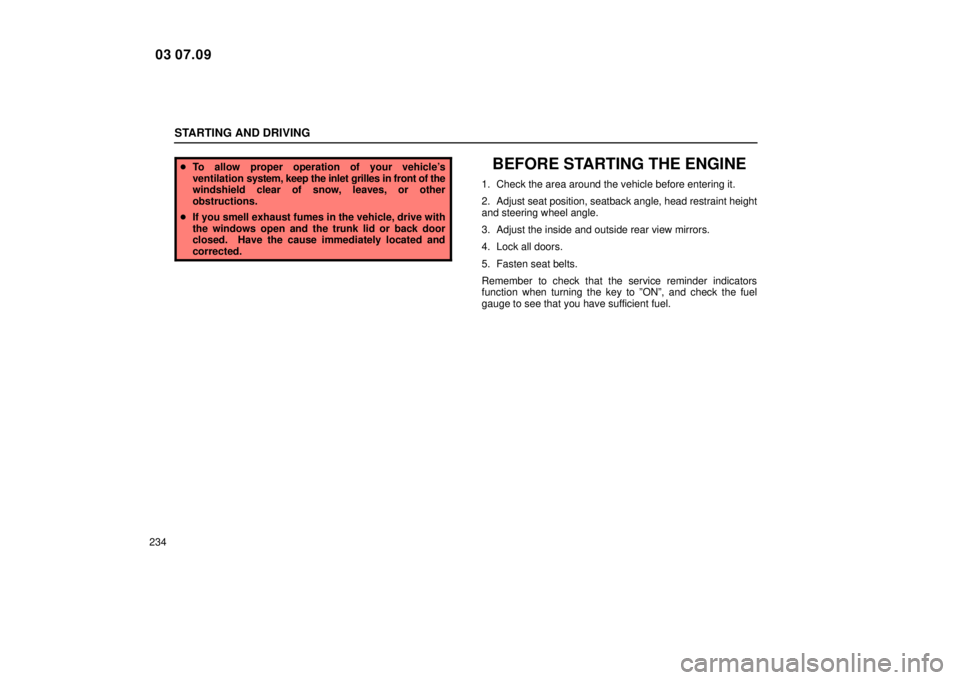

To allow proper operation of your vehicle's
ventilation system, keep the inlet grilles in front of the
windshield clear of snow, leaves, or other
obstructions.
 If you smell exhaust fumes in the vehicle, drive with
the windows open and the trunk lid or back door
closed. Have the cause immediately located and
corrected.BEFORE STARTING THE ENGINE
1. Check the area around the vehicle before entering it.
2. Adjust seat position, seatback angle, head restraint height
and steering wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts.
Remember to check that the service reminder indicators
function when turning the key to ºONº, and check the fuel
gauge to see that you have sufficient fuel.
03 07.09

STARTING AND DRIVING
237
HOW TO START THE ENGINE
Before cranking
1. Apply the parking brake firmly.
2. Turn off unnecessary lights and accessories.
3.Manual transmission : Press the clutch pedal to the floor
and shift the transmission into neutral. Hold the clutch pedal
to the floor until the engine is started. A starter safety device
will prevent the starter from operating if the clutch pedal is not
fully depressed.
Automatic transmission : Put the selector lever in ºPº. If you
need to restart the engine while the vehicle is moving, put the
selector lever in ºNº. A starter safety device will prevent the
starter from operating if the selector lever is in any drive
position.
4. For automatic transmission only :Depress the brake
pedal and hold it to the floor until driving off.
Starting the engine
Before starting the engine, be sure to follow the instructions in
ºBefore crankingº.
Normal starting procedure
The multiport fuel injection system/sequential multiport fuel
injection system in your engine automatically controls the
proper air-fuel mixture for starting. You can start a cold or hot
engine as follows:
With your foot off the accelerator pedal, crank the engine by
turning the key to ºSTARTº. Release it when the engine starts. Engine should be warmed up by driving, not in idle. For
warming up drive with smoothly turning engine until engine
coolant temperature is within normal range.
If the engine stalls ...
Simply restart it , using the correct procedure given in normal
starting.
If the engine will not start
See ºIf your vehicle will not startº on page 281.
NOTICE
Do not crank for more than 30 seconds at a time. This
may overheat the starter and wiring systems.
Do not race a cold engine.
If the engine becomes difficult to start or stallsfrequently, have the engine checked immediately.
03 07.09

STARTING AND DRIVING
252
TRACTION CONTROL SYSTEM
(With vehicle stability control system)
The traction control system automatically helps prevent
the spinning of rear wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to ºONº, the system
automatically turns on.
CAUTION
Under certain slippery road conditions, full traction of
the vehicle and power against rear wheels cannot be
maintained, even though the traction control system is
in operation. Do not drive the vehicle under any speed
or maneuvering conditions which may cause the
vehicle to lose traction control. In situations where the
road surface is covered with ice or snow, your vehicle
should be fitted with snow tires or tire chains. Always
drive at an appropriate and cautious speed for the
present road conditions.
Normal driving mode
SV31037

Slip indicator light
Leave the system on during the ordinary driving so that it
can operate when needed.
You may hear a sound in the engine compartment for a few
seconds just after the vehicle begins to move. This means that
the traction control system is in the self-check mode, but does
not indicate a malfunction.
When the traction control system is operating, the following
conditions occur:
 The system controls the spinning of the rear wheels. At this
time, the slip indicator light blinks.
 You may feel vibration or noise in your vehicle, caused by
operation of the brakes. This indicates the system is functioning properly.
03 07.09

STARTING AND DRIVING
256
Normal driving mode
SV31037

Slip indicator light
Leave the system on during the ordinary driving so that it
can operate when needed.
You may hear a sound in the engine compartment for a few
seconds just after the vehicle begins to move. This means that
the traction control system is in the self-check mode, but does
not indicate a malfunction.
When the traction control system is operating, the following
conditions occur:
 The system controls the spinning of the rear wheels. At this
time, the slip indicator light blinks.
 You may feel vibration or noise in your vehicle, caused by
operation of the brakes. This indicates the system is functioning properly. The slip indicator light comes on for a few seconds when the
ignition key is turned to ºONº. If the indicator light does not
come on when the ignition is turned on, contact your Lexus
dealer.
03 07.09

STARTING AND DRIVING
258
VEHICLE STABILITY CONTROLSYSTEM
The vehicle stability control system helps provide
comprehensive control of the systems such as anti-lock
brake system, traction control, engine control, etc. This
system automatically controls the brakes and engine to
help prevent the vehicle from skidding when cornering on
a slippery road surface or operating steering wheel
abruptly.
This system activates when the vehicle speed is about more
than 15 km/h (9 mph).
You may hear a sound in the engine compartment for a few
seconds just after the vehicle begins to move. This means that
the system is in the self-check mode, but does not indicate a
malfunction.
CAUTION
 Do not rely excessively on the vehicle stability
control system. Even if the vehicle stability control
system is operating, you must always drive carefully
and attentively to avoid serious injury. Reckless
driving will result in an unexpected accident. If the
slip indicator light blinks, sounding an alarm, special
care should be taken while driving.
 Only use tires of specified size. The size,
manufacture, brand and tread pattern for all 4 tires
should be the same. If you use the tires other than
specified, or different type or size, the vehicle
stability control system may not function correctly.
When replacing the tires or wheels, contact your
Lexus dealer.
 In situations where the road surface is covered with
ice or snow, your vehicle should be fitted with snow
tires or tire chains.
03 07.09

STARTING AND DRIVING
261
BRAKE SYSTEM
The tandem master cylinder brake system is a hydraulic
system with two separate sub-systems. If either sub-system
should fail, the other will still work. However, the pedal will be
harder to press, and your stopping distance will increase. Also,
the brake system warning light may come on.
CAUTION
Do not drive your vehicle with only a single brake
system. Have your brakes fixed immediately.
Brake booster
The brake booster uses engine vacuum to power-assist the
brakes. If the engine should quit while you are driving, you can
bring the vehicle to a stop with normal pedal pressure. There
is enough reserved vacuum for one or two stops but no more!
CAUTION
Do not pump the brake pedal if the engine stalls.
Each push on the pedal uses up your reserved
vacuum.
 Even if the power assist is completely lost, the brakes
will still work. But you will have to push the pedal
hard, much harder than normal. And your braking
distance will increase.
Anti-lock brake system
The anti-lock brake system is designed to automatically
help prevent lock-up of the wheels during a sudden
braking or braking on slippery road surfaces. This assists
in providing directional stability and steering
performance of the vehicle under these circumstances.
Effective way to press the ABS brake pedal: When the
anti-lock brake system function is in action, you may feel the
brake pedal pulsating and hear a noise. In this situation, to
let the anti-lock brake system work for you, just hold the
brake pedal down more firmly. Do not pump the brake in a
panic stop. This will result in reduced braking performance.
The anti-lock brake system becomes operative after the
vehicle has accelerated to a speed in excess of approximately
10 km/h (6 mph). It stops operating when the vehicle
decelerates to a speed below approximately 5 km/h (3 mph).
Depressing the brake pedal on slippery road surfaces such as
on a manhole cover, a steel plate at a construction site, joints
in a bridge, etc. on a rainy day tends to activate the anti-lock
brake system.
You may hear a click or motor sound in the engine
compartment for a few seconds when the engine is started or
just after the vehicle begins to move. This means that the
anti-lock brake system is in the self-check mode, and does not
indicate a malfunction.
When the anti-lock brake system is activated, the
following conditions may occur. They do not indicate a
malfunction of the system:
03 07.09

STARTING AND DRIVING
265
BRAKE PAD WEAR INDICATORS
SS31030
The brake pad wear limit indicators on your disc brakes
give a warning noise when the brake pads are worn to the
extent that replacement is required.
If you hear a squealing or scraping noise while driving, have
the brake pads checked and replaced by your nearest Lexus
dealer immediately.
Avoid continuous driving with the warning noise.
Continuous driving without replacing the brake pads will cause
expensive rotor damage and increasing brake pedal effort to
get the same stopping distance.
LIMITED-SLIP DIFFERENTIAL
Some vehicles are equipped with a limited-slip differential. If
one rear wheel begins to spin, the limited-slip differential is
designed to aid traction by automatically transmitting driving
force to the other rear wheel. If you are not sure whether your
vehicle is equipped with one, you can ask your Lexus dealer.
CAUTION
Do not start or run the engine while your vehicle is
supported by a j ack. The vehicle could be driven off the
jack and could pose a danger or result in serious injury.
NOTICE
Use only a spare tire of the same size, construction and
load capacity as the original tires on your Lexusbecause damage to the limited-slip differential couldpossibly occur with another tire type.
03 07.09

DRIVING TIPS
269
TIPS FOR DRIVING IN VARIOUSCONDITIONS
Always slow down in gusty crosswinds. This will allow you
much better control.
 Drive slowly onto curbs and, if possible, at a right angle.
Avoid driving onto high, sharp-edged objects and other
road hazards. Failure to do so can lead to severe tire damage such as a tire burst.
Drive slowly when passing over bumps or travelling on a
bumpy road. Otherwise, the impact could cause severe damage to the tires and/or wheels.
 When parking on a hill, turn the front wheels until they touch
the curb so that the vehicle will not roll. Apply the parking
brake, and place the transmission in ºPº (automatic) or in first or reverse (manual). If necessary, block the wheels.
 Washing your vehicle or driving through deep water may get
the brakes wet. To see whether they are wet, check that
there is no traffic near you and then press the pedal lightly.
If you do not feel a normal braking force, the brakes are
probably wet. To dry them, drive the vehicle cautiously while
lightly pressing the brake pedal with the parking brake
applied. If they still do not work safely, pull to the side of the road and call a Lexus dealer for assistance.
CAUTION
 Before driving off, make sure the parking brake is
fully released and that the parking brake reminder
light is off.
 Do not leave your vehicle unattended while the
engine is running.
 Do not rest your foot on the brake pedal while driving.
It can cause dangerous overheating, needless wear,
and poor fuel economy.
 To drive down a long or steep hill, reduce your speed
and downshift. Remember, if you ride the brakes
excessively, they may overheat and not work
properly. See page 243.
 Be careful when accelerating, upshifting,
downshifting or braking on a slippery surface. The
abrupt change in engine speed, such as sudden
acceleration or engine braking, could cause the
vehicle to spin or skid.
 Do not drive in excess of the speed limit. Even if the
legal speed limit permits it, do not drive over 140 km/h
(85 mph) unless your vehicle has high-speed
capability tires. Driving over 140 km/h (85 mph) may
result in tire failure, loss of control and possible
injury. Be sure to consult a tire dealer to determine
whether the tires on your vehicle are high-speed
capability tires or not before driving at such speeds.
03 07.09
