Page 411 of 420
BODY
397
Waxing your Lexus
Polishing and waxing is recommended to maintain the
original beauty of your Lexus' finish.
Apply wax once a month or if the vehicle surface does not repel
water well.
1. Always wash and dry the vehicle surface before you begin
waxing, even if you are using a combined cleaner and wax.
2. Use a good quality polish and wax. If the finish has become
extremely weathered, use a car-cleaning polish, followed by
a separate wax. Carefully follow the manufacturer's
instructions and precautions. Be sure to polish and wax the
chrome trim as well as the paint.
3. Wax the vehicle again when water does not bead but
remains on the surface in large patches.
Windshield washer nozzles: Make sure that the nozzles do
not become blocked when waxing. If a nozzle becomes
blocked, contact your Lexus dealer to have the vehicle
serviced.
NOTICE
If a nozzle becomes blocked, do not try to clear it with a pin or other object. The nozzle will be damaged.
CLEANING THE INTERIOR
CAUTION
Be careful not to splash water or spill liquid on the
floor. This may prevent the side airbags from
activating correctly, resulting in serious injury.
Do not wash the vehicle floor with water, or allow
water to get onto the floor when cleaning the vehicle
interior or exterior. Water may get into audio
components or other electrical components above or
under the floor carpet (or mat) and cause a
malfunction; and it may cause body corrosion.
Leather Interior
The selected leather is used in your Lexus. Due to
characteristics of leather products, some parts of leather may
be rough, uneven or scratched originally.
To keep good appearance, we recommend you to clean it
periodically twice a year.
Remove dirt on the leather in the following ways:
1. Wipe it off lightly using a soft cloth (e.g. gauze) dampened
with 5% solution of neutral detergent for wool.
2. Wring water from a clean cloth and thoroughly wipe off all
traces of detergent with it.
3. Wipe off the surface of the leather with a dry soft cloth. Allow
the leather to dry in a ventilated shaded area. Excess of wet
may cause the hardening or shrinking of the leather.
03 07.09
Page 412 of 420
BODY
398
NOTICE
Dirt or sand adhered to the leather may damage thetreated surface and cause it to wear earlier. Removedirt or sand using a vacuum cleaner.
If a stain should fail to come out with a neutraldetergent, apply a cleaner that does not contain anorganic solvent.
Never use organic substances such as benzine,alcohol or gasoline, or alkaline or acid solutions forcleaning the leather as these could causediscoloring.
Use of a nylon brush or synthetic fiber cloth, etc. mayscratch the fine grained surface of the leather.
Mildew may develop on soiled leather upholstery. Beespecially careful to avoid oil spots. Try to keep your
upholstery always clean.
Long exposure to direct sunlight may cause the leather surface to harden and shrink. Keep your
vehicle in a shaded area, especially in the summer.
The interior of your vehicle is apt to heat up on hotsummer days, so avoid placing on the upholsteryitems made of vinyl or plastic or containing wax asthese tend to stick to leather when warm.
Improper cleaning of the leather upholstery couldresult in discoloration or staining.
If you have any questions about the cleaning of your
Lexus, your local Lexus dealer will be pleased to answer
them.
Carpets, Windows and Seat Belts
Begin by vacuuming thoroughly to remove as much dirt as
possible. Several types of foam cleaners are available; some
are in aerosol cans and others are powders or liquids which
you mix with water to produce a foam. To shampoo the
carpets, use a sponge or brush to apply the foam. Rub in
overlapping circles. Do not apply water - the best results are
obtained by keeping the carpet as dry as possible. Read the
shampoo instructions and follow them closely.
The seat belts may be cleaned with mild soap and water
or with lukewarm water.
Use a cloth or sponge. As you are cleaning, check the belts
for excessive wear, fraying or cuts.
03 07.09
Page 413 of 420
BODY
399
NOTICE
Use a good foam-type shampoo to clean the carpets.
Do not use dye or bleach on the belts - it may weakenthem.
Do not use the belts until they become dry.
The windows may be cleaned with any household
window cleaner.
When cleaning the inside of the rear window, becareful not to scratch or damage the heater wires orconnectors.
Air Conditioning Control Panel, Car Audio,
Instrument Panel, Console Panel, and
Switches
Use a soft damp cloth for cleaning.
Soak a clean soft cloth in water or lukewarm water then lightly
wipe off any dirt.
NOTICE
Do not use organic substances (solvents, kerosene,
alcohol, gasoline, etc.) or alkaline or acidic solutions.
These chemicals can cause discoloring, staining or peeling of the surface.
If you use cleaners or polishing agents, make suretheir ingredients do not include the substancesmentioned above.
If you use a liquid car freshener, do not spill the liquidonto the vehicle's interior surfaces. It may containthe ingredients mentioned above. Immediately cleanany spill using the method mentioned above.
If you have any questions about the cleaning of your
Lexus, your local Lexus dealer will be pleased to answer
them.
03 07.09
Page 414 of 420
BODY
400
RAIN CLEARING MIRRORS
The rear view mirrors have been coated to produce a ºrain
clearingº effect. This coating causes the raindrops to
spread, clearing the driver's rear view when it rains.
It is sufficient to wash the mirrors with water for day to day care.
The rain clearing effect is reduced in drizzle and light rain.
In the following cases, the rain clearing effect will be reduced
temporarily, but will gradually recover.
After wiping dirt off the mirrors
When the mirrors fog up
After waxing your vehicle in an automatic car wash
After your vehicle has been parked for a long period in
underground parking lots, etc. where there is no direct sunlight.
If you would like to restore the rain clearing effect to its normal
level immediately in the above cases, wash the mirrors with
neutral detergent, then rinse thoroughly.
NOTICE
To maintain the rain clearing ability, and prevent the mirrors from being scratched, observe the followingprecautions.
Do not use any glass cleaners that containcompounds.
If ice should jam the mirror, do not scrape the mirror.Use a spray deicer to free the mirror.
Wash off any wax stuck to the mirrors with neutraldetergent and rinse thoroughly as any wax on thesurface of the mirrors can cause the rain clearingeffect to be lost.
Do not use any water repellents as they can destroythe rain clearing effect. If any repellent gets stuck onthe surface of the mirrors, wash it off with neutraldetergent, then rinse thoroughly.
03 07.09
Page 415 of 420
SECTION 7
401
REPORTING SAFETY DEFECTS
FOR U.S. OWNERS
Reporting safety defects for U.S. owners
Reporting safety defects for U.S. owners402
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
03 07.09
Page 416 of 420
REPORTING SAFETY DEFECTS FOR U.S. OWNERS
402
REPORTING SAFETY DEFECTSFOR U.S. OWNERS
If you believe that your vehicle has a defect which
could cause a crash or could cause injury or death,
you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in
addition to notifying Toyota Motor Sales, U.S.A.,
Inc. (Toll-free: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open
an investigation, and if it finds that a safety defect
exists in a group of vehicles, it may order a recall
and remedy campaign. However, NHTSA cannot
become involved in individual problems between
you, your dealer, or Toyota Motor Sales, U.S.A.,
Inc.
To contact NHTSA, you may either call the Auto
Safety Hotline toll- free at 1- 800- 424- 9393 (or
366-0123 in Washington, D.C. area) or write to:
NHTSA, U.S. Department of Transportation,
Washington, D.C. 20590. You can also obtain
other information about motor vehicle safety from
the Hotline.
03 07.09
Page 417 of 420
WE REALLY CARE ABOUT YOU - PLEASE BUCKLE UP
Lexus has made a special effort to encourage use of seat belts.
Lexus belts are:
Comfortable
Easy to use
Convenient
We encourage you to use your belts every time you drive.
cv2
03 07.09
Page 418 of 420
cv3
GAS STATION INFORMATION
Fuel selection:
Select premium unleaded gasoline with an Octane Rat-
ing of 91 (Research Octane Number 96) or higher for
optimum engine performance. However, if such pre-
mium type cannot be obtained, you may temporarily use
unleaded gasoline with an Octane Rating as low as 87
(Research Octane Number 91).
Fuel tank capacity:
66 L (17.5 gal., 14.5 lmp.gal.)
Engine oil:
ºToyota Genuine Motor Oilº or equivalent
Oil grade: API grade SL ºEnergy-Conservingº or ILSAC
multigrade engine oil.
Recommend oil viscosity - SAE 5W- 30 if normal
temperatures are below 38 C (100F)
Oil capacity: L (qt., lmp.qt.)
Drain and refill with filter 5.4 (5.7, 4.8)
without filter 5.1 (5.4, 4.5)
See page 335 for detailed information.
Engine coolant:
Capacity: 7.5 L (7.9 qt., 6.6 lmp.qt.)
Coolant type - ºToyota Super Long Life Coolantº or
similar high quality ethylene glycol based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone. For checking the engine coolant, see page 337.
Automatic transmission:
Fluid type - Toyota Genuine ATF Type T-IV
See page 340 for detailed information.
Tire information:
See page 349 through 371 for detailed information.
Tire pressure:
Tire size: 225/45ZR17, 215/45ZR17 or P205/55R16 89V
Tire pressure: cold tires
kPa (kgf/cm
2 or bar, psi)
Ti
re sizeFrontRear
225/45ZR17 - 240 (2.4, 35)
215/45ZR17 230 (2.3, 33) 230 (2.3, 33)
P205/55R16 89V 230 (2.3, 33) 230 (2.3, 33)
For sustained high speeds above 160 km/h (100 mph), in
countries where such speeds are permitted by law, add the
tire pressure given below to the front tires and rear tires, but
never exceed the maximum cold tire pressure molded on the tire sidewall.
225/45ZR17 70kPa (0.8 kgf/cm
2, 0.7 bar, 10 psi)
215/45ZR17 70kPa (0.8 kgf/cm2, 0.7 bar, 10 psi)
P205/55R16 89V
Sedan 70kPa (0.8 kgf/cm
2, 0.7 bar, 10 psi)
SportCross Front: 70kPa (0.8 kgf/cm2, 0.7 bar, 10 psi)
Rear: 90kPa (0.9 kgf/cm2, 0.9 bar, 15 psi)
03 07.09
Page 419 of 420
1.
You should know as much about the quality and
importance of proper maintenance of your new
vehicle as the people who built it.
The Lexus authorized Repair Manual tells you
how to maintain your vehicle and enables you to
correctly perform your own maintenance.
The best way to keep your new vehicle in top running
order is to maintain it properly from the moment you
drive it off the showroom floor.

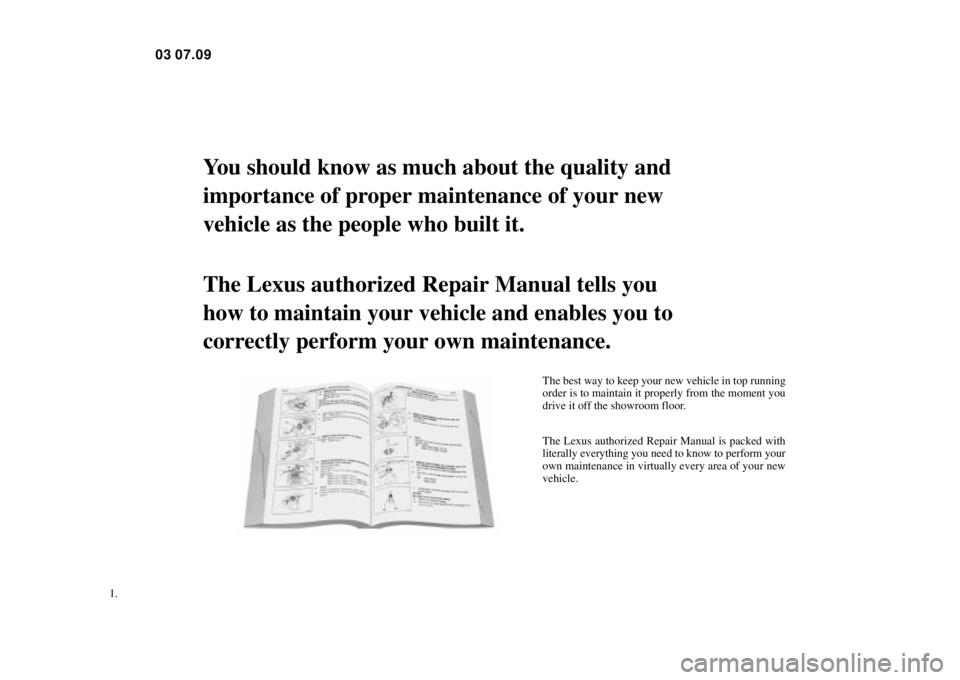

The Lexus authorized Repair Manual is packed with
literally everything you need to know to perform your
own maintenance in virtually every area of your new
vehicle.
03 07.09
Page 420 of 420
2.
Maintenance procedures for the engine, chassis,
body, electrical system, and more, are clearly
explained and illustrated.
Periodic maintenance and tune-up
Periodic maintenance and tune-up helps to prevent small
problems from growing into larger ones later on. The repair
manual outlines exactly what maintenance is required and
clearly explains how to do the work yourself step-by-step.
Areas covered include such things as spark plug replacement,
valve clearance adjustment and engine oil and filter
replacement.
Where to obtain theRepair Manual
The repair manual for IS300 written in English, may be
purchased as applicable from any Lexus dealer.
Pub. Name: 2004 IS300 Repair Manual
Pub. No.: Vol.1 RM1054U1 Vol.2 RM1054U2
