light Lexus IS300 2005 Basic Functions / LEXUS 2005 IS300 (OM53489U) Repair Manual

OCCUPANT RESTRAINT SYSTEMS
127
SV16180

1Airbag module for front passenger (airbag and inflator)
2Airbag module for driver (airbag and inflator)
3SRS warning light
4Airbag sensor assembly
5Front airbag sensors
The SRS front airbag system consists mainly of the above
components, and their locations are shown in the illustration.
The airbag sensor assembly consists of a safing sensor and
airbag sensors.
The front airbag sensors constantly monitor the forward
deceleration of the vehicle. If an impact results in a forward
deceleration beyond the designed threshold level, the system
triggers the airbag inflators. At this time a chemical reaction in
the inflators very quickly fills the airbags with non±toxic gas to
help restrain the forward motion of the occupants. The front
airbags then quickly deflate, so that there is no obstruction of
the driver's vision should it be necessary to continue driving. When the airbags inflate, they produce a loud noise and
release some smoke and residue along with non±toxic gas.
This
does not indicate a fire. This smoke may remain inside the
vehicle for some time, and may cause some minor irritation to
the eyes, skin or breathing. Be sure to wash off any residue as
soon as possible to prevent any potential skin irritation with
soap and water. If you can safely exit from the vehicle, you
should do so immediately.
Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce serious injuries, primarily to the
head and chest, it may also cause other, less severe injuries
to the face, chest, arms and hands. These are usually in the
nature of minor burns or abrasions and swelling, but the force
of a deploying airbag can cause more serious injuries,
especially if an occupant's hands, arms, chest or head is in
close proximity to the airbag module at the time of deployment.
This is why it is important for the occupant to: avoid placing any
object or part of the body bet ween the occupant and the airbag
module; sit straight and well back into the seat; wear the
available seat belt properly; and sit as far as possible from the
airbag module, while still maintaining control of the vehicle.
Parts of the airbag module (steering wheel hub, airbag cover
and inflator) may be hot for several minutes after deployment,
so do not touch! The airbags inflate only once. The windshield
may be damaged by absorbing some of the force of the
inflating airbag.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
131
SV16061
The indicator comes on when the ignition switch is turned
to the ªACCº or ªONº position. It goes off after about 6
seconds. This means the SRS front airbags are operating
properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensors, seat belt pretensioner assemblies, inflators, warning
light, interconnecting wiring and power sources. (For details,
see ªService reminder indicators and warning buzzersº on
page 48.)If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.

The light does not come on when the ignition key is turned
to the ªACCº or ªONº position or remains on for more than 6 seconds or flashes.
 The light comes on or flashes while driving.
If the light stays on, it indicates that the front airbags have a
problem. If the light flashes, the side and curtain shield airbags
have a problem.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
135
SV16020

1Collision from the front
2Collision from the rear
3Vehicle rollover
The SRS side airbags and curtain shield airbags are not
generally designed to inflate if the vehicle is involved in a
front or rear collision, if it rolls over, or if it is involved in
a low±speed side collision.
SV16181

1Side airbag modules (airbag and inflator)
2Side and curtain shield airbag sensors
3SRS warning light
4Airbag sensor assembly
5Curtain shield airbag module (airbag and inflator)
The SRS side airbag and curtain shield airbag system consists
mainly of the above components, and their locations are
shown in the illustration.
The SRS side airbag and curtain shield airbag system is
controlled by the airbag sensor assembly. The airbag sensor
assembly consists of a safing sensor and airbag sensor.
In a severe side impact, the side and curtain shield airbag
sensor triggers the side airbag inflators and the curtain shield
airbag inflators. At this time a chemical reaction in the inflators
quickly fills the airbags with non±toxic gas to help restrain the
lateral motion of the occupants.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
139
NOTICE
Do not perform any of the following changes withoutconsulting your Lexus dealer. Such changes caninterfere with proper operation of the SRS side airbagand curtain shield airbag system in some cases.
Installation of electronic devices such as a mobiletwo±way radio, cassette tape player or compact disc
player.
Modification of the suspension system.
Modification of the side structure of the passenger compartment.
Repairs made on or near the console or front seat.
SV16061
The indicator comes on when the ignition switch is turned
to the ªACCº or ªONº position. It goes off after about 6
seconds. This means the SRS side airbags and curtain
shield airbags are operating properly.
The warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensors, seat belt pretensioner assemblies, inflators, warning
light, interconnecting wiring and power sources. (For details,
see ªService reminder indicators and warning buzzersº on
page 48.)
If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.
 The light does not come on when the ignition key is turned
to the ªACCº or ªONº position or remains on for more than 6 seconds or flashes.
 The light comes on or flashes while driving.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
140If the light stays on, it indicates that the front airbags have a
problem. If the light flashes, the side and curtain shield airbags
have a problem.

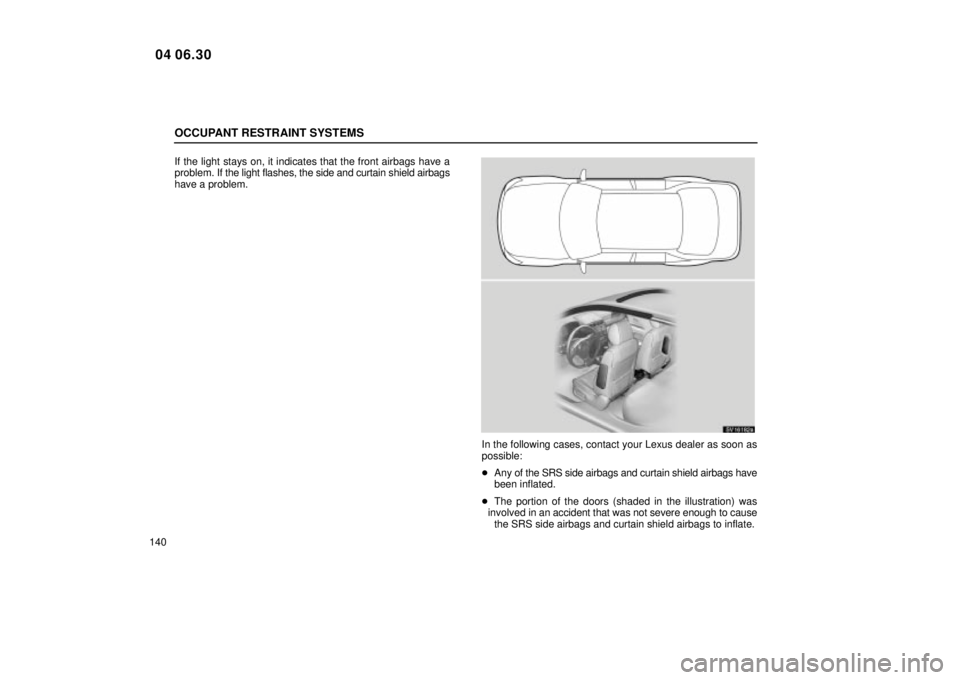

SV16182a
In the following cases, contact your Lexus dealer as soon as
possible:

Any of the SRS side airbags and curtain shield airbags have
been inflated.
 The portion of the doors (shaded in the illustration) was
involved in an accident that was not severe enough to cause the SRS side airbags and curtain shield airbags to inflate.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
147
SV16033
2. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retracted even slightly, it cannot be
extended.
To hold the infant seat securely, make sure the belt is in the lock
mode before letting the belt retract.
SV16034
3. While pressing the infant seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the infant seat securely.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
151
SV16039
1. Run the lap and shoulder belt through or around the
convertible seat following the instructions provided by its
manufacturer and insert the tab into the buckle taking care not
to twist the belt. Keep the lap portion of the belt tight.
CAUTION
 After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not install
the child restraint system on the seat until the seat
belt is fixed.
SV16040
2. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retracted even slightly, it cannot be
extended.
To hold the convertible seat securely, make sure the belt is in
the lock mode before letting the belt retract.
SV16041
3. While pressing the convertible seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the convertible seat securely.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
160
SV16188b
Canada only

Type B
For owners in Canada
The symbol on a child restraint system indicates the presence
of a lower connector system.
Type A:
1. Widen the gap between the seat cushion and seatback
slightly and confirm the position of the lower anchorages
below the button in the seatback.
2. Latch the hooks of lower straps onto the anchorages
and tighten the lower straps.
Type B:
1. Widen the gap between the seat cushion and seatback
slightly and confirm the position of the lower anchorages
below the button in the seatback.
2. Latch the buckles onto the anchorages.
If your child restraint system has a top strap, it should be
anchored. (For the installation of the top strap, see ªUsing a top
strapº on page 156 in this Section.)
For installation details, refer to the instruction manual
equipped with each product.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
177
Setting the driving position
SV16170
1. Adjust the driver's seat to the desired position.
2. While pushing the ªSETº button, push button ª1º or ª2º
until the signal beeps.
The beep sound means that the positions are recorded in the
computer's memory.
By repeating these two steps and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
SV16171
Automatic transmissionÐ
When you push button ª1º or ª2º, the driving position will
be automatically adjusted to the position recorded for
that button.
Manual transmissionÐ
While button ª1º or ª2º is being pushed down, the driving
position will be automatically adjusted to the position
recorded for that button.
Conditions for memorized position activation
 Automatic transmission: Ignition key ªONº and selector
lever in ªPº position.
 Manual transmission: Ignition key ªONº and apply the
parking brake.
 Ignition switch off and within 30 seconds of opening driver's
door.
04 06.30

STEERING WHEEL AND MIRRORS
180
TILT STEERING COLUMN
SV16064
To change the steering wheel angle, hold the steering
wheel, pull the lock release lever toward you, tilt the
steering wheel to the desired angle and release the lever.
When the steering wheel is in a low position, it will spring up as
you release the lock release lever.
CAUTION
 Do not adjust the steering wheel while the vehicle is
moving. Doing so may cause the driver to mishandle
the vehicle and an accident may occur resulting in
death or injuries.
 After adjusting the steering wheel, try moving it up
and down to make sure it is locked in position.
OUTSIDE REAR VIEW MIRRORS
SV16010
Adjust the mirror so that you can just see the side of your
vehicle in the mirror.
Be careful when judging the size or distance of any object seen
in the outside rear view mirror on the passenger's side
because it is a convex mirror. Any object seen in a convex
mirror will look smaller and farther away than if seen in a normal
flat mirror.
When you push the rear window and outside rear view mirror
defogger switch or operate the wipers, the heater panels in the
outside rear view mirrors will quickly clear the mirror surface.
(See ª Rear window and outside rear view mirror defogger, and
windshield wiper deicer switchº on page 36.)
Some models: When the inside rear view mirror darkens in
ªAUTOº mode, the outside rear view mirrors also darken to
reduce the reflection of the headlights of the following vehicle.
For details, see ªInside rear view mirrorº on page 182.
04 06.30
