PICTORIAL INDEX
xvi
SEAT AND STEERING WHEEL
Page
1Tilt steering adjustmentlever 180 . . . . . . . . . . . . . . . . . . . . . . . . .
2Seat position, seat cushion
angle and height control switch 97, 98 . . . . . . . . . . . . . . . . . . . . . .
3Seatback angle control switch 97 . . .
4Seat position lock release
lever 102 . . . . . . . . . . . . . . . . . . . . . . . . .
5Seat cushion front edge angle
adjusting knob 103 . . . . . . . . . . . . . . . .
6Seat cushion height adjusting
knob 103 . . . . . . . . . . . . . . . . . . . . . . . . .
7Seatback lock release lever 102 . . . .
For detailed information, refer to the description given in each section.
04 06.30
Page 19 of 425
QUICK REFERENCE
2
1. DRIVER'S SEAT
SVBA012
SVBA011
Power TypeManual Type
Seat
position
Seatback angle
Seat cushion height
Seat cushion angle
Head restraint height
Head restraint angle
Seat
position
Seat cushion angle
Seatback angle
Head restraint height
Head restraint angle
Seat adjustment Seat adjustment
Seat cushion height
04 06.30
Page 99 of 425
INTERIOR EQUIPMENT
82
SV14046
NOTICE
Be sure to use the deck board by making its heighteven. Otherwise, luggage may slip down and hit thedeck board, thus resulting in break and damage.
Be sure to check that there is nothing under the deckboard before lowering it. Any object under the deckboard may cause damage to that thing or the deckboard itself.
FLOOR MAT
SV14038
Use a floor mat of the correct size.
If the floor carpet and floor mat have two holes, then it is
designed for use with a locking clip. Fix the floor mat with
locking clip into the hole in the floor carpet.
04 06.30
Page 113 of 425
OCCUPANT RESTRAINT SYSTEMS
96
Seat adjustment precautions
CAUTION
Do not adjust the seat while the vehicle is moving as
the seat may unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not hit a passenger,
luggage or the rear seat.
NOTICE
Do not operate the control switch in more than one
dimension at a time. It may cause electrical overload.
Adjusting front seats
SV16001
1Seat position control switch, seat cushion angle and
height control switch
2Seatback angle control switch
04 06.30
Page 115 of 425
OCCUPANT RESTRAINT SYSTEMS
98

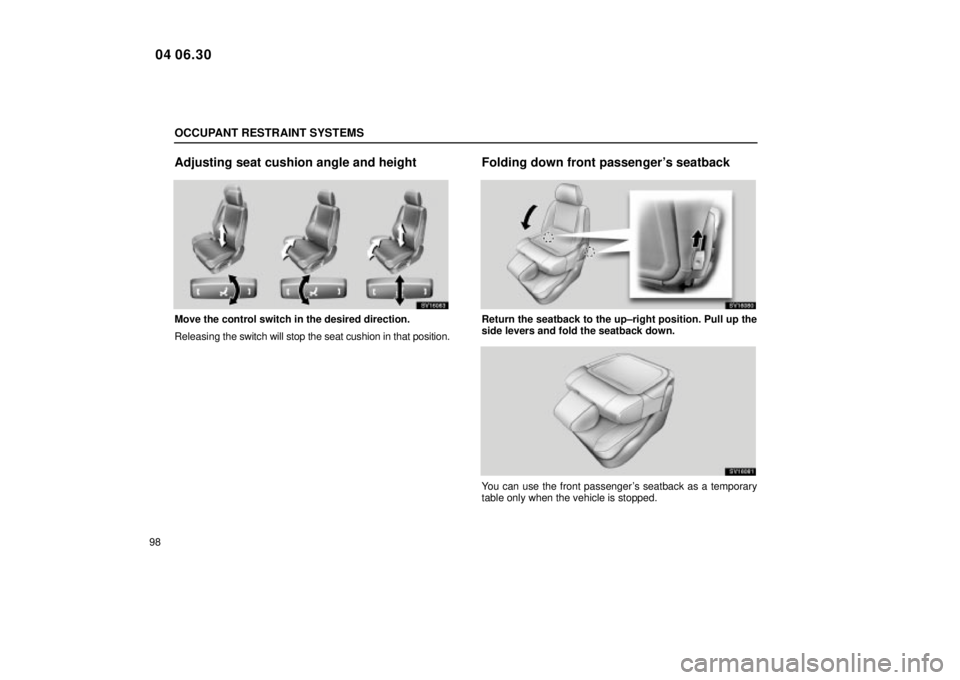

Adjusting seat cushion angle and height
SV16063
Move the control switch in the desired direction.
Releasing the switch will stop the seat cushion in that position.
Folding down front passenger's seatback
SV16080
Return the seatback to the up±right position. Pull up the
side levers and fold the seatback down.
SV16081
You can use the front passenger's seatback as a temporary
table only when the vehicle is stopped.
04 06.30
Page 118 of 425
OCCUPANT RESTRAINT SYSTEMS
101
Seat adjustment precautions
CAUTION
Do not adjust the seat while the vehicle is moving as
the seat may unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not hit a passenger,
luggage or the rear seat.
After adjusting the seat position, release the lever
and try sliding the seat forward and backward to
make sure it is locked in position.
After adjusting the seatback, push your body against
the seat to make sure it is locked in position.
Do not put objects under the seats. Otherwise, the
objects may interfere with the seat±lock mechanism
or unexpectedly push up the seat position adjusting
lever and the seat may suddenly move, causing the
driver to lose control of the vehicle.
While adjusting the seat, do not put your hands under
the seat or near the moving parts. Otherwise, your
hands or fingers may be caught and injured.
Adjusting front seats
SS16001
1Seat position lock release lever
2Seat cushion front edge angle adjusting knob
3Seat cushion height adjusting knob
4Seatback angle lock release lever
04 06.30
Page 120 of 425
OCCUPANT RESTRAINT SYSTEMS
103

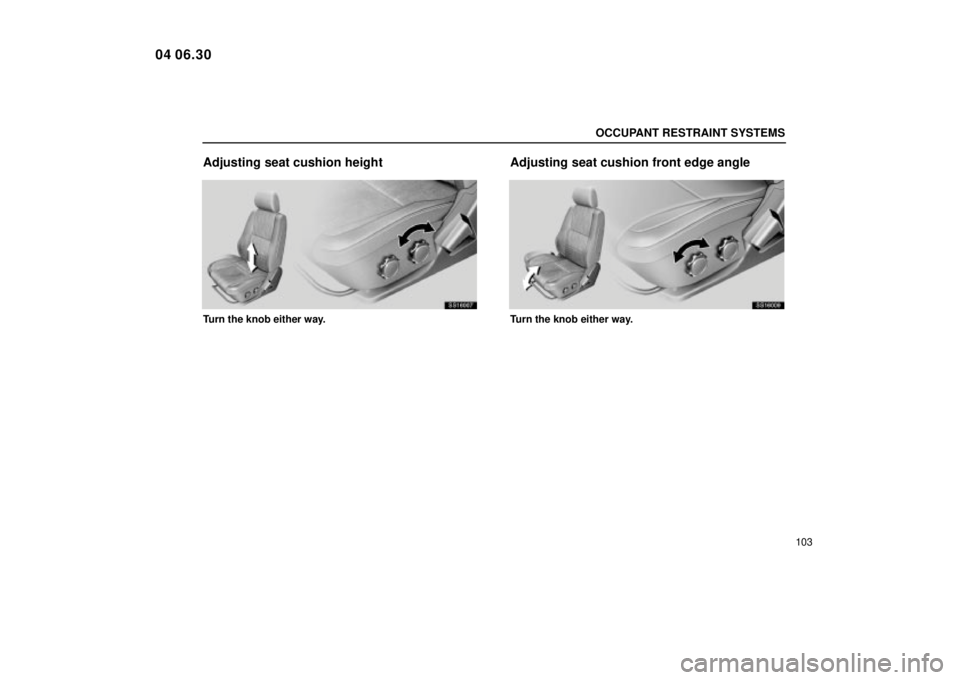

Adjusting seat cushion height
SS16007
Turn the knob either way.
Adjusting seat cushion front edge angle
SS16009
Turn the knob either way.
04 06.30
Page 251 of 425
STARTING AND DRIVING
234
To allow proper operation of your vehicle's
ventilation system, keep the inlet grilles in front of the
windshield clear of snow, leaves, or other
obstructions.
If you smell exhaust fumes in the vehicle, drive with
the windows open and the trunk lid or back door
closed. Have the cause immediately located and
corrected.BEFORE STARTING THE ENGINE
1. Check the area around the vehicle before entering it.
2. Adjust seat position, seatback angle, head restraint height
and steering wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts.
Remember to check that the service reminder indicators
function when turning the key to ªONº, and check the fuel
gauge to see that you have sufficient fuel.
04 06.30
Page 279 of 425
STARTING AND DRIVING
262
You may hear the anti±lock brake system operating and feel
the brake pedal pulsating and the vibrations of the vehicle
body and steering wheel. You may also hear the motor
sound in the engine compartment even after the vehicle is stopped.
At the end of the anti±lock brake system activation, the
brake pedal may move a little forward.
CAUTION
Do not overestimate the anti±lock brake system:
Although the anti±lock brake system assists in
providing vehicle control, it is still important to drive
with all due care and maintain a moderate speed and
safe distance from the vehicle in front of you, because
there are limits to the vehicle stability and effectiveness
of steering wheel operation even with the anti±lock
brake system on.
If tire grip performance exceeds its capability, or if
hydroplaning occurs during high speed driving in the
rain, the anti±lock brake system does not provide
vehicle control.
Anti±lock brake system is not designed to shorten the
stopping distance: Always drive at a moderate speed
and maintain a safe distance from the vehicle in front of
you. Compared with vehicles without an anti±lock brake
system, your vehicle may require a longer stopping
distance in the following cases:
Driving on rough, gravel or snow±covered roads.
Driving with tire chains installed.
Driving over the steps such as the joints on the road.
Driving on roads where the road surface is pitted or
has other differences in surface height.
Install all 4 tires of specified size at appropriate
pressure: The anti±lock brake system detects vehicle
speeds using the speed sensors for respective wheels'
turning speeds. The use of tires other than specified
may fail to detect the accurate turning speed resulting
in a longer stopping distance.
04 06.30
Page 376 of 425
CHASSIS
359
SV63013a
Type BThe illustration indicates typical tire size.
1Tire use (P=Passenger car, T=Temporary use)
2Section width (in millimeters)
3Aspect ratio (tire height to section width)
4Speed category (alphabet with one letter)
5Tire construction code(R=Radial, D=Diagonal)
6Wheel diameter (in inches)
7Load index (2 digits or 3 digits)
8Speed symbol (alphabet with one letter)
SV63012c
1Section width
2Tire height
3Wheel diameter
04 06.30
