4647-3. Do-it-yourself maintenance
IS350/300/200t_U (OM53D76U)
IS350/IS300

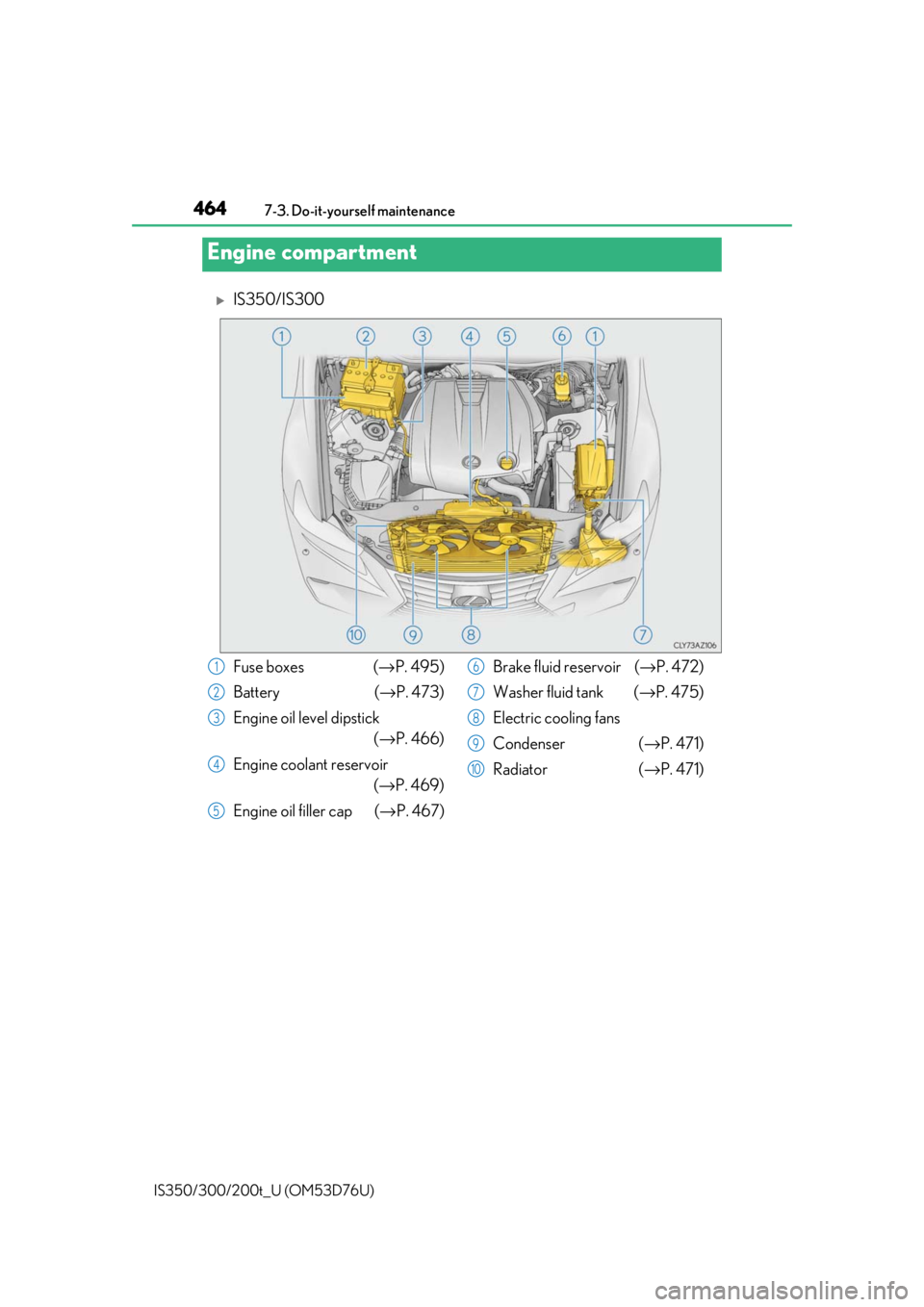

Engine compartment
Fuse boxes (→ P. 495)
Battery ( →P. 473)
Engine oil level dipstick (→ P. 466)
Engine coolant reservoir (→P. 469)
Engine oil filler cap (→ P. 467)Brake fluid reservoir (
→P. 472)
Washer fluid tank ( →P. 475)
Electric cooling fans
Condenser ( →P. 471)
Radiator ( →P. 471)1
2
3
4
5
6
7
8
9
10

4657-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/300/200t_U (OM53D76U)

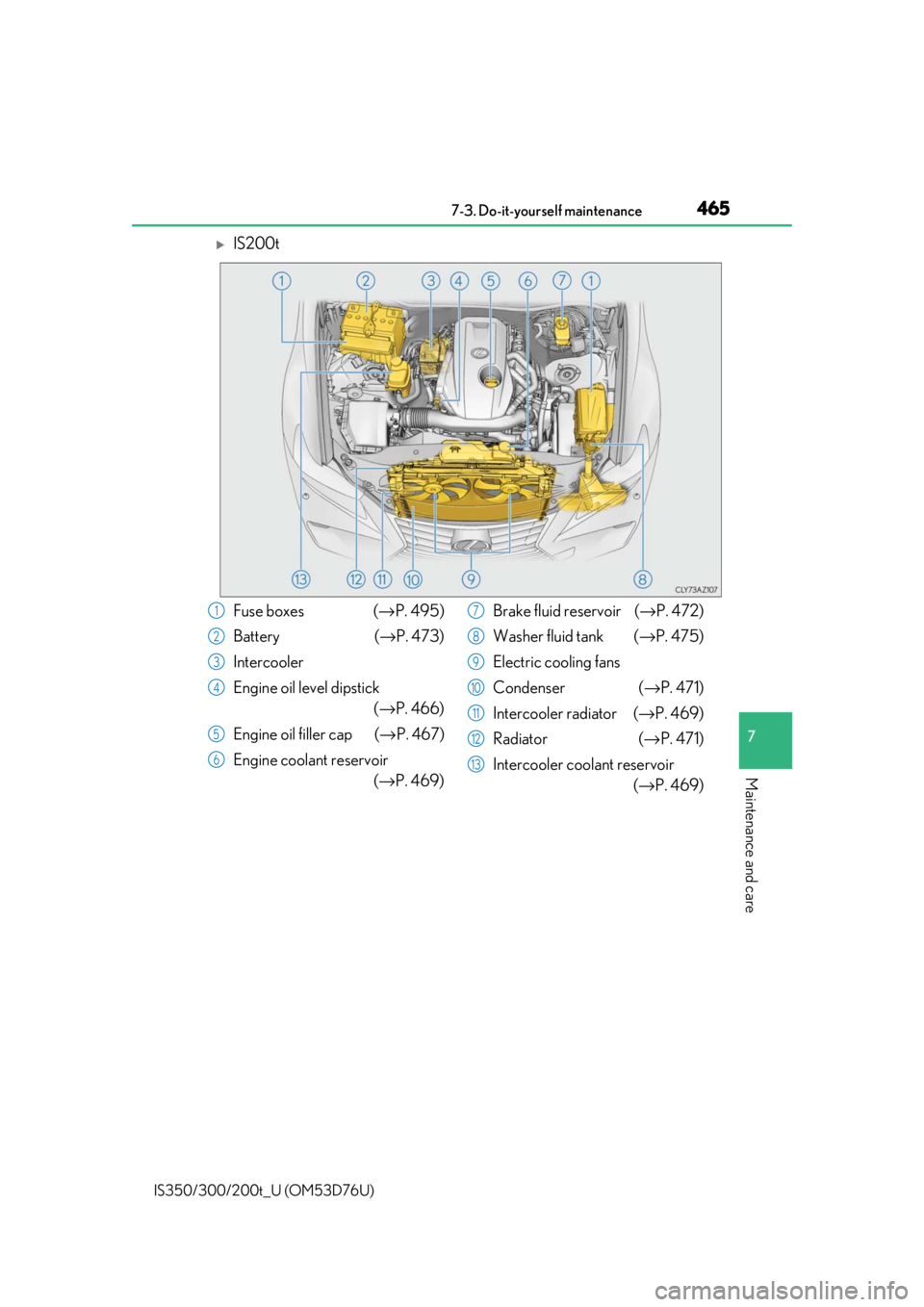

IS200t
Fuse boxes (→P. 495)
Battery ( →P. 473)
Intercooler
Engine oil level dipstick (→ P. 466)
Engine oil filler cap (→ P. 467)
Engine coolant reservoir (→P. 469) Brake fluid reservoir (
→P. 472)
Washer fluid tank ( →P. 475)
Electric cooling fans
Condenser ( →P. 471)
Intercooler radiator (→ P. 469)
Radiator (→ P. 471)
Intercooler coolant reservoir (→P. 469)1
2
3
4
5
6
7
8
9
10
11
12
13

4957-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/300/200t_U (OM53D76U)
Turn the engine switch off.
Open the Fuse box cover.

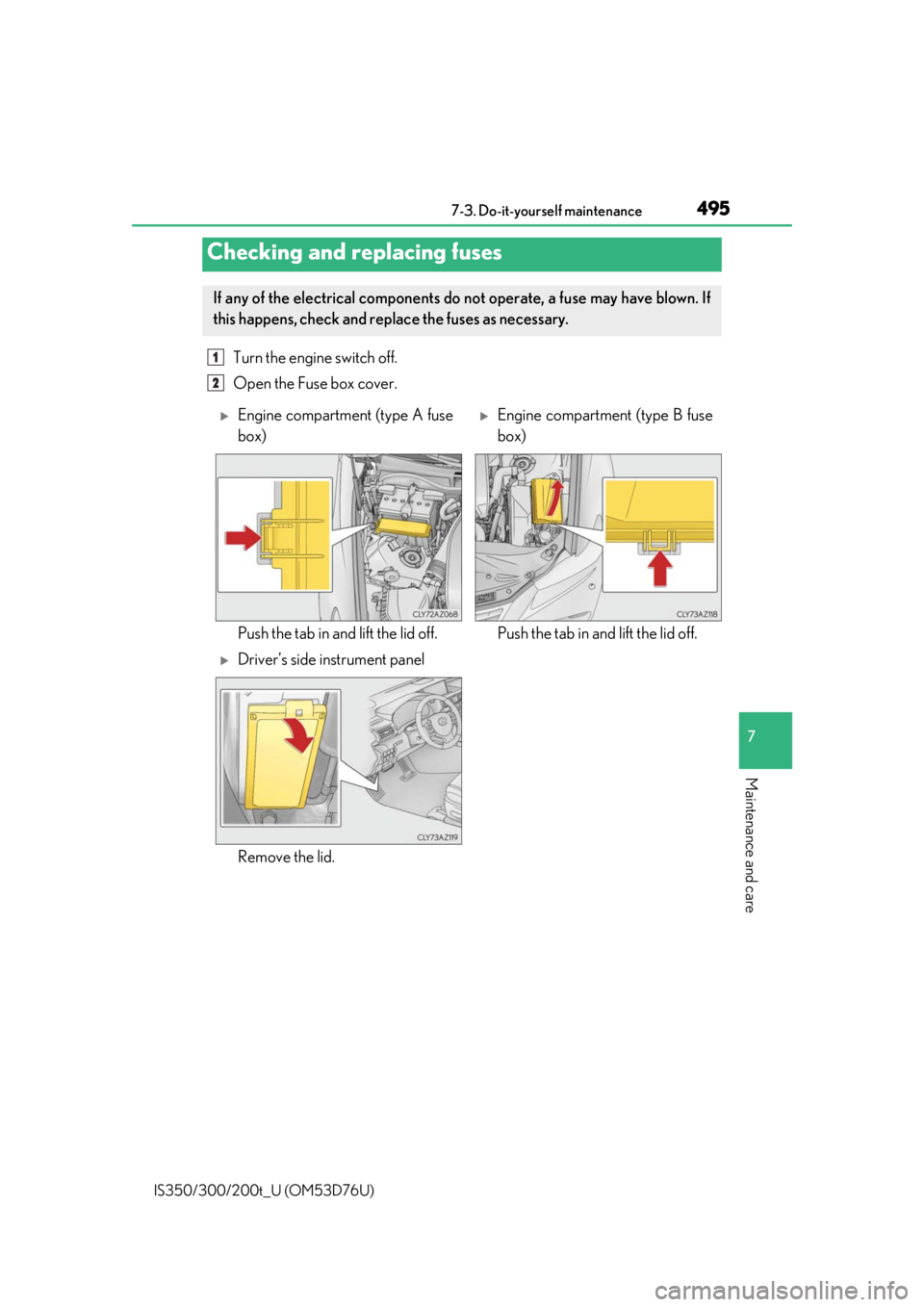

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.
1
2
Engine compartment (type A fuse
box)
Push the tab in and lift the lid off.Engine compartment (type B fuse
box)
Push the tab in and lift the lid off.
Driver’s side instrument panel
Remove the lid.

4967-3. Do-it-yourself maintenance
IS350/300/200t_U (OM53D76U)

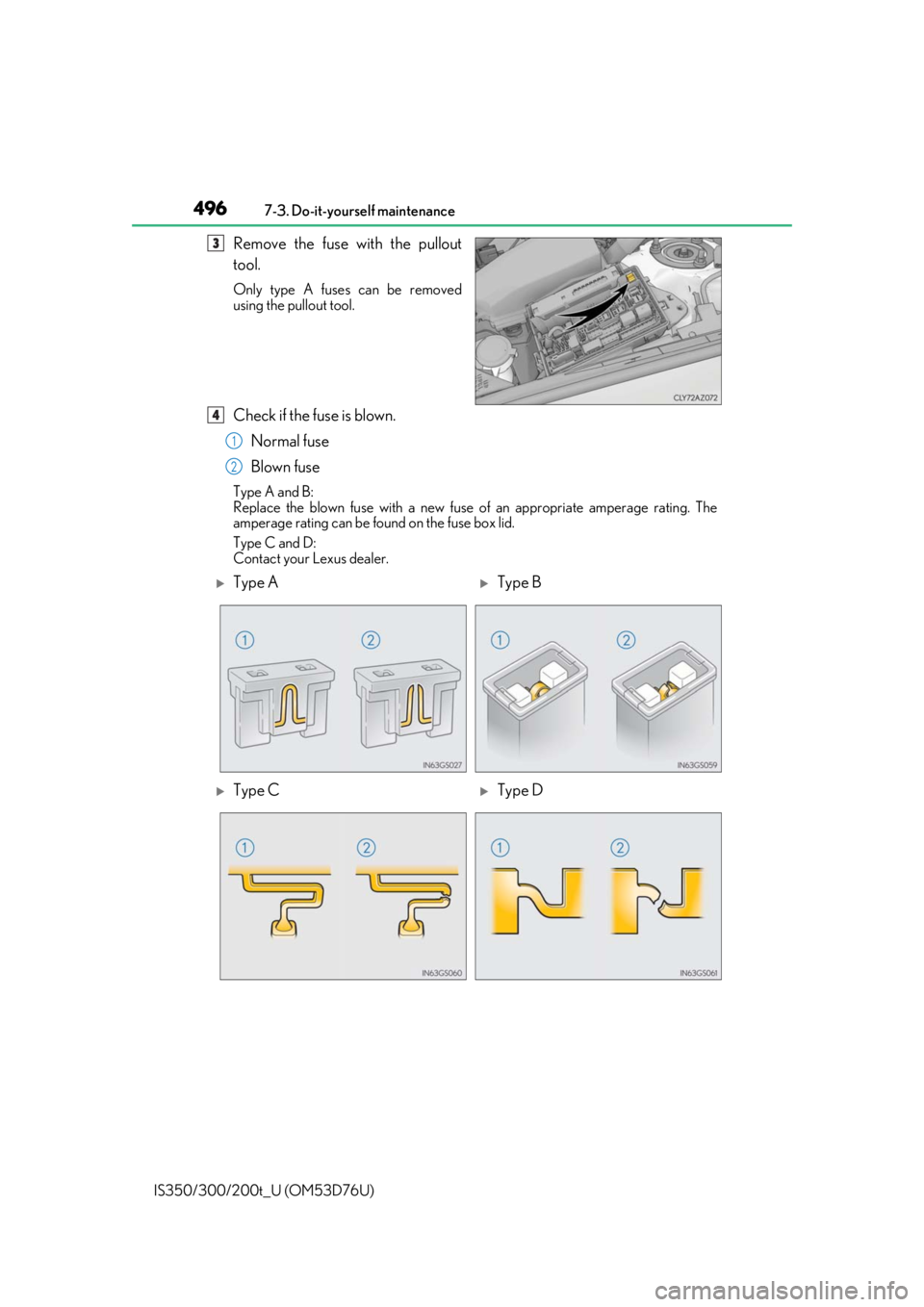

Remove the fuse with the pullout
tool.
Only type A fuses can be removed
using the pullout tool.
Check if the fuse is blown. Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Type C and D:
Contact your Lexus dealer.
3
4
1
2
Type AType B
Type CType D

4977-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/300/200t_U (OM53D76U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 498)
●If the replaced fuse blows again, have th e vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circui ts designed to prevent overload, non-gen-
uine parts or parts not designed for this vehicle may be unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to th e vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus dealer as
soon as possible.
