display Lexus IS300 2019 Owner's Manual / LEXUS 2019 IS300,IS350 OWNER'S MANUAL QUICK GUIDE (OM53E86U)

Contents
The Quick Guide is not intended as a substitute for your Owner’s
Manual. We strongly encourage you to review the Owner’s
Manual and supplementary manuals so you will have a better
understanding of your vehicle’s capabilities and limitations.
1
Air Conditioning System*
Adjusting the temperature ...................................................................................................... .. 53
Air conditioning control screen .............................................................................................. 54
Using automatic mode........................................................................................................... ..... 56
Adjusting the temperature for driver and passenger seats separately (“DUAL” mode) .................................................................................................................. ....... 56
Audio System (with Lexus Display Audio)*
Lexus Display Audio operation bu ttons .............................................................................. 49
Using the steering whee l switches to change audio sources ..................................... 49
Audio menu screen .............................................................................................................. ........ 50
Operating the audio system using the steering wheel switches ............................... 52
Audio System (with Navigation System)*
Audio control screen ................................................................................................................... 40
Remote control (steering wheel audio switches) . ........................................................... 40
Basic operation ................................................................................................................ ................ 41
Radio.......................................................................................................................... ........................... 41
DVD player/CD player........................................................................................................... ... 42
Operating an iPod .............................................................................................................. .......... 43
Automatic High Beam .......................................................................................................................18
BSM (Blind Spot Monitor) .............................................................................................................. 30
Dynamic Radar Cruise Control .................................................................................................. 25
Floor Mat Installation ...........................................................................................................................4
Garage Door Opener ..................................................................................................................... 62
*: This feature may be operated by Voice command (See P.58)

2
Hands-Free System For Cellular Phone (with Lexus Display Audio)*
How to register a Bluetooth® device ................................................................................... 46
Registering favorites.......................................................................................................... ........... 46
Dialing........................................................................................................................ ......................... 46
Dialing from the phonebook ..................................................................................................... 46
When the phonebook is empty................................................................................................ 47
Dialing from favorites ......................................................................................................... .......... 47
To answer the phone ............................................................................................................ ........48
Operating a phone using the steering wheel sw itches..................................................48
Hands-free System For Cellular Phone (with Navigation System)*
Bluetooth
® phone pairing ......................................................................................................... 37
Contact transfer ............................................................................................................... ............. 38
Calling by name................................................................................................................ ..............39
Receiving a call ............................................................................................................... ................39
Steering switches ...........................................................................................................................39
Headlights ............................................................................................................................... .................17
Intuitive Parking Assist ..................................................................................................................... 29
LDA (Lane Departure Alert with Steering Control) ........................................................ 28
Lexus Display Audio Controller (with Lexus Display Audio) ....................................... 44
Lexus Enform ........................................................................................................................................ 66
Lexus Enform Safety Connect .................................................................................................... 64
Lexus Safety System + ...................................................................................................................... 24
Multi-information Display ............................................................................................................... 12
*: This feature may be operated by Voice command (See P.58)

5
OverviewInstrument Panel
Windshield wiper and washer switch P.20
Multi-information display P.12
Turn signal lever
Headlight switch P.11
P.17
Inside lock buttons*
Driving position memory
switches
*
See P.8
See P.7
Window lock switch
*
Outside rear view
mirror switches
*
Power window switches*
Door lock switches*
Tire pressure warn ing reset switch P.31

6
Remote Touch screen
Navigation system

Lexus Display Audio system

P.32
P.35
P.44
Emergency flasher switch*
See P.9
Engine switch
*
: If equipped
*: Refer to “OWNER’S MANUAL”.
Trunk opener*
Clock*
Trunk opener main switch*
Audio system P.40, 49
Shift lever*
Hood lock release lever*
Air conditioning system
P.53

9

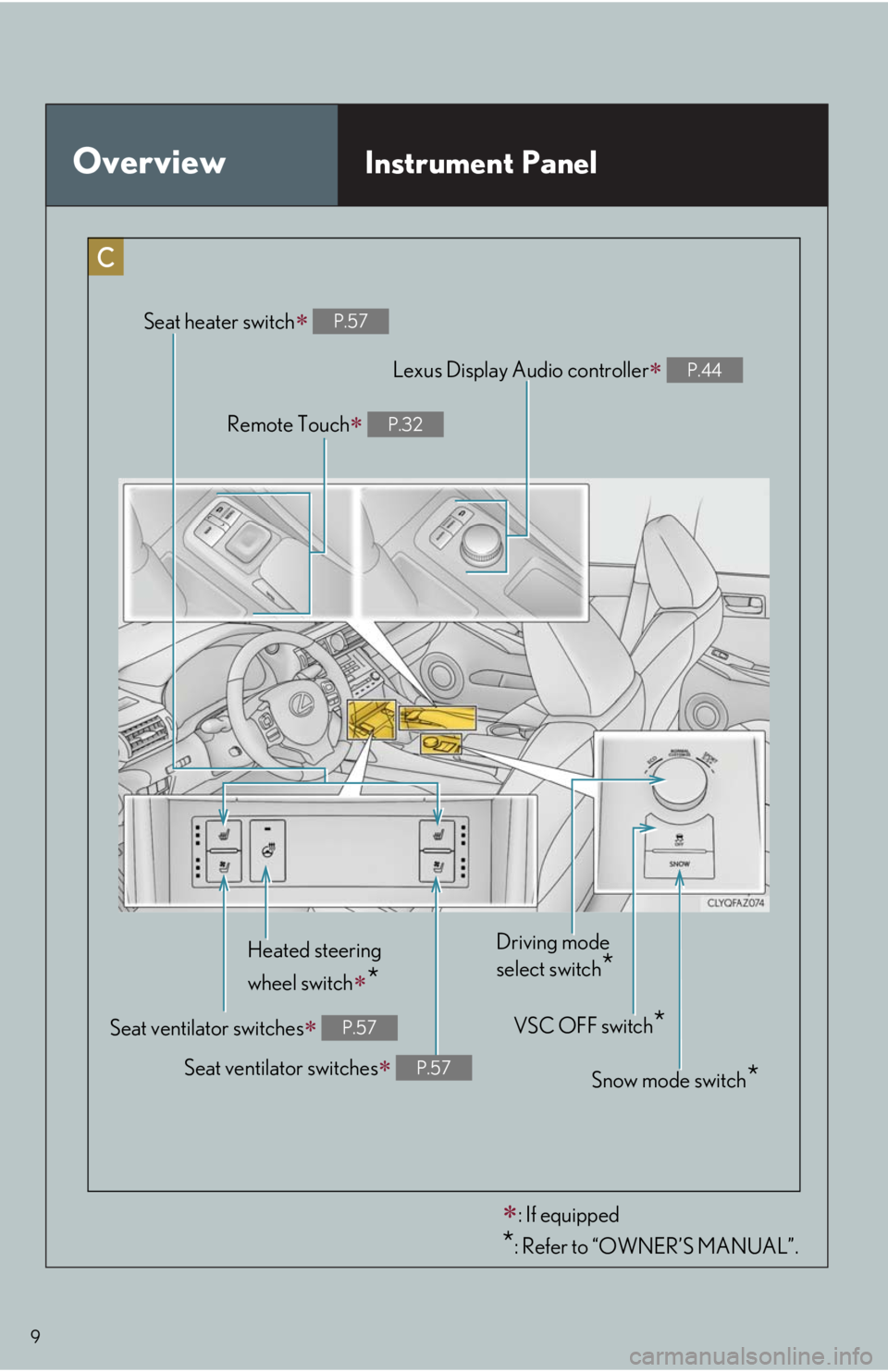

OverviewInstrument Panel
Remote Touch P.32
Seat ventilator switches P.57
Heated steering
wheel switch
*
Snow mode switch*
Driving mode
select switch
*
VSC OFF switch*
Lexus Display Audio controller P.44
Seat heater switch P.57
: If equipped
*: Refer to “OWNER’S MANUAL”.
Seat ventilator switches P.57

12
Multi-information Display
■Except F SPORT modelsMenu icon display area ( P. 16)
Displays the following items. 
When a menu icon is not selected, the outside temperature and clock are displayed.
•Menu icons
• Outside temperature
•Clock
Content display area
A variety of information can be displayed by selecting a menu icon. Additionally, warn-
ing or advice pop-up displays will be displayed in some situations.
• Menu icon content
• Warning message
Indicator/shift position display area
Displays the following items:
•Indicators
• Shift position display
Odometer/trip meter display area
Displays the following items:
• Odometer/trip meter
• Distance until next engine oil change
Meter control switches ( P. 15)
Odometer/trip meter and tr ip meter reset button (P. 15)
The multi-information display presents the driv er with a variety of driving-related data,
such as the current outside temperature. Th e multi-information display can also be used
to change the display settings and other settings.
1
2
3
4
5
6

14
Clock
Outside temperature
Indicator/shift position display area
Displays the following items:
•Indicators
• Shift position display
Content display area
Main meter in center position:
Displays various drive information on the main meter. Additionally, warning or advice
pop-up displays will be disp layed in some situations.
• Drive information
• Warning message
Main meter moved to the right:
A variety of information can be displayed by selecting a menu icon. Additionally, warn-
ing or advice pop-up displays will be displayed in some situations.
• Menu icon content
• Warning message
Odometer/trip meter display area
Displays the following items:
• Odometer/trip meter
• Distance until next engine oil change
Menu icons ( P. 16)
Meter control switches ( P. 15)
Odometer/trip meter and tr ip meter reset button (P. 15)1
2
3
4
5
6
7
8

15
■Using the multi-information display
■Using the content display area
The content display area is operated using the meter control switches.
:Select menu icons
:Change displayed content,
scroll up/down the screen
and move the cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Pressing and holding the switch will
display the first screen of the selected
menu icon.
Except F SPORT models Press: Display the top screen
Press and hold: Register current
screen as the top screen
F SPORT models Move the main meter
When the main meter moves to the
right, the menu icons will be displayed
on the left side.
■Using the odometer/trip meter display area
Items in this area are operated using the odometer/trip meter and trip meter reset button.
Press: Change displayed itemEach time the button is pressed, the dis-
played item will be changed.
Press and hold: Reset Display the desired trip meter and press
and hold the button to reset the trip
meter.
1
2
3
4
4
■ Move the main meter (F SPORT models)
Moves between center and right-side positions.

16
■Menu icons
Select a menu icon to display its content.
Drive information
Select to display various drive data.
Navigation system-linked display (if equipped)
Select to display the following na vigation system-linked information.
• Route guidance
• Compass display (heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the meter using the
meter control switches.
Driving assist system information
Select to display the operational status of the following systems:
• Dynamic radar cruise control
• LDA (Lane Departure Aler t with steering control)
Warning message display
Select to display warning messages and measures to be taken if a malfunction is
detected.
Settings display
Select to change the meter display settings and other settings.
If a problem is detected in any of the vehicle’s systems, a warning message is shown on the
multi-information display.

25
Dynamic Radar Cruise Control
Vehicle-to-vehicle distance switch
Display
Set speed
Indicators
Cruise control switch
■Setting the vehicle speed (vehicle-t o-vehicle distance control mode)
Press the “ON/OFF” button to activate
the cruise control. Radar cruise control indicator will
come on and a message will be dis-
played on the multi-information dis-
play.
Press the button again to deactivate
the cruise control.
Accelerate or dece lerate, with accel-
erator pedal operation, to the desired
vehicle speed (at or above approxi-
mately 30 mph [50 km/h]) and push
the lever down to set the speed. Cruise control “SET” indicator will
come on.
The vehicle speed at the moment the
lever is released becomes the set
speed.
In vehicle-to-vehicle distance control mode , the vehicle automatically accelerates and
decelerates to match the speed changes of the preceding vehicle even if the accelerator
pedal is not depressed. In constant speed control mode, the vehicle runs at a fixed speed.
Use the dynamic radar cruise control on freeways and highways.
1
2
3
4
5
1
2
