5488-2. Steps to take in an emergency
IS350 AWD/IS350/IS300 AWD/IS300_U

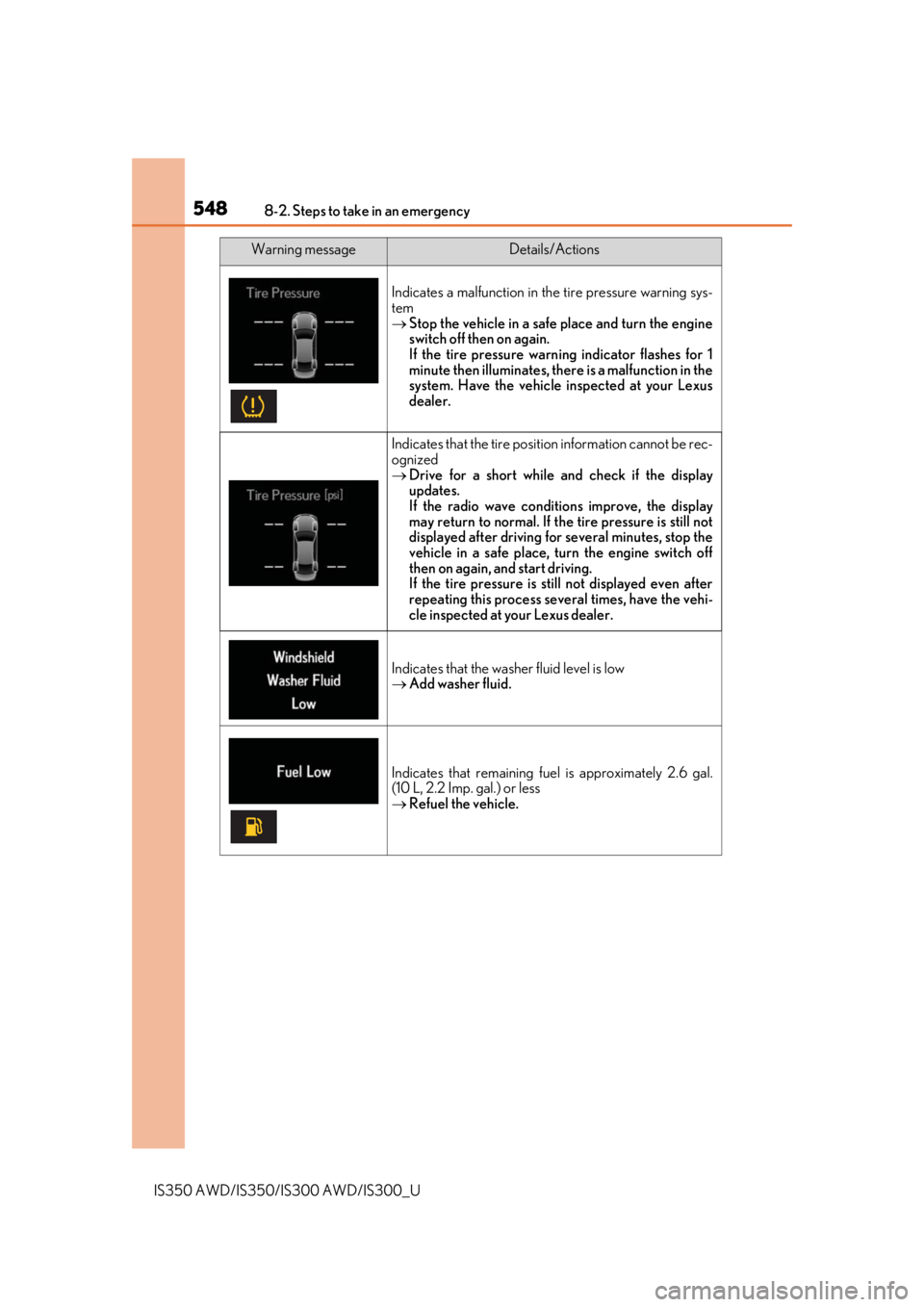

Indicates a malfunction in the tire pressure warning sys-
tem
Stop the vehicle in a safe place and turn the engine
switch off then on again.
If the tire pressure warn ing indicator flashes for 1
minute then illuminates, ther e is a malfunction in the
system. Have the vehicle inspected at your Lexus
dealer.
Indicates that the tire position information cannot be rec-
ognized
 Drive for a short while an d check if the display
updates.
If the radio wave conditions improve, the display
may return to normal. If th e tire pressure is still not
displayed after driving for several minutes, stop the
vehicle in a safe place, turn the engine switch off
then on again, and start driving.
If the tire pressure is st ill not displayed even after
repeating this process seve ral times, have the vehi-
cle inspected at your Lexus dealer.
Indicates that the washer fluid level is low
 Add washer fluid.
Indicates that remaining fuel is approximately 2.6 gal.
(10 L, 2.2 Imp. gal.) or less
Refuel the vehicle.
Warning messageDetails/Actions

5498-2. Steps to take in an emergency
8
When trouble arises
IS350 AWD/IS350/IS300 AWD/IS300_U

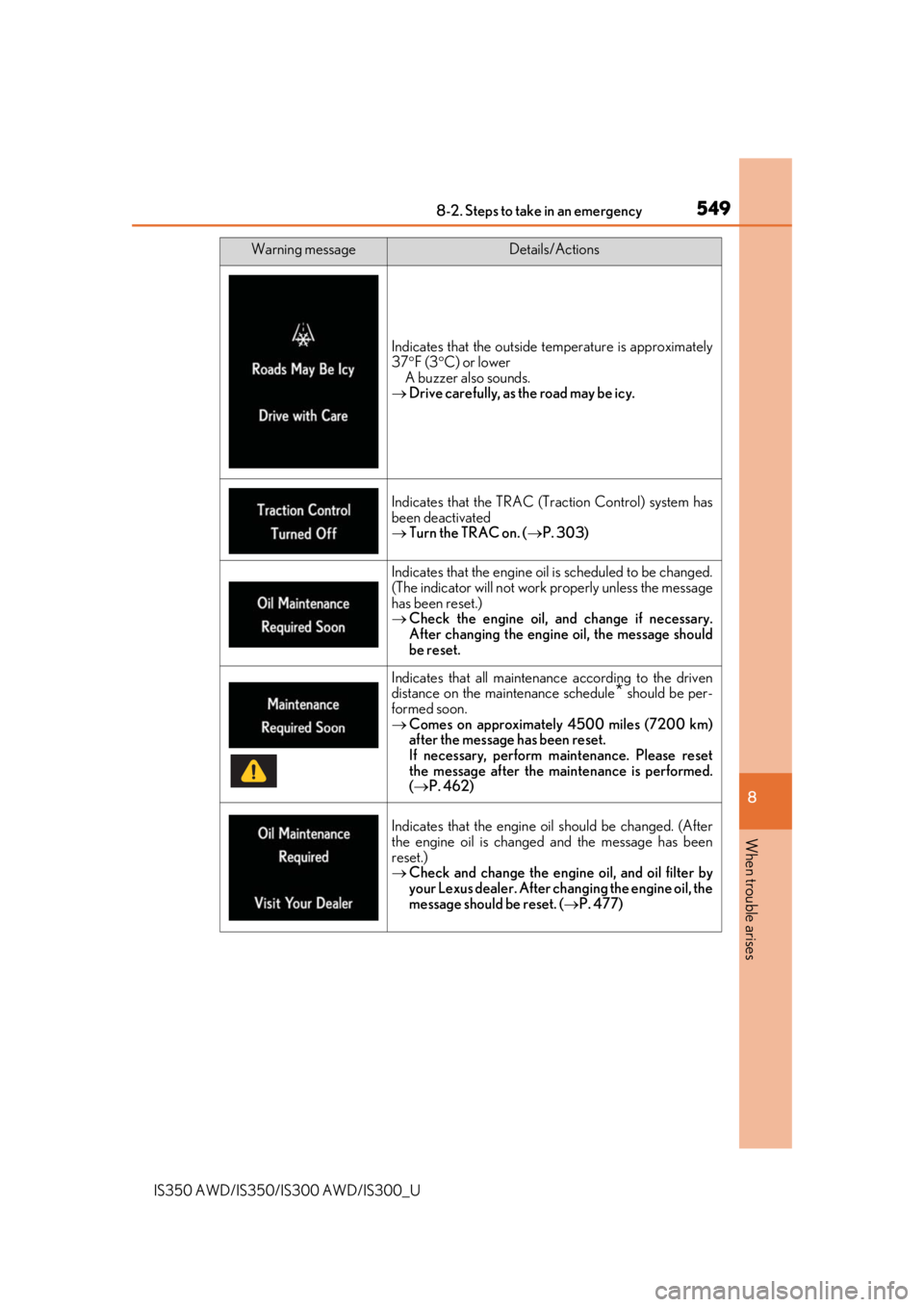

Indicates that the outside temperature is approximately
37F (3 C) or lower
A buzzer also sounds.
 Drive carefully, as the road may be icy.
Indicates that the TRAC (Traction Control) system has
been deactivated
Turn the TRAC on. ( P. 303)
Indicates that the engine oil is scheduled to be changed.
(The indicator will not work properly unless the message
has been reset.)
 Check the engine oil, and change if necessary.
After changing the engine oil, the message should
be reset.
Indicates that all maintenance according to the driven
distance on the maintenance schedule* should be per-
formed soon.
 Comes on approximately 4500 miles (7200 km)
after the message has been reset.
If necessary, perform maintenance. Please reset
the message after the maintenance is performed.
( P. 462)
Indicates that the engine oil should be changed. (After
the engine oil is changed and the message has been
reset.)
 Check and change the engine oil, and oil filter by
your Lexus dealer. After chan ging the engine oil, the
message should be reset. ( P. 477)
Warning messageDetails/Actions

5738-2. Steps to take in an emergency
8
When trouble arises
IS350 AWD/IS350/IS300 AWD/IS300_U
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION ON mode.
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the engine switch will
turn to ACCESSORY mode.
Firmly depress the brake pedal and check that is shown on the multi-
information display.
Press the engine switch.
In the event that the engine still cannot be started, contact your Lexus dealer.
Starting the engine
1
2
3
4

5748-2. Steps to take in an emergency
IS350 AWD/IS350/IS300 AWD/IS300_U
■Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when stopping
the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic
key battery be replaced immediately when the battery is depleted. ( P. 502)
■Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is pressed.
(  P. 187)
■When the electronic key does not work properly
●Make sure that the smart access system wi th push-button start has not been deacti-
vated in the customization setting. If it is off, turn the function on.
(Customizable features:  P. 613)
●Check if battery-saving mode is set. If it is set, cancel the function. ( P. 136)
WARNING
■When using the mechanical key and operating the power windows or moon roof
Operate the power window or moon roof after checking to make sure that there is no
possibility of any passenger having any of their body parts caught in the window or
moon roof.
Also, do not allow children to operate the mechanical key. It is possible for children and
other passengers to get caught in the power window or moon roof.
3

5818-2. Steps to take in an emergency
8
When trouble arises
IS350 AWD/IS350/IS300 AWD/IS300_U
Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Start the engine and turn the air conditio ning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately an d contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
Check if “Engine Coolant Temp High St op in a Safe Place See Owner’s Man-
ual” is shown on the multi-information display.
If the message does not disappear:
Stop the engine and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.
5
Engine (IS350 AWD/IS350/
IS300 AWD)Engine (IS300)
Intercooler (IS300)
6
7
8

5909-1. Specifications
IS350 AWD/IS350/IS300 AWD/IS300_U
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Lubrication system
IS350 (2WD)IS350 AWD/IS300 AWD (AWD)IS300
With filter6.0 qt.
(5.7 L, 5.0 Imp. qt.)6.8 qt.
(6.4 L, 5.6 Imp. qt.)4.9 qt.
(4.6 L, 4.0 Imp. qt.)
Without filter5.8 qt.
(5.5 L, 4.8 Imp. qt.)6.3 qt.
(6.0 L, 5.3 Imp. qt.)4.5 qt.
(4.3 L, 3.8 Imp. qt.)
Outside temperature

5929-1. Specifications
IS350 AWD/IS350/IS300 AWD/IS300_U
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your Lexus dealer.
Cooling system
Capacity*
IS350 AWD/
IS350/IS300
AWD 9.9 qt. (9.4 L, 8.3 Imp. qt.)
IS300
Engine
8.2 qt. (7.8 L, 6.9 Imp. qt.)
Intercooler
3.2 qt. (3.0 L, 2.6 Imp. qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non- silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Ignition system (Spark plug)
IS350 AWD/IS350/ IS300 AWDIS300
Make DENSO FK20HBR8 NGK DILFR7K9G
Gap0.031 in. (0.8 mm)0.035 in. (0.9 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Battery
Open voltage at 68F
(20 C):12.3 V or higher
(Check the voltage 20 minutes after the engine and all
lights are turned off.)
If the voltage is lower than the standard value, charge
the battery.
Charging rates5 A max.

636
IS350 AWD/IS350/IS300 AWD/IS300_UWhat to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, ne
w genuine mechanical keys can be made
by your Lexus dealer. ( P. 120)
●If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact your Lexus dealer immediately. ( P. 123)
●Is the electronic key battery weak or depleted? ( P. 502)
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 187)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your
person.
●The function may not operate properly du e to the condition of the radio wave.
( P. 137)
●Is the child-protector lock set?
The rear door cannot be opened from in side the vehicle when the lock is set.
Open the rear door from outside and then unlock the child-protector lock.
( P. 127)
If you have a problem, check the foll owing before contacting your Lexus
dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

645Alphabetical index
IS350 AWD/IS350/IS300 AWD/IS300_U
E-mail.........................................................380
Eco drive mode ..................................... 297
Eco Driving Indicator........................... 109
EDR (Event data recorder) ...................10
Elapsed time .............................................. 112
Electric Power Steering (EPS) ....... 302Warning light .......................................526
Electronic key ........................................... 118 Battery-saving function .....................137
If the electronic key does not operate properly............................. 572
Replacing the battery ...................... 502
Emergency, in case of If a warning message is displayed ........................................532
If the electronic key does not operate properly ........ 572
If the engine will not start............... 570
If the vehicle battery is discharged .........................................575
If the vehicle is trapped in rising water ......................................... 516
If the warning buzzer sounds................................................. 525
If the warning light turns on.......... 525
If you have a flat tire ......................... 559
If you think something is wrong...............................................523
If your vehicle becomes stuck ..................................................... 583
If your vehicle has to be stopped in an emergency ........... 515
If your vehicle needs to be towed ........................................ 517
If your vehicle overheats ................579 Emergency flashers .............................. 514
Engine ....................................................... 589
ACCESSORY mode .......................187
Compartment ..................................... 473
Engine switch ....................................... 186
Hood........................................................ 470
How to start the engine................... 186
Identification number...................... 588
If the engine will not start ............... 570
Ignition switch (engine switch) .... 186
Overheating......................................... 579
Engine coolant .......................................478 Capacity................................................. 592
Checking ............................................... 478
Preparing and checking before winter ....................................306
Engine coolant temperature gauge ........................................................ 89
Engine immobilizer system .................. 76
Engine oil ..................................................475 Capacity................................................ 590
Checking ............................................... 475
Preparing and checking before winter ....................................306
Engine oil maintenance data ............ 477
Engine switch ...........................................186
Enhanced VSC .......................................301
EPS (Electronic Power Steering) ........ 302 Warning light ....................................... 526
Event data recorder (EDR)................... 10
E

647Alphabetical index
IS350 AWD/IS350/IS300 AWD/IS300_U
Hands-free system (for cellular phone) ............................. 371
HD Radio
® system .............................. 338
Head restraints ........................................152
Headlights ............................................... 202 AFS (Adaptive Front-lighting System) ............................................... 203
Light switch ...........................................202
Replacing light bulbs ........................... 511
Headlights cleaner................................ 210
Heaters Air conditioning system ....................417
Heated steering wheel ....................426
Outside rear view mirrors ............. 422
Seat heaters .......................................... 427
Hill-start assist control ......................... 301
Hood .......................................................... 470 Open ........................................................470
Hooks Cargo hooks ........................................435
Coat hooks ............................................ 441
Retaining hooks (floor mat) ............. 26
Horn .............................................................156 I/M test ...................................................... 467
Identification
Engine .................................................... 588
Vehicle .................................................... 587
Ignition switch (engine switch) .........186
Illuminated entry system ....................429
Immobilizer system ................................. 76
Indicators .................................................... 86
Initialization Engine oil maintenance data ........477
Maintenance ........................................ 462
Moon roof .............................................. 168
Multi-information display................ 103
Power windows....................................163
Tire pressure warning system ............................... 487
Initiators (tire pressure warning system) ................................ 493
Inside door handle lights ................... 428
Inside rear view mirror......................... 157
Instrument panel light control .............92
Intercooler .............................................. 480
Intercooler coolant...............................478 Capacity................................................. 592
Checking ............................................... 478
Preparing and checking before winter ....................................306
Interior lights ...........................................429 Wattage ................................................. 597
Intuitive parking assist ........................ 260
HI
