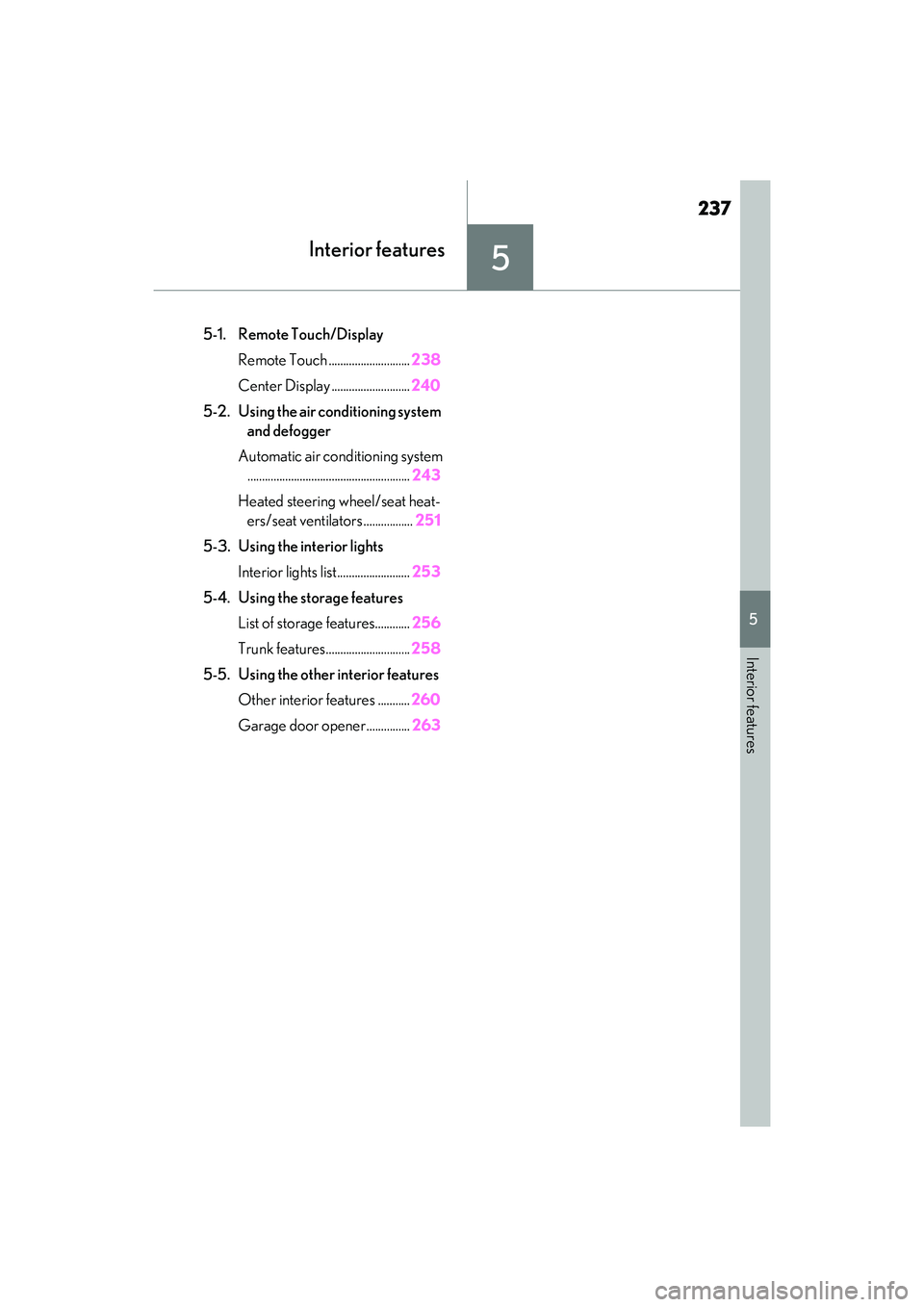

.5-1. Remote Touch/DisplayRemote Touch ............................ 238
Center Display ........................... 240
5-2. Using the air conditioning system and defogger
Automatic air conditioning system ........................................................ 243
Heated steering wheel/seat heat- ers/seat ventilators ................. 251
5-3. Using the interior lights Interior lights list......................... 253
5-4. Using the storage features List of storage features............ 256
Trunk features............................. 258
5-5. Using the other interior features Other interior features ........... 260
Garage door opener............... 263

2635-5. Using the other interior features
5
Interior features
*:If equipped

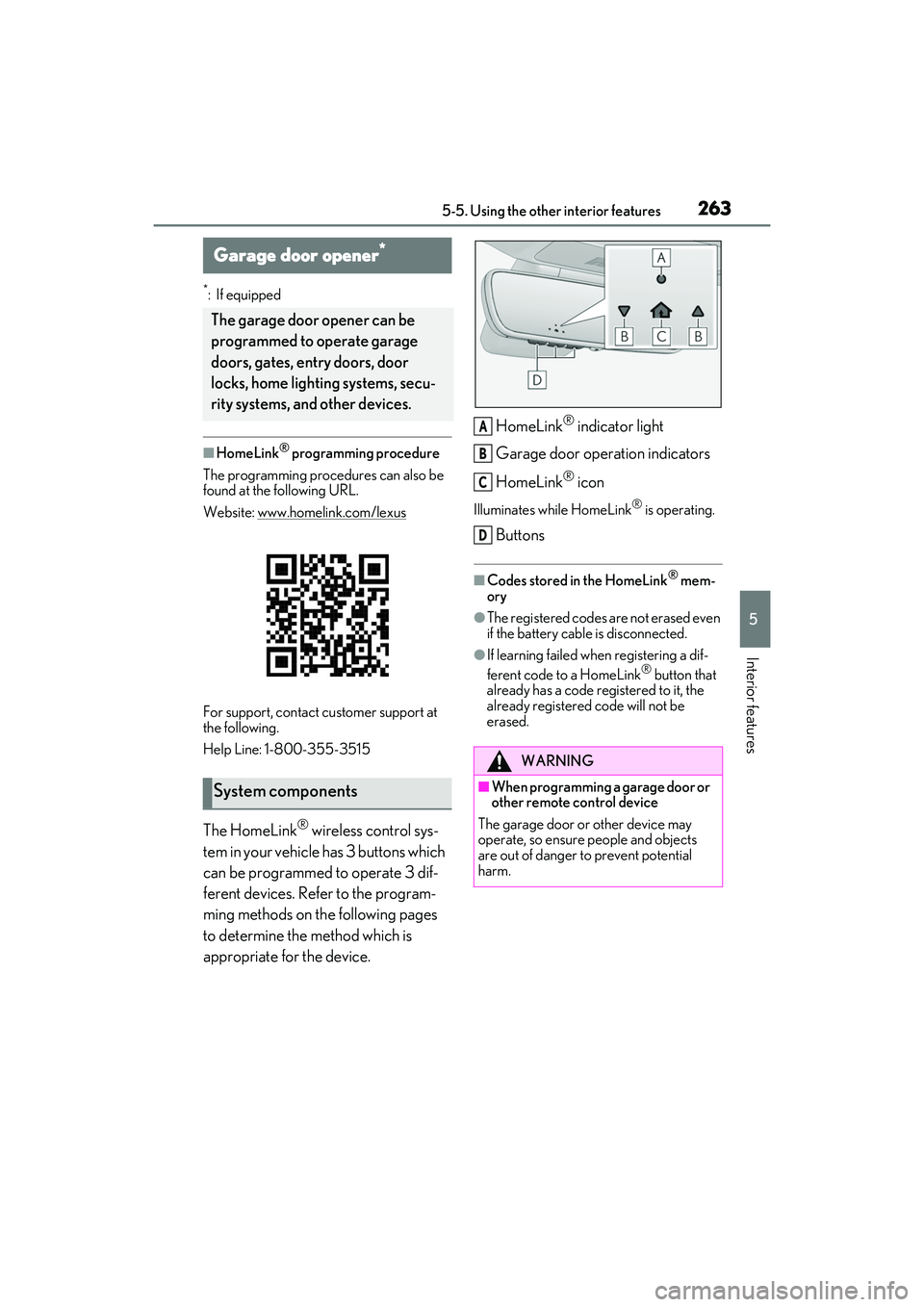

■HomeLink® programming procedure
The programming procedures can also be
found at the following URL.
Website: www.homelink.com/lexus
For support, contact customer support at
the following.
Help Line: 1-800-355-3515
The HomeLink® wireless control sys-
tem in your vehicle has 3 buttons which
can be programmed to operate 3 dif-
ferent devices. Refer to the program-
ming methods on the following pages
to determine the method which is
appropriate for the device. HomeLink
® indicator light
Garage door operation indicators
HomeLink
® icon
Illuminates while HomeLink® is operating.
Buttons
■Codes stored in the HomeLink® mem-
ory
●The registered codes are not erased even
if the battery cable is disconnected.
●If learning failed when registering a dif-
ferent code to a HomeLink® button that
already has a code registered to it, the
already registered code will not be
erased.
Garage door opener*
The garage door opener can be
programmed to operate garage
doors, gates, entry doors, door
locks, home lighting systems, secu-
rity systems, and other devices.
System components
WARNING
■When programming a garage door or
other remote control device
The garage door or other device may
operate, so ensure people and objects
are out of danger to prevent potential
harm.
A
B
C
D

2645-5. Using the other interior features

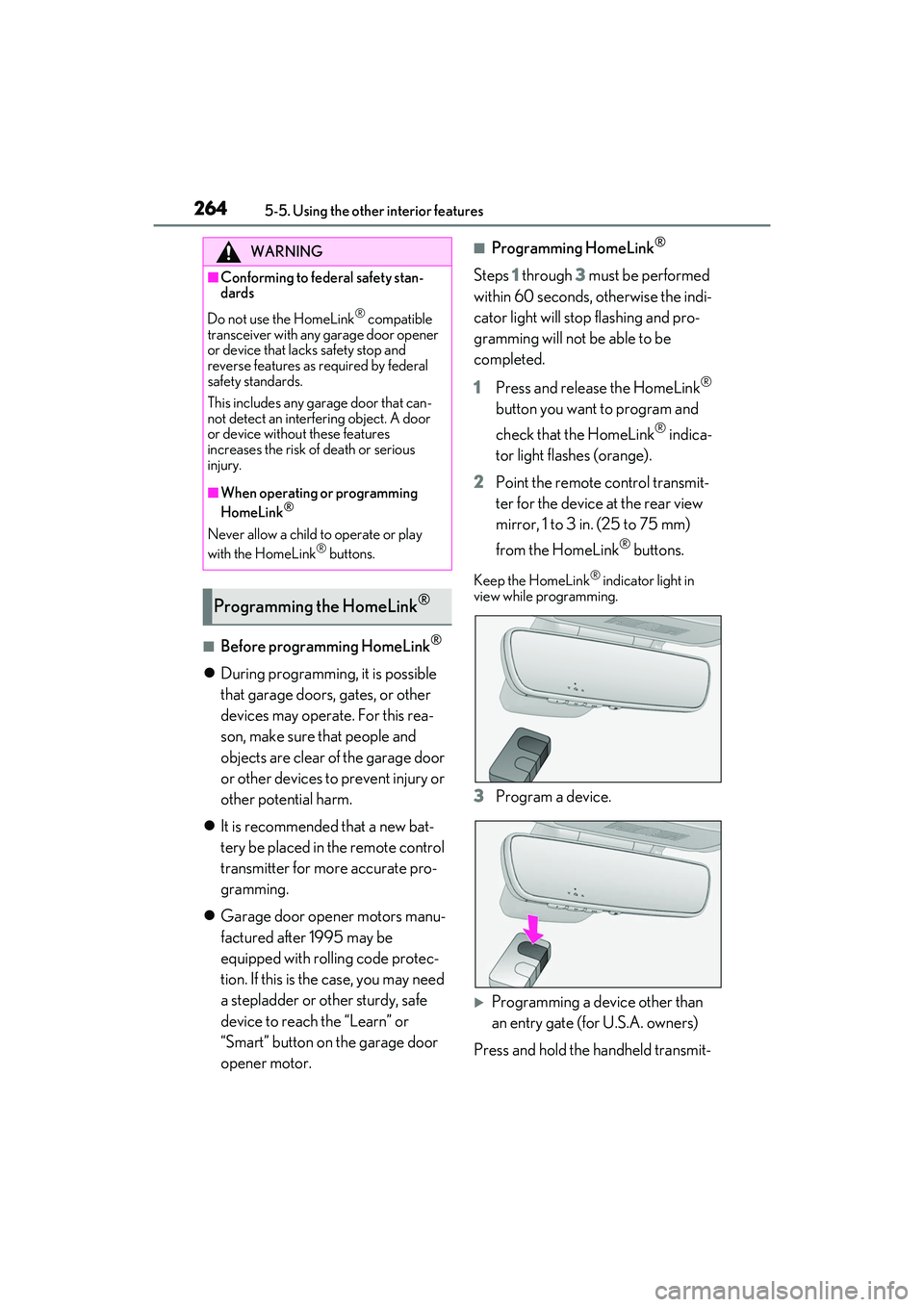

■Before programming HomeLink®
During programming, it is possible
that garage doors, gates, or other
devices may operate. For this rea-
son, make sure that people and
objects are clear of the garage door
or other devices to prevent injury or
other potential harm.
 It is recommended that a new bat-
tery be placed in the remote control
transmitter for more accurate pro-
gramming.
 Garage door opener motors manu-
factured after 1995 may be
equipped with rolling code protec-
tion. If this is the case, you may need
a stepladder or other sturdy, safe
device to reach the “Learn” or
“Smart” button on the garage door
opener motor.
■Programming HomeLink®
Steps 1 through 3 must be performed
within 60 seconds, otherwise the indi-
cator light will stop flashing and pro-
gramming will not be able to be
completed.
1 Press and release the HomeLink
®
button you want to program and
check that the HomeLink
® indica-
tor light flashes (orange).
2 Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink
® buttons.
Keep the HomeLink® indicator light in
view while programming.
3 Program a device.
Programming a device other than
an entry gate (for U.S.A. owners)
Press and hold the handheld transmit-
WARNING
■Conforming to federal safety stan-
dards
Do not use the HomeLink
® compatible
transceiver with any garage door opener
or device that lacks safety stop and
reverse features as required by federal
safety standards.
This includes any ga rage door that can-
not detect an interfering object. A door
or device without these features
increases the risk of death or serious
injury.
■When operating or programming
HomeLink®
Never allow a child to operate or play
with the HomeLink® buttons.
Programming the HomeLink®

2655-5. Using the other interior features
5
Interior features

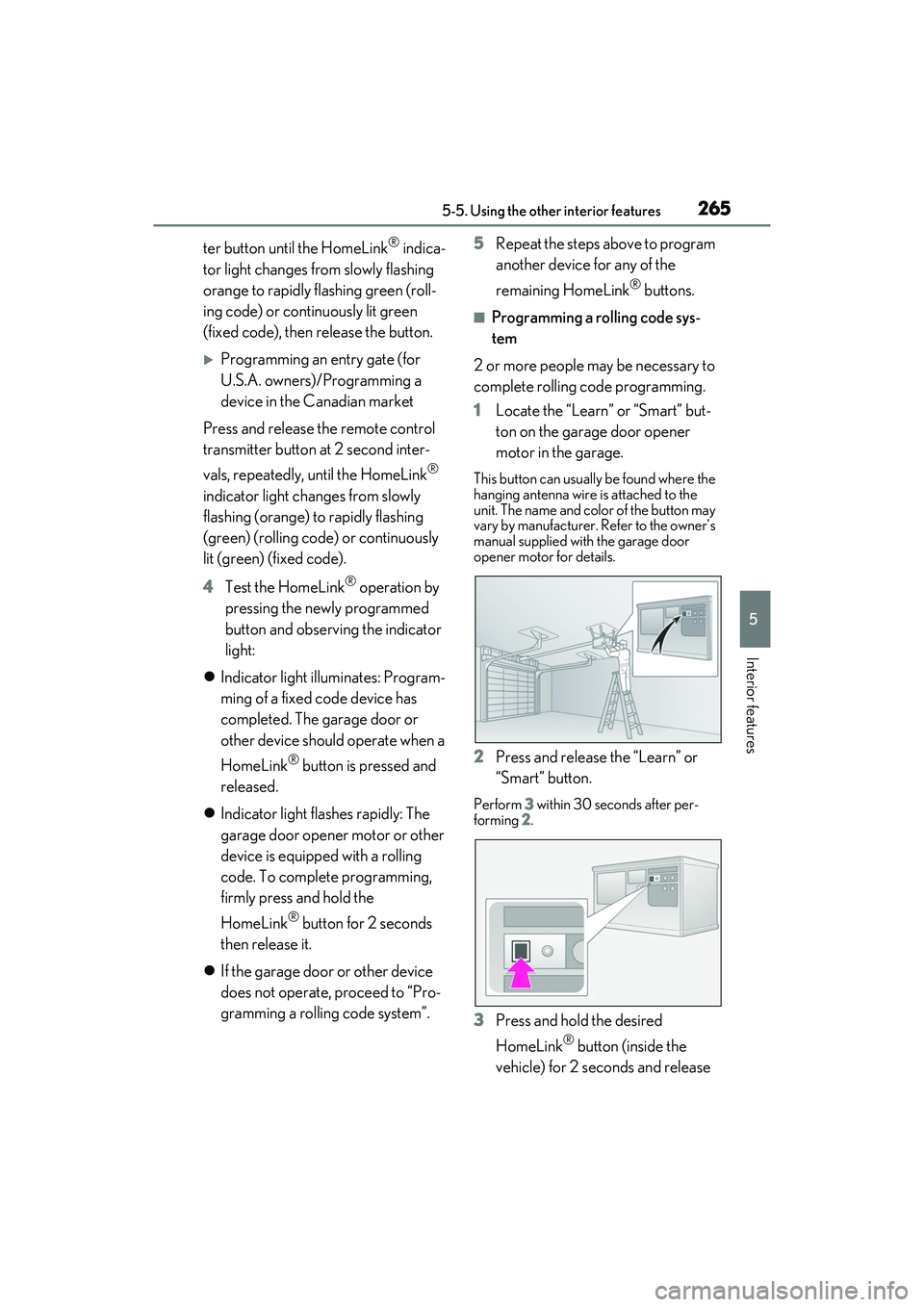

ter button until the HomeLink® indica-
tor light changes from slowly flashing
orange to rapidly flashing green (roll-
ing code) or continuously lit green
(fixed code), then release the button.
Programming an entry gate (for
U.S.A. owners)/Programming a
device in the Canadian market
Press and release th e remote control
transmitter button at 2 second inter-
vals, repeatedly, until the HomeLink
®
indicator light changes from slowly
flashing (orange) to rapidly flashing
(green) (rolling code ) or continuously
lit (green) (fixed code).
4 Test the HomeLink
® operation by
pressing the newly programmed
button and observing the indicator
light:
 Indicator light illuminates: Program-
ming of a fixed code device has
completed. The garage door or
other device should operate when a
HomeLink
® button is pressed and
released.
 Indicator light flashes rapidly: The
garage door opener motor or other
device is equipped with a rolling
code. To complete programming,
firmly press and hold the
HomeLink
® button for 2 seconds
then release it.
 If the garage door or other device
does not operate, proceed to “Pro-
gramming a rolling code system”. 5
Repeat the steps above to program
another device for any of the
remaining HomeLink
® buttons.
■Programming a rolling code sys-
tem
2 or more people may be necessary to
complete rolling code programming.
1 Locate the “Learn” or “Smart” but-
ton on the garage door opener
motor in the garage.
This button can usually be found where the
hanging antenna wire is attached to the
unit. The name and color of the button may
vary by manufacturer. Refer to the owner’s
manual supplied with the garage door
opener motor for details.
2Press and release the “Learn” or
“Smart” button.
Perform 3 within 30 seconds after per-
forming 2.
3 Press and hold the desired
HomeLink
® button (inside the
vehicle) for 2 seconds and release

2665-5. Using the other interior features
it. Repeat this sequence
(press/hold/release) up to 3 times
to complete programming.
If the garage door opener motor
operates when the HomeLink
®
button is pressed, the garage door
opener motor recognizes the
HomeLink
® signal.
■Enabling 2-way communication
with a garage door (only available
for compatible devices)
When enabled, 2-way communication
allows you to check the status of the
opening and closing of a garage door
through indicators in your vehicle.
2-way communication is only available
if the garage door opener motor used
is a compatible device. (To check
device compatibility, refer to
www.homelink.com.)
1 Within 5 seconds after program-
ming the garage door opener has
been completed, if the garage door
opener motor is trained to
HomeLink
®, both garage door
operation indicators will flash rap-
idly (green) and the light on the
garage door opener motor will
blink twice, indicating that 2-way
communication is enabled.
If the indicators do not flash, perform 2 and
3 within the first 10 presses of the
HomeLink
® button after programming
has been completed.
2 Press a programmed HomeLink®
button to operate a garage door.
3 Within 1 minute of pressing the
HomeLink
® button, after the
garage door operation has
stopped, press the “Learn” or
“Smart” button on the garage door
opener motor. Within 5 seconds of
the establishment of 2-way com-
munication with the garage door
opener, both garage door opera-
tion indicators in the vehicle will
flash rapidly (green) and the light
on the garage door opener motor
will blink twice, indicating that
2-way communication is enabled.
■Reprogramming a single
HomeLink
® button
When the following procedure is per-
formed, buttons which already have
devices registered to them can be
overwritten:
1 With one hand, press and hold the
desired HomeLink
® button.
2 When the HomeLink
® indicator
starts flashing (orange), continue to
hold the HomeLink
® button and
perform “Programming
HomeLink
®” 1 (it takes 20 seconds
for the HomeLink
® indicator to
start flashing).
■Before programming
●Install a new battery in the transmitter.

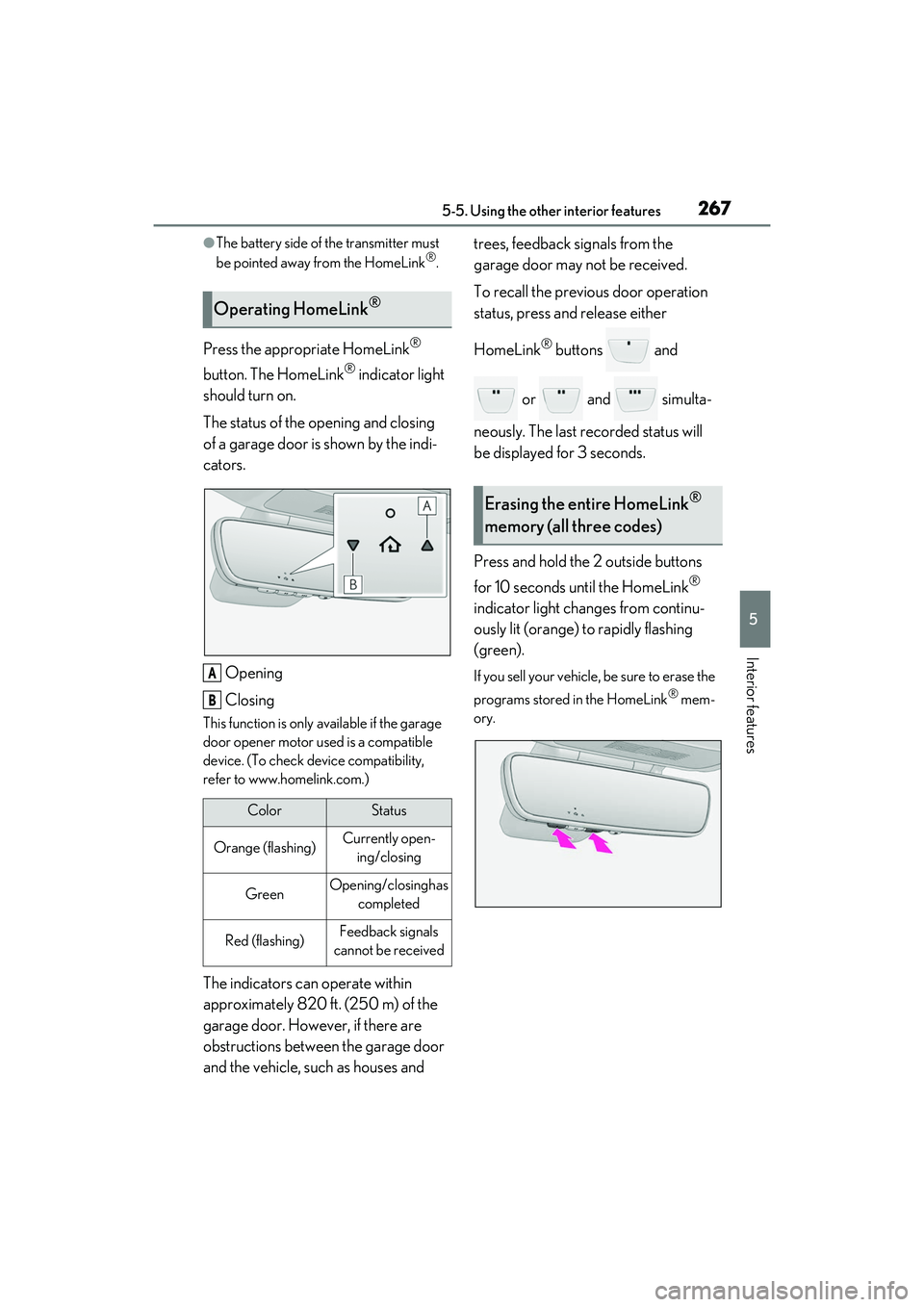

2675-5. Using the other interior features
5
Interior features
●The battery side of the transmitter must
be pointed away from the HomeLink®.
Press the appropriate HomeLink®
button. The HomeLink
® indicator light
should turn on.
The status of the opening and closing
of a garage door is shown by the indi-
cators.
Opening
Closing
This function is only available if the garage
door opener motor used is a compatible
device. (To check device compatibility,
refer to www.homelink.com.)
The indicators can operate within
approximately 820 ft. (250 m) of the
garage door. However, if there are
obstructions between the garage door
and the vehicle, such as houses and trees, feedback signals from the
garage door may not be received.
To recall the previous door operation
status, press and release either
HomeLink
® buttons and
or and simulta-
neously. The last recorded status will
be displayed for 3 seconds.
Press and hold the 2 outside buttons
for 10 seconds until the HomeLink
®
indicator light changes from continu-
ously lit (orange) to rapidly flashing
(green).
If you sell your vehicle, be sure to erase the
programs stored in the HomeLink
® mem-
ory.
Operating HomeLink®
ColorStatus
Orange (flashing)Currently open- ing/closing
GreenOpening/closing has completed
Red (flashing)Feedback signals
cannot be received
A
B
Erasing the entire HomeLink®
memory (all three codes)

419Alphabetical Index
Refueling .......................................................... 157
Fuel gauge ................................................. 69, 70
Fuel pump shut off system........................ 328
Fuses .................................................................. 310
G
Garage door opener ................................. 263
Gauges ............................................................... 69
Gear Position................................................... 80
G-force................................................................79
Glove box ....................................................... 256
Glove box light ............................................. 257
H
Head restraints ...............................................107
Headlight aim ..................................................312
Headlights Automatic High Beam system.............. 147
Light switch .....................................................145
Replacing light bulbs..................................314
Heated steering wheel ................................251
Heaters Automatic air conditioning system ... 243
Heated steering wheel..............................251
Outside rear view mirrors .................... 245
Seat heaters .................................................... 251
High mounted stoplight Replacing light bulbs..................................314
Hill-start assist control ............................... 229
Hood Open ...............................................................285
Hooks Coat hooks ...................................................260
Retaining hooks (floor mat)......................22
Horn ..................................................................... 110
I
I/M test ............................................................ 282
Identification Engine .............................................................365 Vehicle ............................................................364
Ignition switch (engine switch)................ 130 Auto power off function............................132
Changing the engine switch modes ..132
If your vehicle has to be stopped in an emergency .................................................320
Indicators ........................................................... 66
Initialization Items to initialize ........................................ 398
Maintenance.......................................278, 291
Power windows ............................................. 114
Tire pressure warning system ............ 300
Inside door handle lights........................... 253
Inside rear view mirror ................................. 110
Instrument panel light control ................... 75
Intercooler...................................................... 293
Intercooler coolant Capacity ........................................................ 369
Checking ....................................................... 292
Interior lights.................................................. 253 Front interior light ......................................253
Rear interior light........................................253
Intuitive parking assist...................... 201, 203 Function ..........................................................203
Warning message .................................... 205
J
JackPositioning a floor jack ........................... 285
Vehicle-equipped jack ........................... 342
Jack handle .................................................... 342
Jam protection function Moon roof ........................................................ 117
Power windows ............................................. 114
K
Keyless entrySmart access system with push-button start ................................................................... 97
Wireless remote control .......................... 88

424Alphabetical Index
SwitchesActivating the Automatic High Beam147
Automatic High Beam system.............. 147
Brake Hold switch ...................................... 142
Door lock switches ...................................... 92
Driving mode select switch ...................227
Driving position memory switches .... 104
Dynamic radar cruise control with full-speed range switch .........................187
Emergency flashers switch ................... 320
Engine switch................................................ 130
Garage door opener switches .......... 263
Heated steering wheel switch...............251
Ignition switch............................................... 130
Instrument panel light control switches ............................................................................ 75
Intuitive parking assist switch............... 204
Light switches ................................................145
LTA (Lane Tracing Assi st) switch...... 180
Meter control switches .............................. 76
Moon roof switches .................................... 116
“ODO TRIP” switch .....................................74
Outside rear view mi rror switches .......112
Paddle shift switches ....................... 136, 137
Parking brake switch .................................139
PCS OFF switch ......................................... 168
PKSB (Parking Support Brake) switch ........................................................................... 217
Power door lock switch ............................ 92
Power window switches ............................114
RCTA switch....................................................211
Rear sunshades switch ........................... 262
Rear window and outside rear view mir- ror defoggers switch ............................ 243
Seat heater switches ..................................251
Seat ventilator switches ............................251
Snow mode switch .....................................136
“SOS” button .................................................. 54
Tilt and telescopic steering control switch .......................................................................... 109
Tire pressure warning reset switch ... 301
Trunk opener main switch ....................... 96 Trunk opener switch ...................................95
Vehicle-to-vehicle di
stance switch.... 187
VSC OFF switch .......................................230
Window lock switch.................................... 115
Windshield wiper and washer switch150
Windshield wiper de-icer...................... 249
T
Tachometer............................................... 69, 70 Rev indicator ................................................... 72
Rev peak............................................................ 73
Tail lights Light switch .................................................... 145
Replacing light bulbs ..................................314
The Secondary Collision Brake ............ 230
Theft deterrent system Alarm.....................................................................61
Engine immobilizer system......................60
Theft prevention labels ............................... 62
Tire inflation pressure Maintenance data ...................................... 372
Tire inflation pressure display function..........................................................................299
Warning light ...............................................333
Tire information ............................................ 378 Glossary .........................................................382
Size ................................................................... 380
Tire identification number...................... 379
Uniform Tire Quality Grading ............. 381
Tire pressure display .................................. 299
Tire pressure warning system Function ..........................................................299
Initializing....................................................... 300
Installing tire pres sure warning valves
and transmitters...................................... 300
Registering ID codes ...............................302
Warning light ...............................................333
Tires Chains .............................................................235
Checking .......................................................296
If you have a flat tire ....................................341
Inflation pressure ....................................... 304
