remote control LEXUS IS300 2023 Owners Manual

7
IS500_IS350_IS300_QG_U
Audio remote control switches ............................................................................ P.56
Paddle shift switches ........................................................................................ P.19, 20
Meter control switches .......................................................................................... P.27
Vehicle-to-vehicle distance switch
*
Cruise control switch
Dynamic radar cruise control with full-speed range
*
LTA (Lane Tracing Assist) switch*
Talk switch .................................................................................................................. P.56
Phone switches.......................................................................................................... P.56
*: Refer to the “Owner’s Manual”.
A
B
C
D
E
F
G
H

12
IS500_IS350_IS300_QG_U
Electronic keys
• Operating the smart access system with push-button start ( P.14)
• Operating the wireless remote control function
Mechanical keys
Key number plate
Card key (electroni c key) (if equipped)
Operating the smart access system with
push-button start ( P.14)
Locks the doors
Unlocks the doors
Opens the windows
*1 and moon
roof
*1, 2
Opens the trunk
Sounds the alarm
*1: This setting must be customized at your
Lexus dealer.
*2:If equipped
Keys
The keys
A
B
C
D
Wireless remote control
A
B
C
D
E

43
IS500_IS350_IS300_QG_U
Press the “MENU” button on the Remote Touch to display the menu screen.
*1: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: This function is not available on some models.
Center Display
Menu screen
Vehicles with a 10.3-inch display Vehicles with a 8-inch display
SwitchFunction
Select to display the “Destination” screen.*1
Select to display the audio control screen.*1
Select to display the ha nds-free control screen.*1
Select to display the “Apps” screen.*1, 2
//
When an Apple CarPlay/Android Au to connection is established and
this button displays “Apple CarPlay”/“Android Auto”, select to display the
home screen of Apple CarPlay/Android Auto.
*1, 2
Select to display the information screen.*1 (  P.46)
Select to display the setup screen.*1
Select to display the air co nditioning control screen. ( P.61)
Select to adjust the contrast and brightness of the screens, turn the
screen off, etc.
*1, 2

55
IS500_IS350_IS300_QG_U
Follow the procedure below to display the audio control screen.
 Using the audio control switch
Press the “RADIO” or “MEDIA” button.
 Using the Remote Touch
Press the “MENU” button on the Re mote Touch, then select “Audio”.
Please refer to P.42 for the Remote Touch operation.
 Using the audio control switch
1Press the “RADIO” or “MEDIA” but-
ton.
“RADIO” button: Press to change
radio modes.
“MEDIA” button: Press to change
media modes.
●Each time the “RADIO” or
“MEDIA” button is pressed, the
audio source changes.
 From the audio source selection screen
1Display the audio control screen.
2Select “Source” on the sub menu.
3Select the desired source.
Audio System
Audio control screen
Selecting an audio source

61
IS500_IS350_IS300_QG_U
Left-hand side temperature control switch
Automatic mode switch
OFF switch
Fan speed decreases switch
Fan speed increases switch
Air flow mode switch
Right-hand side temperature control switch
DUAL switch
A/C switch
Outside air mode switch
Recirculated air mode switch
Rear window defogger and outside rear view mirror defoggers switch
Windshield defogger switch
Automatic Air Conditioning System
Air outlets and fan speed are automatically adjusted according to the temperature set-
ting.
Press the “MENU” button on the Remote Touch, then select to display the air condi-
tioning control screen. For information regarding Remote Touch, P.42.
Vehicles with a 10.3-inch display: The air co nditioning system can be displayed and oper-
ated on the side display.
Air conditioning controls
A
B
C
D
E
F
G
H
I
J
K
L
M

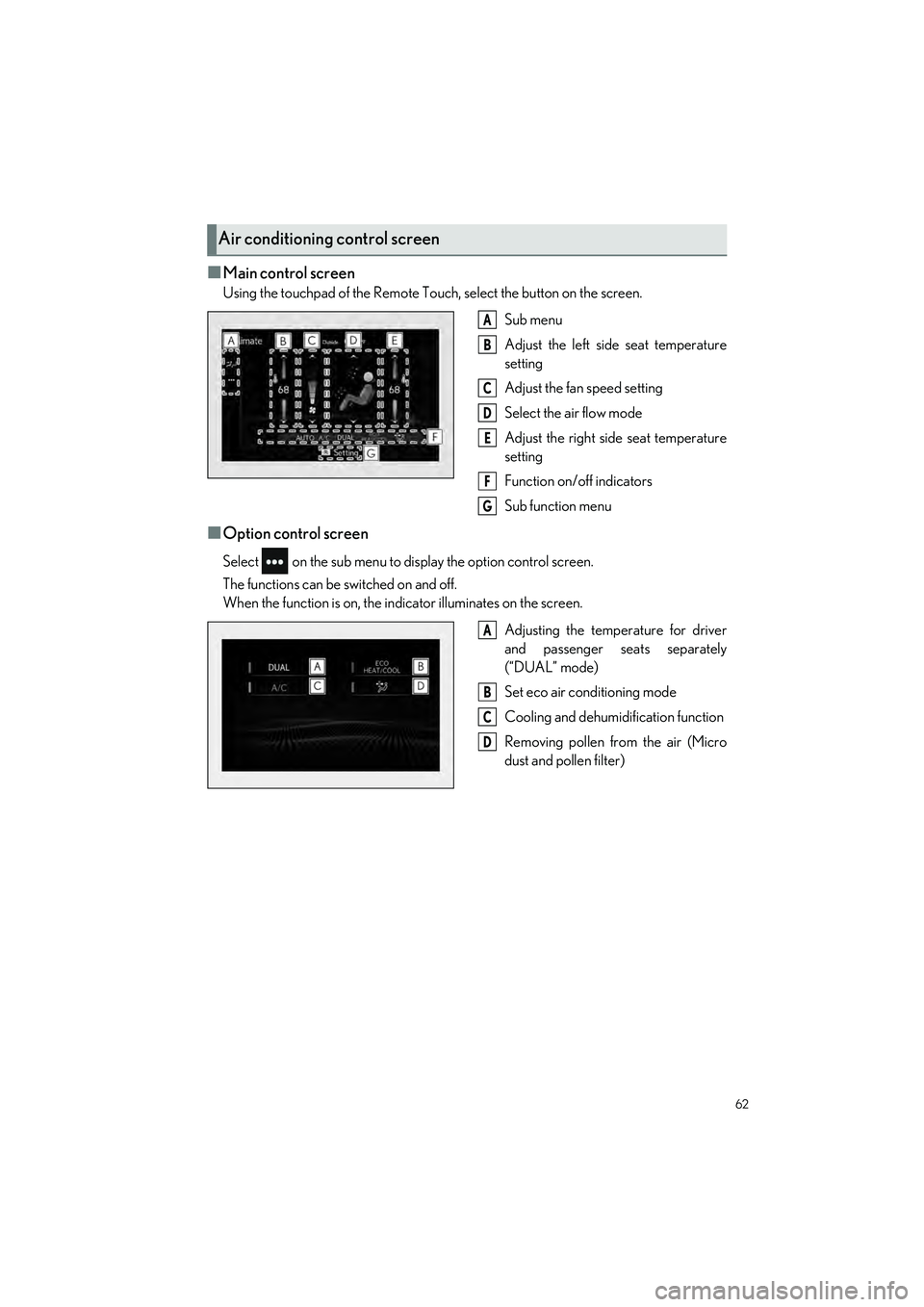

62
IS500_IS350_IS300_QG_U
■Main control screen
Using the touchpad of the Remote Touch, select the button on the screen.Sub menu
Adjust the left side seat temperature
setting
Adjust the fan speed setting
Select the air flow mode
Adjust the right side seat temperature
setting
Function on/off indicators
Sub function menu
■Option control screen
Select on the sub menu to di splay the option control screen.
The functions can be switched on and off.
When the function is on, the in dicator illuminates on the screen.
Adjusting the temperature for driver
and passenger seats separately
(“DUAL” mode)
Set eco air conditioning mode
Cooling and dehumidification function
Removing pollen from the air (Micro
dust and pollen filter)
Air conditioning control screen
A
B
C
D
E
F
G
A
B
C
D

74
IS500_IS350_IS300_QG_U
After you sign the Telematics Subscription Service Agreement, download the Lexus app
from your smartphone’s app store, and register within the app (or enroll and complete regis-
tration at the dealer), you can begin using these services.
A variety of subscription terms are available. Contact your Lexus dealer, or call 1-800-25-
LEXUS (1-800-255-3987) for fu rther subscription details.
Lexus Enform Remote (if equipped)
Lexus Enform Remote is a smartphone applicat ion that lets you view and remotely control
certain aspects of your vehicle.
For details about the functions and services of this application, refer to
http://www.lexus.com/enform/
.
Function of the Lexus Enform Remote is achieved by using DCM (Data Communication
Module).
Subscription

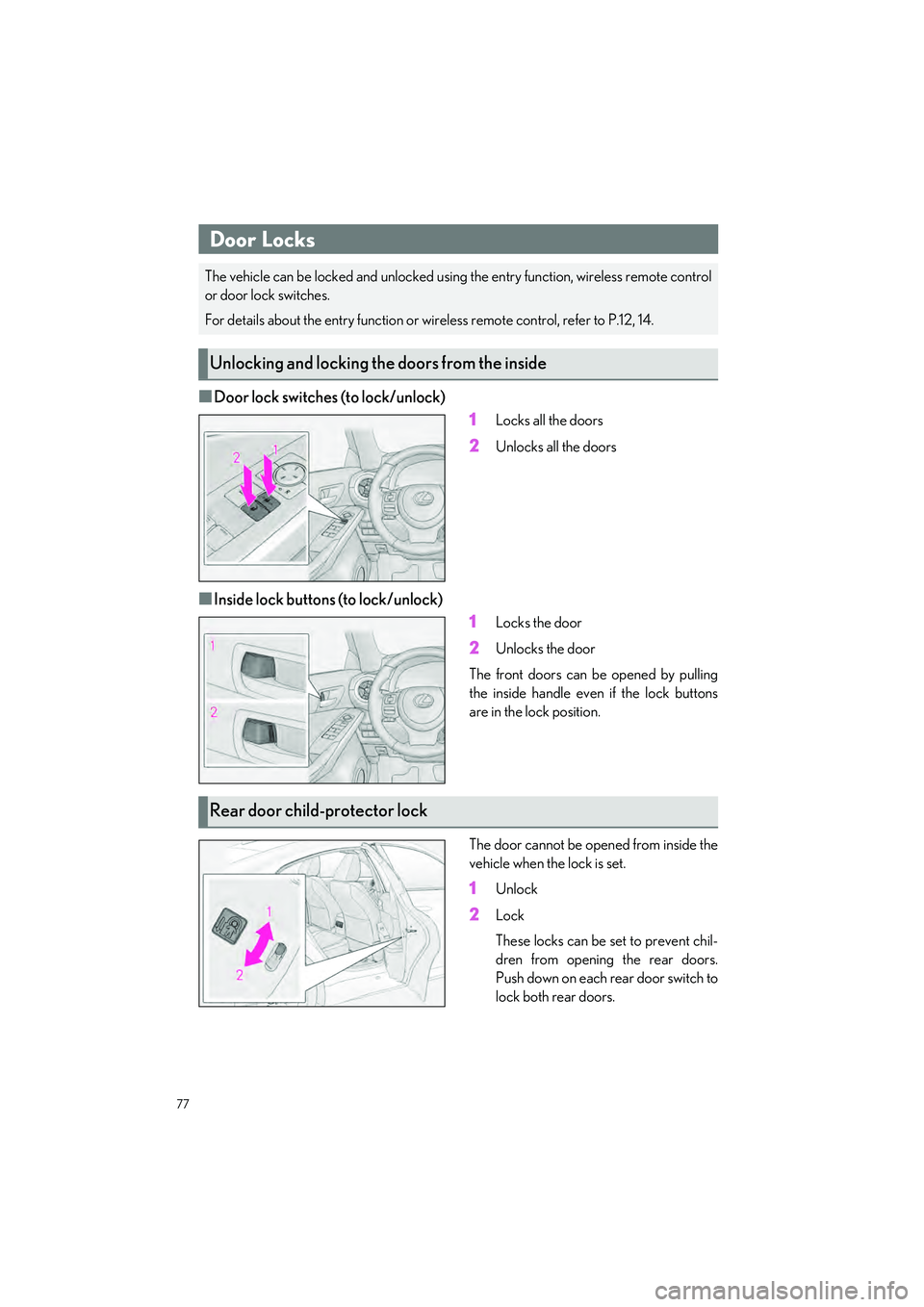

77
IS500_IS350_IS300_QG_U
Opening and Closing
■Door lock switches (to lock/unlock)1
Locks all the doors
2Unlocks all the doors
■Inside lock buttons (to lock/unlock)1
Locks the door
2Unlocks the door
The front doors can be opened by pulling
the inside handle even if the lock buttons
are in the lock position.
The door cannot be open ed from inside the
vehicle when the lock is set.
1Unlock
2Lock
These locks can be set to prevent chil-
dren from opening the rear doors.
Push down on each rear door switch to
lock both rear doors.
Door Locks
The vehicle can be locked and unlocked usin g the entry function, wireless remote control
or door lock switches.
For details about the entry function or wire less remote control, refer to P.12, 14.
Unlocking and locking the doors from the inside
Rear door child-protector lock

81
IS500_IS350_IS300_QG_U
■Trunk opener switch
Press the trunk opener switch.
■Smart access system with push-button start
P.14
■Wireless remote control
P.12
To protect luggage stored in the trunk against theft, the luggage security system can be set
to on.
1Move the luggage security system
levers to the lock position.
2To disable the trunk opener, turn the
main switch in the glove box off.
On
Off
When the main switch is off, the trunk
lid cannot be opened even with the
wireless remote control or entry func-
tion.
Trunk
Opening the trunk
Luggage security system
A
B

82
IS500_IS350_IS300_QG_U
The HomeLink® wireless control system in your vehicle has 3 buttons which can be pro-
grammed to operate 3 different devices. Refe r to the programming methods on the follow-
ing pages to determine the method wh ich is appropriate for the device.
HomeLink
® indicator light
Garage door operation indicators
HomeLink
® icon
Illuminates while HomeLink
® is oper-
ating.
Buttons
■Before programming HomeLink®
● During programming, it is possible that gara ge doors, gates, or other devices may oper-
ate. For this reason, make su re that people and objects ar e clear of the garage door or
other devices to prevent injury or other potential harm.
● It is recommended that a new battery be placed in the remote control transmitter for
more accurate programming.
● Garage door opener motors manufactured after 1995 may be equipped with rolling
code protection. If this is the case, you may need a stepladder or other sturdy, safe device
to reach the “Learn” or “Smart” button on the garage door opener motor.
■HomeLink® programming procedure
The programming procedures can also be found at the following URL.
Website: www.homelink.com/lexus
For support, contact customer support at the following.
Help Line: 1-800-355-3515
Garage Door Opener (if equipped)
The garage door opener can be programmed to operate garage doors, gates, entry
doors, door locks, home lighting system s, security systems, and other devices.
System components
A
B
C
D
