991-3. Theft deterrent system
1
For safety and security
IS300h_EE(OM53C61E)
●The intrusion sensor detects intruders or movement in the vehicle.
●The tilt sensor detects changes in vehicle inclination, such as when the vehicle
is towed away.
This system is designed to deter and prevent vehicle theft but does not guarantee
absolute security against all intrusions.
■Setting the intrusion sensor and tilt sensor
The intrusion sensor and tilt sensor will be set automatically when the alarm is
set. (→P. 9 6 )
■Canceling the intrusion sensor and tilt sensor
If you are leaving pets or other moving things inside the vehicle, make sure to
disable the intrusion sensor and tilt sensor before setting the alarm, as they will
respond to movement inside the vehicle.
Turn the power switch off.
Press the intrusion sensor and tilt
sensor cancel switch.
Press the switch again to re-enable
the intrusion sensor and tilt sensor.
Each time the intrusion sensor is can-
celed/set, a message will be shown
on the multi-information display in
the instrument cluster.
Intrusion sensor and tilt sensor (if equipped)
1
2
IS300h_EE_OM53C61E.book 99 ページ ２０１４年５月２０日　火曜日　午後５時４０分

103
2Instrument cluster
IS300h_EE(OM53C61E)
2. Instrument cluster
Warning lights and
indicators..................................... 104
Gauges and meters ................... 109
Multi-information display .......... 115
Energy monitor/
consumption screen ................. 121
IS300h_EE_OM53C61E.book 103 ページ ２０１４年５月２０日　火曜日　午後５時４０分

104
IS300h_EE(OM53C61E)2. Instrument cluster
XExcept F SPORT models
XF SPORT models
The units used on the meters may differ depending on the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster and center panel
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.
IS300h_EE_OM53C61E.book 104 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1102. Instrument cluster
IS300h_EE(OM53C61E)
XF SPORT models (when the main meter is in the right-side position)
The units used on the meters may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system output or regeneration level (→P. 1 1 3 )
This display changes to a tachometer depending on the drive mode, and can be set to
show the tachometer in any drive mode on the settings display. (→P. 1 1 8 )
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient temperature
is 3°C (37°F) or lower.
Shift position and shift range (→P. 2 1 6 )
Speedometer
Fuel gauge
Multi-information display
Presents the driver with a variety of vehicle data (→P. 1 1 5 )
Displays warning messages in case of a malfunction (→P. 5 0 9 )
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances indepen-
dently.
1
2
3
4
5
6
7
8
IS300h_EE_OM53C61E.book 110 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1112. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53C61E)
XOdometer/Trip meter
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
XMain meter (F SPORT models)
Moves between center and right-
side positions.
Changing the display
IS300h_EE_OM53C61E.book 111 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1122. Instrument cluster
IS300h_EE(OM53C61E)
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The power switch is in ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually. However, when the surroundings are bright (daytime, etc.), turning on the tail
lights will not change the instrument panel brightness.
Instrument panel light control
1
2
IS300h_EE_OM53C61E.book 112 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1132. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53C61E)
■Hybrid System Indicator
Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power is not being used very often.
The gasoline engine will automatically stop and restart under various conditions.
Eco area
Shows that the vehicle is being driven in an Eco-friendly manner.
Po w e r a re a
Shows that an Eco-friendly driving range is being exceeded (during full power driving
etc.)
●Hybrid System Indicator is displayed when the driving mode is other than sport mode
with the tachometer setting other than “Tachometer (Always)”.
●By keeping the indicator needle (except F SPORT models) or bar display (F SPORT
models) within the Eco area, more Eco-friendly driving can be achieved.
●Charge area indicates regeneration* status. Regenerated energy will be used to
charge the hybrid battery (traction battery).
*: When used in this manual, regeneration refers to the conversion of energy created by
the movement of the vehicle into electrical energy.
XExcept F SPORT modelsXF SPORT models
1
2
3
4
IS300h_EE_OM53C61E.book 113 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1142. Instrument cluster
IS300h_EE(OM53C61E)
■Tachometer
Hybrid System Indicator switches to the tachometer when driving mode is in sport mode.
The settings of the tachometer display can be changed on the multi-information display.
(→P. 1 1 8 )
■Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help improve fuel
efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even when vehicle
operation and driving conditions are the same.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 20 km/h [12 mph])
●When the outside temperature has changed suddenly (at the entrance/exit of a garage,
tunnel, etc.)
■Po p - u p d i s p l a y
In some situations, such as when a switch operation is performed, a pop-up display, such
as the operating methods of the headlight switch, will be temporarily displayed on the
multi-information display or the odometer/trip meter screen (F SPORT models only).
The pop-up display function can be set on/off. (→P. 1 1 8 )
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
The meter display can be customized on the multi-information display. (→P. 1 1 5 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. (→P. 552)
IS300h_EE_OM53C61E.book 114 ページ ２０１４年５月２０日　火曜日　午後５時４０分

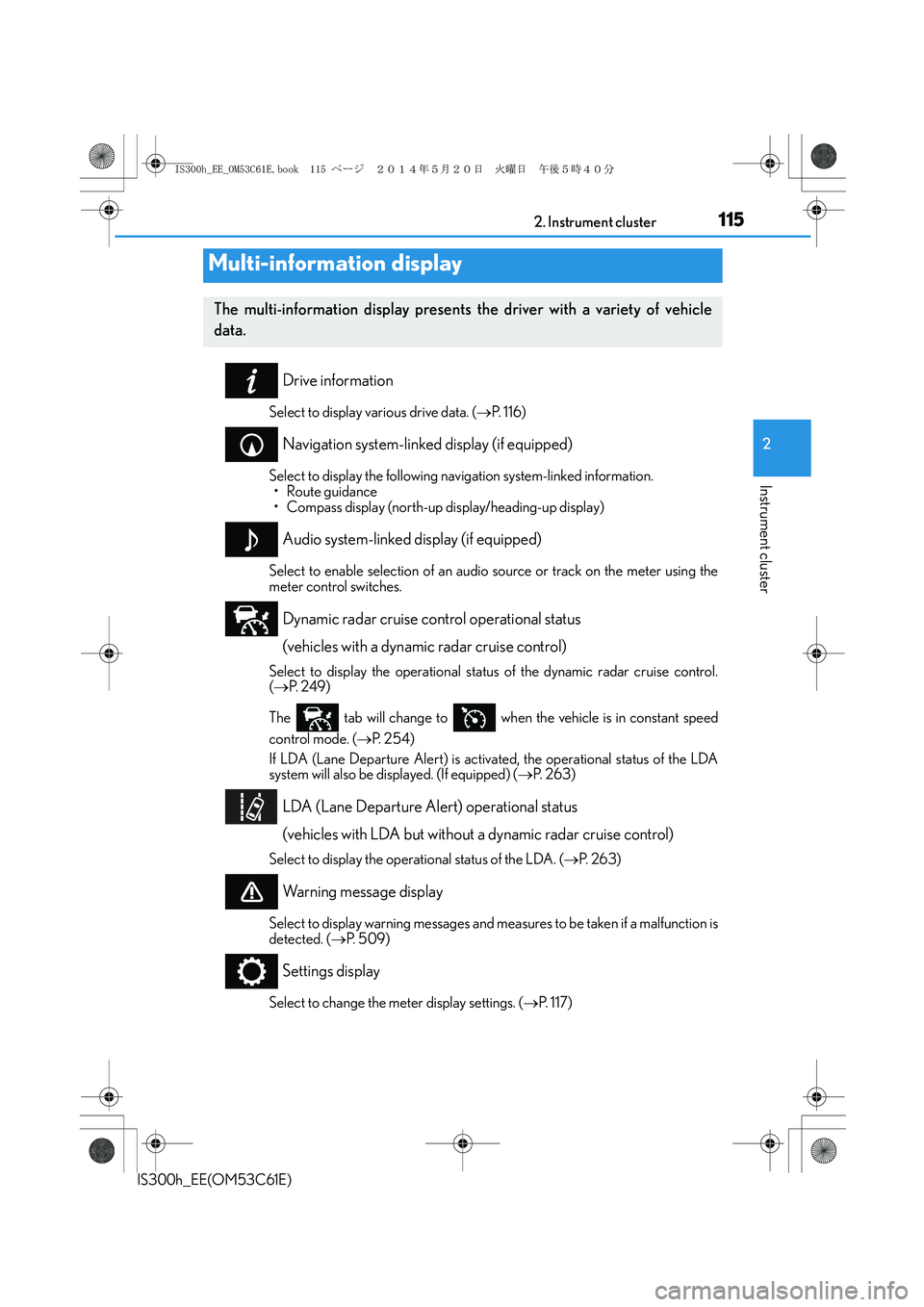

1152. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53C61E)
Drive information
Select to display various drive data. (→P. 116)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
•Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter using the
meter control switches.
Dynamic radar cruise control operational status
(vehicles with a dynamic radar cruise control)
Select to display the operational status of the dynamic radar cruise control.
(→P. 2 4 9 )
The tab will change to when the vehicle is in constant speed
control mode. (→P. 2 5 4 )
If LDA (Lane Departure Alert) is activated, the operational status of the LDA
system will also be displayed. (If equipped) (→P. 2 6 3 )
LDA (Lane Departure Alert) operational status
(vehicles with LDA but without a dynamic radar cruise control)
Select to display the operational status of the LDA. (→P. 2 6 3 )
Warning message display
Select to display warning messages and measures to be taken if a malfunction is
detected. (→P. 5 0 9 )
Settings display
Select to change the meter display settings. (→P. 1 1 7 )
Multi-information display
The multi-information display presents the driver with a variety of vehicle
data.
IS300h_EE_OM53C61E.book 115 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1162. Instrument cluster
IS300h_EE(OM53C61E)
◆Operating the meter control switches
The multi-information display is
operated using the meter control
switches.
Select an item/change pages
Enter/Set
XExcept F SPORT models
Press: Displays the screen regis-
tered to
When no screen has been registered, the drive information screen will be dis-
played.
Press and hold: Registers the currently displayed screen to
When the confirmation screen is displayed, select yes to register the screen. If the
selected screen cannot be registered, a registration failure message will be shown.
XF SPORT models
Move the main meter
Return to the previous screen
■Current fuel consumption*
Displays the current rate of fuel consumption
■Average fuel economy (after reset/after start/after refuel)*
Displays the average fuel economy since the function was reset, the hybrid
system was started, and the vehicle was refueled, respectively
■Average vehicle speed (after reset/after start)*
Displays the average vehicle speed since the function was reset and the
hybrid system was started, respectively
■Elapsed time (after reset/after start)*
Displays the elapsed time since the function was reset and the hybrid system
was started, respectively
1
2
3
Drive information
3
4
