Lexus IS300h 2014 Owner's Manual

2214-2. Driving procedures
4
Driving
IS300h_EE(OM53C61E)
CAUTION
■When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in the vehicle
skidding to the side or spinning.
NOTICE
■Hybrid battery (traction battery) charge
If the shift lever is in N, the hybrid battery (traction battery) will not be charged even
when the engine is running. Therefore, if the vehicle is left with the shift lever in N for a
long period of time, the hybrid battery (traction battery) will discharge, and this may
result in the vehicle not being able to start.
IS300h_EE_OM53C61E.book 221 ページ ２０１４年５月２０日　火曜日　午後５時４０分

2224-2. Driving procedures
IS300h_EE(OM53C61E)
The lever will return to its original position immediately after operation.
Right turn
Lane change to the right (move the
lever partway and release it)
The right hand signals will flash 3 times.
Lane change to the left (move the
lever partway and release it)
The left hand signals will flash 3 times.
Left turn
■If the turn signals do not stop flashing after turning left or right, or if you want
to stop them flashing
Operate the lever in the opposite direction to either position or .
If you move the lever to either position or , the selected turn signals will
flash.

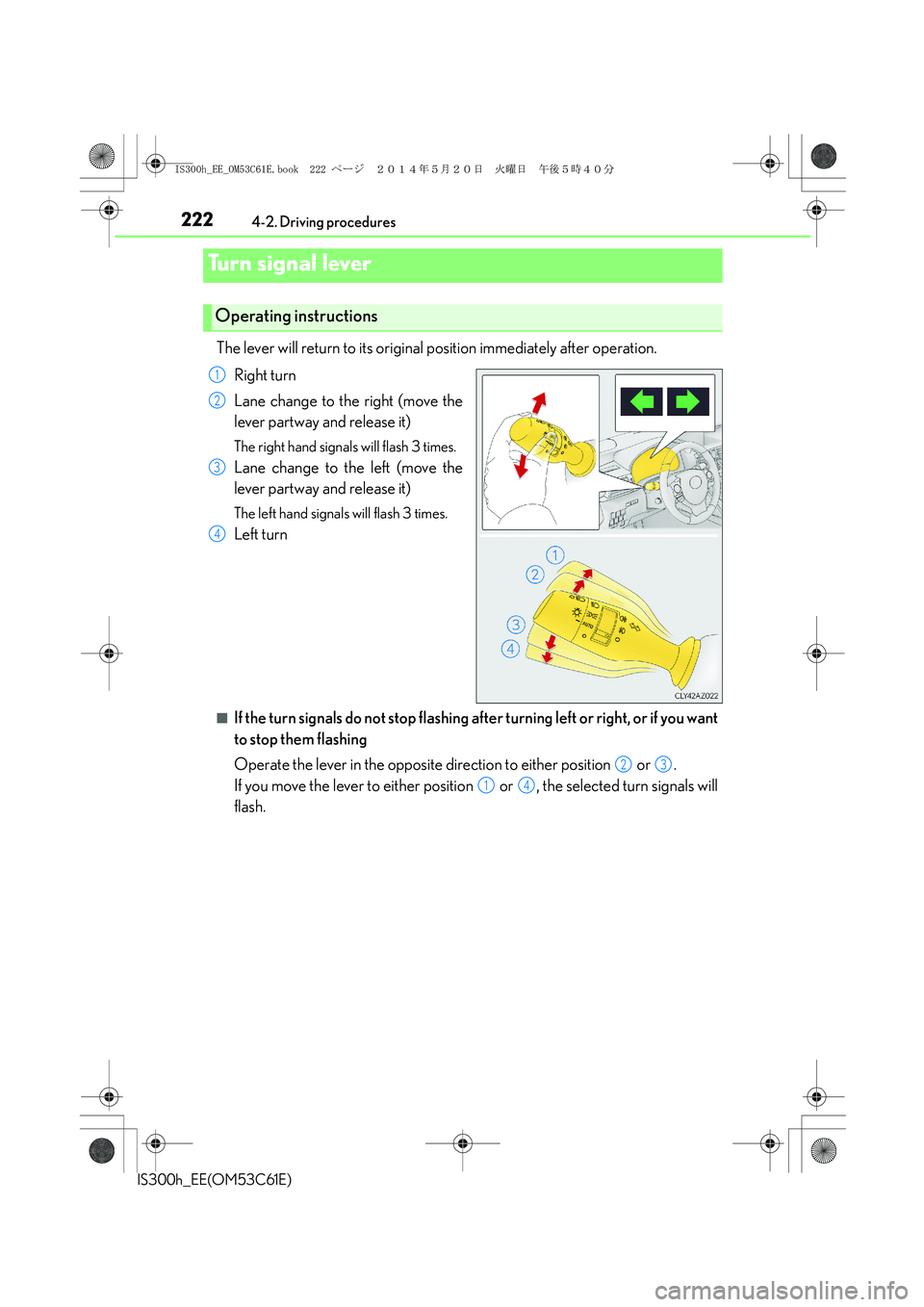

Turn signal lever
Operating instructions
1
2
3
4
23
14
IS300h_EE_OM53C61E.book 222 ページ ２０１４年５月２０日　火曜日　午後５時４０分

2234-2. Driving procedures
4
Driving
IS300h_EE(OM53C61E)

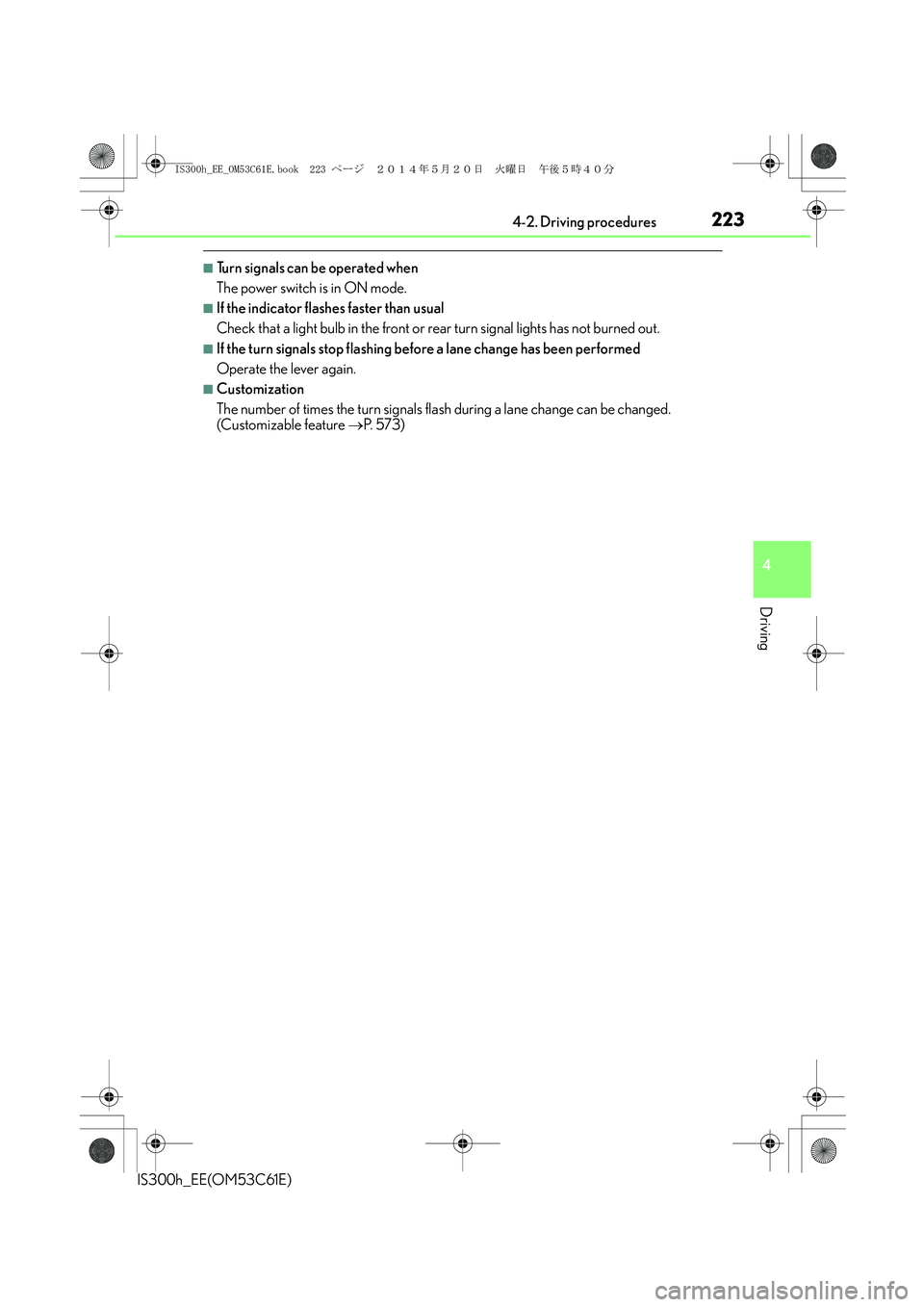

■Turn signals can be operated when
The power switch is in ON mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
■If the turn signals stop flashing before a lane change has been performed
Operate the lever again.
■Customization
The number of times the turn signals flash during a lane change can be changed.
(Customizable feature →P. 5 7 3 )
IS300h_EE_OM53C61E.book 223 ページ ２０１４年５月２０日　火曜日　午後５時４０分

2244-2. Driving procedures
IS300h_EE(OM53C61E)
To set the parking brake, fully depress
the parking brake pedal with your left
foot while depressing the brake pedal
with your right foot.
(Depressing the pedal again releases
the parking brake.)
■Parking brake engaged warning buzzer
→P. 5 1 3
■Usage in winter time
→P. 3 1 1

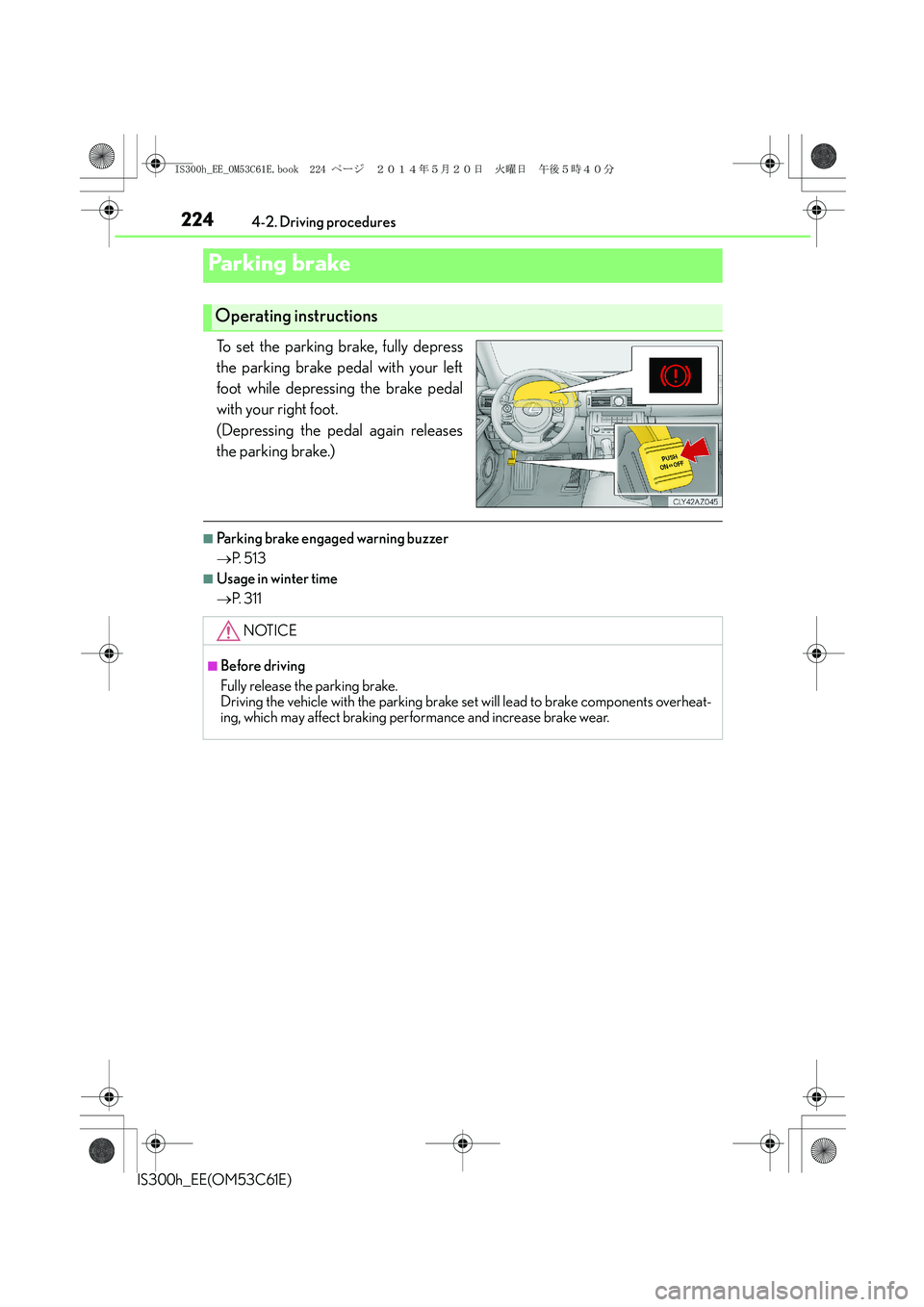

Parking brake
Operating instructions
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components overheat-
ing, which may affect braking performance and increase brake wear.
IS300h_EE_OM53C61E.book 224 ページ ２０１４年５月２０日　火曜日　午後５時４０分

2254-2. Driving procedures
4
Driving
IS300h_EE(OM53C61E)
Louder
Lower
When the dial is turned to the lowest
volume, driving sound will be turned off
and the indicator will go off.
■ASC is enabled when
The vehicle is being driven in normal mode or sport mode. (→P. 2 8 3 )
■Situations that may disable the ASC system
The ASC system may be disabled depending on the driving conditions, such as when the
tires slip due to sudden acceleration.

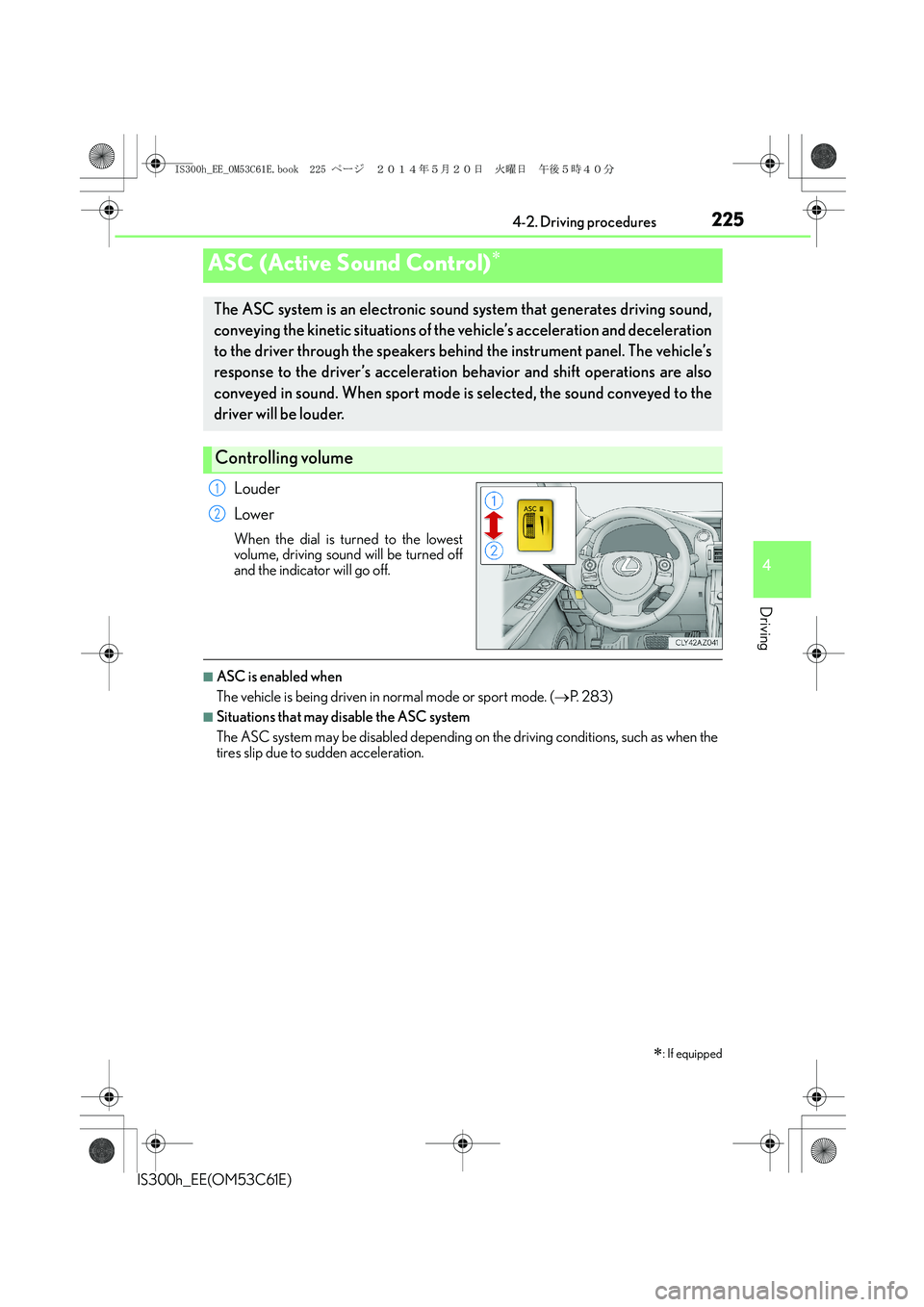

ASC (Active Sound Control)∗
∗
: If equipped
The ASC system is an electronic sound system that generates driving sound,
conveying the kinetic situations of the vehicle’s acceleration and deceleration
to the driver through the speakers behind the instrument panel. The vehicle’s
response to the driver’s acceleration behavior and shift operations are also
conveyed in sound. When sport mode is selected, the sound conveyed to the
driver will be louder.
Controlling volume
1
2
IS300h_EE_OM53C61E.book 225 ページ ２０１４年５月２０日　火曜日　午後５時４０分

226
IS300h_EE(OM53C61E)4-3. Operating the lights and wipers
Turning the end of the lever turns on the lights as follows:
The front position, tail, license
plate and instrument panel
lights turn on.
The headlights and all lights
listed above turn on.
The headlights, daytime run-
ning lights and all the lights
listed above turn on and off
automatically.
(When the power switch is in
ON mode.)
The daytime running lights turn
on.
With the headlights on, push the
lever away from you to turn on the
high beams.
Pull the lever toward you to the center
position to turn the high beams off.
Pull the lever toward you and release
it to flash the high beams once.
You can flash the high beams with the
headlights on or off.

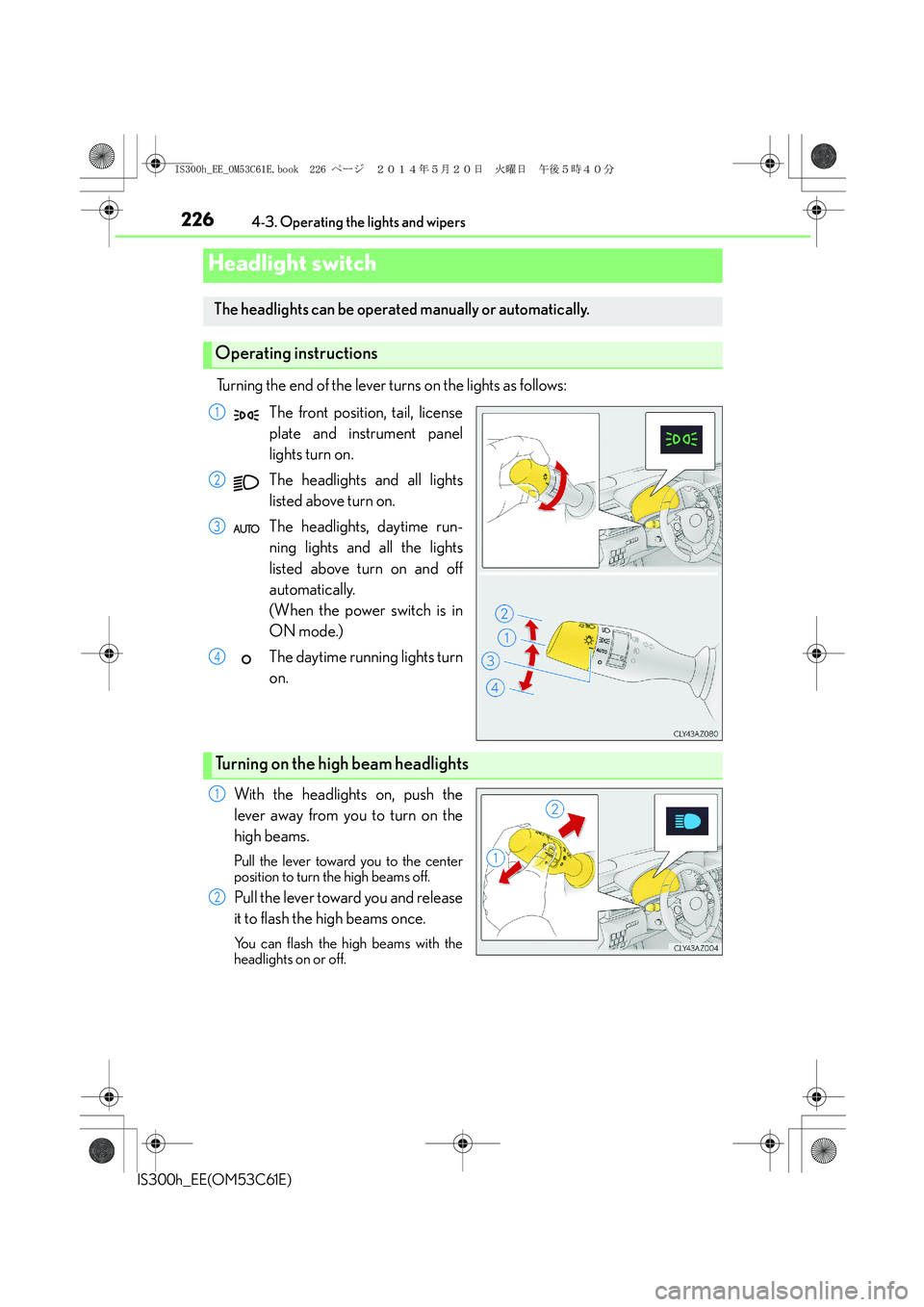

Headlight switch
The headlights can be operated manually or automatically.
Operating instructions
1
2
3
4
Turning on the high beam headlights
1
2
IS300h_EE_OM53C61E.book 226 ページ ２０１４年５月２０日　火曜日　午後５時４０分

2274-3. Operating the lights and wipers
4
Driving
IS300h_EE(OM53C61E)
This system allows the headlights and front position lights to be turned on for 30
seconds when the power switch is off.
Pull the lever toward you and release it
with the light switch is in or
after turning the power switch off.
Pull the lever toward you and release it
again to turn off the lights.
■Daytime running light system
To make your vehicle more visible to other drivers, the front position lights turn on auto-
matically (at an increased intensity) whenever the hybrid system is started and the park-
ing brake is released. Daytime running lights are not designed for use at night.
■Headlight control sensor
■Automatic light off system
●When the light switch is in or : The headlights and front fog lights turn off auto-
matically if the power switch is turned to ACCESSORY mode or turned off.
●When the light switch is in : The headlights and all lights turn off automatically if the
power switch is turned to ACCESSORY mode or turned off.
To turn the lights on again, turn the power switch to ON mode, or turn the light switch off
once and then back to or .
If any of the doors or trunk lid is left open, the lights automatically turn off after 20 min-
utes.

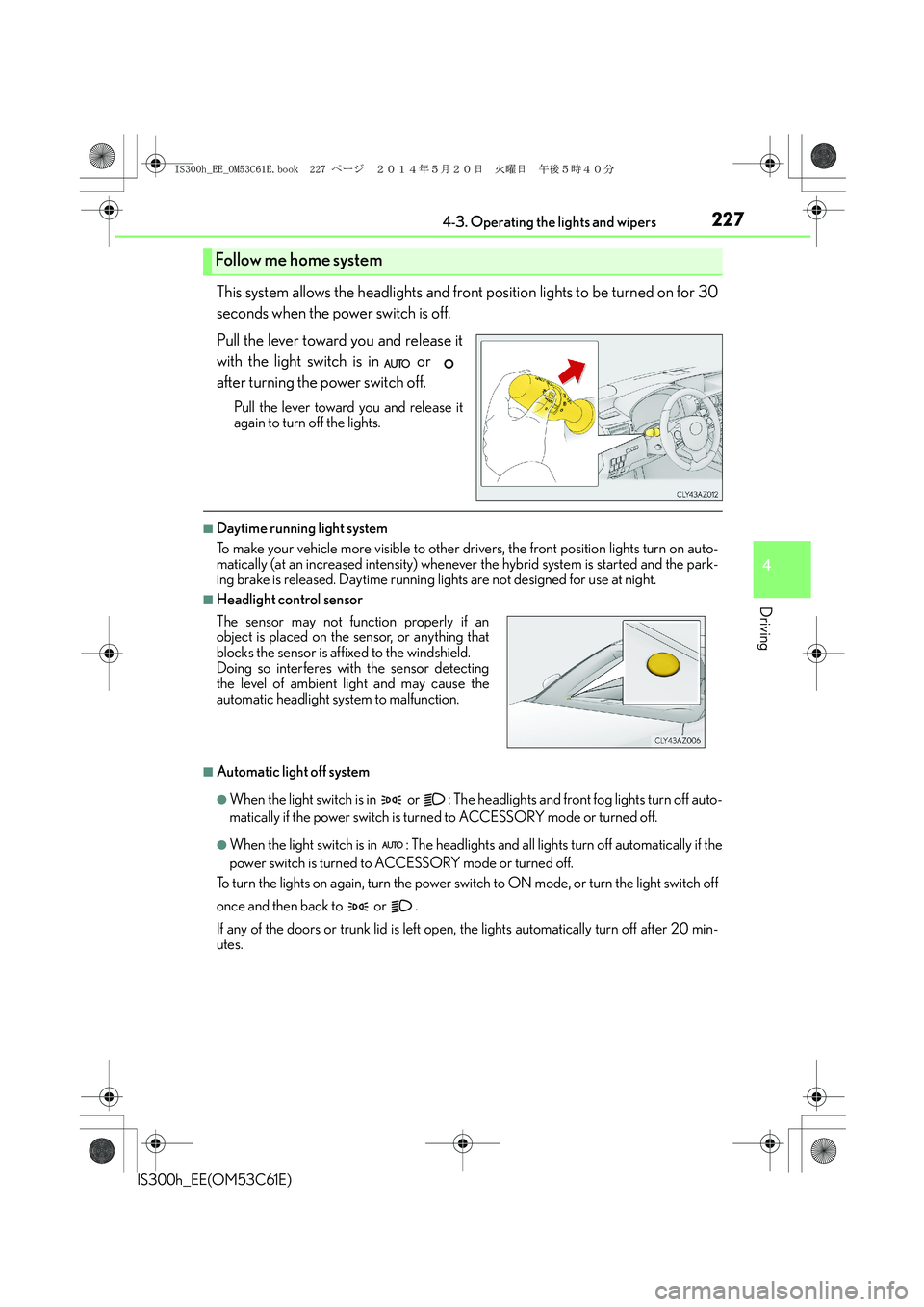

Follow me home system
The sensor may not function properly if an
object is placed on the sensor, or anything that
blocks the sensor is affixed to the windshield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
IS300h_EE_OM53C61E.book 227 ページ ２０１４年５月２０日　火曜日　午後５時４０分

2284-3. Operating the lights and wipers
IS300h_EE(OM53C61E)
■Light reminder buzzer
A buzzer sounds when the power switch is turned off or turned to ACCESSORY mode
and the driver’s door is opened while the lights are turned on.
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of passen-
gers and the loading condition of the vehicle to ensure that the headlights do not inter-
fere with other road users.
■Operation guide display (vehicles with rain-sensing windshield wipers only)
When the headlight switch is operated to and from the “AUTO” position, the current sta-
tus is displayed on the meters for a few seconds to show that AUTO mode is activated/
deactivated. (→P. 1 1 8 )
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: →P. 5 7 9 )
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is off.
IS300h_EE_OM53C61E.book 228 ページ ２０１４年５月２０日　火曜日　午後５時４０分

2294-3. Operating the lights and wipers
4
Driving
IS300h_EE(OM53C61E)
Push the lever away from you with
the headlight switch in the or
position.
Press the Automatic High Beam
switch.
The Automatic High Beam indicator will
come on when the headlights are turned
on automatically to indicate that the sys-
tem is active.

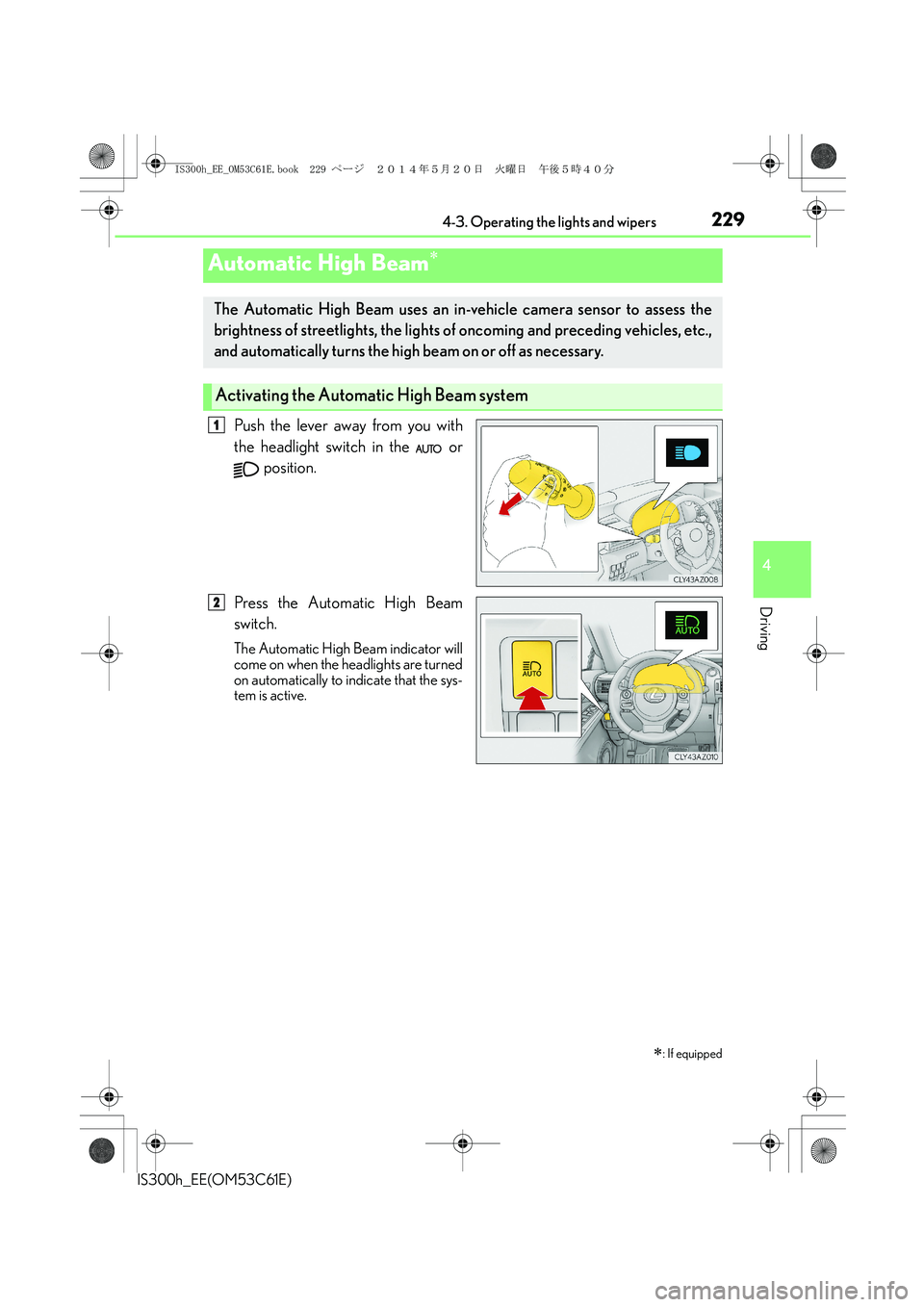

Automatic High Beam∗
∗
: If equipped
The Automatic High Beam uses an in-vehicle camera sensor to assess the
brightness of streetlights, the lights of oncoming and preceding vehicles, etc.,
and automatically turns the high beam on or off as necessary.
Activating the Automatic High Beam system
1
2
IS300h_EE_OM53C61E.book 229 ページ ２０１４年５月２０日　火曜日　午後５時４０分

2304-3. Operating the lights and wipers
IS300h_EE(OM53C61E)
When all of the following conditions are met, the high beam will be automatically
turned on (after approximately 1 second):
●Vehicle speed is above approximately 40 km/h (25 mph).
●The area ahead of the vehicle is dark.
●There are no oncoming or preceding vehicles with headlights or tail lights
turned on.
●There are few streetlights on the road ahead.
If any of the following conditions are met, the high beam will be automatically
turned off:
●Vehicle speed drops below approximately 30 km/h (19 mph).
●The area ahead of the vehicle is not dark.
●Oncoming or preceding vehicles have headlights or tail lights turned on.
●There are many streetlights on the road ahead.
■Switching to low beam
Pull the lever to the original position.
The Automatic High Beam indicator
will turn off.
Push the lever away from you to acti-
vate the Automatic High Beam sys-
tem again.
■Switching to high beam
Press the Automatic High Beam
switch.
The Automatic High Beam indicator
will turn off and the high beam indi-
cator will turn on.
Press the switch to activate the Auto-
matic High Beam system again.

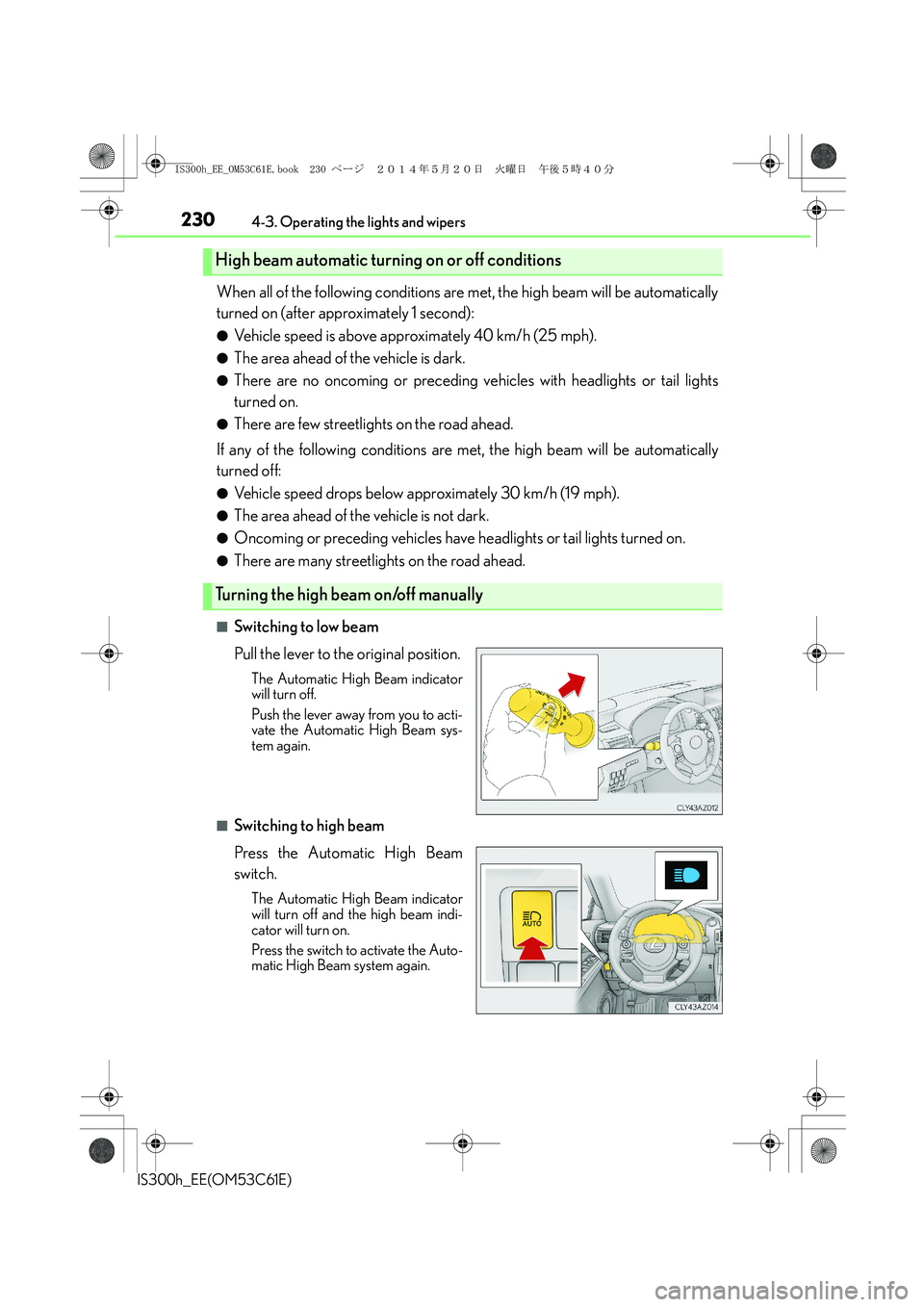

High beam automatic turning on or off conditions
Turning the high beam on/off manually
IS300h_EE_OM53C61E.book 230 ページ ２０１４年５月２０日　火曜日　午後５時４０分
