4397-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
■12-volt battery
→P. 4 4 7
Engine compartment
Power control unit coolant reser-
voir (→P. 444)
Engine oil level dipstick
(→P. 4 4 0 )
Engine coolant reservoir
(→P. 444)
Engine oil filler cap
(→P. 4 4 1 )Fuse box (→P. 4 74 )
Wa s h e r f l u i d t a n k (→P. 4 4 6 )
Electric cooling fans
Condenser (→P. 4 4 6 )
Power control unit coolant
radiator (→P. 4 4 6 )
Engine coolant radiator
(→P. 4 4 6 )1
2
3
4
5
6
7
8
9
10
IS300h_EE_OM53C61E.book 439 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4407-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
With the engine at operating temperature and turned off, check the oil level on
the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine and turning
off the hybrid system, wait more than 5 minutes for the oil to drain back into
the bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
The shape of the dipstick may dif-
fer depending on the type of vehi-
cle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
6
IS300h_EE_OM53C61E.book 440 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4417-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
■Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as that already in the
engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection→P. 5 6 3
Oil quantity (Low → Full) 1.5 L (1.6 qt., 1.3 Imp. qt.)
Items Clean funnel
1
2
3
IS300h_EE_OM53C61E.book 441 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4427-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)

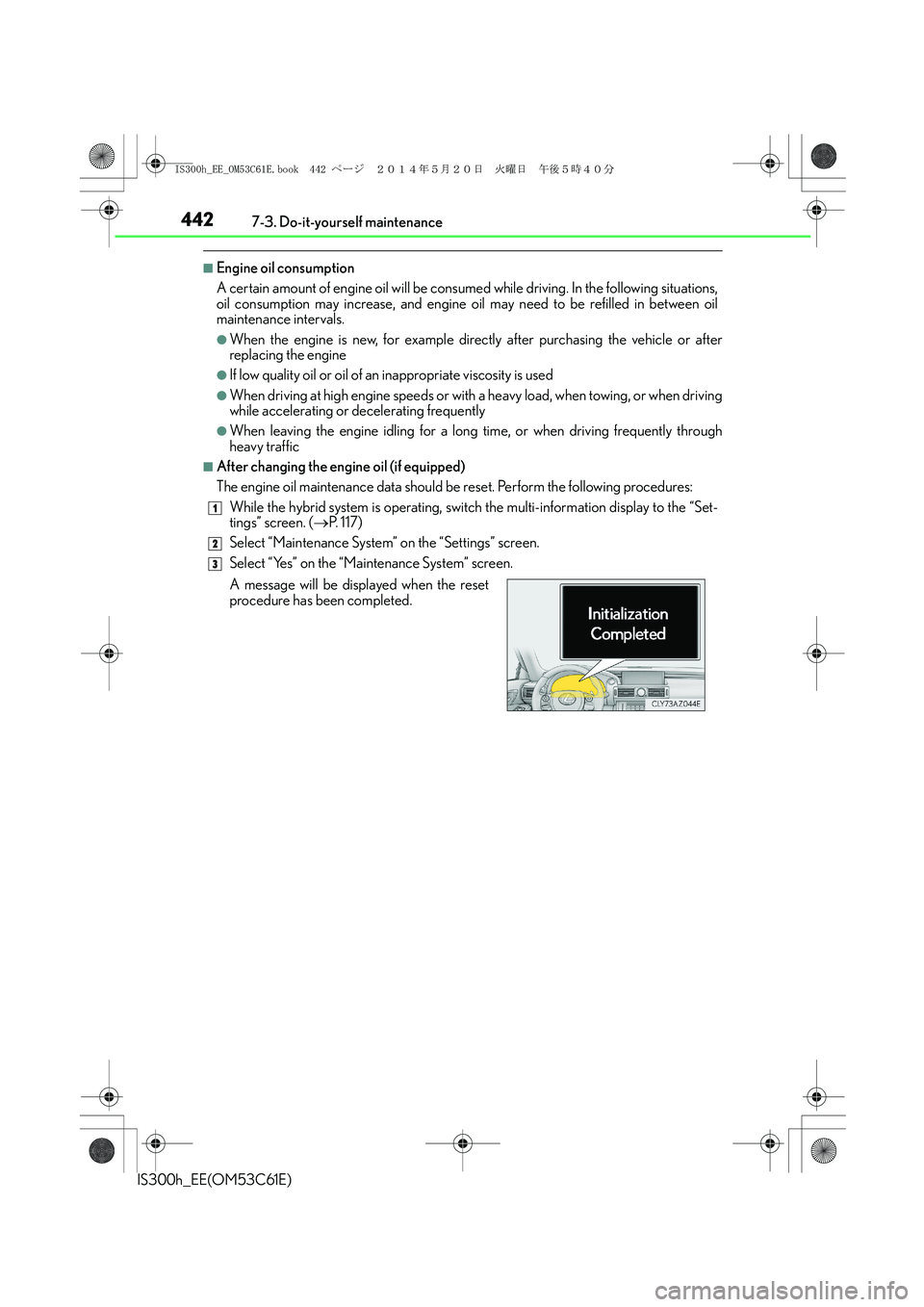

■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following situations,
oil consumption may increase, and engine oil may need to be refilled in between oil
maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or when driving
while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
■After changing the engine oil (if equipped)
The engine oil maintenance data should be reset. Perform the following procedures:
While the hybrid system is operating, switch the multi-information display to the “Set-
tings” screen. (→P. 1 1 7 )
Select “Maintenance System” on the “Settings” screen.
Select “Yes” on the “Maintenance System” screen.
A message will be displayed when the reset
procedure has been completed.
1
2
3
IS300h_EE_OM53C61E.book 442 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4437-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin dis-
orders such as inflammation and skin cancer, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of
used oil and filters in household trash, in sewers or onto the ground.
Call any authorized Lexus dealer or repairer, or another duly qualified and equipped
professional, service station or auto parts store for information concerning recycling
or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
IS300h_EE_OM53C61E.book 443 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4447-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)

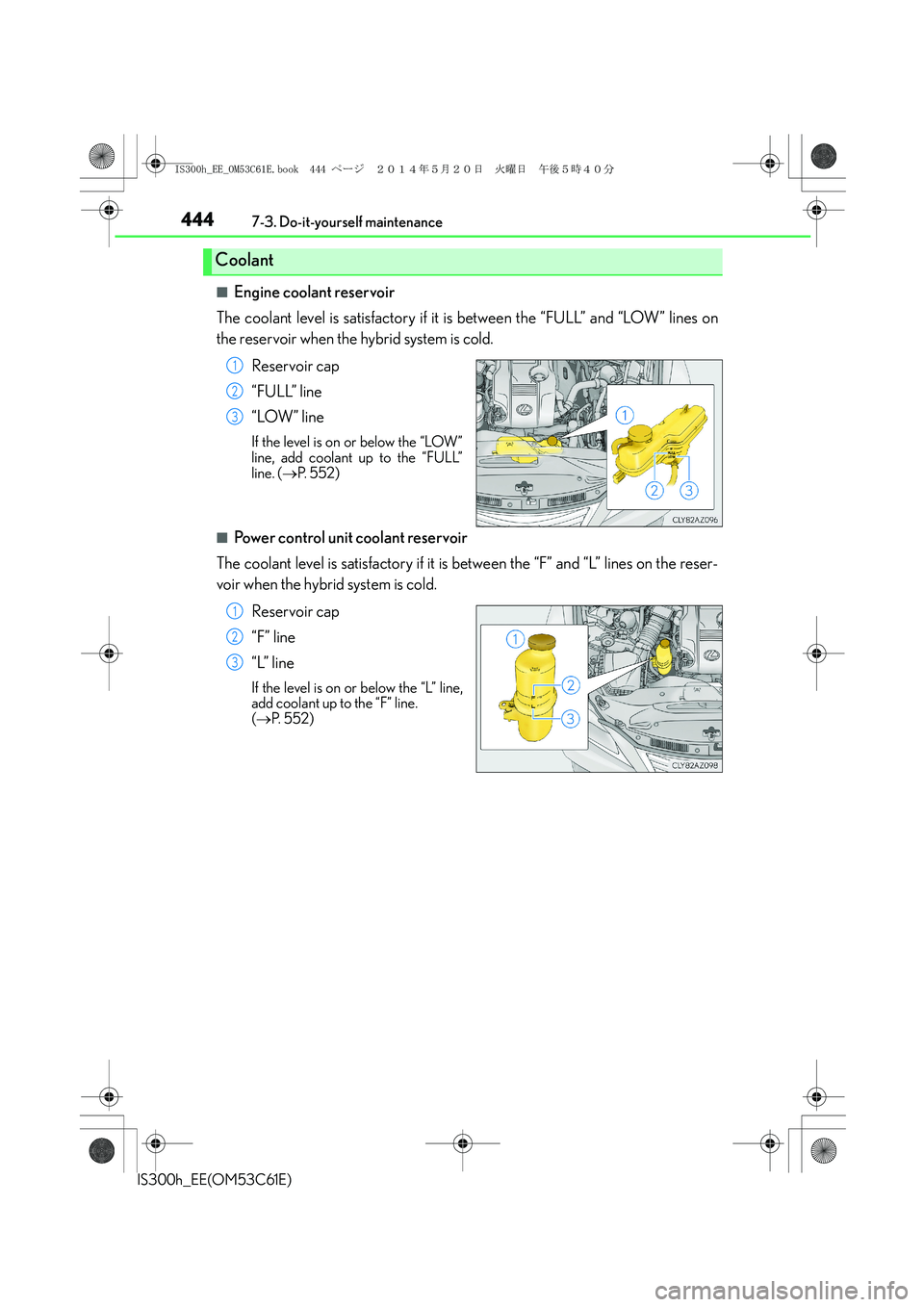

■Engine coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir when the hybrid system is cold.
Reser voir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line. (→P. 552)
■Power control unit coolant reservoir
The coolant level is satisfactory if it is between the “F” and “L” lines on the reser-
voir when the hybrid system is cold.
Reser voir cap
“F” line
“L” line
If the level is on or below the “L” line,
add coolant up to the “F” line.
(→P. 5 5 2 )
Coolant
1
2
3
1
2
3
IS300h_EE_OM53C61E.book 444 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4457-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water.
(Minimum temperature: -35°C [-31°F])
For more details about coolant, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■If the coolant level drops within a short time of replenishing
Visually check the radiators, hoses, engine/power control unit coolant reservoir caps,
drain cock and water pump.
If you cannot find a leak, have any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional, test the cap and check for leaks in the cooling sys-
tem.
CAUTION
■When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps or water filler cap.
(→P. 5 5 5 )
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cool-
ing. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
IS300h_EE_OM53C61E.book 445 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4467-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
Check the radiators and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of their condi-
tion, have your vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
If any washer does not work or the
warning message appears on the multi-
information display, the washer tank
may be empty. Add washer fluid.
Radiators and condenser
CAUTION
■When the hybrid system is hot
Do not touch the radiators or condenser as they may be hot and cause serious injuries,
such as burns.
Washer fluid
CAUTION
■When adding washer fluid
Do not add washer fluid when the hybrid system is hot or operating as washer fluid
contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.
IS300h_EE_OM53C61E.book 446 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4747-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
Turn the power switch off.
Open the fuse box cover.
XEngine compartment:
Remove the clips.
Push the tabs on either side to
detach the lock and lift the lid off
while pulling the lock plate.
When installing the lid, check that the
lock plate and the tabs on either side
are connected correctly.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.
1
2
IS300h_EE_OM53C61E.book 474 ページ ２０１４年５月２０日　火曜日　午後５時４０分

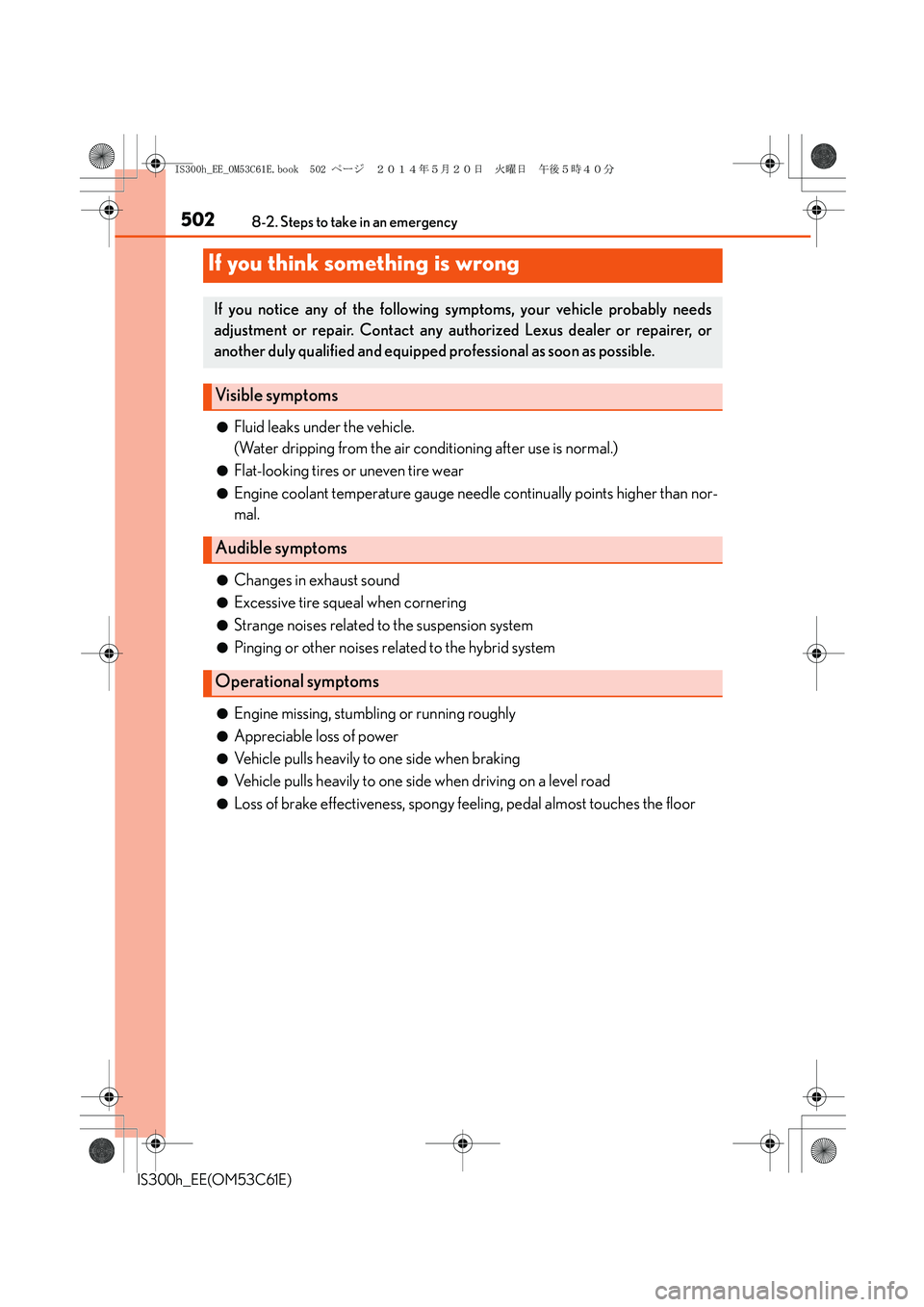

5028-2. Steps to take in an emergency
IS300h_EE(OM53C61E)
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher than nor-
mal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the hybrid system
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the floor
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional as soon as possible.
Visible s ymp toms
Audible symptoms
Operational symptoms
