Lexus IS300h 2014 Owner's Manual

4917-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)

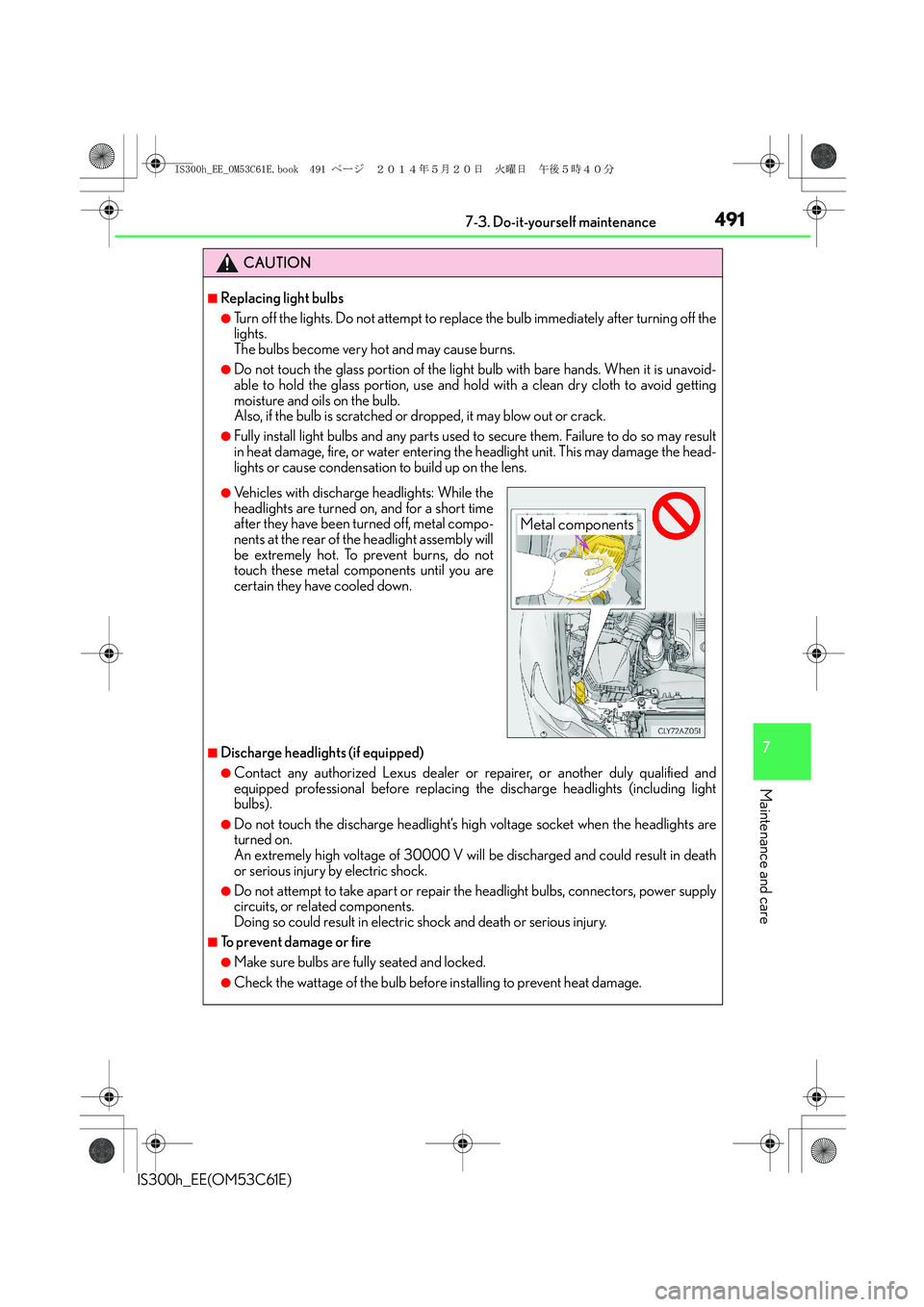

CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning off the
lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is unavoid-
able to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or water entering the headlight unit. This may damage the head-
lights or cause condensation to build up on the lens.
■Discharge headlights (if equipped)
●Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional before replacing the discharge headlights (including light
bulbs).
●Do not touch the discharge headlight’s high voltage socket when the headlights are
turned on.
An extremely high voltage of 30000 V will be discharged and could result in death
or serious injury by electric shock.
●Do not attempt to take apart or repair the headlight bulbs, connectors, power supply
circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.
●Vehicles with discharge headlights: While the
headlights are turned on, and for a short time
after they have been turned off, metal compo-
nents at the rear of the headlight assembly will
be extremely hot. To prevent burns, do not
touch these metal components until you are
certain they have cooled down.
Metal components
IS300h_EE_OM53C61E.book 491 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4927-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)

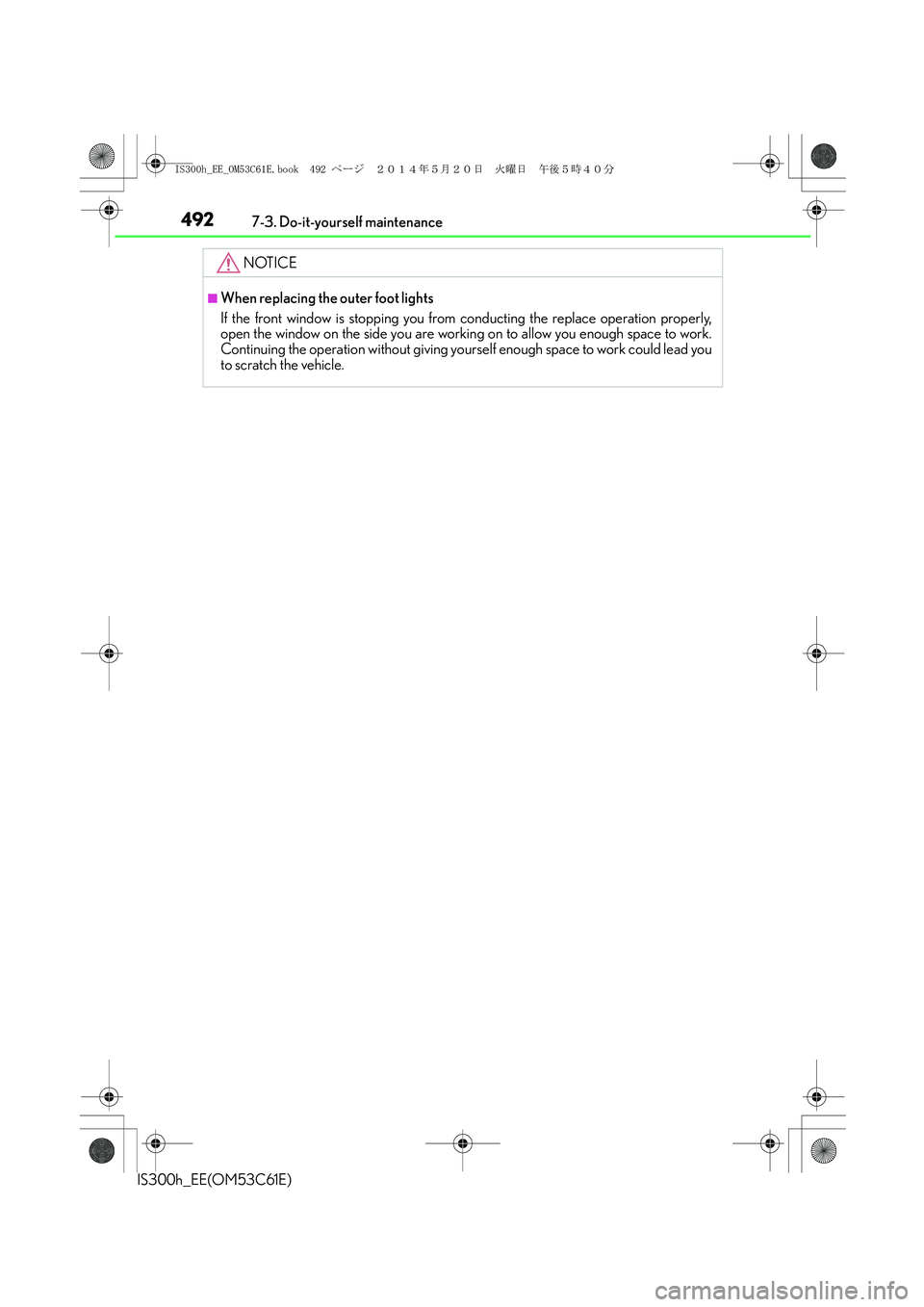

NOTICE
■When replacing the outer foot lights
If the front window is stopping you from conducting the replace operation properly,
open the window on the side you are working on to allow you enough space to work.
Continuing the operation without giving yourself enough space to work could lead you
to scratch the vehicle.
IS300h_EE_OM53C61E.book 492 ページ ２０１４年５月２０日　火曜日　午後５時４０分

493
8When trouble arises
IS300h_EE(OM53C61E)
8-1. Essential information
Emergency flashers................... 494
If your vehicle has to
be stopped in an
emergency ................................. 4958-2. Steps to take in an
emergency
If your vehicle needs to
be towed ..................................... 496
If you think something is
wrong ...........................................502
If a warning light turns
on or a warning buzzer
sounds..........................................503
If a warning message is
displayed.....................................509
If you have a flat tire
(vehicles without
run-flat tires).............................. 526
If you have a flat tire
(vehicles with
run-flat tires)..............................540
If the hybrid system will
not start ........................................ 541
If the shift lever cannot
be shifted from P ..................... 543
If the electronic key does
not operate properly ............. 544
If the 12-volt battery is
discharged ................................. 547
If your vehicle overheats ......... 552
If the vehicle becomes
stuck ............................................. 556
IS300h_EE_OM53C61E.book 493 ページ ２０１４年５月２０日　火曜日　午後５時４０分

494
IS300h_EE(OM53C61E)8-1. Essential information
Press the switch.
All the turn signals will flash.
To turn them off, press the switch once
again.
■Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is not operat-
ing (while the “READY” indicator is not illuminated), the 12-volt battery may discharge.

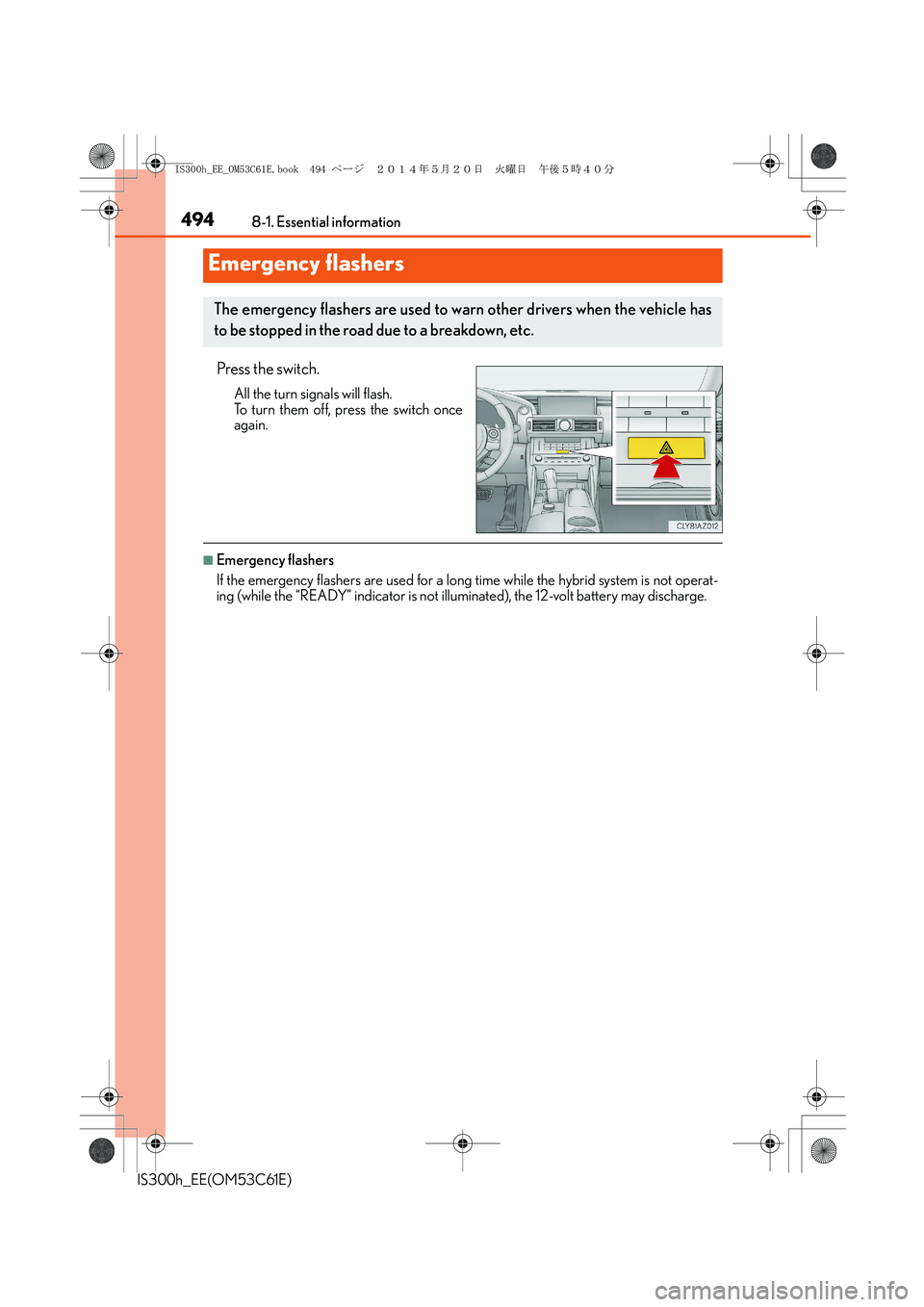

Emergency flashers
The emergency flashers are used to warn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.
IS300h_EE_OM53C61E.book 494 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4958-1. Essential information
8
When trouble arises
IS300h_EE(OM53C61E)
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to
slow the vehicle.
Shift the shift lever to N.
XIf the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
XIf the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as
much as possible.
To stop the hybrid system, press and
hold the power switch for 2 consec-
utive seconds or more, or press it
briefly 3 times or more in succes-
sion.
Stop the vehicle in a safe place by the road.

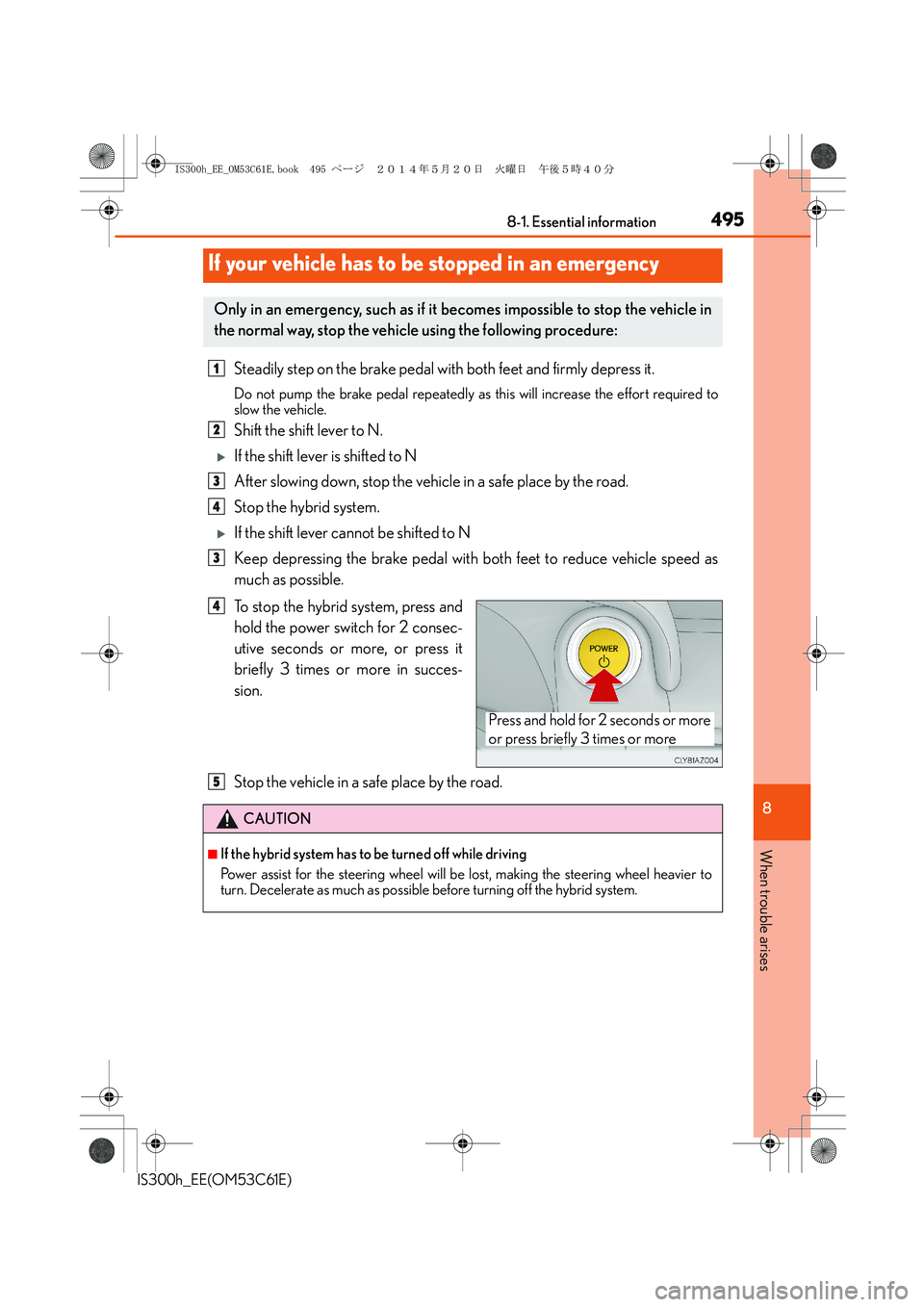

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the vehicle in
the normal way, stop the vehicle using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more
or press briefly 3 times or more
4
CAUTION
■If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel heavier to
turn. Decelerate as much as possible before turning off the hybrid system.
5
IS300h_EE_OM53C61E.book 495 ページ ２０１４年５月２０日　火曜日　午後５時４０分

496
IS300h_EE(OM53C61E)8-2. Steps to take in an emergency
The following may indicate a problem with your transmission. Contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional or commercial towing service before towing.
●A warning message for the hybrid system is shown on the multi-information
display and the vehicle does not move.
●The vehicle makes an abnormal sound.

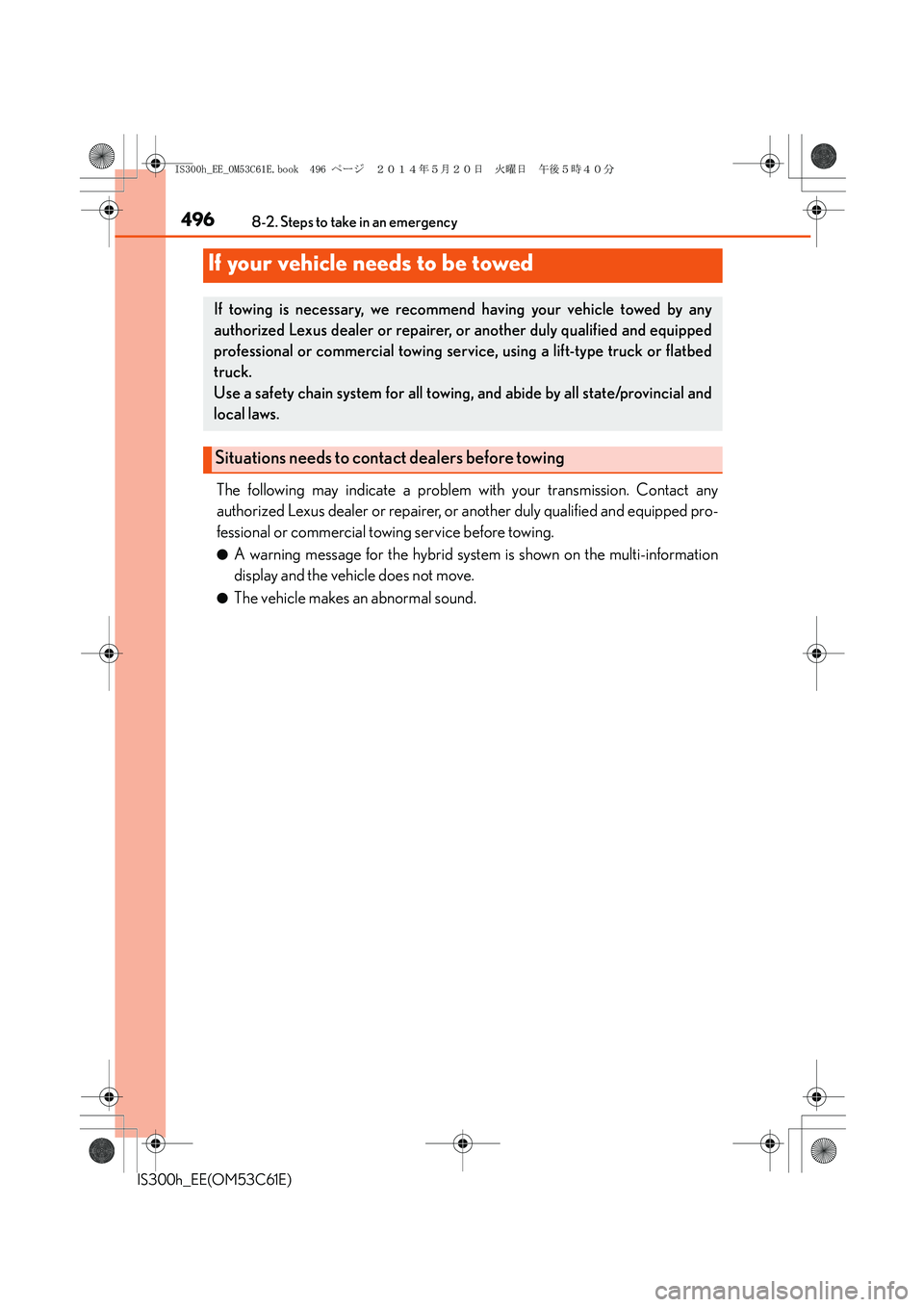

If your vehicle needs to be towed
If towing is necessary, we recommend having your vehicle towed by any
authorized Lexus dealer or repairer, or another duly qualified and equipped
professional or commercial towing service, using a lift-type truck or flatbed
truck.
Use a safety chain system for all towing, and abide by all state/provincial and
local laws.
Situations needs to contact dealers before towing
IS300h_EE_OM53C61E.book 496 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4978-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53C61E)

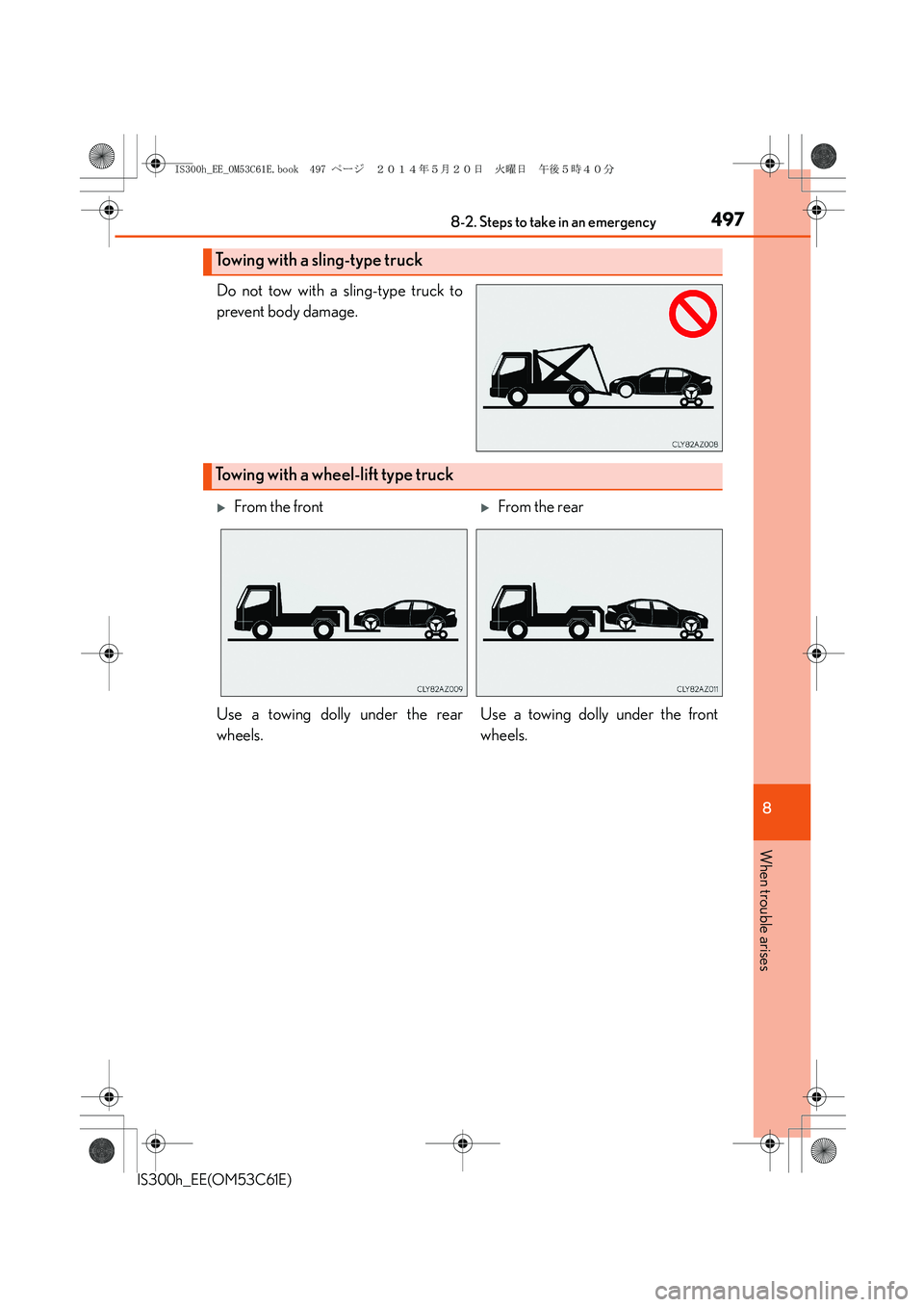

Do not tow with a sling-type truck to
prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
XFrom the frontXFrom the rear
Use a towing dolly under the rear
wheels.Use a towing dolly under the front
wheels.
IS300h_EE_OM53C61E.book 497 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4988-2. Steps to take in an emergency
IS300h_EE(OM53C61E)

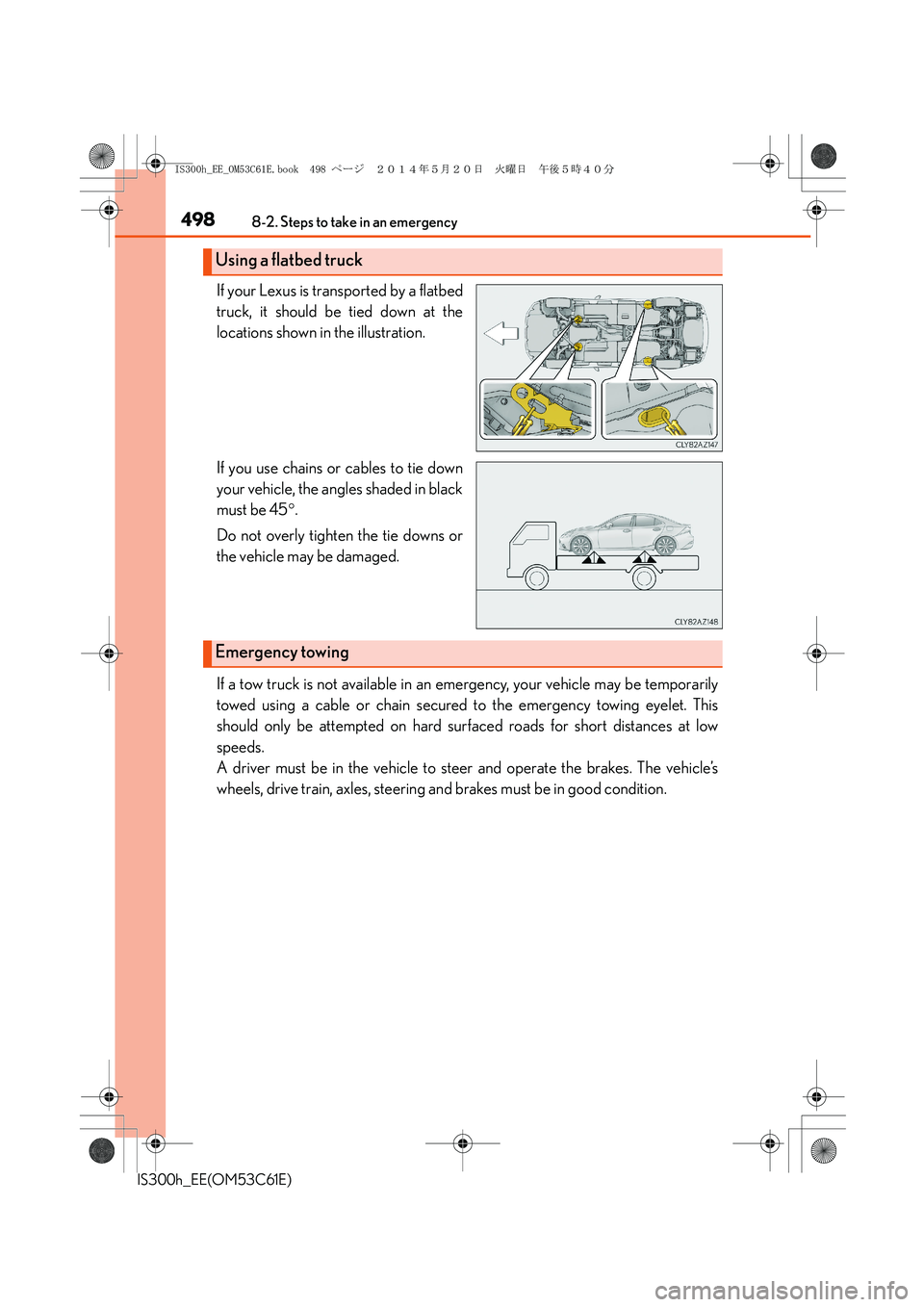

If your Lexus is transported by a flatbed
truck, it should be tied down at the
locations shown in the illustration.
If you use chains or cables to tie down
your vehicle, the angles shaded in black
must be 45°.
Do not overly tighten the tie downs or
the vehicle may be damaged.
If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using a cable or chain secured to the emergency towing eyelet. This
should only be attempted on hard surfaced roads for short distances at low
speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and brakes must be in good condition.
Using a flatbed truck
Emergency towing
IS300h_EE_OM53C61E.book 498 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4998-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53C61E)

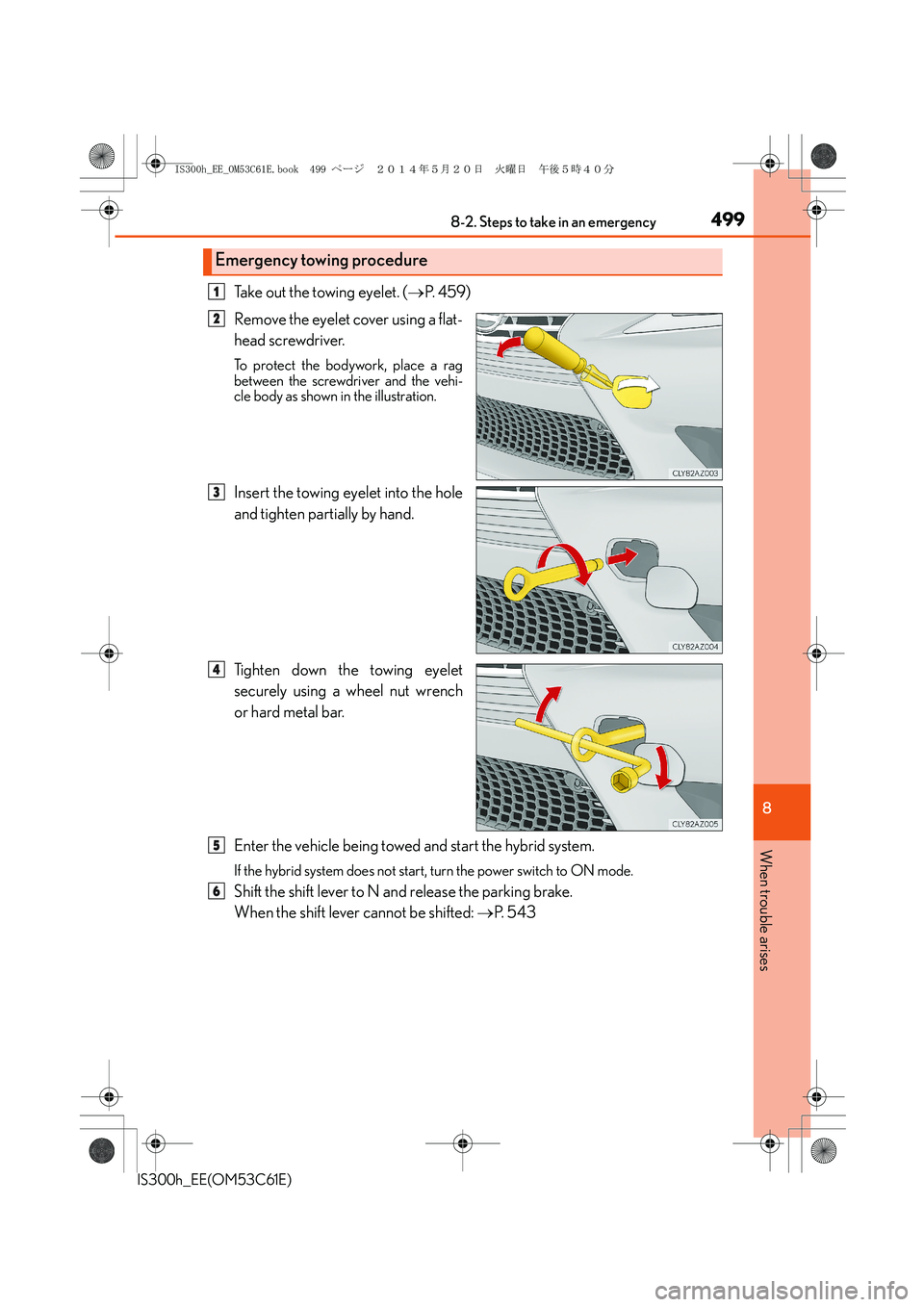

Take out the towing eyelet. (→P. 4 5 9 )
Remove the eyelet cover using a flat-
head screwdriver.
To protect the bodywork, place a rag
between the screwdriver and the vehi-
cle body as shown in the illustration.
Insert the towing eyelet into the hole
and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut wrench
or hard metal bar.
Enter the vehicle being towed and start the hybrid system.
If the hybrid system does not start, turn the power switch to ON mode.
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: →P. 5 4 3
Emergency towing procedure
1
2
3
4
5
6
IS300h_EE_OM53C61E.book 499 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5008-2. Steps to take in an emergency
IS300h_EE(OM53C61E)
■While towing
If the hybrid system is off, the power assist for the brakes and steering will not function,
making steering and braking more difficult.
■Wheel nut wrench
Wheel nut wrench is installed in luggage compartment. (→P. 4 5 9 )
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
■While towing
●When towing using a cables or chains, avoid sudden starts, etc. which place excessive
stress on the towing eyelet, cables or chains.
The towing eyelet, cables or chains may become damaged, broken debris may hit
people and cause serious damage.
●Do not turn the power switch off.
There is a possibility that the steering wheel is locked and cannot be operated.
■Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing.
Be sure to transport the vehicle with all four
wheels raised off the ground. If the vehicle is
towed with the tires contacting the ground, the
drivetrain and related parts may be damaged,
an accident may occur due to a change in
direction of the vehicle or electricity generated
by the operation of the motor may cause a fire
to occur depending on the nature of the dam-
age or malfunction.
IS300h_EE_OM53C61E.book 500 ページ ２０１４年５月２０日　火曜日　午後５時４０分
