4367-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
CAUTION
The engine compartment contains many mechanisms and fluids that may move suddenly,
become hot, or become electrically energized. To avoid death or serious injury, observe
the following precautions.
■When working on the engine compartment
●Make sure that the “ACCESSORY” or “IGNITION ON” on the multi-information
display and the “READY” indicator are both off.
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, power control unit, radiator, exhaust manifold, etc.
right after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes are flamma-
ble.
●Take care because brake fluid can harm your hands or eyes and damage painted sur-
faces. If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automatically start to
run if the air conditioning is on and/or the coolant temperature is high. (→P. 446)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting in
your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to dirt
in the air.
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or when
the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
IS300h_EE_OM53C61E.book 436 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4397-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
■12-volt battery
→P. 4 4 7
Engine compartment
Power control unit coolant reser-
voir (→P. 444)
Engine oil level dipstick
(→P. 4 4 0 )
Engine coolant reservoir
(→P. 444)
Engine oil filler cap
(→P. 4 4 1 )Fuse box (→P. 4 74 )
Wa s h e r f l u i d t a n k (→P. 4 4 6 )
Electric cooling fans
Condenser (→P. 4 4 6 )
Power control unit coolant
radiator (→P. 4 4 6 )
Engine coolant radiator
(→P. 4 4 6 )1
2
3
4
5
6
7
8
9
10
IS300h_EE_OM53C61E.book 439 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4447-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
■Engine coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines on
the reservoir when the hybrid system is cold.
Reser voir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line. (→P. 552)
■Power control unit coolant reservoir
The coolant level is satisfactory if it is between the “F” and “L” lines on the reser-
voir when the hybrid system is cold.
Reser voir cap
“F” line
“L” line
If the level is on or below the “L” line,
add coolant up to the “F” line.
(→P. 5 5 2 )
Coolant
1
2
3
1
2
3
IS300h_EE_OM53C61E.book 444 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4457-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water.
(Minimum temperature: -35°C [-31°F])
For more details about coolant, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■If the coolant level drops within a short time of replenishing
Visually check the radiators, hoses, engine/power control unit coolant reservoir caps,
drain cock and water pump.
If you cannot find a leak, have any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional, test the cap and check for leaks in the cooling sys-
tem.
CAUTION
■When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps or water filler cap.
(→P. 5 5 5 )
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cool-
ing. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
IS300h_EE_OM53C61E.book 445 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5528-2. Steps to take in an emergency
IS300h_EE(OM53C61E)
●The needle of the engine coolant temperature gauge (→P. 109) enters the
red zone or a loss of hybrid system power is experienced. (For example, the
vehicle speed does not increase.)
●“Hybrid System Overheat” is shown on the multi-information display.
●Steam comes out from under the hood.
■If the needle of the engine coolant temperature gauge enters the red zone
Stop the vehicle in a safe place and turn off the air conditioning system, and
then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has
cooled down sufficiently, inspect
the hoses and radiator core (radi-
ator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact any autho-
rized Lexus dealer or repairer, or
another duly qualified and
equipped professional.
The coolant level is satisfactory if
it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL”
“LOW”

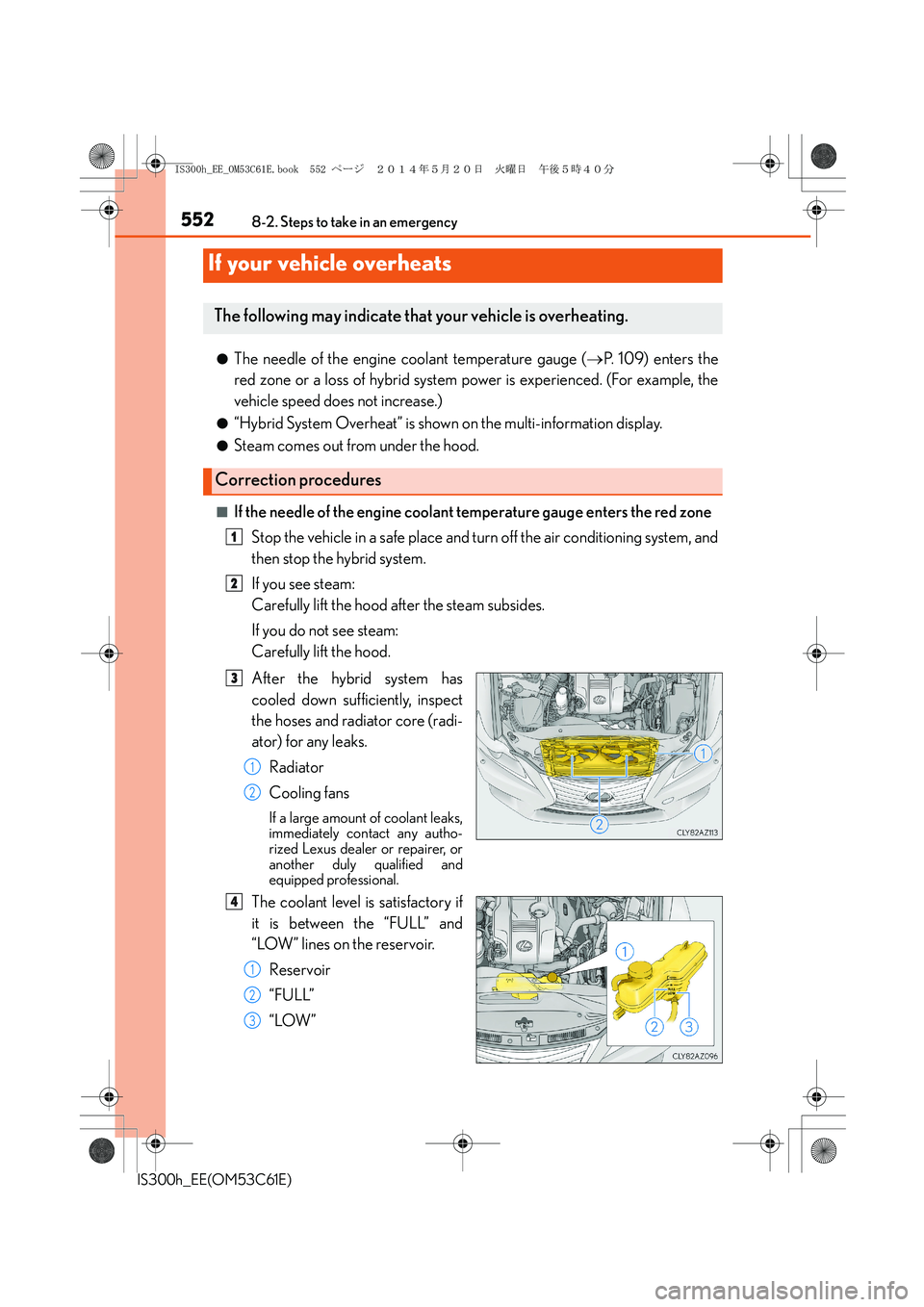

If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2
4
1
2
3
IS300h_EE_OM53C61E.book 552 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5548-2. Steps to take in an emergency
IS300h_EE(OM53C61E)

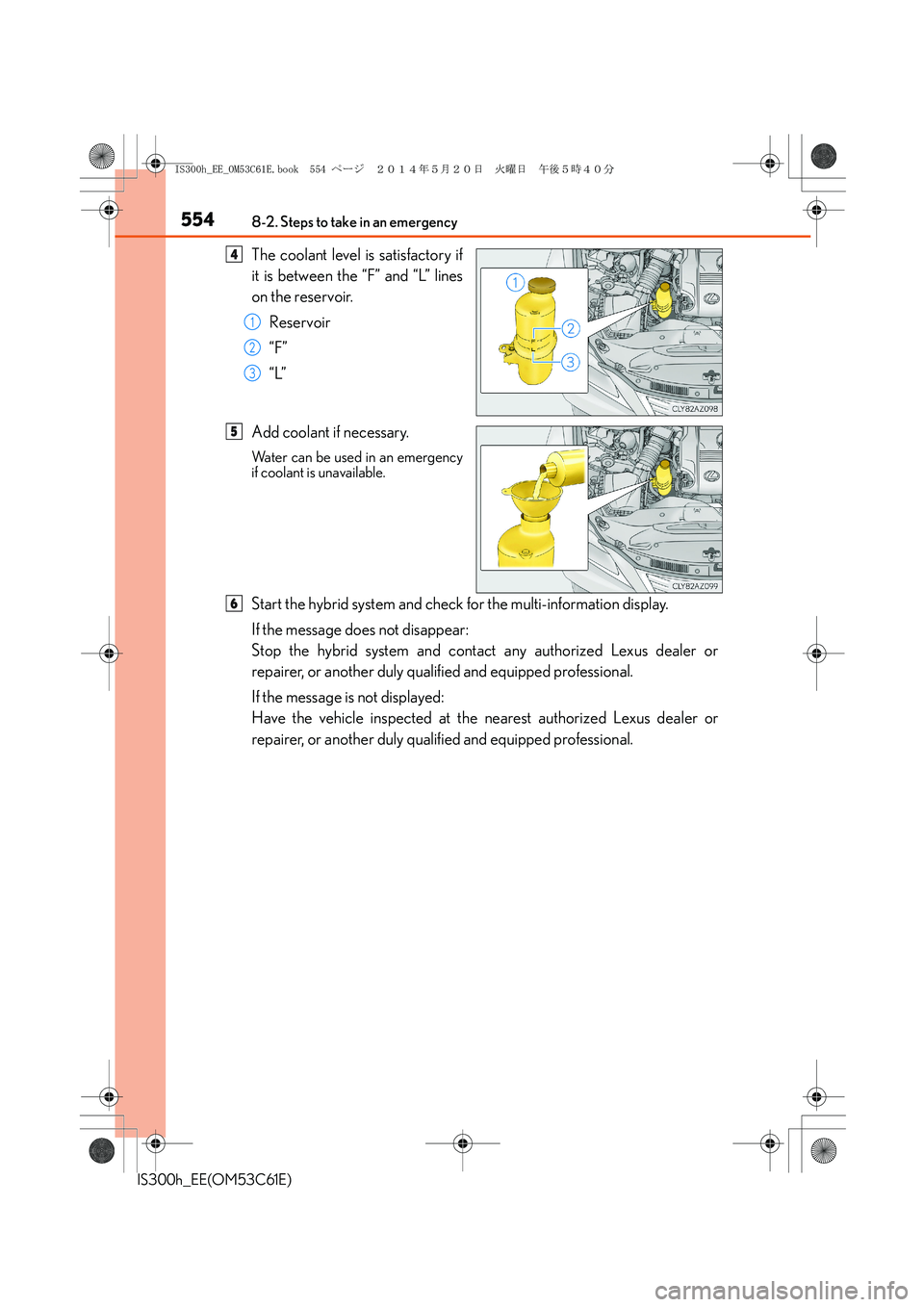

The coolant level is satisfactory if
it is between the “F” and “L” lines
on the reservoir.
Reservoir
“F”
“L”
Add coolant if necessary.
Water can be used in an emergency
if coolant is unavailable.
Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
If the message is not displayed:
Have the vehicle inspected at the nearest authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
4
1
2
3
5
6
IS300h_EE_OM53C61E.book 554 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5558-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53C61E)
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the “READY” indicator is off.
When the hybrid system operating, the gasoline engine may automatically start, or
the cooling fan may suddenly operate even if the gasoline engine stops. Do not touch
or approach rotating parts such as the belt and fan, which may lead to fingers or
clothing (especially a tie, a scarf or a muffler) getting caught, resulting in serious
injury.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool
coolant to a hot hybrid system too quickly can cause damage to the hybrid system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.
●Do not loosen the coolant reservoir caps or
water filler cap while the hybrid system and
radiator are hot.
High temperature steam or coolant could
spray out.
