spare tire location Lexus IS300h 2014 Owner's Manual

1533-2. Opening, closing and locking the doors and trunk
3
Operation of each component
IS300h_EE(OM53C61E)
■Note for the push-start function
●Even when the electronic key is within the effective range (detection areas), the system
may not operate properly when the electronic key is on the instrument panel, rear
package tray or floor, or in the door pockets or glove box when the hybrid system is
started or power switch modes are changed.
●Even if the electronic key is not inside the vehicle, it may be possible to start the hybrid
system if the electronic key is near the window.
■When the vehicle is not driven for extended periods
●Vehicles with entry function: To prevent theft of the vehicle, do not leave the electronic
key within 2 m (6 ft.) of the vehicle.
●The smart entry & start system can be deactivated in advance. (→P. 5 7 3 )
■To operate the system properly
●Make sure to carry the electronic key when operating the system. Do not get the elec-
tronic key too close to the vehicle when operating the system from the outside of the
vehicle.
Depending on the position and holding condition of the electronic key, the key may not
be detected correctly and the system may not operate properly. (The alarm may go off
accidentally, or the door lock prevention function may not operate.)
●Do not leave the electronic key inside the luggage compartment.
The key confinement prevention function may not operate, depending on the location
of the key (close to a spare tire [if equipped], the inside edge of the luggage compart-
ment), conditions (inside a metal bag, close to metallic objects) and the radio waves in
the surrounding area. (→P. 1 4 6 )
■If the smart entry & start system does not operate properly
●Locking and unlocking the doors and opening the trunk: Use the mechanical key.
(→P. 544)
●Starting the hybrid system: →P. 5 4 5
■Customization
Settings (e. g. smart entry & start system) can be changed.
(Customizable features: →P. 5 7 3 )
■If the smart entry & start system has been deactivated in a customized setting
●Locking and unlocking the doors and opening the trunk:
Use the wireless remote control or mechanical key. (→P. 136, 144, 544)
●Starting the hybrid system and changing power switch modes: →P. 5 4 5
●Stopping the hybrid system: →P. 2 1 0
IS300h_EE_OM53C61E.book 153 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4507-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
New tread
Treadwear indicator
Wo r n t r e a d
The location of treadwear indicators is
shown by the “TWI” or “∆” marks, etc.,
molded on the sidewall of each tire.
Check spare tire condition and pressure
if not rotated.
Rotate the tires in the order shown.
To equalize tire wear and help extend tire life, Lexus recommends that tire rota-
tion is carried out approximately every 10000 km (6000 miles).
Do not fail to initialize the tire pressure warning system after tire rotation.
Tires
Replace or rotate tires in accordance with maintenance schedules and tread-
wear.
Checking tires
1
2
3
Tire rotation
XVehicles with front and rear tires of
the same sizeXVehicles with front and rear tires of
differing sizes
FrontFront
IS300h_EE_OM53C61E.book 450 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5268-2. Steps to take in an emergency
IS300h_EE(OM53C61E)
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the hybrid system.
●Turn on the emergency flashers. (→P. 4 9 4 )

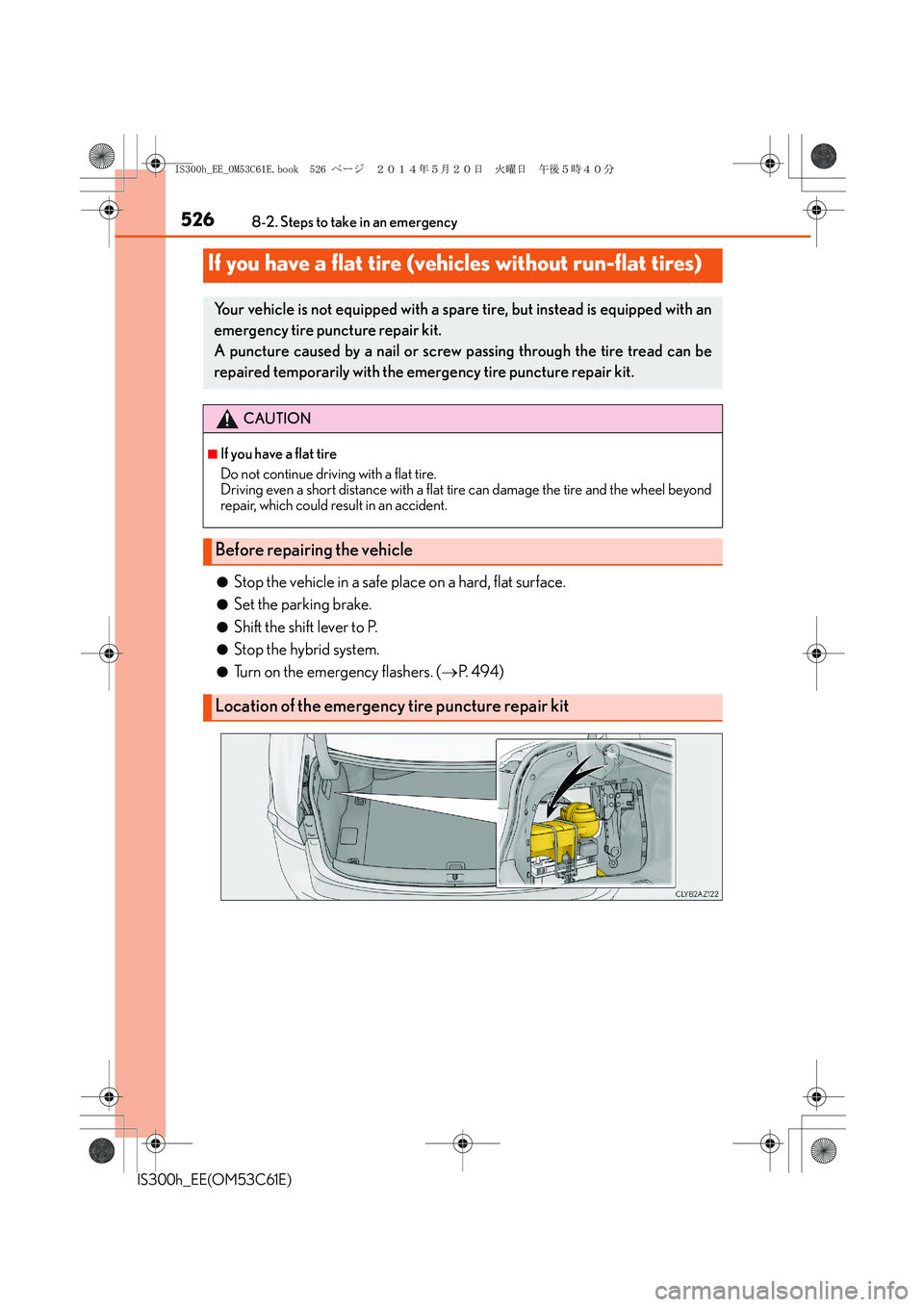

If you have a flat tire (vehicles without run-flat tires)
Your vehicle is not equipped with a spare tire, but instead is equipped with an
emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can be
repaired temporarily with the emergency tire puncture repair kit.
CAUTION
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel beyond
repair, which could result in an accident.
Before repairing the vehicle
Location of the emergency tire puncture repair kit
IS300h_EE_OM53C61E.book 526 ページ ２０１４年５月２０日　火曜日　午後５時４０分
