871-2. Hybrid system
1
For safety and security
IS300h_EE(OM53C61E)

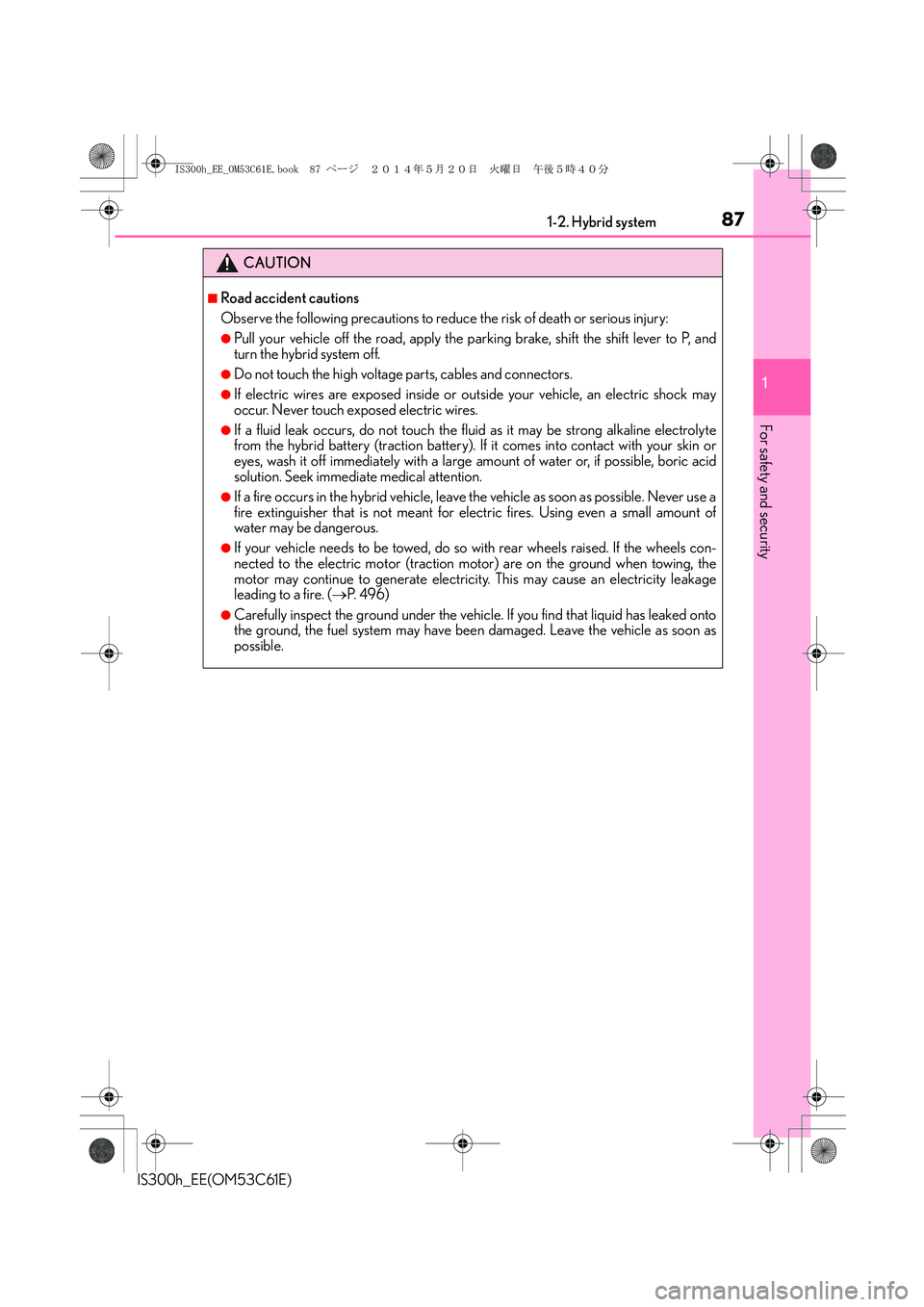

CAUTION
■Road accident cautions
Observe the following precautions to reduce the risk of death or serious injury:
●Pull your vehicle off the road, apply the parking brake, shift the shift lever to P, and
turn the hybrid system off.
●Do not touch the high voltage parts, cables and connectors.
●If electric wires are exposed inside or outside your vehicle, an electric shock may
occur. Never touch exposed electric wires.
●If a fluid leak occurs, do not touch the fluid as it may be strong alkaline electrolyte
from the hybrid battery (traction battery). If it comes into contact with your skin or
eyes, wash it off immediately with a large amount of water or, if possible, boric acid
solution. Seek immediate medical attention.
●If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible. Never use a
fire extinguisher that is not meant for electric fires. Using even a small amount of
water may be dangerous.
●If your vehicle needs to be towed, do so with rear wheels raised. If the wheels con-
nected to the electric motor (traction motor) are on the ground when towing, the
motor may continue to generate electricity. This may cause an electricity leakage
leading to a fire. (→P. 4 9 6 )
●Carefully inspect the ground under the vehicle. If you find that liquid has leaked onto
the ground, the fuel system may have been damaged. Leave the vehicle as soon as
possible.
IS300h_EE_OM53C61E.book 87 ページ ２０１４年５月２０日　火曜日　午後５時４０分

1823-4. Adjusting the steering wheel and mirrors
IS300h_EE(OM53C61E)

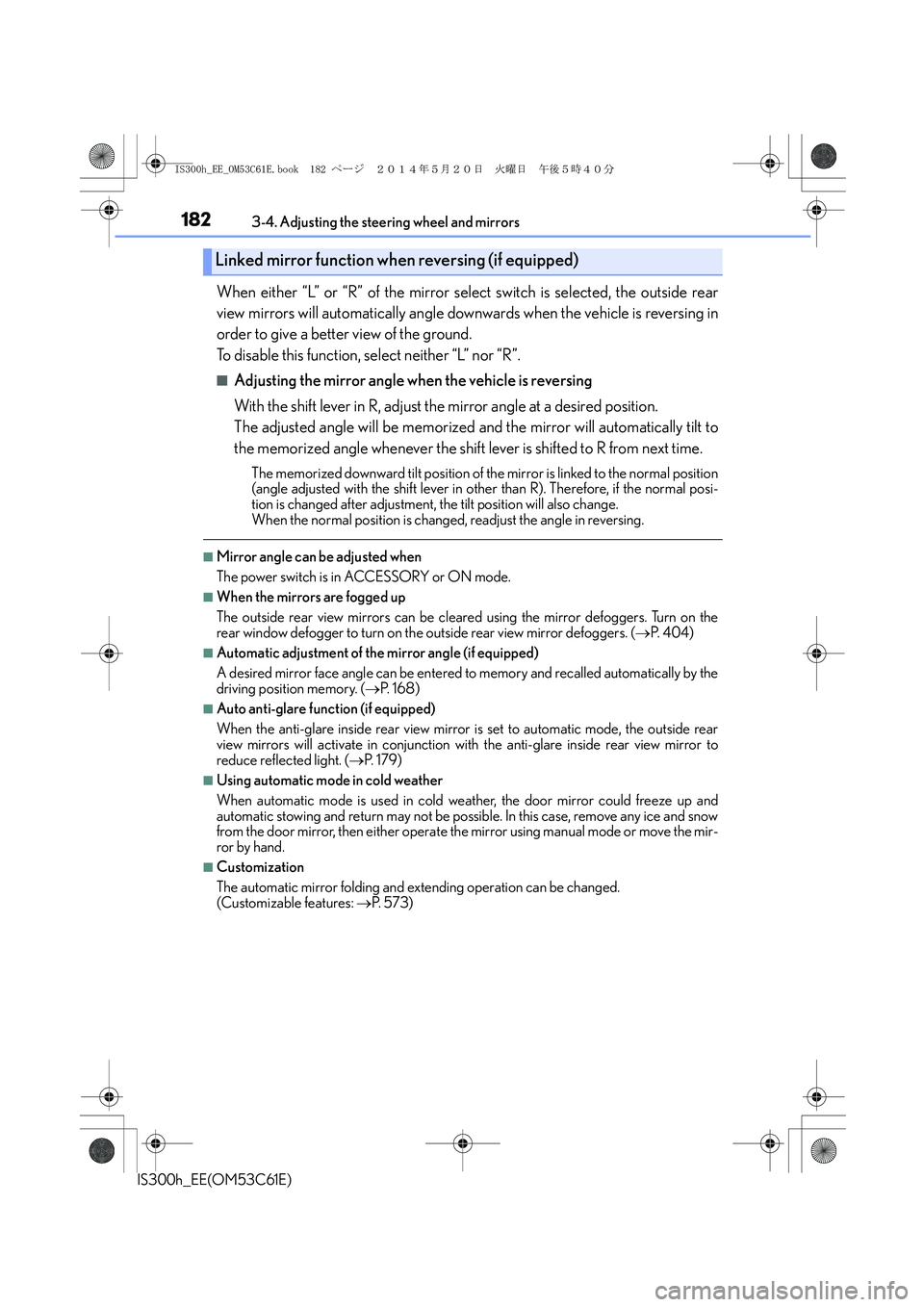

When either “L” or “R” of the mirror select switch is selected, the outside rear
view mirrors will automatically angle downwards when the vehicle is reversing in
order to give a better view of the ground.
To disable this function, select neither “L” nor “R”.
■Adjusting the mirror angle when the vehicle is reversing
With the shift lever in R, adjust the mirror angle at a desired position.
The adjusted angle will be memorized and the mirror will automatically tilt to
the memorized angle whenever the shift lever is shifted to R from next time.
The memorized downward tilt position of the mirror is linked to the normal position
(angle adjusted with the shift lever in other than R). Therefore, if the normal posi-
tion is changed after adjustment, the tilt position will also change.
When the normal position is changed, readjust the angle in reversing.
■Mirror angle can be adjusted when
The power switch is in ACCESSORY or ON mode.
■When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the
rear window defogger to turn on the outside rear view mirror defoggers. (→P. 4 0 4 )
■Automatic adjustment of the mirror angle (if equipped)
A desired mirror face angle can be entered to memory and recalled automatically by the
driving position memory. (→P. 1 6 8 )
■Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the outside rear
view mirrors will activate in conjunction with the anti-glare inside rear view mirror to
reduce reflected light. (→P. 1 7 9 )
■Using automatic mode in cold weather
When automatic mode is used in cold weather, the door mirror could freeze up and
automatic stowing and return may not be possible. In this case, remove any ice and snow
from the door mirror, then either operate the mirror using manual mode or move the mir-
ror by hand.
■Customization
The automatic mirror folding and extending operation can be changed.
(Customizable features: →P. 5 7 3 )
Linked mirror function when reversing (if equipped)
IS300h_EE_OM53C61E.book 182 ページ ２０１４年５月２０日　火曜日　午後５時４０分

191
4Driving
IS300h_EE(OM53C61E)

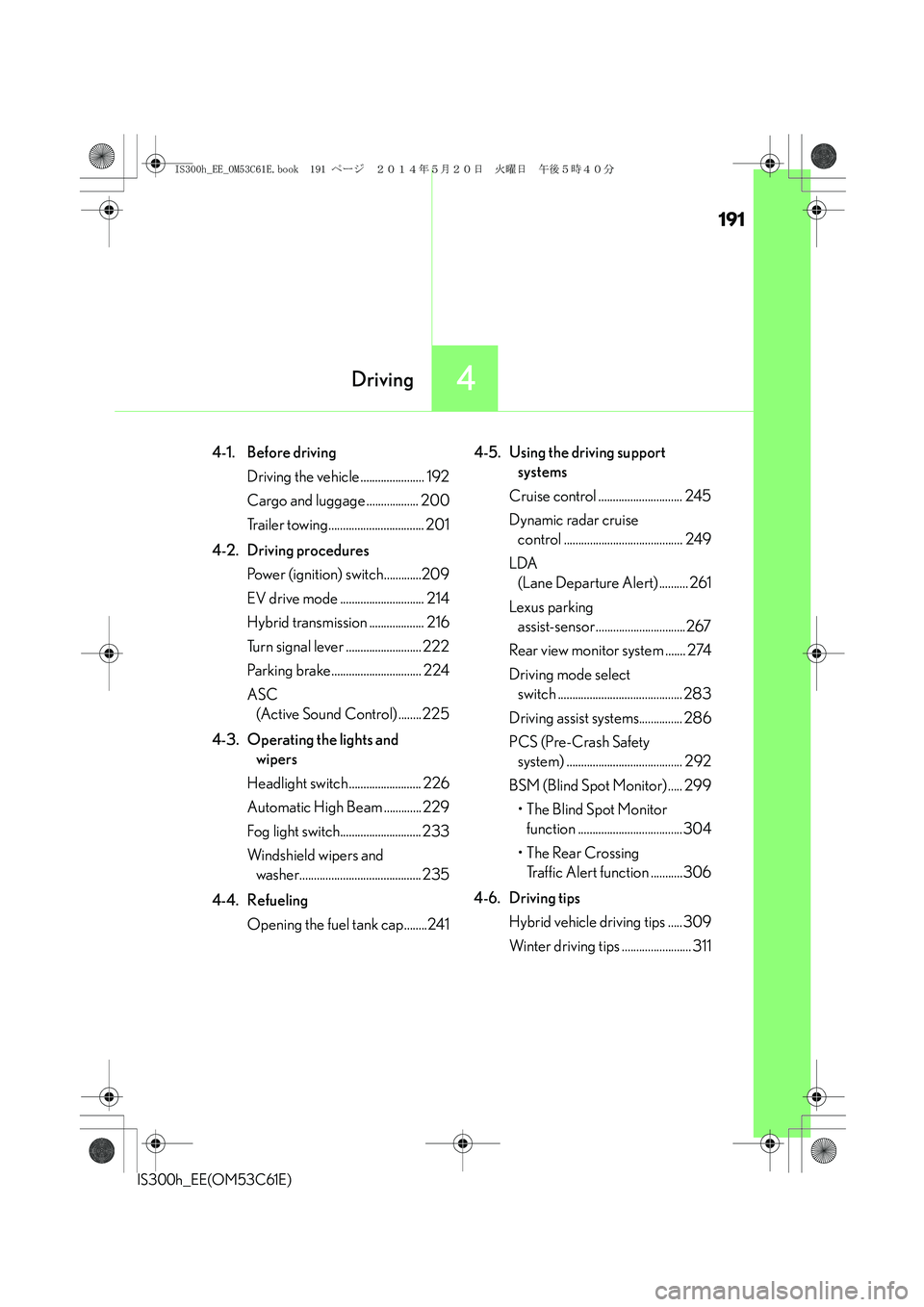

4-1. Before driving
Driving the vehicle ...................... 192
Cargo and luggage .................. 200
Trailer towing................................. 201
4-2. Driving procedures
Power (ignition) switch.............209
EV drive mode ............................. 214
Hybrid transmission ................... 216
Turn signal lever .......................... 222
Parking brake............................... 224
ASC
(Active Sound Control) ........225
4-3. Operating the lights and
wipers
Headlight switch ......................... 226
Automatic High Beam ............. 229
Fog light switch............................ 233
Windshield wipers and
washer.......................................... 235
4-4. Refueling
Opening the fuel tank cap........2414-5. Using the driving support
systems
Cruise control ............................. 245
Dynamic radar cruise
control ......................................... 249
LDA
(Lane Departure Alert) .......... 261
Lexus parking
assist-sensor...............................267
Rear view monitor system ....... 274
Driving mode select
switch ........................................... 283
Driving assist systems............... 286
PCS (Pre-Crash Safety
system) ........................................ 292
BSM (Blind Spot Monitor) ..... 299
•The Blind Spot Monitor
function ....................................304
•The Rear Crossing
Traffic Alert function ...........306
4-6. Driving tips
Hybrid vehicle driving tips .....309
Winter driving tips ........................ 311
IS300h_EE_OM53C61E.book 191 ページ ２０１４年５月２０日　火曜日　午後５時４０分

2014-1. Before driving
4
Driving
IS300h_EE(OM53C61E)
◆We i g h t l i m i t s
Check the allowable towing capacity, GVM (Gross Vehicle Mass), MPAC
(Maximum Permissible Axle Capacity), and permissible draw bar load before
towing. (→P. 5 6 0 )
◆To w i n g h i t c h / b r a c k e t
Lexus recommends the use of the Lexus hitch/bracket for your vehicle. Other
products of a suitable nature and comparable quality may also be used.
◆To prevent an accident
The handling of the vehicle will feel different when towing a trailer. Beware of
the 3 most common causes of towing-related accidents: driver error, exces-
sive speed, and overloading.

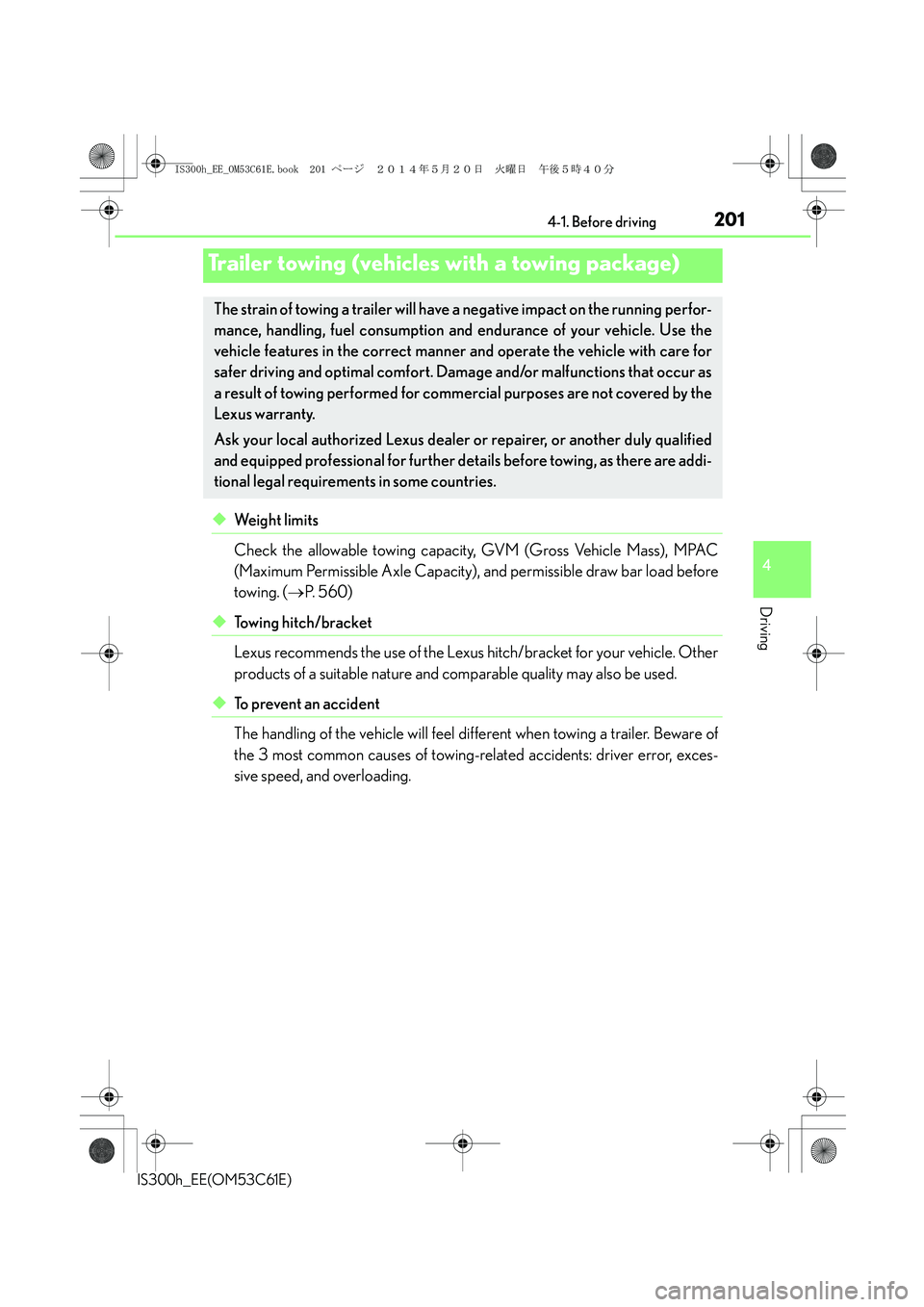

Trailer towing (vehicles with a towing package)
The strain of towing a trailer will have a negative impact on the running perfor-
mance, handling, fuel consumption and endurance of your vehicle. Use the
vehicle features in the correct manner and operate the vehicle with care for
safer driving and optimal comfort. Damage and/or malfunctions that occur as
a result of towing performed for commercial purposes are not covered by the
Lexus warranty.
Ask your local authorized Lexus dealer or repairer, or another duly qualified
and equipped professional for further details before towing, as there are addi-
tional legal requirements in some countries.
IS300h_EE_OM53C61E.book 201 ページ ２０１４年５月２０日　火曜日　午後５時４０分

2024-1. Before driving
IS300h_EE(OM53C61E)
■Total trailer weight and permissible drawbar load
Total trailer weight
Weight of the trailer itself plus the
trailer load should be within the max-
imum towing capacity. Exceeding
this weight is dangerous. (→P. 5 6 0 )
When the total trailer weight is
greater than the vehicle weight, we
recommend the use of a friction sta-
bilizer (sway control device).
Permissible drawbar load
Allocate the trailer load so that the drawbar load is greater than 25 kg (55.1 lb.) or
4% of the towing capacity. Do not let the drawbar load exceed the indicated
weight. (→P. 5 6 0 )
■Information tag (manufacturer’s label)
Gross vehicle mass
The combined weight of the driver, passengers, towing hitch, total curb mass and
drawbar load should not exceed the gross vehicle mass by more than 100 kg
(220.5 lb.). Exceeding this weight is dangerous.
Maximum permissible rear axle capacity
The weight borne by the rear axle should not exceed the maximum permissible
axle capacity by 15% or more. Exceeding this weight is dangerous.
The values for towing capacity were derived from testing conducted at sea level.
Take note that engine output and towing capacity will be reduced at high altitudes.
Important points regarding trailer loads
1
2
XTy p e AXTy p e B
1
2
IS300h_EE_OM53C61E.book 202 ページ ２０１４年５月２０日　火曜日　午後５時４０分

2034-1. Before driving
4
Driving
IS300h_EE(OM53C61E)

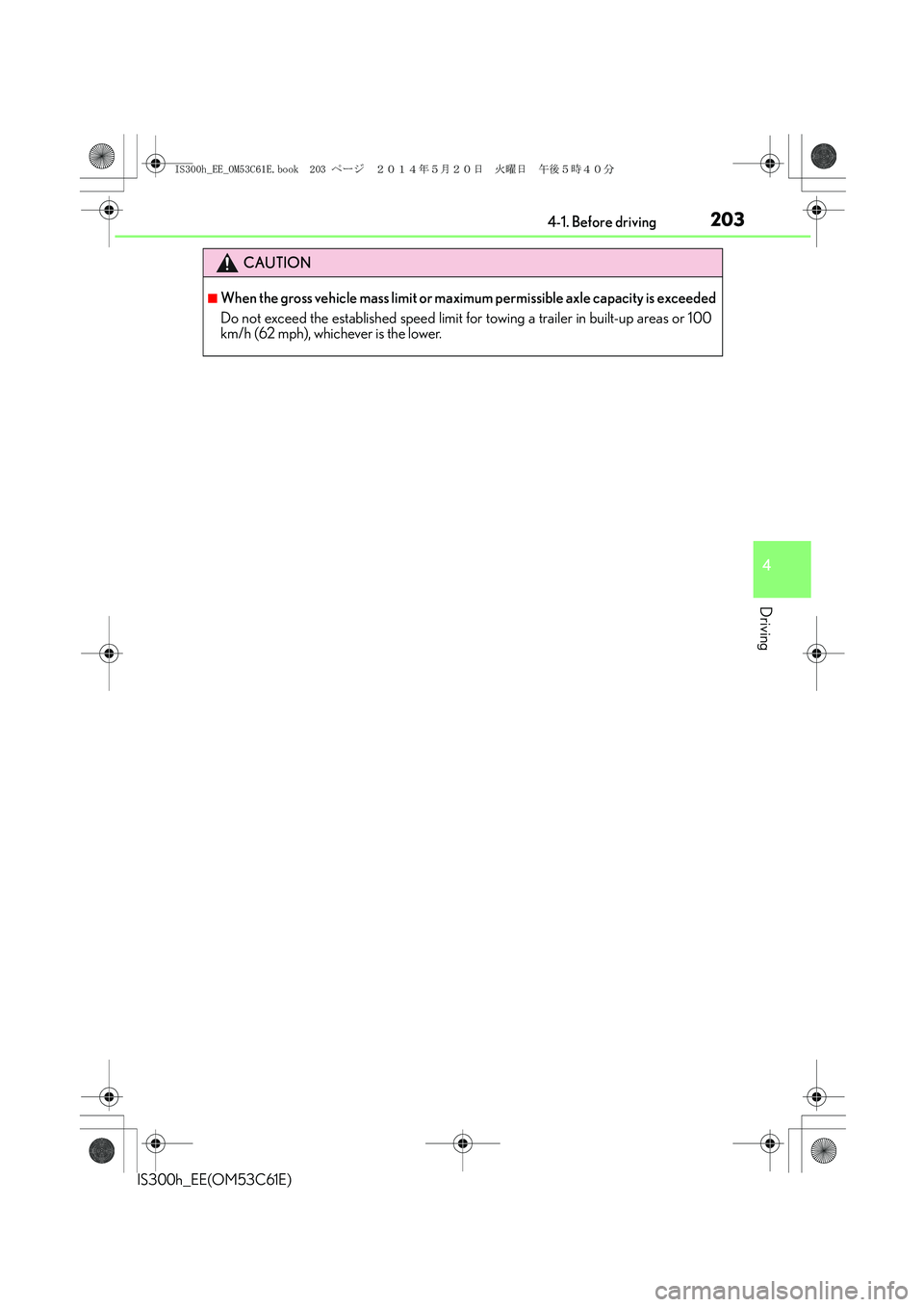

CAUTION
■When the gross vehicle mass limit or maximum permissible axle capacity is exceeded
Do not exceed the established speed limit for towing a trailer in built-up areas or 100
km/h (62 mph), whichever is the lower.
IS300h_EE_OM53C61E.book 203 ページ ２０１４年５月２０日　火曜日　午後５時４０分

2044-1. Before driving
IS300h_EE(OM53C61E)

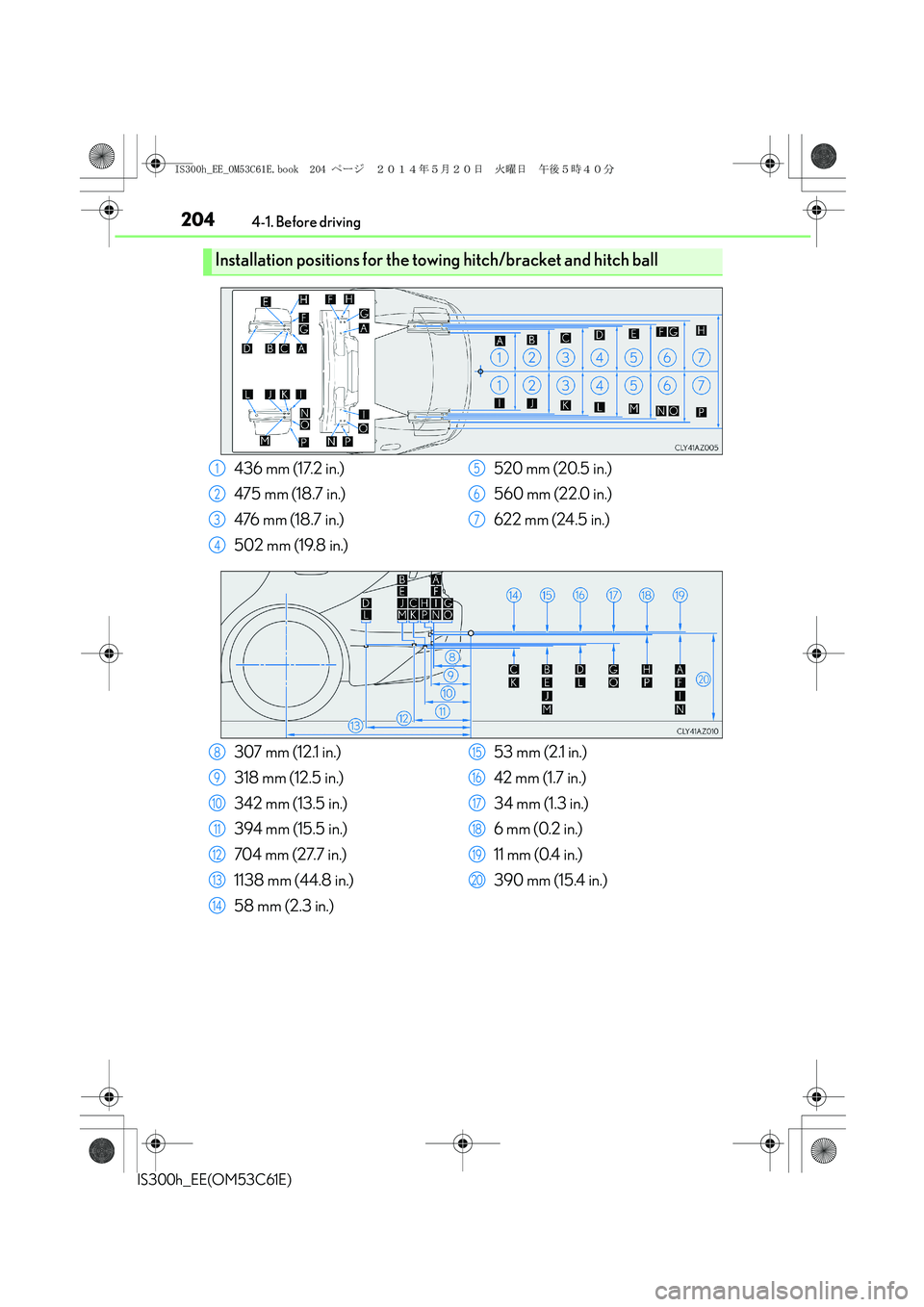

Installation positions for the towing hitch/bracket and hitch ball
436 mm (17.2 in.)
475 mm (18.7 in.)
476 mm (18.7 in.)
502 mm (19.8 in.)520 mm (20.5 in.)
560 mm (22.0 in.)
622 mm (24.5 in.)1
2
3
4
5
6
7
307 mm (12.1 in.)
318 mm (12.5 in.)
342 mm (13.5 in.)
394 mm (15.5 in.)
704 mm (27.7 in.)
1138 mm (44.8 in.)
58 mm (2.3 in.)53 mm (2.1 in.)
42 mm (1.7 in.)
34 mm (1.3 in.)
6 mm (0.2 in.)
11 mm (0.4 in.)
390 mm (15.4 in.)8
9
10
11
12
13
14
15
16
17
18
19
20
IS300h_EE_OM53C61E.book 204 ページ ２０１４年５月２０日　火曜日　午後５時４０分
