Lexus IS300h 2015 Owner's Manual

3415-2. Setup
5
Lexus Display Audio system
IS300h_EE(OM53D56E)
Go to “Voice settings”: → “Setup” → “Voice”
Adjust the voice guidance volume
setting.
■Return to the default settings
Move the controller to the left and select “Default”.

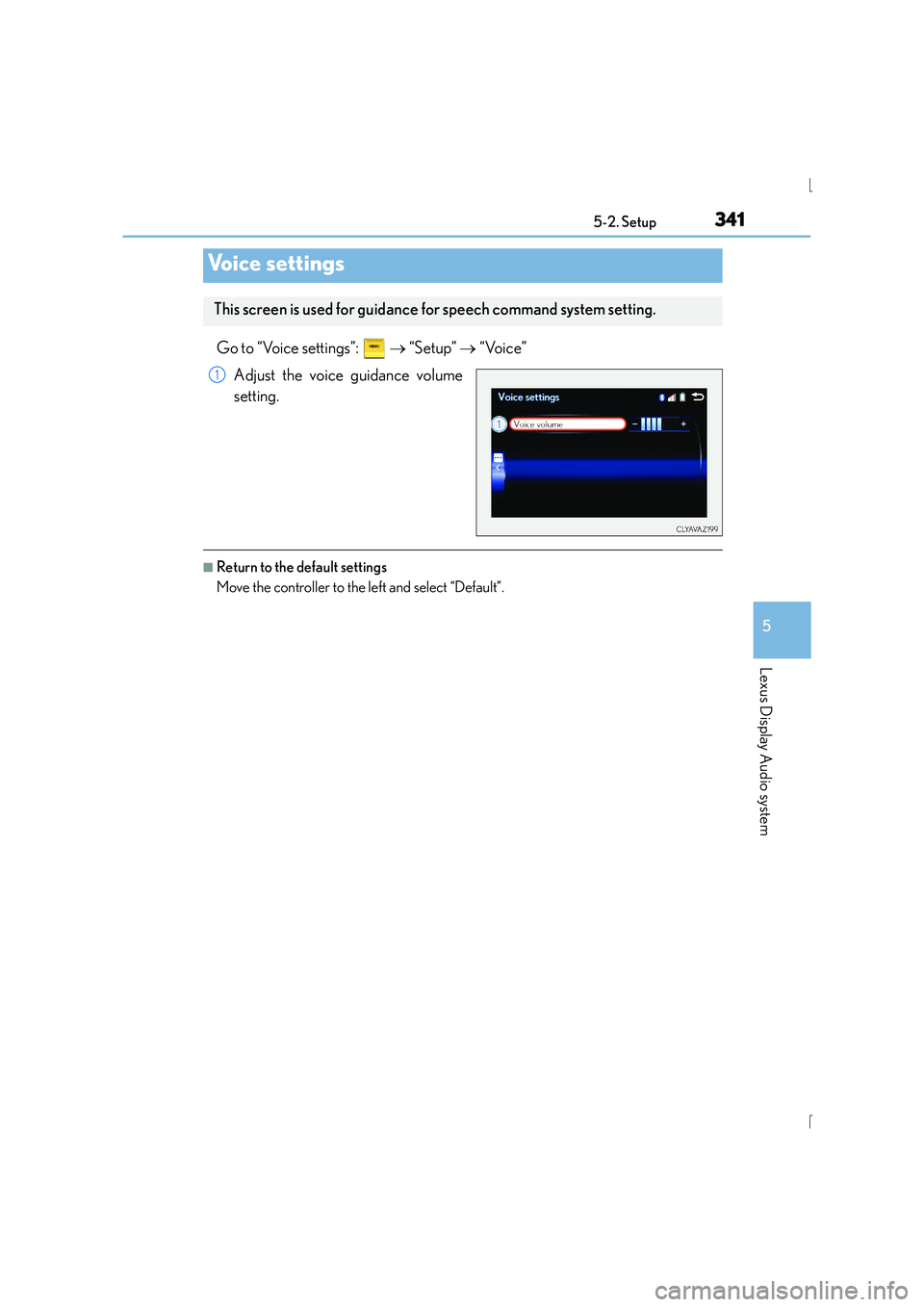

Voice settings
This screen is used for guidance for speech command system setting.
1

3425-2. Setup
IS300h_EE(OM53D56E)
Go to “Display”: → “Display”
Turn off screen.
Adjust screen quality.
Adjust screen quality of the rear
view monitor camera.
Change to day mode.
This setting turns the screen off. To turn it on, press any button such as or .
If a screen off image has been se t, the set image will be displayed.
When the headlights are turned on, the screen dims.
However, the screen can be switched to day mode by selecting “Day mode”.
The screen will stay in day mode when the headlights are turned on until “Day mode”
is selected again.
Select “General” or “Camera” on the “Display” screen or select “Display” on
each audio menu screen. ( →P. 3 4 9 )
Adjust the display as desired by turning the controller clockwise (+) or
counterclockwise (-).
To select “Contrast”, “Brightness”, “Colour” or “Tone”, move the controller to the left.
(when “Display” is selected, “Colour” and “Tone” are available.)
■Changing the sample image (when “General” is selected)
Move the controller to the right and select the desired sample image.
Display settings
Settings are available for adjusting the contrast and brightness of the screen.
The display can also be turned off.
Screen for display settings
1
2
3
4
Screen off
Day mode
Adjusting the screen contrast/brightness/color/tone
1
2

343
5
Lexus Display Audio system
IS300h_EE(OM53D56E)5-3. Using the audio system
Press the button to display the “Source” screen.
If the “Source” screen is not displayed, press the button again.
Select the desired audio source.
The audio source can be selected by pressing the “RADIO” or “MEDIA” button.
Press the “MODE” switch when the audio system is turned on. The audio source
changes each time the “MODE” switch is pressed.
■Rearranging the list
The listing order of the source list can be rearranged.
Move the controller to the left while on the “Source” screen.
Select “Audio source select”.
Select an item you wish to move and th en select where to move the item to.

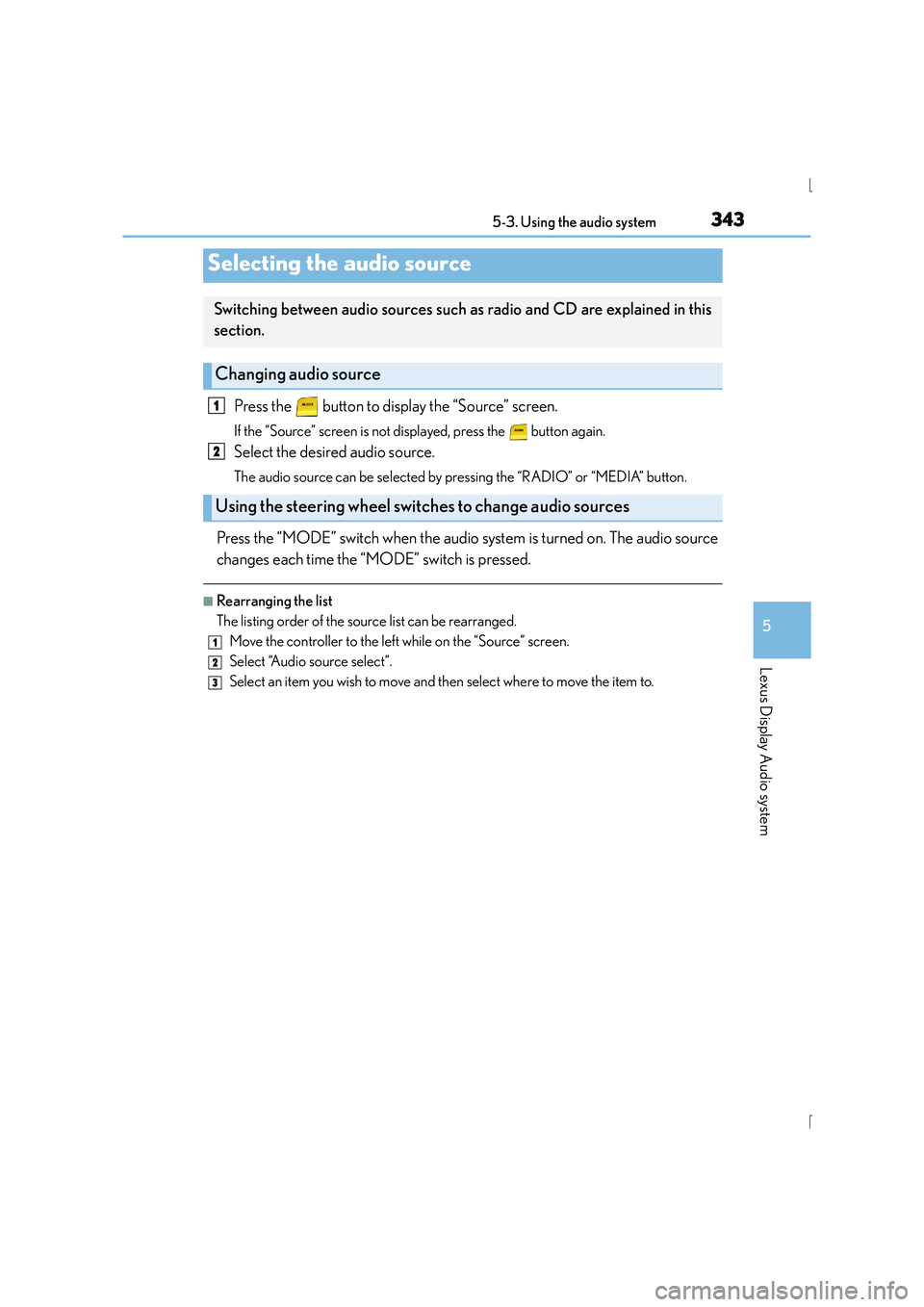

Selecting the audio source
Switching between audio sources such as radio and CD are explained in this
section.
Changing audio source
Using the steering wheel switches to change audio sources
1
2
1
2
3

3445-3. Using the audio system
IS300h_EE(OM53D56E)
Go to “Sound settings”: → “Setup” → “A u d i o ” → “Sound settings”
To change between the sound setting screen and DSP setting screen, move
the controller to the right then select the desired screen.
X“Sound”
Adjust the treble, mid or
bass.
Adjust the front/rear audio bal-
ance.
Adjust the left/right audio bal-
ance.
X“DSP”
Set the automatic sound levelizer
(ASL) on/off
■The sound quality level is adjusted individually
The treble, mid and bass levels can be adjusted for each audio mode separately.
■About Automatic Sound Levelizer (ASL)
ASL automatically adjusts the volume and tone quality according to the vehicle speed.

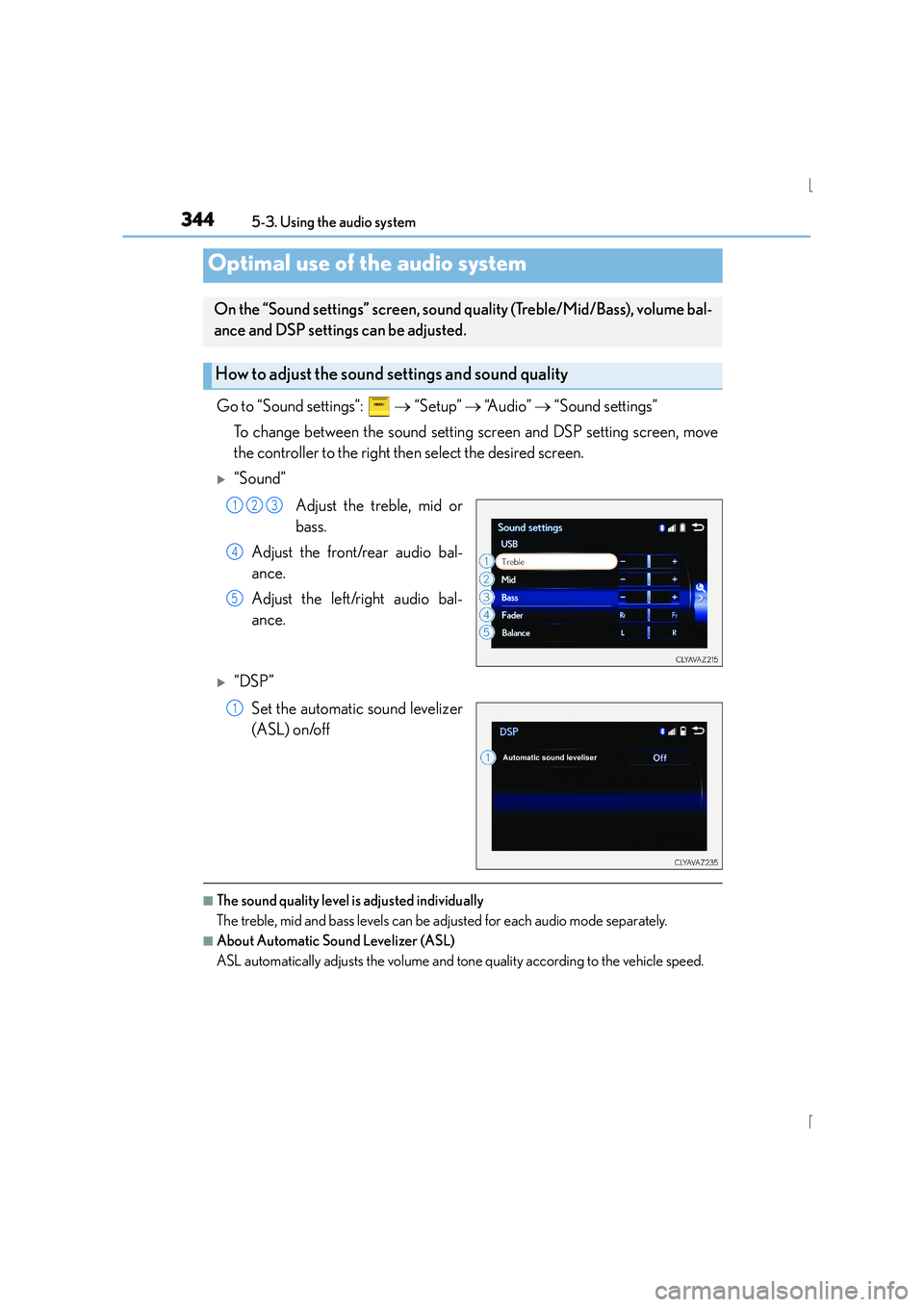

Optimal use of the audio system
On the “Sound settings” screen, sound quality (Treble/Mid/Bass), volume bal-
ance and DSP settings can be adjusted.
How to adjust the sound settings and sound quality
123
4
5
1

3455-3. Using the audio system
5
Lexus Display Audio system
IS300h_EE(OM53D56E)
Go to “Audio settings”: → “Setup” → “Audio”
Change sound settings ( →P. 344)
Change FM radio settings
( → P. 3 4 6 )
Change DAB settings ( →P. 3 4 6 )
Change iPod settings ( →P. 3 4 7 )
Change USB settings ( →P. 3 4 7 )
Change A/V settings ( →P. 3 4 8 )
Change the cover art settings ( →P. 3 4 8 )

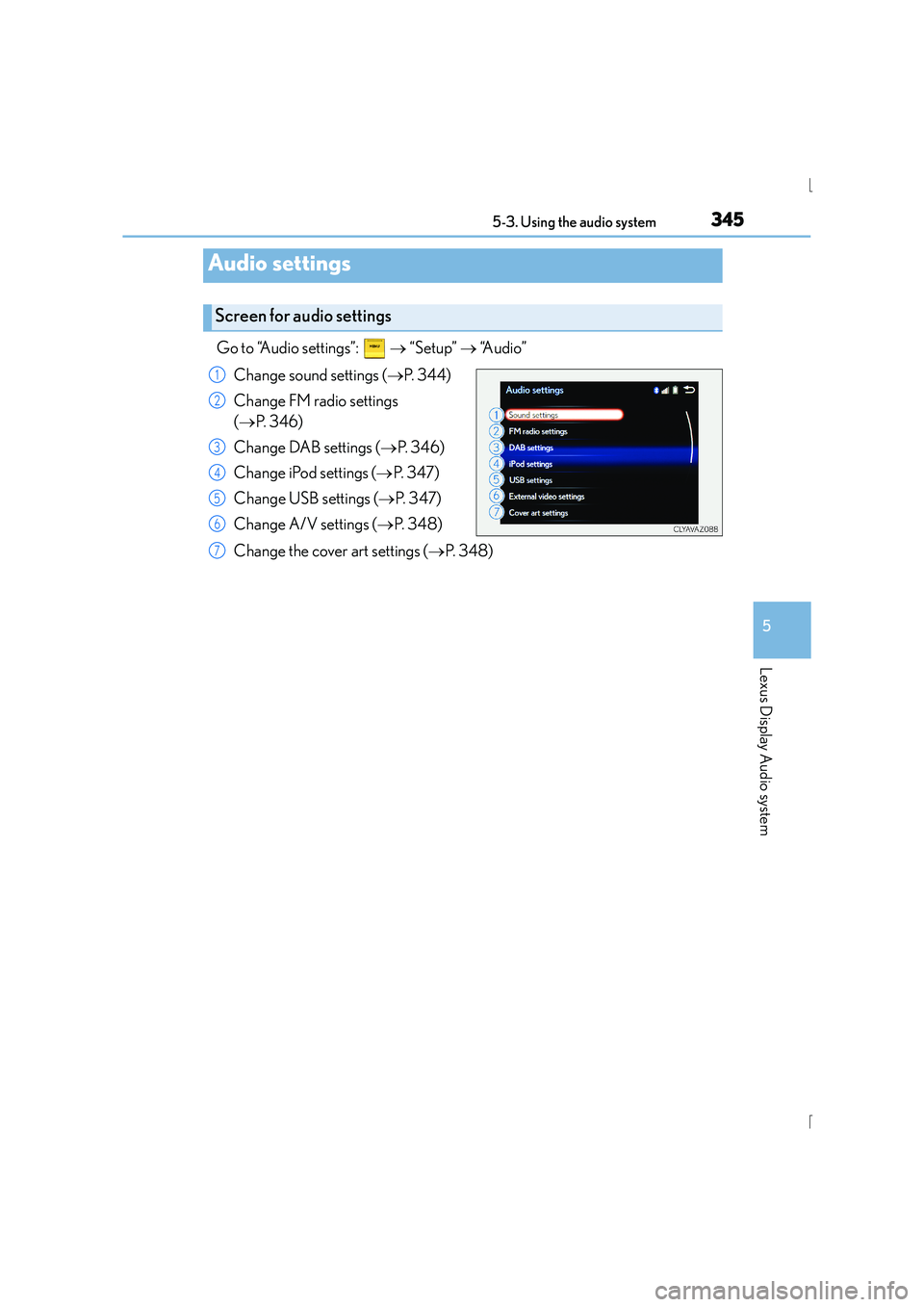

Audio settings
Screen for audio settings
1
2
3
4
5
6
7

3465-3. Using the audio system
IS300h_EE(OM53D56E)
Change the order of the station list
Select to set the traffic announce-
ment interrupt operation on/off
When traffic announcement is set to on,
the radio will begin seeking a TP station.
(→ P. 3 5 3 )
Select to set the alternative fre-
quency network following operation
on/off
When alternative frequency is set to on, a station providing good reception is auto-
matically selected if current reception worsens.
Select to set the region code change operation on/off
When region code change operation is se t to on, programs will switch over to a
broadcasting station within the same local program network.
Select to set the FM Radio text feature on/off
Update the DAB station list
Select to set the L-band on/off
When set to off, the physical channel
range for tune operations is limited to
Band III except preset operations.
When set to on, the physical channel
range for tune operations is Band III and
L-band.
Select to set traffic announcement
operation on/off
When traffic announcement is set to on, the tuner will automatically seek a station that
regularly broadcasts traffic information and the station will broadcast when the traffic
information program starts.
Select to set alternative frequency net work following operation on/off
When alternative frequency is set to on, a station providing good reception is auto-
matically selected if current reception worsens.
Select to set the DAB radio text feature on/off

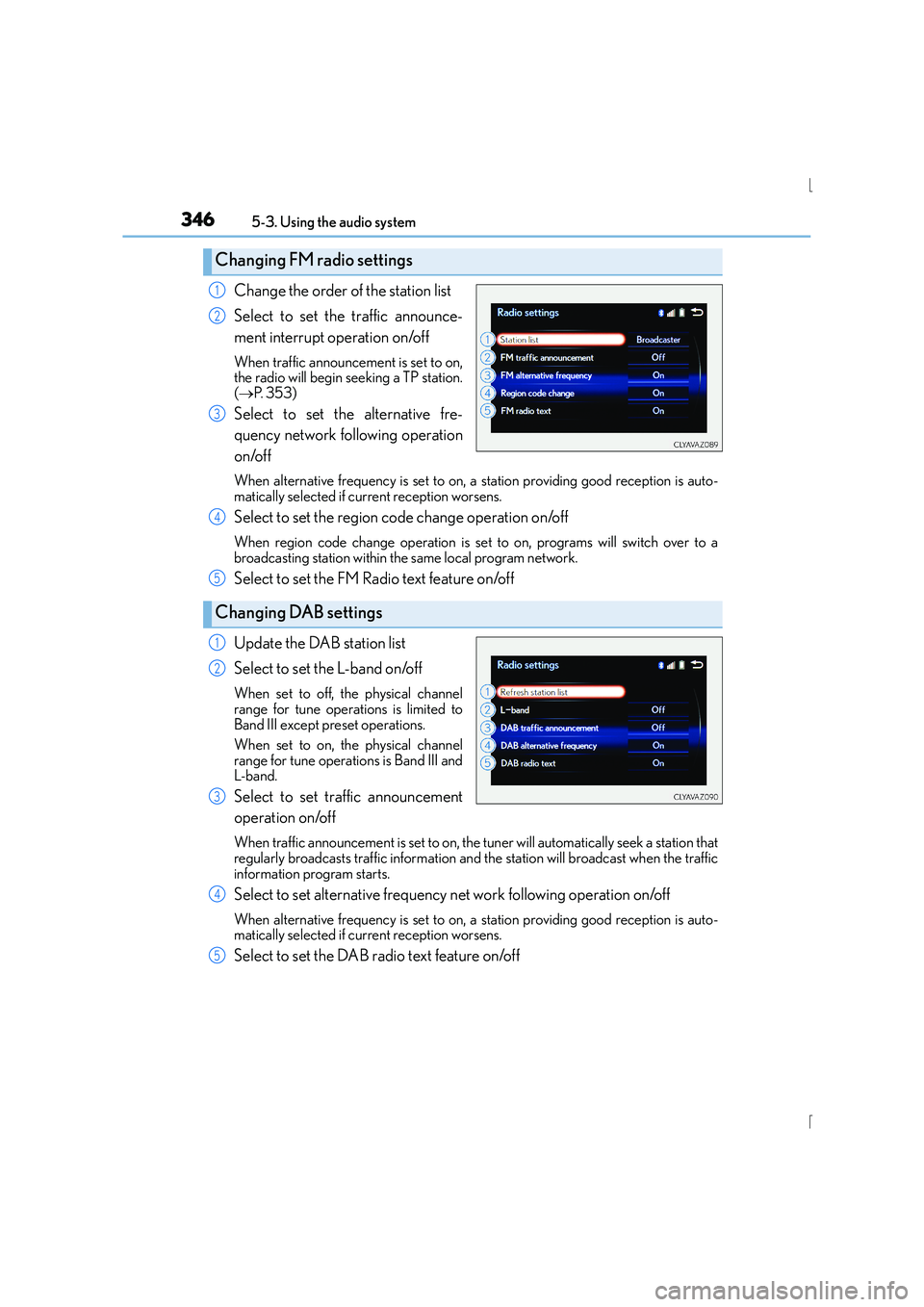

Changing FM radio settings
1
2
3
Changing DAB settings
4
5
1
2
3
4
5

3475-3. Using the audio system
5
Lexus Display Audio system
IS300h_EE(OM53D56E)
Change the screen size (video
mode)
Change the cover art settings
(→ P. 3 4 8 )
Adjust the screen quality (video
mode) ( →P. 3 4 2 )
Change video so und input port
Change the screen size (video
mode)
Change the cover art settings
( → P. 3 4 8 )
Adjust the screen quality (video
mode) ( →P. 3 4 2 )

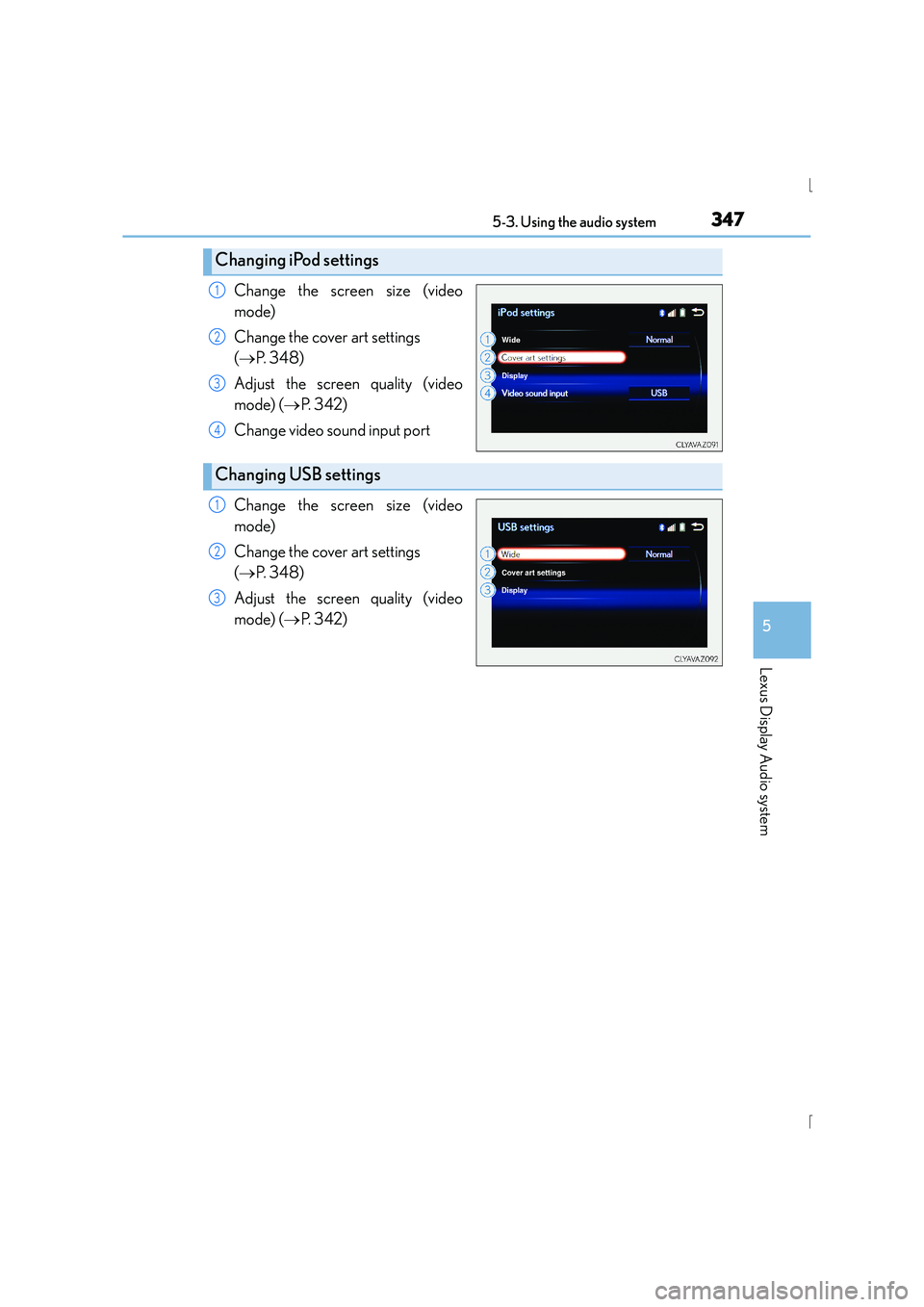

Changing iPod settings
1
2
3
4
Changing USB settings
1
2
3

3485-3. Using the audio system
IS300h_EE(OM53D56E)
Change the screen size
Change the video signal
Adjust the screen quality (→P. 3 4 2 )
Select to set the cover art display of
DISC mode on/off.
Select to set the cover art display of
USB mode on/off.
Change the priority of the cover art
display for USB mode.
Select to set the cover art display of
iPod mode on/off.
Change the priority of the cover art display for iPod mode.

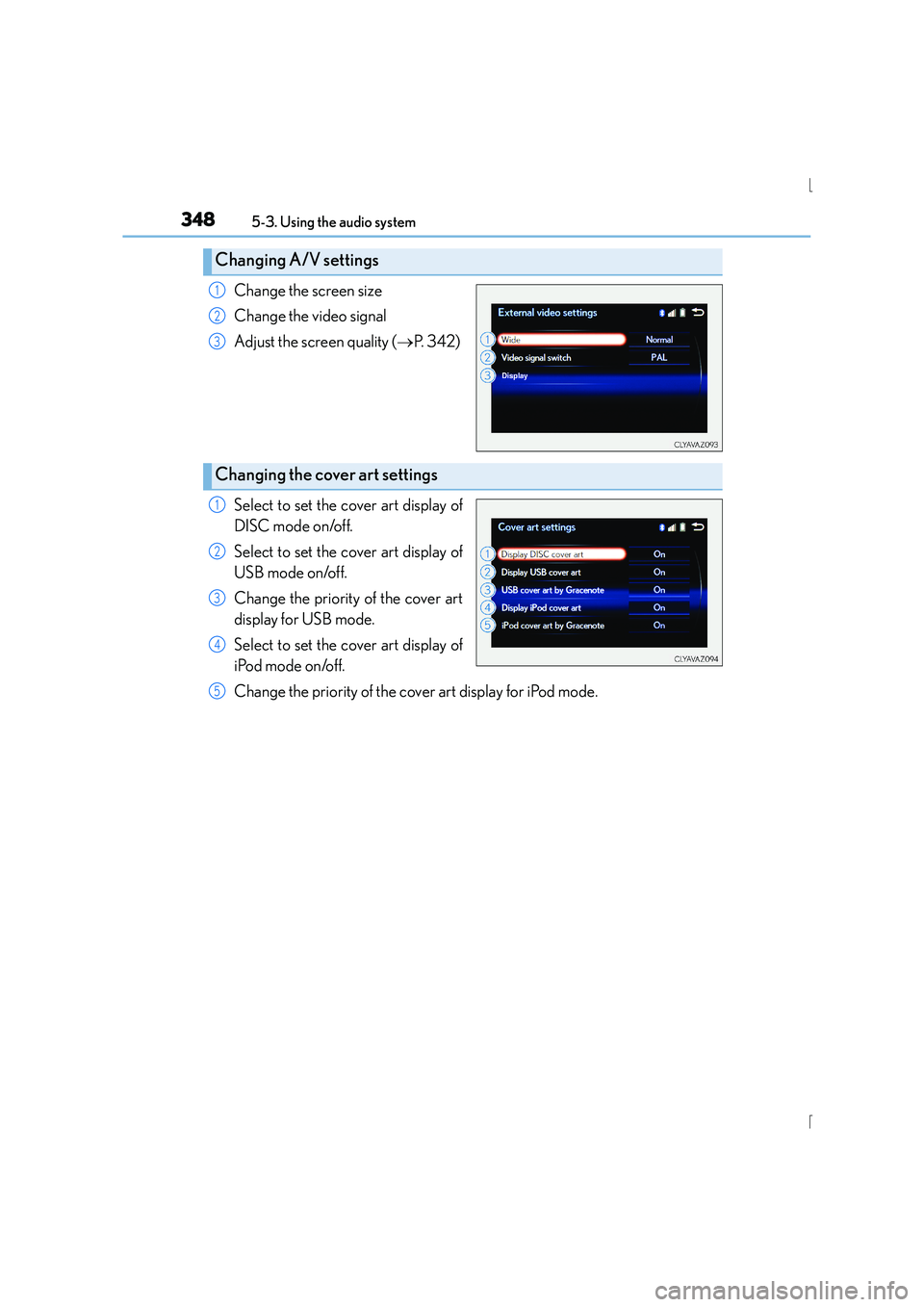

Changing A/V settings
1
2
3
Changing the cover art settings
1
2
3
4
5

3495-3. Using the audio system
5
Lexus Display Audio system
IS300h_EE(OM53D56E)
To display the audio menu screen, move the controller to the left while on an
audio top screen.
XFM or AM radioSeek a station of the nearest fre-
quency (stops when a station is
found) (manual mode)
Change FM radio settings
(→ P. 3 4 6 )
Change DAB settings ( →P. 3 4 6 )
XDAB
Adjust the playback offset time on
time shift mode
Cancel time shift operation
Select an ensemble (manual
mode)
Select a service (manual mode)
Change FM radio settings
(→ P. 3 4 6 )
Change DAB settings ( →P. 3 4 6 )

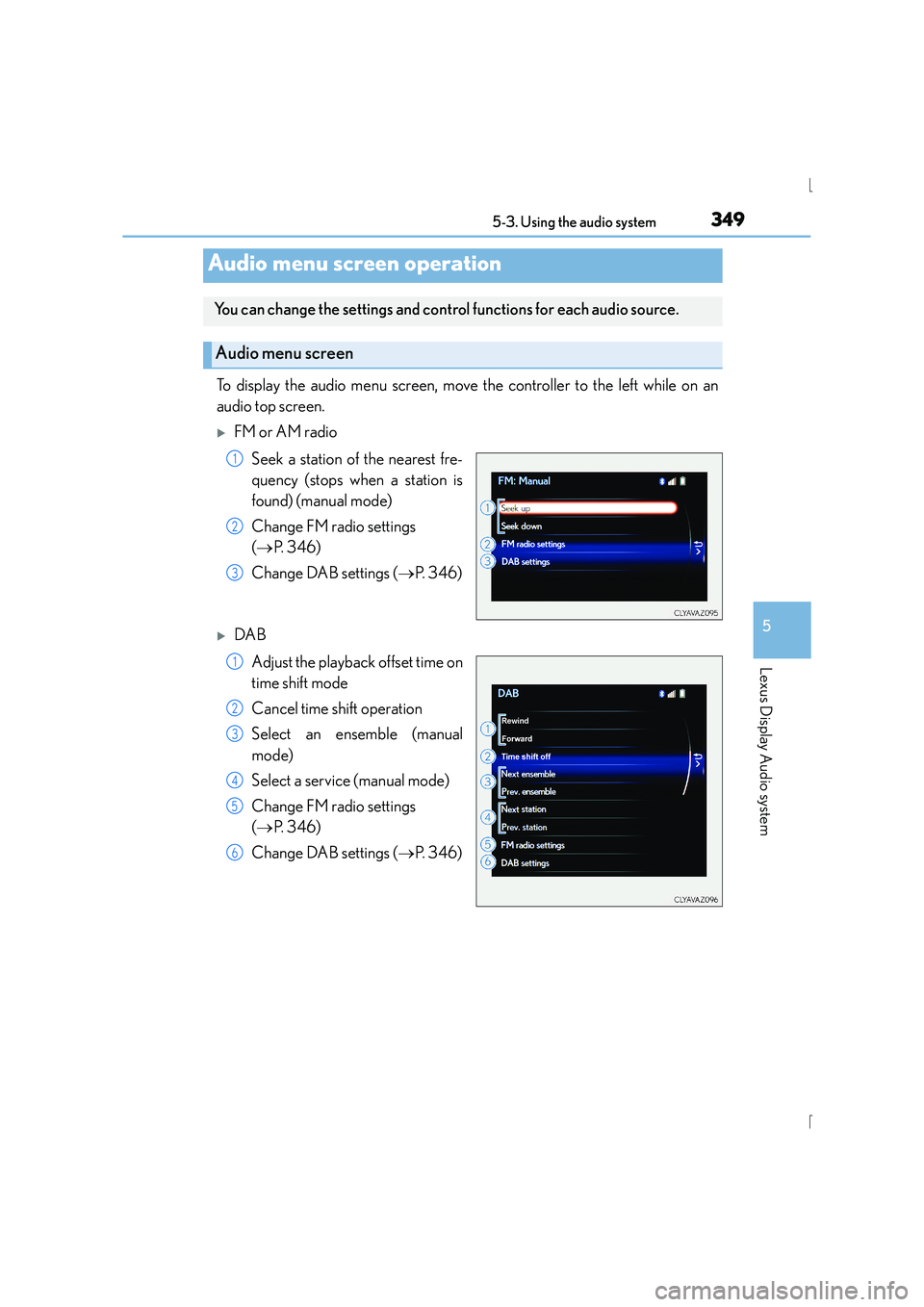

Audio menu screen operation
You can change the settings and cont rol functions for each audio source.
Audio menu screen
1
2
3
1
2
3
4
5
6

3505-3. Using the audio system
IS300h_EE(OM53D56E)
XCD, MP3/WMA/AAC disc, USB, Bluetooth® or iPod
Play or pause a track/file/song
Select a track/file/song
Select a folder/album (MP3/
WMA/AAC disc or USB)
Select and hold: Fast-forward or
reverse a track/file/song
Select a repeat mode. ( →P. 3 5 1 )
Select a random/shuffle play
mode. ( →P. 3 5 1 )
Select the full screen mode. (USB
video or iPod video mode)
Change USB settings (USB)
( → P. 3 4 7 )
Change iPod settings (iPod)
( → P. 3 4 7 )
Connect a Bluetooth
® device (Bluetooth®) ( → P. 3 7 3 )
Change the cover art settings (CD or MP3/WMA/AAC disc) ( →P. 3 4 8 )
XAUX or A/V
Select the full screen mode (A/V)
Change A/V settings (A/V)
(→ P. 3 4 8 )
1
2
3
4
5
6
7
8
9
10
11
1
2
