Lexus IS300h 2015 Owner's Manual

5318-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D56E)
Indicates that the hybrid battery (traction battery) is lowA buzzer also sounds.
→ When stopping the vehicle for a long period of time,
shift the shift lever to P. The hybrid battery (traction
battery) cannot be charged with the shift lever in N.
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the vehicle is being driven at 5 km/h (3
mph) or more with the parking brake still engaged
A buzzer also sounds.
→ Release the parking brake.
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates a malfunction in:
•The ABS; or
• The brake assist system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the engine coolant temperature is too high
A buzzer also sounds.
→ P. 5 7 1
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)

5328-2. Steps to take in an emergency
IS300h_EE(OM53D56E)
(If equipped)
Indicates that the radar sensor is dirty or covered with
iceA buzzer also sounds.
→ Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control system is
unable to judge vehicle-to-vehicle distance
A buzzer also sounds.
→ Tu r n o f f s n o w m o d e .
If the windshield wipers are on, turn them off or set
them to a mode other than AUTO or high speed
wiper operation.
(If equipped)
Indicates that the LDA (Lane Departure Alert) system is
suspended
The camera sensor temperature is higher than the
operation temperature range.
A buzzer also sounds.
→ Restart the LDA after driving for a while.
(If equipped)
Indicates that:
• The grille shutter system cannot operate; or
• The grille shutter is dirty or covered with ice
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
→ Clean the sensor and its surrounding area on the
bumper.
(If equipped)
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control system
Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Wa r n i n g m e s s a g eDetails/Actions

5338-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D56E)
(If equipped)

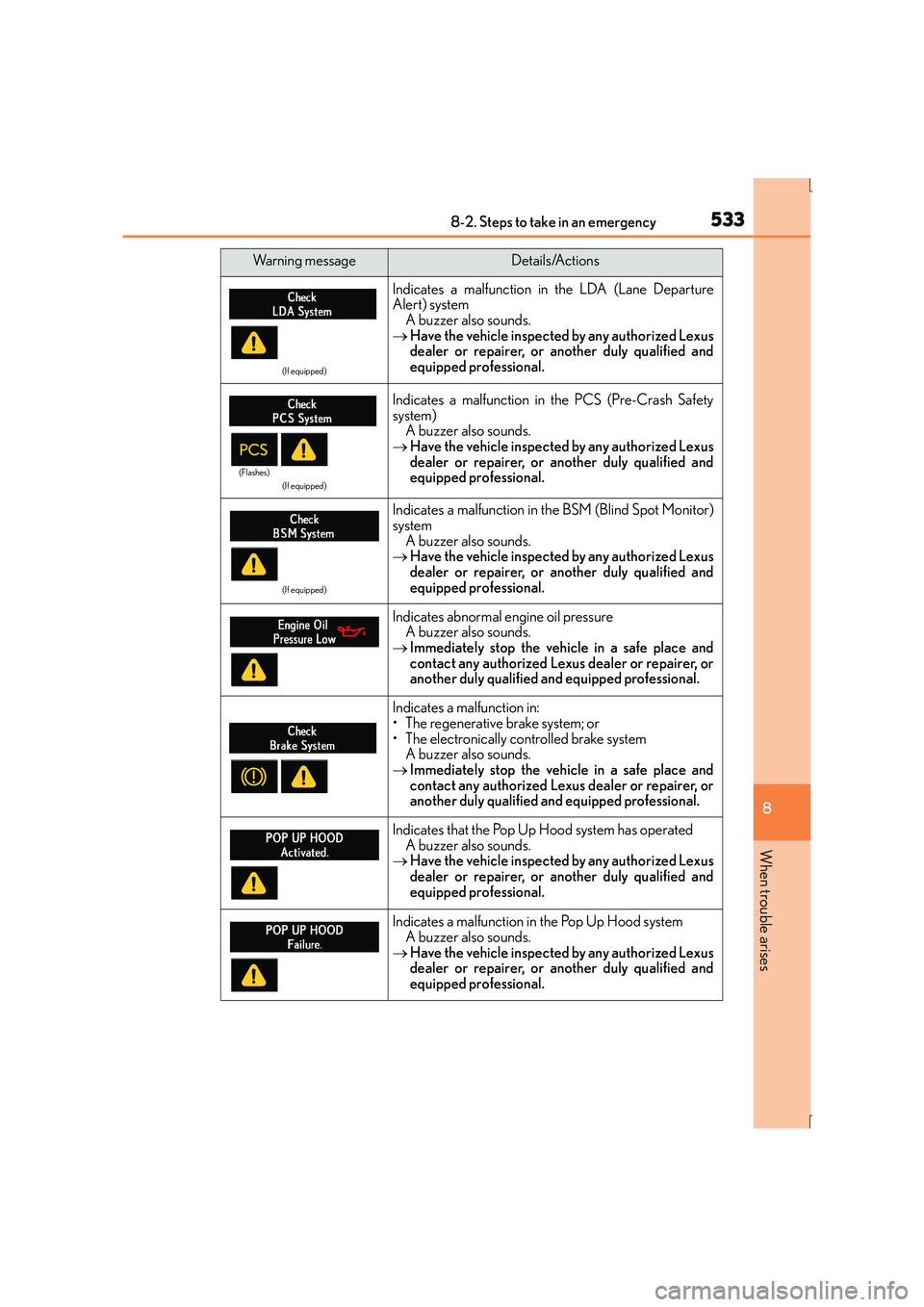

Indicates a malfunction in the LDA (Lane Departure
Alert) systemA buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
(If equipped)
Indicates a malfunction in the PCS (Pre-Crash Safety
system)
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates abnormal engine oil pressure
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place and
contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Indicates a malfunction in:
• The regenerative brake system; or
• The electronically controlled brake system
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place and
contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Indicates that the Pop Up Hood system has operated
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates a malfunction in the Pop Up Hood system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

5348-2. Steps to take in an emergency
IS300h_EE(OM53D56E)

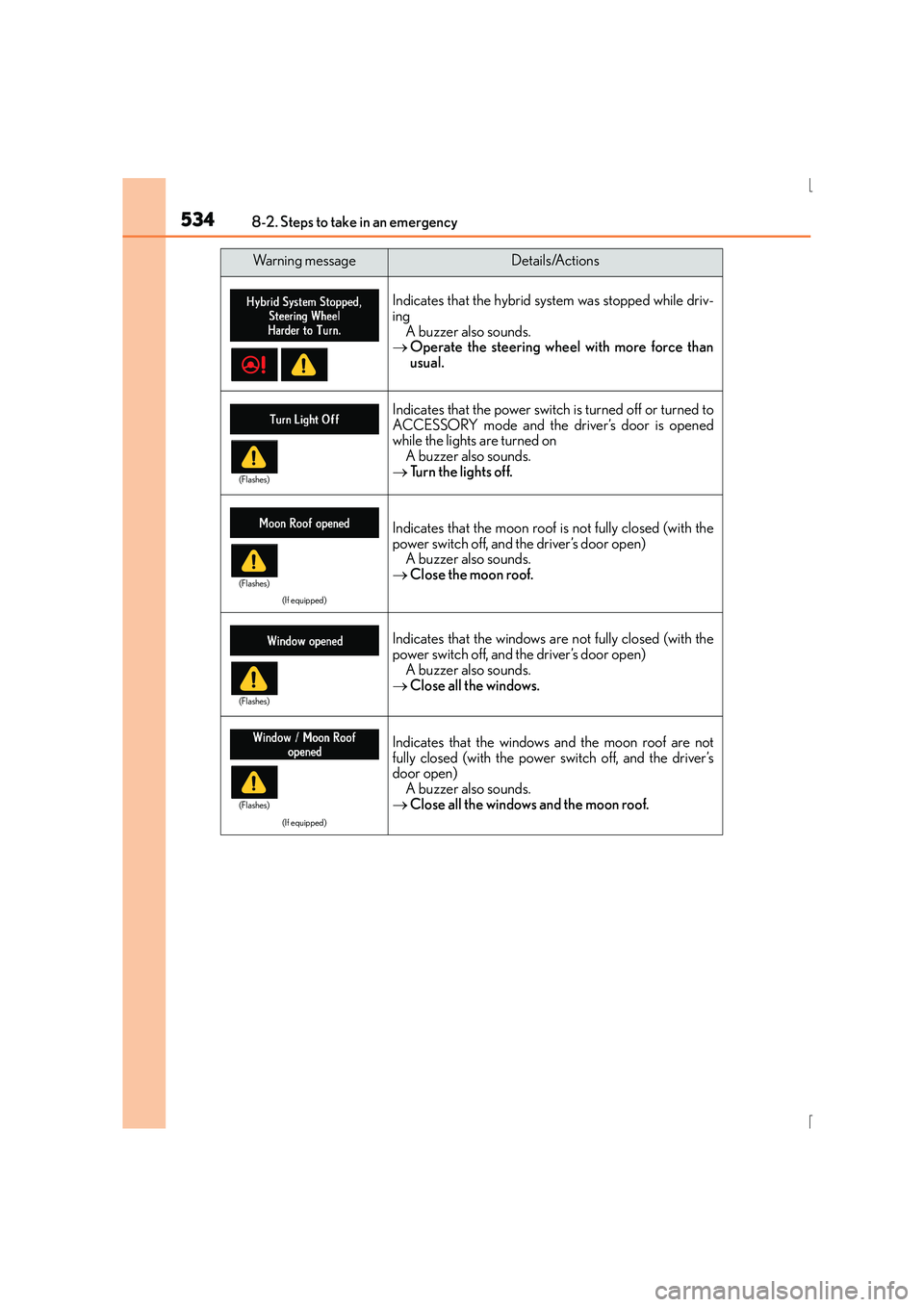

Indicates that the hybrid system was stopped while driv-
ingA buzzer also sounds.
→ Operate the steering wheel with more force than
usual.
Indicates that the power switch is turned off or turned to
ACCESSORY mode and the driver’s door is opened
while the lights are turned on
A buzzer also sounds.
→ Turn the lights off.
(If equipped)
Indicates that the moon roof is not fully closed (with the
power switch off, and the driver’s door open)
A buzzer also sounds.
→ Close the moon roof.
Indicates that the windows are not fully closed (with the
power switch off, and the driver’s door open)
A buzzer also sounds.
→ Close all the windows.
(If equipped)
Indicates that the windows and the moon roof are not
fully closed (with the power switch off, and the driver’s
door open)
A buzzer also sounds.
→ Close all the windows and the moon roof.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)

5358-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D56E)
Indicates a malfunction in the brake override systemA buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that engine oil level is low
A buzzer also sounds.
→ Check the level of engine oil, and add if necessary.
Indicates that the hybrid system has overheated
This message may be displayed when driving under
severe operating conditions. (For example, when driv-
ing up a long steep hill.)
A buzzer also sounds.
→ Stop and check. ( →P. 5 7 1 )
Indicates a malfunction in:
• The automatic headlight leveling system; or
• The Automatic High Beam system (if equipped)
• The LED headlight system (if equipped)
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the accelerator and brake pedal are being
depressed simultaneously
→Release the accelerator or brake pedal.
Maintenance of the hybrid battery (traction battery)
cooling component is required
The filter may be clogged, the air intake vent may be
blocked or there may be a gap in the duct
→ Have maintenance performed on the hybrid battery
(traction battery) cooling component by any autho-
rized Lexus dealer or repairer, or another duly qual-
ified and equipped professional.
Indicates that the washer fluid level is low
→Add washer fluid.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

5368-2. Steps to take in an emergency
IS300h_EE(OM53D56E)
Indicates that remaining fuel is approximately 10 L (2.6
gal., 2.2 Imp. gal.) or less
→Refuel the vehicle.
Indicates that the TRC (Tr action Control) system has
been deactivated
→ Tu r n t h e T R C o n . ( →P. 2 9 8 )
Indicates that the engine oil is scheduled to be changed.
(The indicator will not work properly unless the message
has been reset.)
→ Check the engine oil, and change if necessary.
After changing the engine oil, the message should
be reset.
Indicates that the engine oil should be changed. (After
the engine oil is changed and the message has been
reset.)
→Check and change the engine oil, and oil filter by
any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional. After
changing the engine oil, the message should be
reset.
(If equipped)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
→ Turn the high beam on and press the Automatic
High Beam switch again.
(If equipped)
Indicates that, since the VSC (Vehicle Stability Control)
system was turned off, the pre-crash brake system oper-
ation is stopped
→Tu r n t h e V S C o n . ( →P. 2 9 8 )
(If equipped)
Indicates that the PCS (Pre-Crash Safety system) is not
currently functional because the grille cover or the sen-
sor is dirty
→ Check the grille cover and the sensor and clean
them if they are dirty.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

5378-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D56E)
Indicates that operation of large electricity consuming
systems such as the air conditioning system are sus-
pended
→ Stop using unnecessary electric components to
reduce electricity consumpt ion. Wait a while until
the electric power supply is restored.
(If equipped)
Indicates that the LDA (Lane Departure Alert) system
cannot be used because the vehicle speed is lower than
approximately 50 km/h (32 mph)
→ Drive the vehicle at 50 km/h (32 mph) or higher.
Indicates that the EV drive mode is not available*
The reason the EV drive mode is not available (the
vehicle is idling, hybrid battery [traction battery]
charge is low, speed is higher than the EV drive mode
operating speed range, accelerator pedal is
depressed too much) may be displayed.
A buzzer also sounds.
→ Use the EV drive mode when it becomes available.
Wa r n i n g m e s s a g eDetails/Actions

5388-2. Steps to take in an emergency
IS300h_EE(OM53D56E)
*: For the EV drive mode operating conditions: →P. 2 1 7

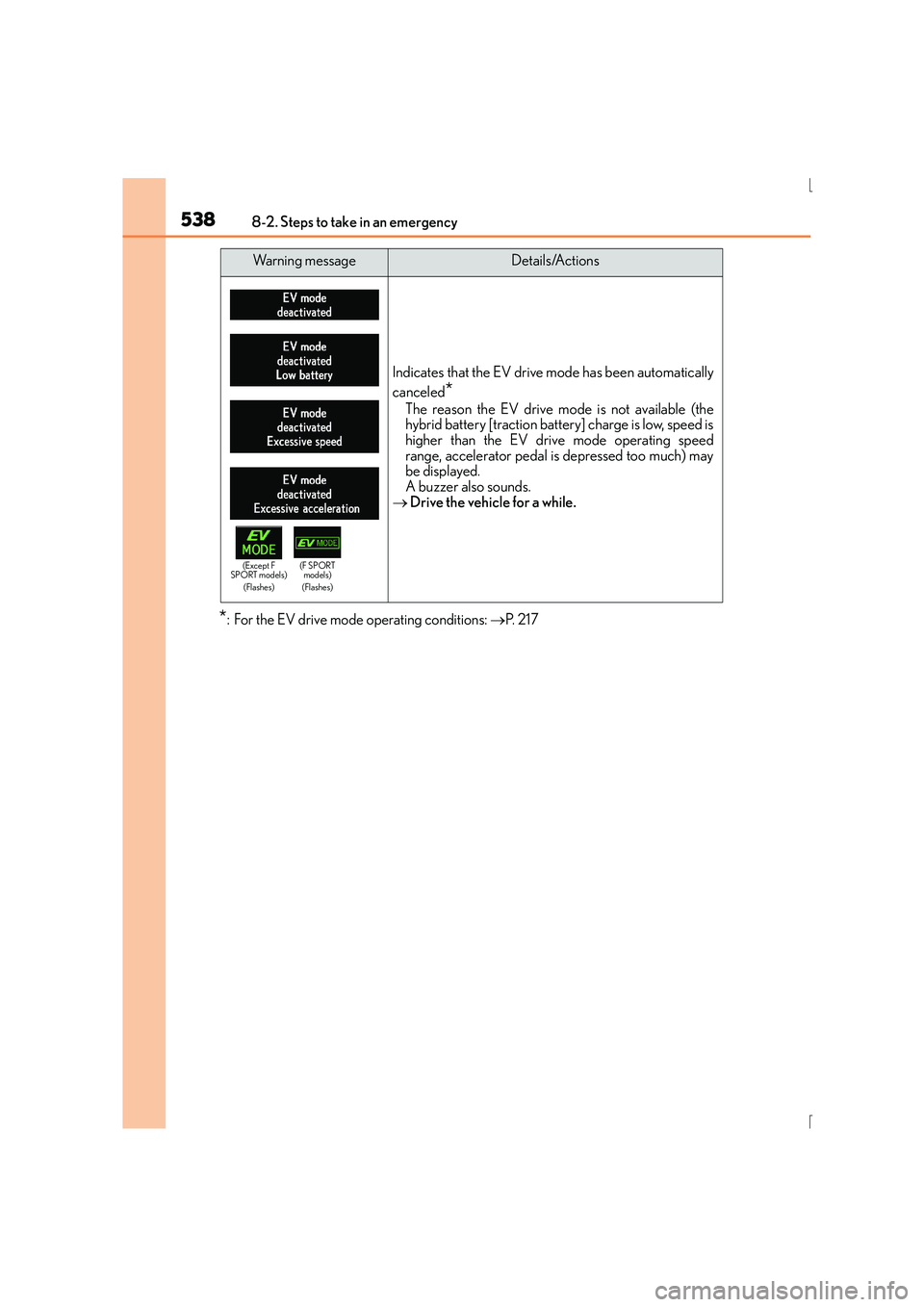

Indicates that the EV drive mode has been automatically
canceled
*
The reason the EV drive mode is not available (the
hybrid battery [traction battery] charge is low, speed is
higher than the EV drive mode operating speed
range, accelerator pedal is depressed too much) may
be displayed.
A buzzer also sounds.
→ Drive the vehicle for a while.
Wa r n i n g m e s s a g eDetails/Actions
(Except F
SPORT models) (F SPORT
models)
(Flashes) (Flashes)

5398-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D56E)
■Warning messages
The warning message illustrations used are intended as examples, and may differ from
the image that is actually displayed on the multi-information display.
■Warning message in radar cruise mode (if equipped)
In the following situations, the warning messag e may not be displayed even if vehicle-to-
vehicle distance decreases:
●When the speed of the preceding vehicle matches or exceeds your vehicle speed
●When the preceding vehicle is traveling at an extremely slow speed
●Immediately after the cruise control speed was set
●When depressing the accelerator pedal
■The LDA (Lane Departure Alert) lane departure warning function (if equipped)
In the following situations, the warning messag e will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LDA system func-
tions
●When the lane lines cannot be recognized
■Resetting the message indicating maintenance is required
Make sure to reset the oil change system. ( →P. 4 5 8 )
■Warning buzzer
→P. 5 2 5

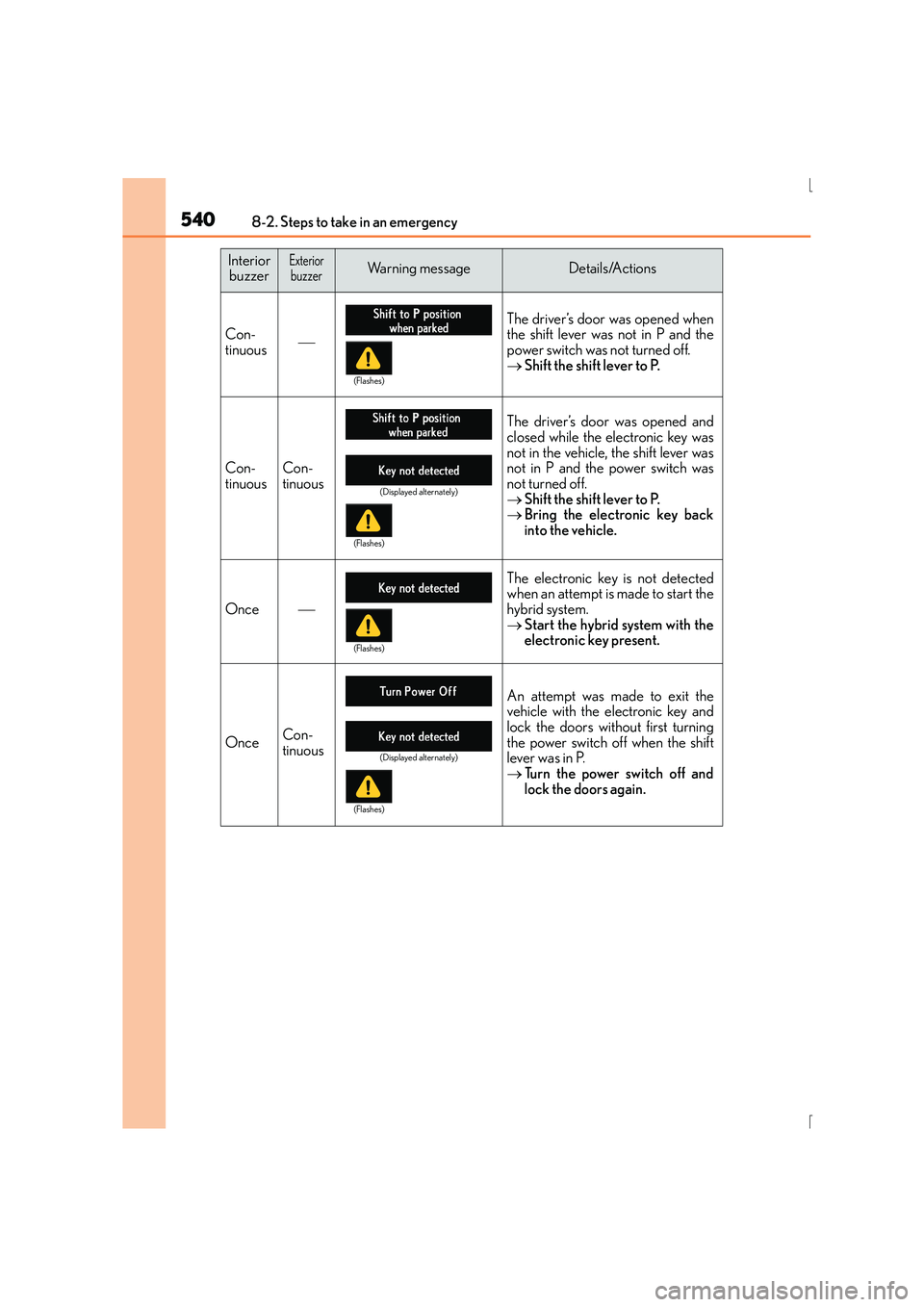

5408-2. Steps to take in an emergency
IS300h_EE(OM53D56E)
InteriorbuzzerExteriorbuzzerWarning messageDetails/Actions
Con-
tinuous  The driver’s door was opened when
the shift lever was not in P and the
power switch was not turned off.
→
Shift the shift lever to P.
Con-
tinuousCon-
tinuous
The driver’s door was opened and
closed while the electronic key was
not in the vehicle, the shift lever was
not in P and the power switch was
not turned off.
→Shift the shift lever to P.
→ Bring the electronic key back
into the vehicle.
Once
The electronic key is not detected
when an attempt is made to start the
hybrid system.
→Start the hybrid system with the
electronic key present.
OnceCon-
tinuous
An attempt was made to exit the
vehicle with the electronic key and
lock the doors without first turning
the power switch off when the shift
lever was in P.
→Turn the power switch off and
lock the doors again.
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)
