change language Lexus IS300h 2015 Owner's Manual

1172. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D56E)
■Distance (driving range/after start)*1
Displays the estimated maximum distance that can be driven with the quantity
of fuel remaining and the distance driven after the hybrid system was started
respectively.
• This distance is computed based on your average fuel consumption. As a result,the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning
the power switch off, the display may not be updated.
■Energy monitor
→ P. 1 2 1
*1: Displayed when the item is set in “Drive Info 1” or “Drive Info 2”. Use these values as a
reference.
*2: Resetting The following displays can be reset: average fuel consumption after reset, average
vehicle speed after reset, and elapsed time after reset.
• To reset, display the desired item and press and hold .
• If both displayed items are resettable, a reset selection screen will appear.
■Language
Select to change the language on the display.
■Units
Select to change the unit of measure for fuel consumption.
■Maintenance system
Select to reset the maintenance data after the required maintenance is per-
formed. ( →P. 4 5 8 )
■EV indicator
Select to set the EV indicator on/off.
■ switch settings (except F SPORT models)
Displays a procedure to register a desired screen to .
You can register 1 screen as a shortcut, which can be displayed by pressing . (→ P. 116)
■Drive information 1 /Drive information 2
Select to select up to 2 items that will be displayed on the “Drive Info 1” screen
and “Drive Info 2” screen respectively. ( →P. 1 1 6 )
Settings display

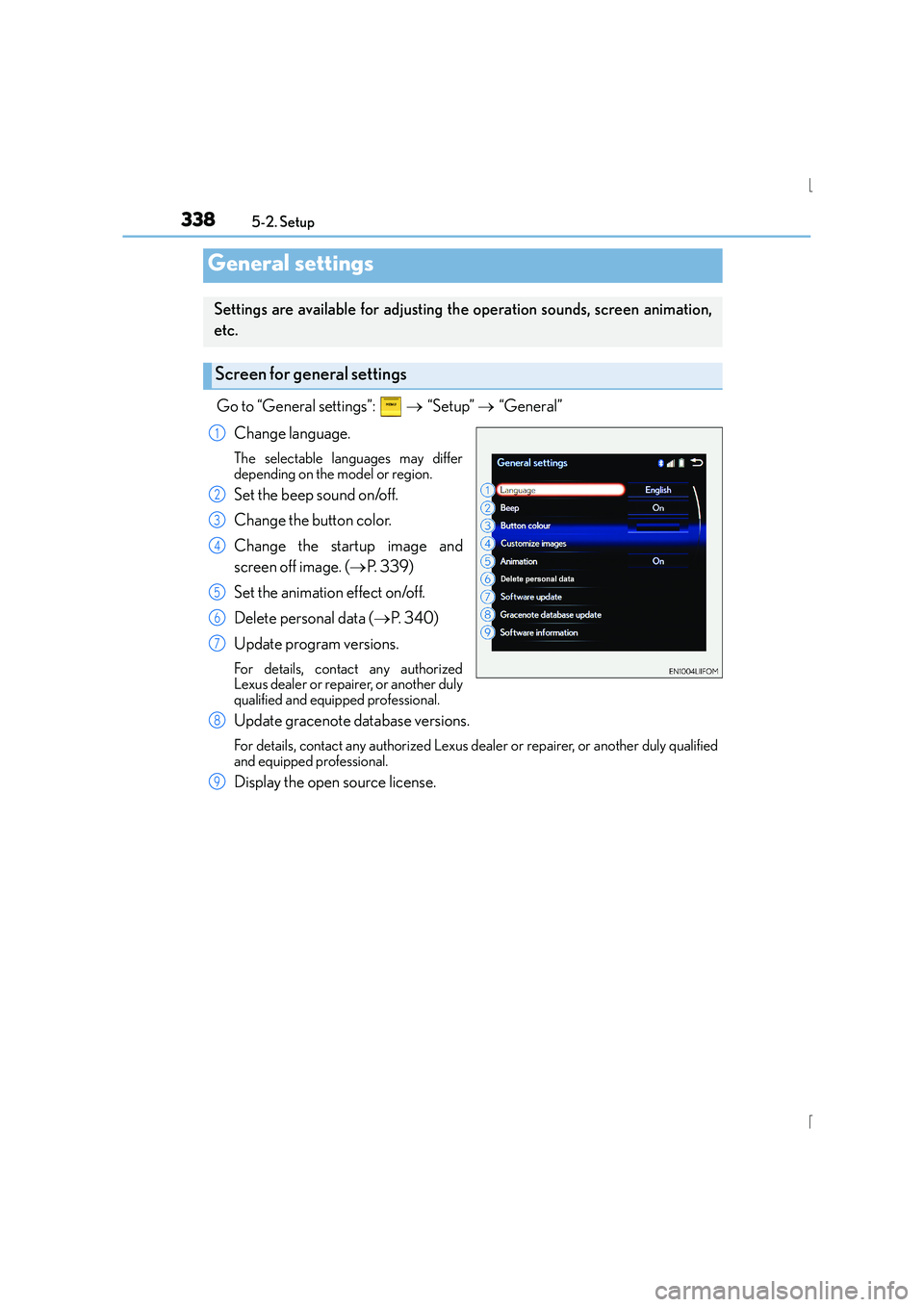

3385-2. Setup
IS300h_EE(OM53D56E)
Go to “General settings”: → “Setup” → “General”
Change language.
The selectable languages may differ
depending on the model or region.
Set the beep sound on/off.
Change the button color.
Change the startup image and
screen off image. ( →P. 3 3 9 )
Set the animation effect on/off.
Delete personal data ( →P. 3 4 0 )
Update program versions.
For details, contact any authorized
Lexus dealer or repairer, or another duly
qualified and equipped professional.
Update gracenote database versions.
For details, contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Display the open source license.
General settings
Settings are available for adjusting th e operation sounds, screen animation,
etc.
Screen for general settings
1
2
3
4
5
6
7
8
9

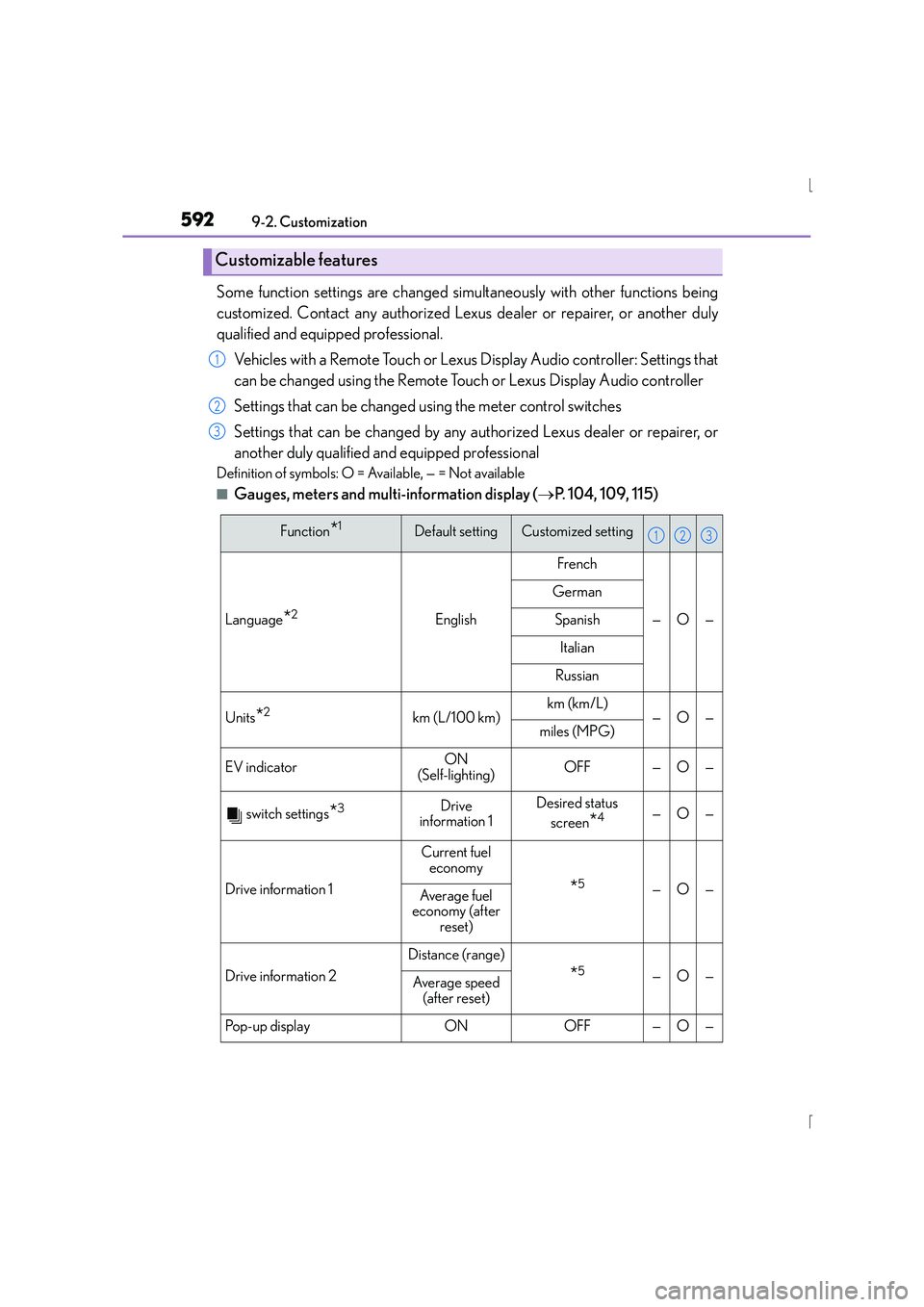

5929-2. Customization
IS300h_EE(OM53D56E)
Some function settings are changed simultaneously with other functions being
customized. Contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional. Vehicles with a Remote Touch or Lexus Display Audio controller: Settings that
can be changed using the Remote Touch or Lexus Display Audio controller
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional
Definition of symbols: O = Available, — = Not available
■Gauges, meters and multi-information display ( →P. 104, 109, 115)
Customizable features
1
2
3
Function*1Default settingCustomized setting
Language*2English
French
—O—
German
Spanish
Italian
Russian
Units*2km (L/100 km)km (km/L)—O—miles (MPG)
EV indicatorON
(Self-lighting)OFF—O—
switch settings*3Drive
information 1Desired status
screen
*4—O—
Drive information 1
Current fuel economy
*5—O—Average fuel
economy (after
reset)
Drive information 2
Distance (range)
*5—O—Average speed (after reset)
Pop-up displayONOFF—O—
123
