fuel cap release Lexus IS300h 2015 Owner's Manual

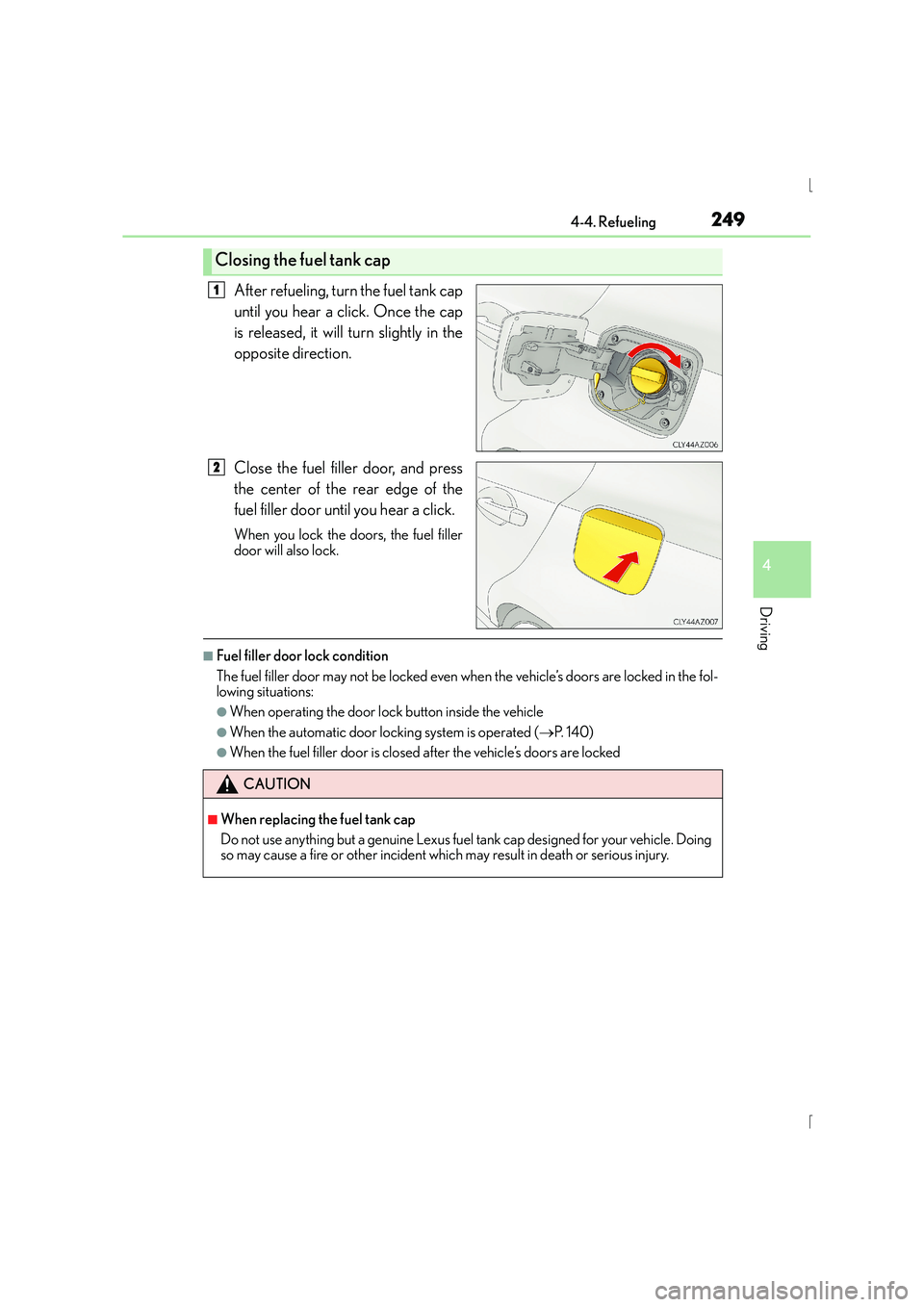

2494-4. Refueling
4
Driving
IS300h_EE(OM53D56E)
After refueling, turn the fuel tank cap
until you hear a click. Once the cap
is released, it will turn slightly in the
opposite direction.
Close the fuel filler door, and press
the center of the rear edge of the
fuel filler door until you hear a click.
When you lock the doors, the fuel filler
door will also lock.
■Fuel filler door lock condition
The fuel filler door may not be locked even when the vehicle’s doors are locked in the fol-
lowing situations:
●When operating the door lock button inside the vehicle
●When the automatic door locking system is operated (→P. 1 4 0 )
●When the fuel filler door is closed after the vehicle’s doors are locked
Closing the fuel tank cap
1
2
CAUTION
■When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle. Doing
so may cause a fire or other incident which may result in death or serious injury.

628
IS300h_EE(OM53D56E)GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 4 5 3 P. 1 4 3 P. 2 4 6
Hood lock release leverTi r e i n f l a t i o n p r e s s u r e
P. 4 5 3
P. 5 8 6
Fuel tank capacity
(Reference) 66 L (17.4 gal., 14.5 Imp. gal.)
Fuel typeEU area: Unleaded gasoline conforming to European
standard EN228 only
Except EU area: Unleaded gasoline only P. 2 4 6 , 5 8 0
Cold tire inflation
pressure P. 5 8 6
Engine oil capacity
(Drain and refill —
reference) P. 5 8 1
Engine oil type P. 581
