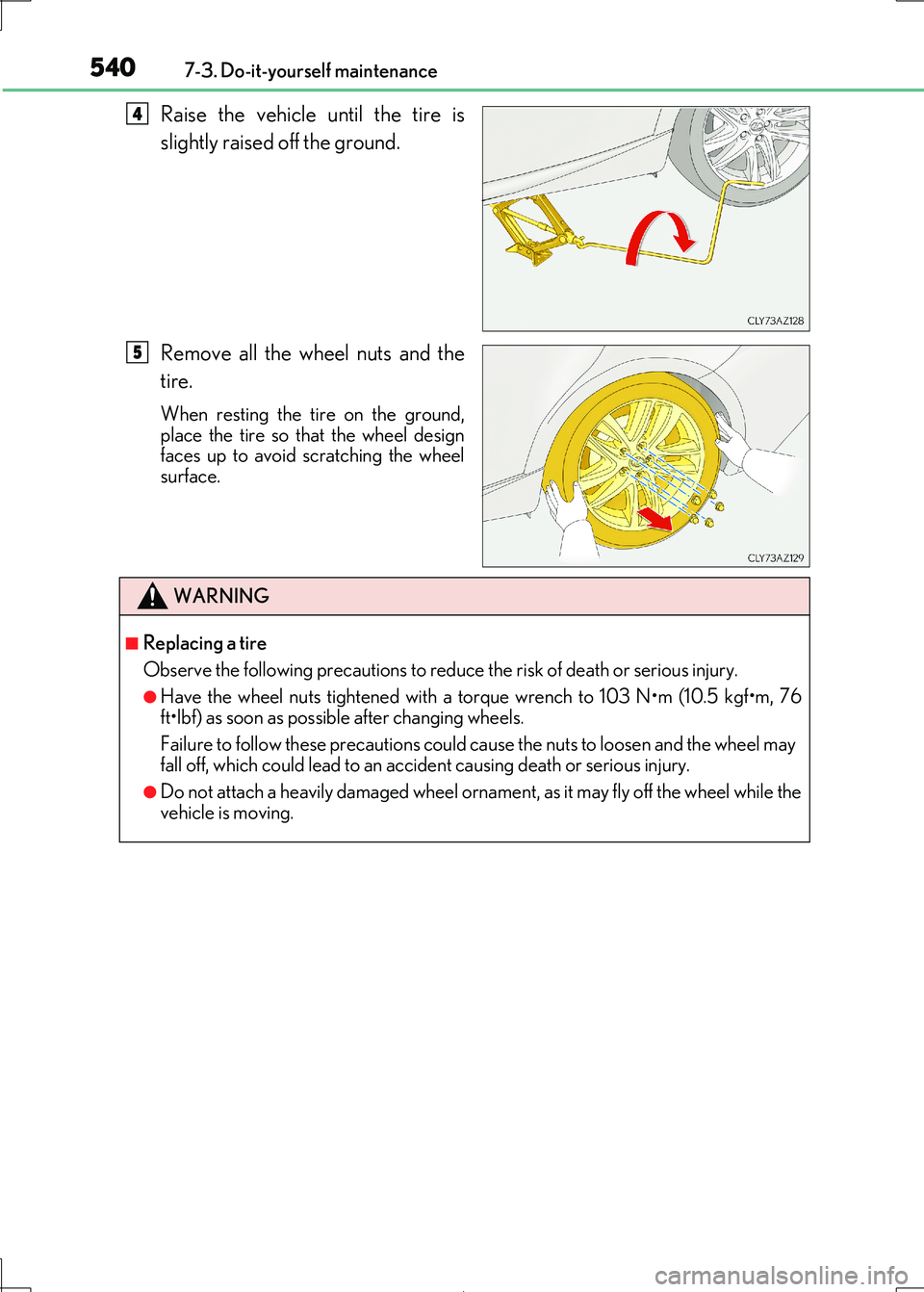

5407-3. Do-it-yourself maintenance
IS300h_EE(OM53D89E)
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel surface.
4
5
WARNING
■Replacing a tire
Observe the following precautions to reduce the risk of death or serious injury.
●Have the wheel nuts tightened with a torque wrench to 103 N•m (10.5 kgf•m, 76
ft•lbf) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and the wheel may
fall off, which could lead to an accident causing death or serious injury.
●Do not attach a heavily damaged wheel orname nt, as it may fly off the wheel while the vehicle is moving.

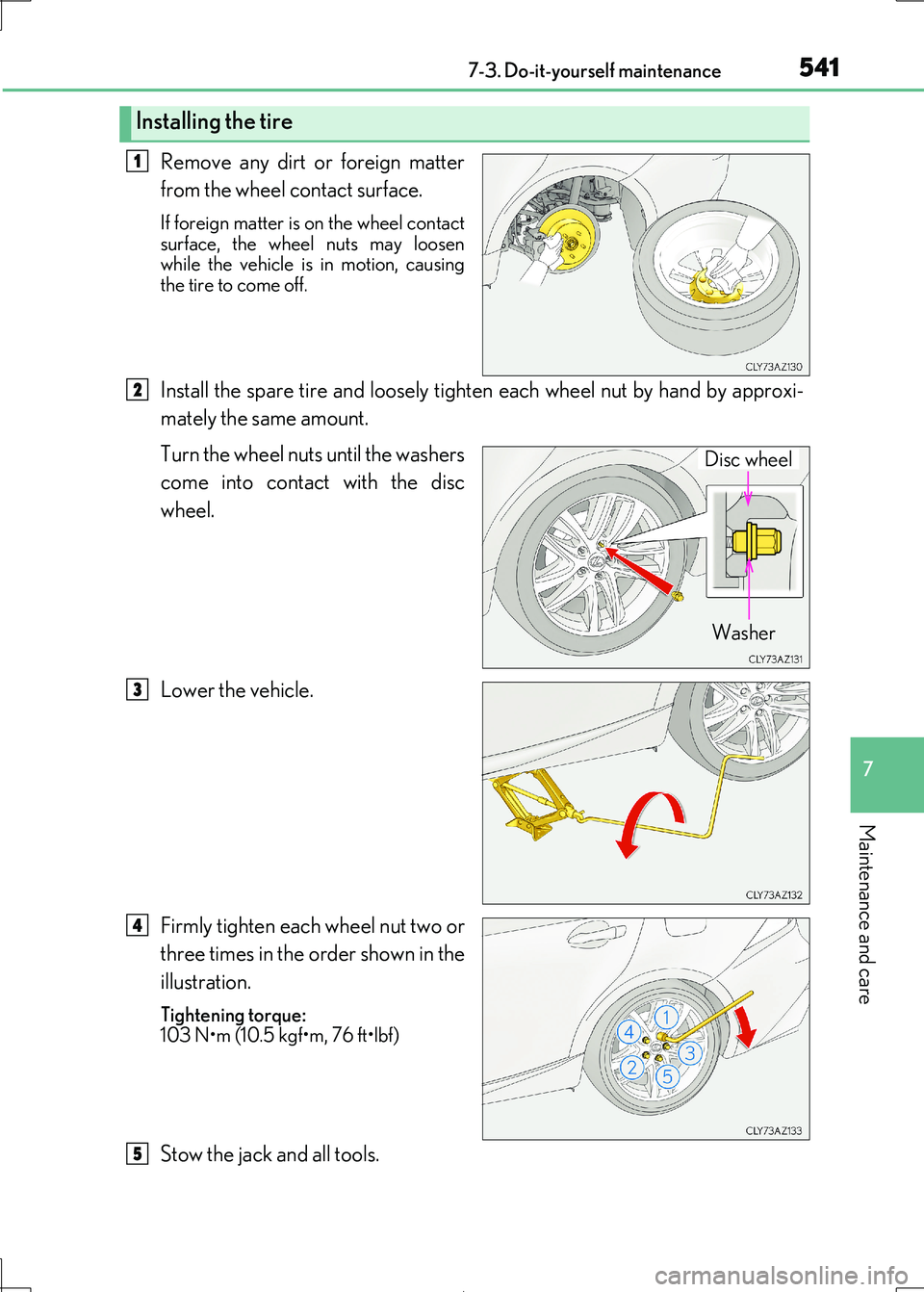

5417-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53D89E)
Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loosen
while the vehicle is in motion, causing the tire to come off.
Install the spare tire and loosely tighte n each wheel nut by hand by approxi-
mately the same amount.
Turn the wheel nuts until the washers
come into contact with the disc
wheel.
Lower the vehicle.
Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.
Tightening torque: 103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the jack and all tools.
Installing the tire
1
2
Disc wheel
Washer
3
4
5

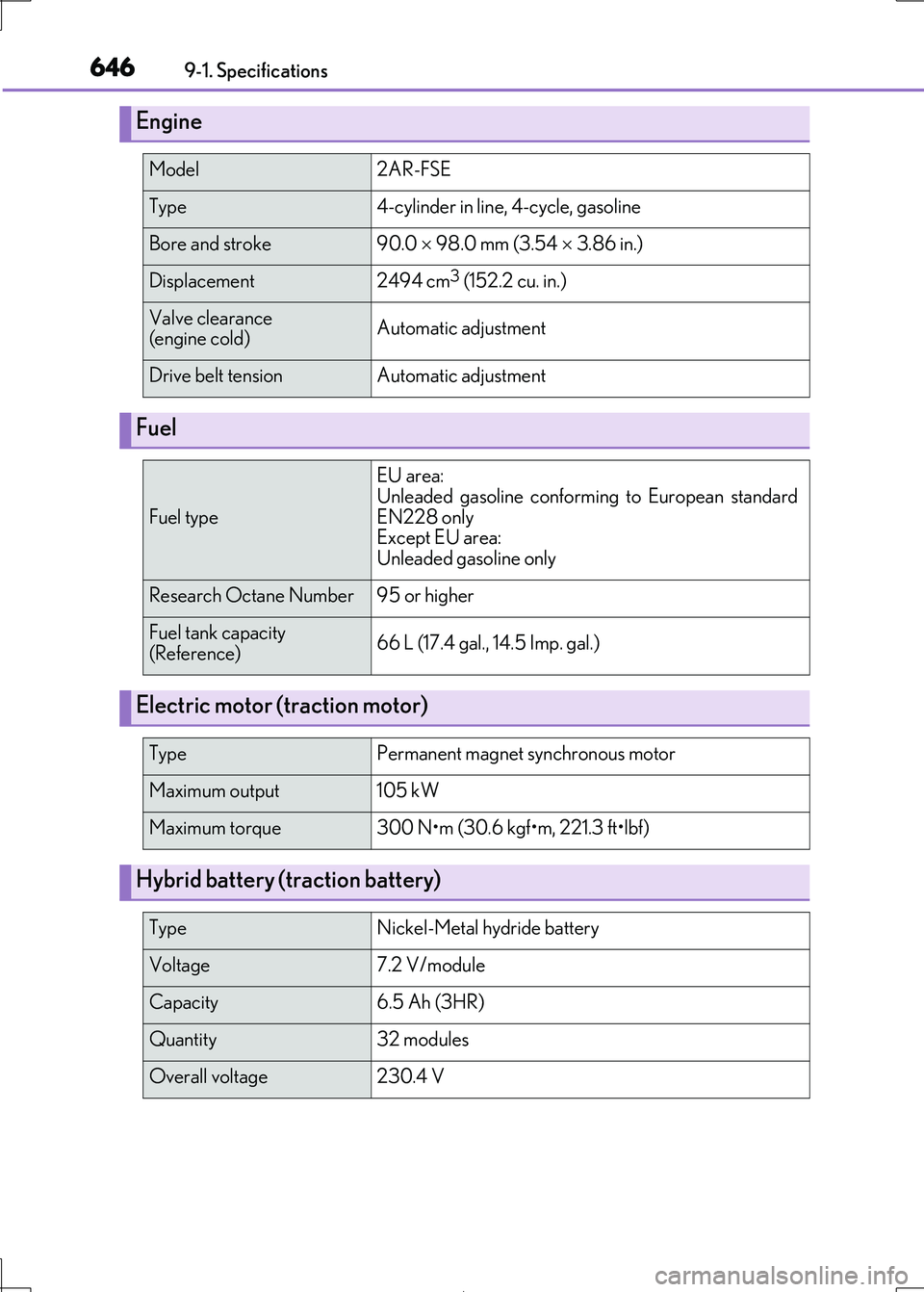

6469-1. Specifications
IS300h_EE(OM53D89E)
Engine
Model2AR-FSE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke90.0  98.0 mm (3.54  3.86 in.)
Displacement2494 cm3 (152.2 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area:
Unleaded gasoline conformi ng to European standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity (Reference)66 L (17.4 gal., 14.5 Imp. gal.)
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum output105 kW
Maximum torque300 N•m (30.6 kgf•m, 221.3 ft•lbf)
Hybrid battery (traction battery)
TypeNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity32 modules
Overall voltage230.4 V

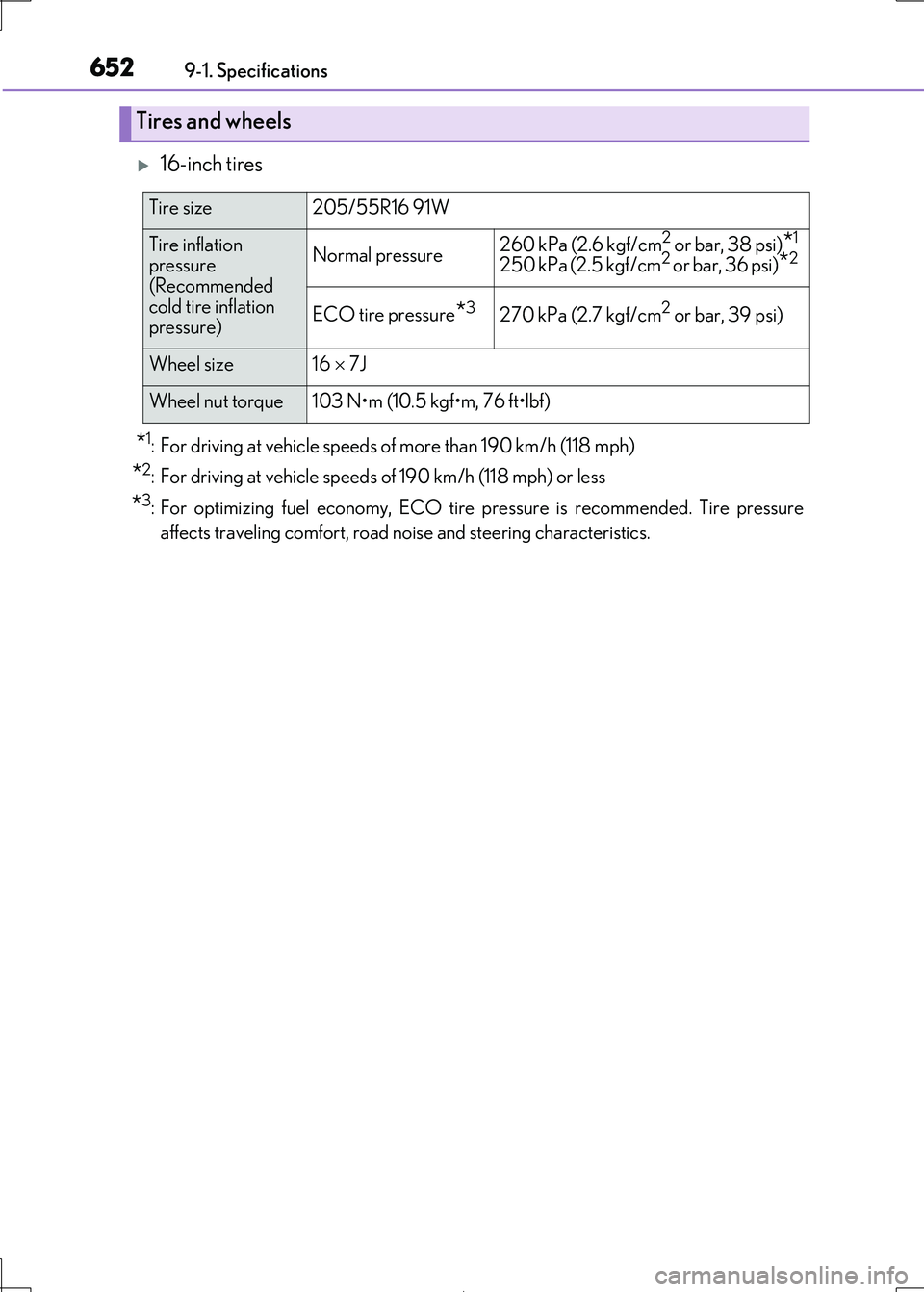

6529-1. Specifications
IS300h_EE(OM53D89E)
16-inch tires
*1: For driving at vehicle speeds of more than 190 km/h (118 mph)
*2: For driving at vehicle speeds of 190 km/h (118 mph) or less
*3: For optimizing fuel economy, ECO tire pressure is recommended. Tire pressure
affects traveling comfort, road noise and steering characteristics.
Tires and wheels
Tire size205/55R16 91W
Tire inflation
pressure
(Recommended cold tire inflation
pressure)
Normal pressure260 kPa (2.6 kgf/cm2 or bar, 38 psi)*1
250 kPa (2.5 kgf/cm2 o r ba r, 36 p si)*2
ECO tire pressure*3270 kPa (2.7 kgf/cm2 or bar, 39 psi)
Wheel size16  7J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

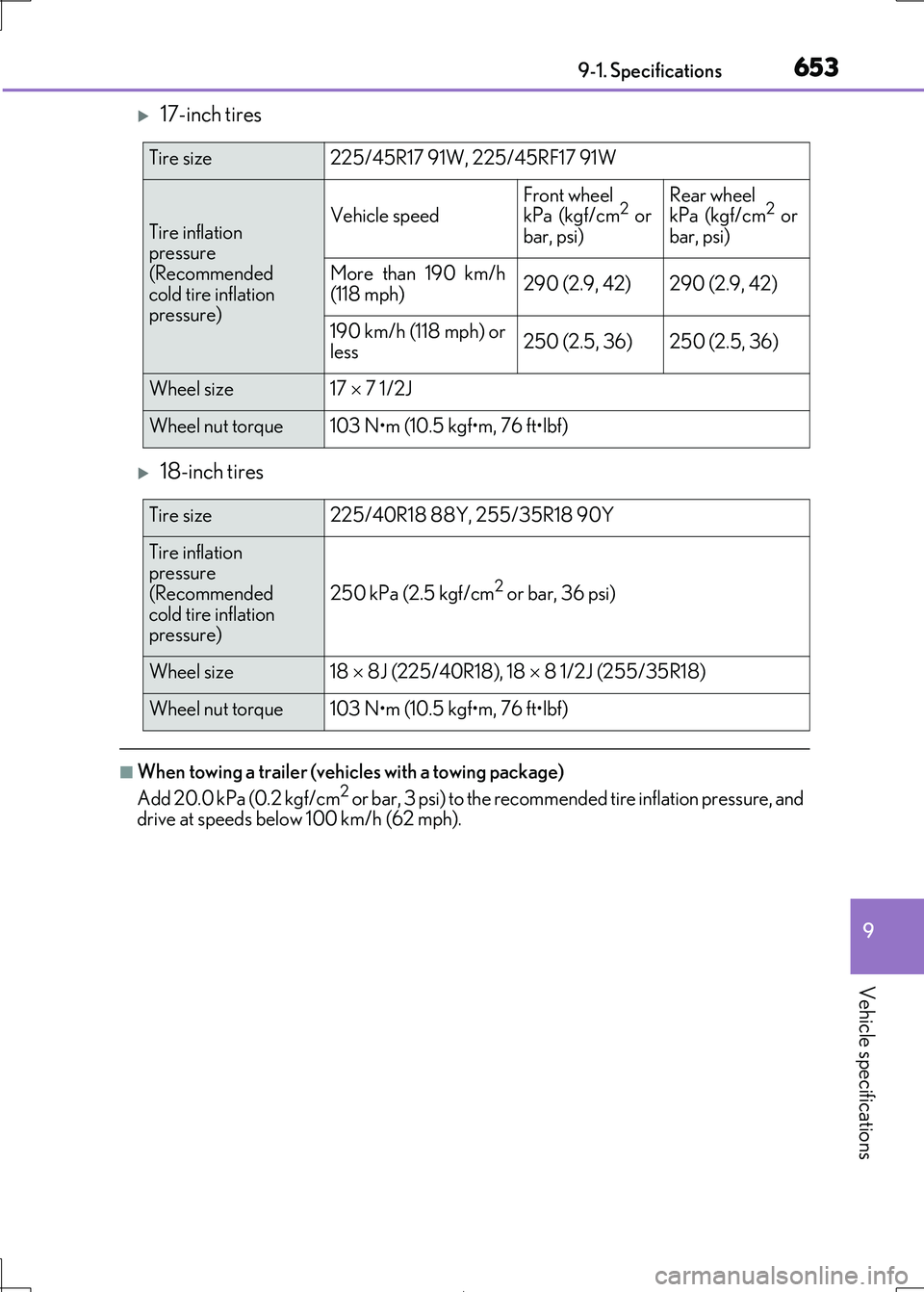

653
9
9-1. Specifications
Vehicle specifications
IS300h_EE(OM53D89E)
17-inch tires
18-inch tires
■When towing a trailer (vehicles with a towing package)
Add 20.0 kPa (0.2 kgf/cm2 o r b ar, 3 psi) to th e rec omm en ded tire inflation pressure, and drive at speeds below 100 km/h (62 mph).
Tire size225/45R17 91W, 225/45RF17 91W
Tire inflation
pressure
(Recommended cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2 or
bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
More than 190 km/h (118 mph)290 (2.9, 42)290 (2.9, 42)
190 km/h (118 mph) or
less250 (2.5, 36)250 (2.5, 36)
Wheel size17  7 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size225/40R18 88Y, 255/35R18 90Y
Tire inflation pressure
(Recommended
cold tire inflation pressure)
250 kPa (2.5 kgf/cm2 or bar, 36 psi)
Wheel size18  8J (225/40R18), 18  8 1/2J (255/35R18)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
