high beam Lexus IS350 2006 Scheduled Maintenance Guide / LEXUS 2006 IS350/250 FROM MAY 2006 PROD. OWNER'S MANUAL (OM53619U)

Headlights (high beam) P. 118
Pictorial indexExterior
Turn signal lights P. 103
Fog lights P. 121
Side marker lights P. 118
Headlights (low and high  beam)

P. 118
Hood P. 262
Parking lights P. 118
Windshield wipers P. 122
Moon roof  P. 48
Outside rear view mirrors
P. 43

112

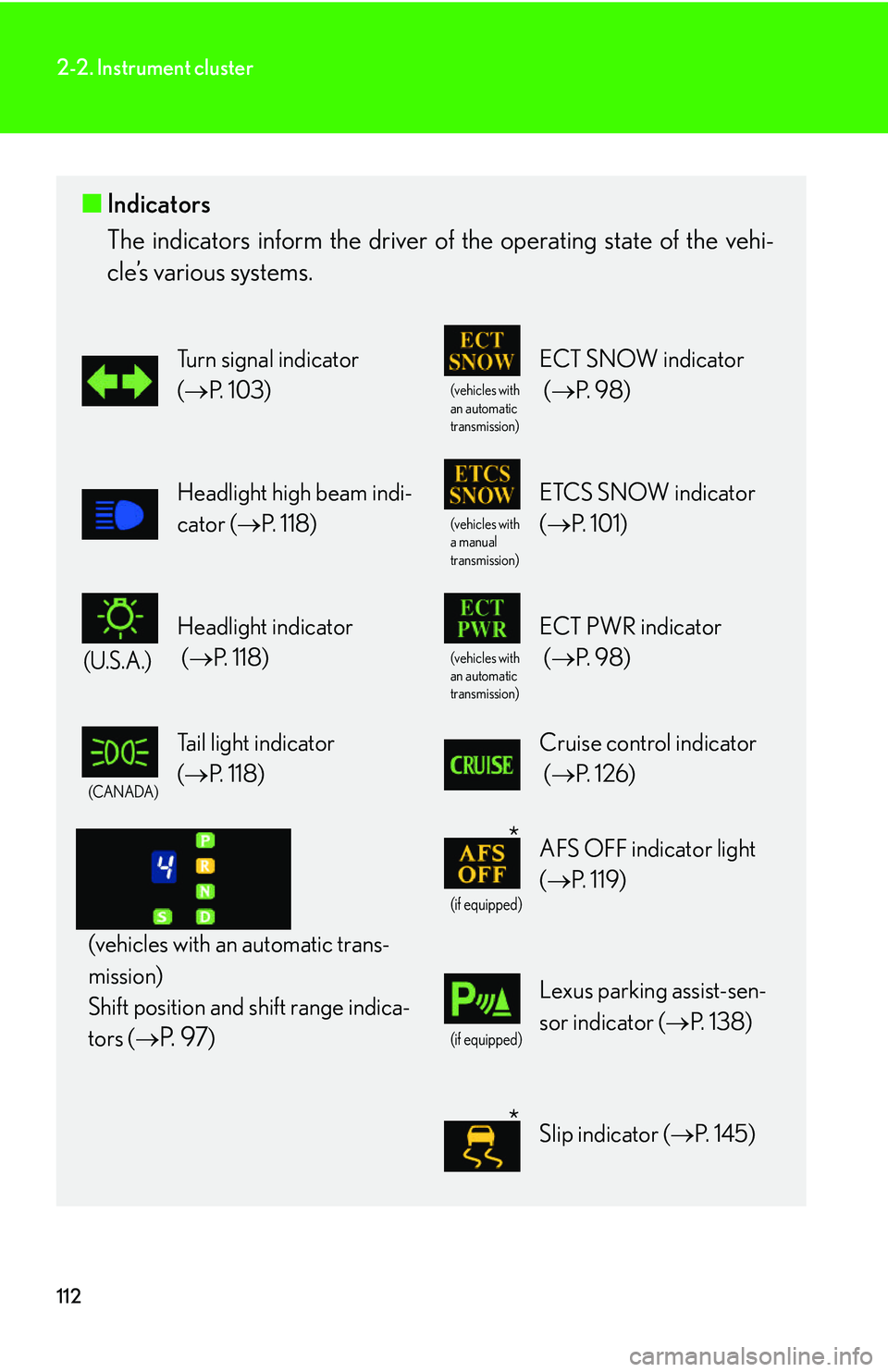

2-2. Instrument cluster
■Indicators
The indicators inform the driver of th e operating state of the vehi-
cle’s various systems.
Turn signal indicator
( P. 1 0 3 )
(vehicles with
an automatic
transmission)
ECT SNOW indicator
( P. 9 8 )
Headlight high beam indi-
cator ( P. 118)
(vehicles with
a manual
transmission)
ETCS SNOW indicator
( P. 1 0 1 )
(U.S.A.)
Headlight indicator
( P. 118)
(vehicles with
an automatic
transmission)
ECT PWR indicator
( P. 9 8 )
(CANADA)
Tail light indicator
( P. 118) Cruise control indicator
( P. 1 2 6 )
(vehicles with an automatic trans-
mission)
Shift position and shift range indica-
tors ( 
P. 9 7)
(if equipped)
AFS OFF indicator light
(P. 1 1 9 )
(if equipped)
Lexus parking assist-sen-
sor indicator ( P. 1 3 8 )
Slip indicator ( P. 1 4 5 )
*
*

118
2-3. Operating the lights and windshield wipers
Headlight switch
Turning on the high beam headlightsWith the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You can
flash the high beams with the head-
lights on or off.
The headlights can be operated manually or automatically.
The side marker, parking,
tail, license plate and
instrument panel lights
turn on.
The headlights and all lights listed above turn
on.
The headlights and park- ing lights turn on and off
automatically.
(When the engine switch
is in IG-ON mode) U.S.A.
CANADA

306
4-3. Do-it-yourself maintenance

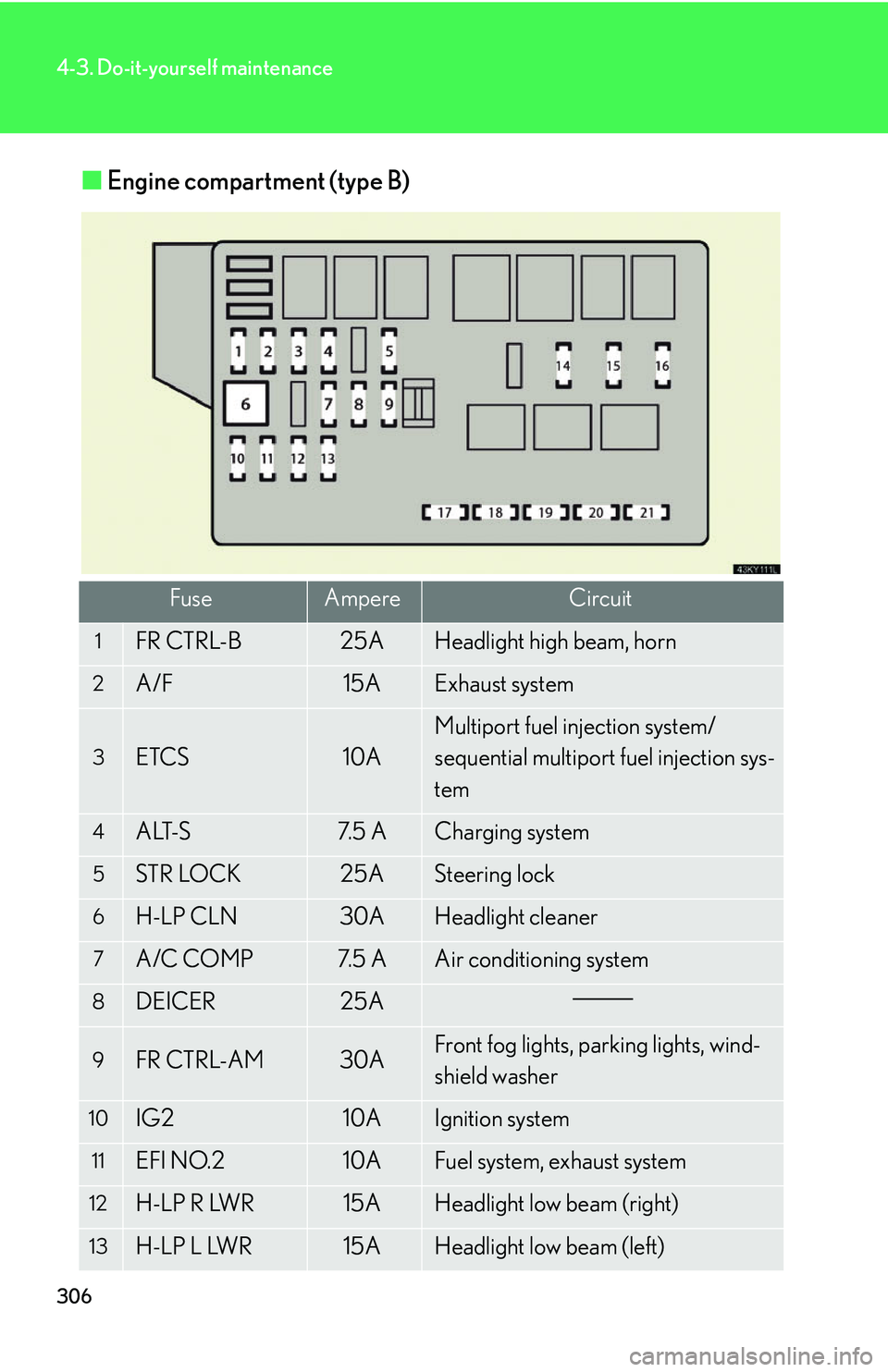

■Engine compartment (type B)
FuseAmpereCircuit
1FR CTRL-B25AHeadlight high beam, horn
2A/F15AExhaust system
3ETCS10A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
4ALT-S7. 5 ACharging system
5STR LOCK25ASteering lock
6H-LP CLN30AHeadlight cleaner
7A/C COMP7. 5 AAir conditioning system
8DEICER25A
9FR CTRL-AM30AFront fog lights, parking lights, wind-
shield washer
10IG210AIgnition system
11EFI NO.210AFuel system, exhaust system
12H-LP R LWR15AHeadlight low beam (right)
13H-LP L LWR15AHeadlight low beam (left)

307
4-3. Do-it-yourself maintenance
4
Maintenance and care

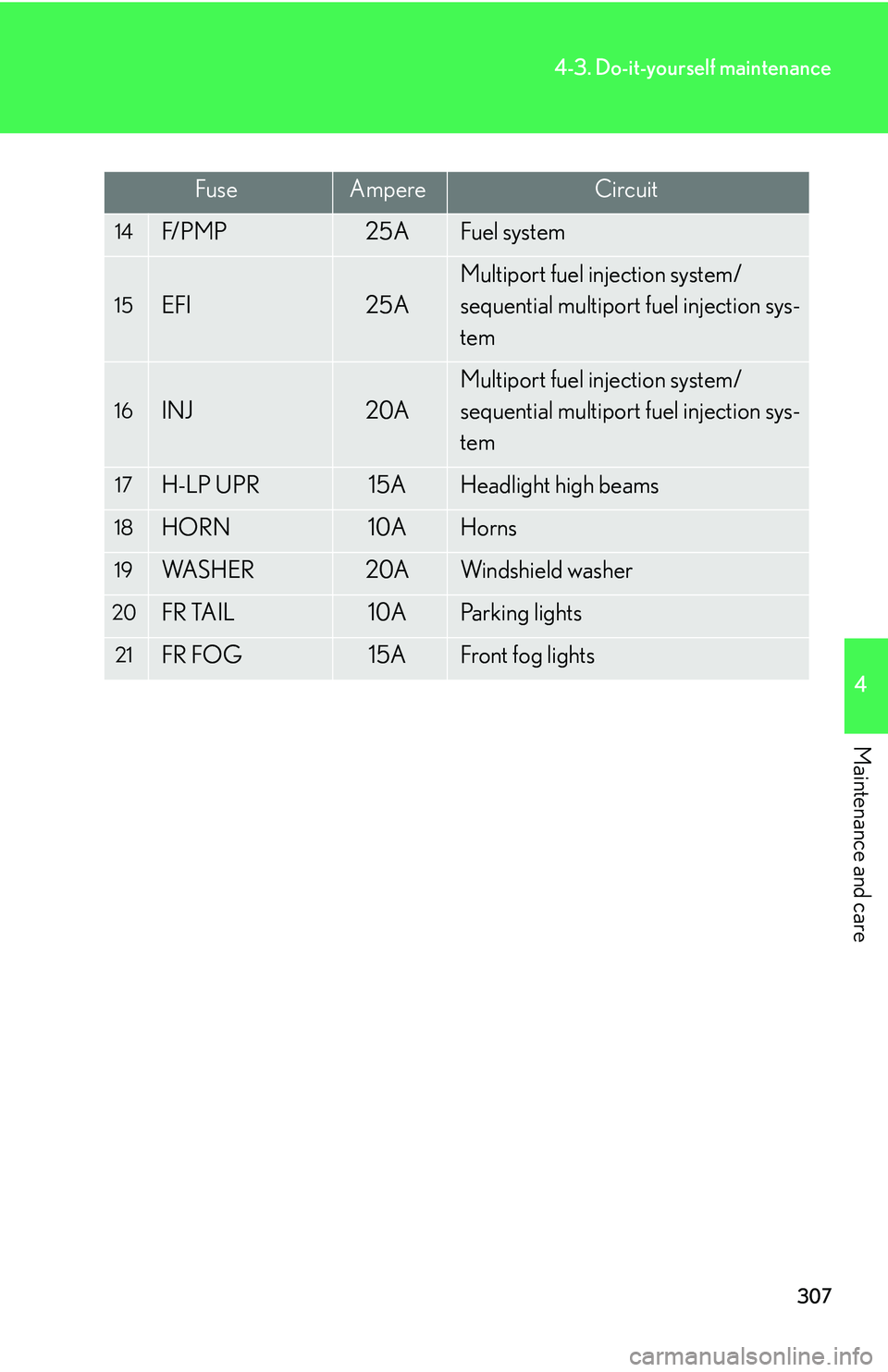

FuseAmpereCircuit
14F/ P M P25AFuel system
15EFI25A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
16INJ20A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
17H-LP UPR15AHeadlight high beams
18HORN10AHorns
19WA S H E R20AWindshield washer
20FR TAIL10AParking lights
21FR FOG15AFront fog lights

314
4-3. Do-it-yourself maintenance

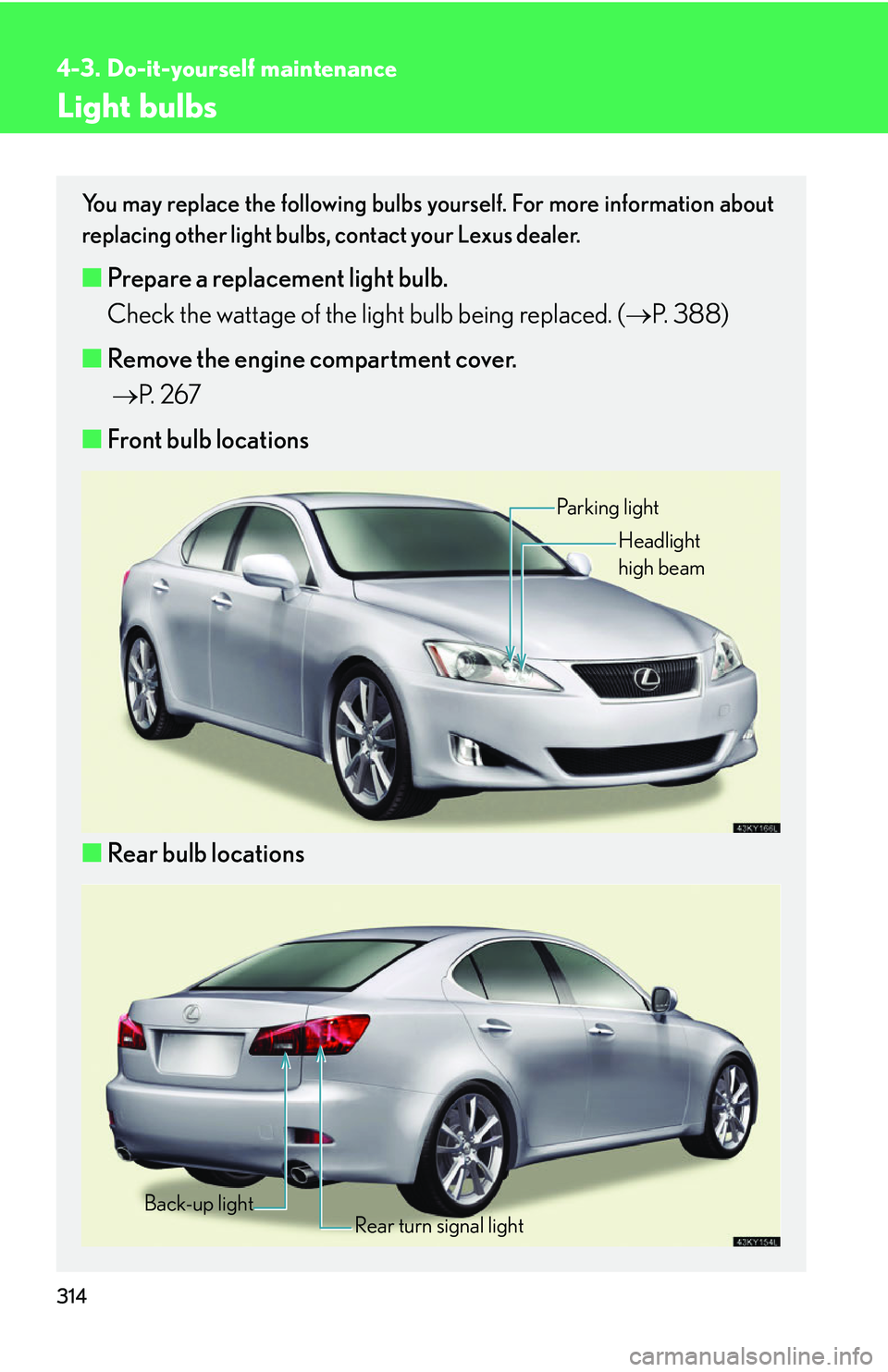

Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 388)
■ Remove the engine compartment cover.
 P. 2 6 7
■ Front bulb locations
■ Rear bulb locations
Parking light
Headlight
high beam
Rear turn signal light
Back-up light

315
4-3. Do-it-yourself maintenance
4
Maintenance and care

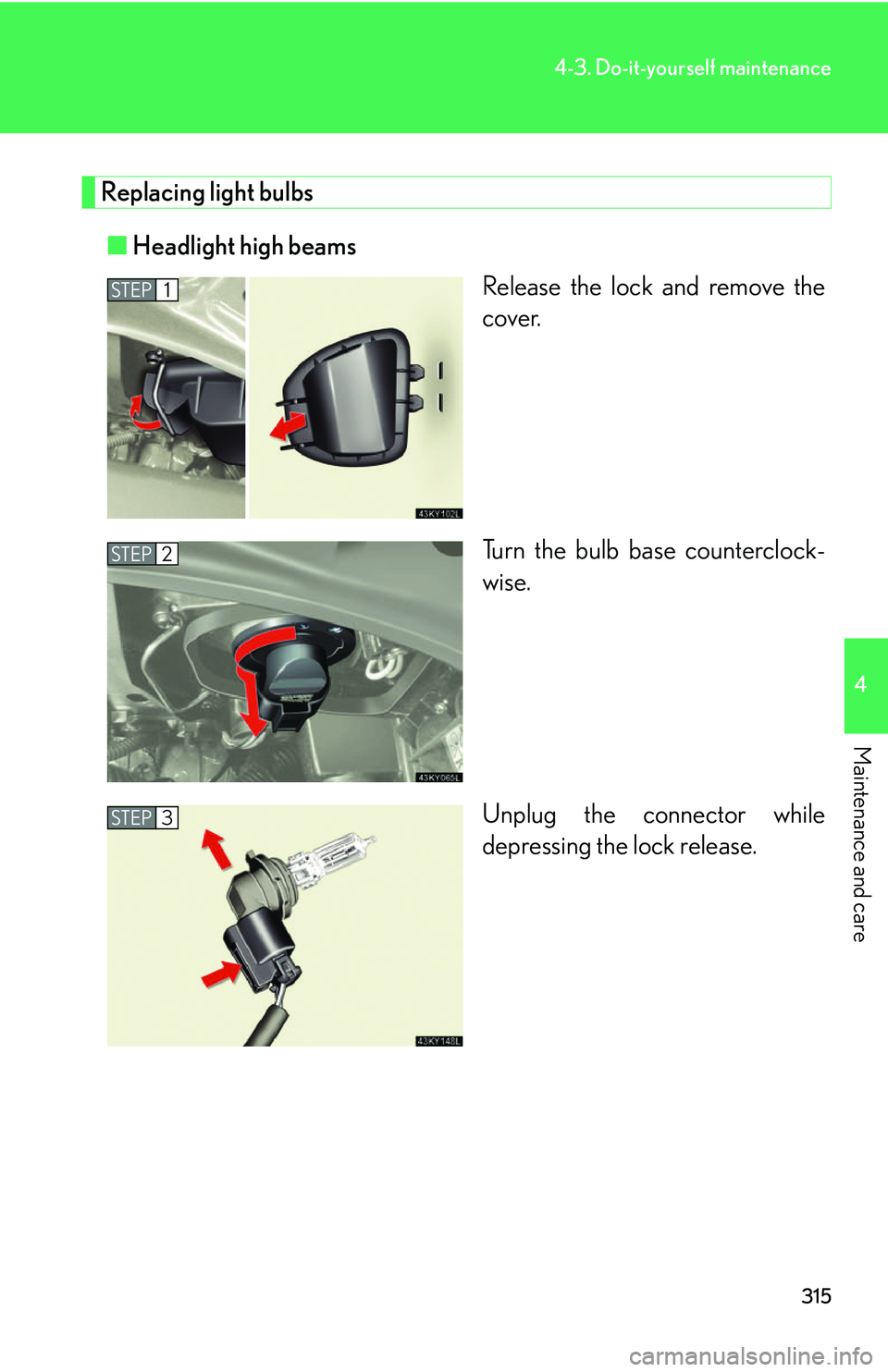

Replacing light bulbs■ Headlight high beams
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
STEP1
STEP2
STEP3

318
4-3. Do-it-yourself maintenance

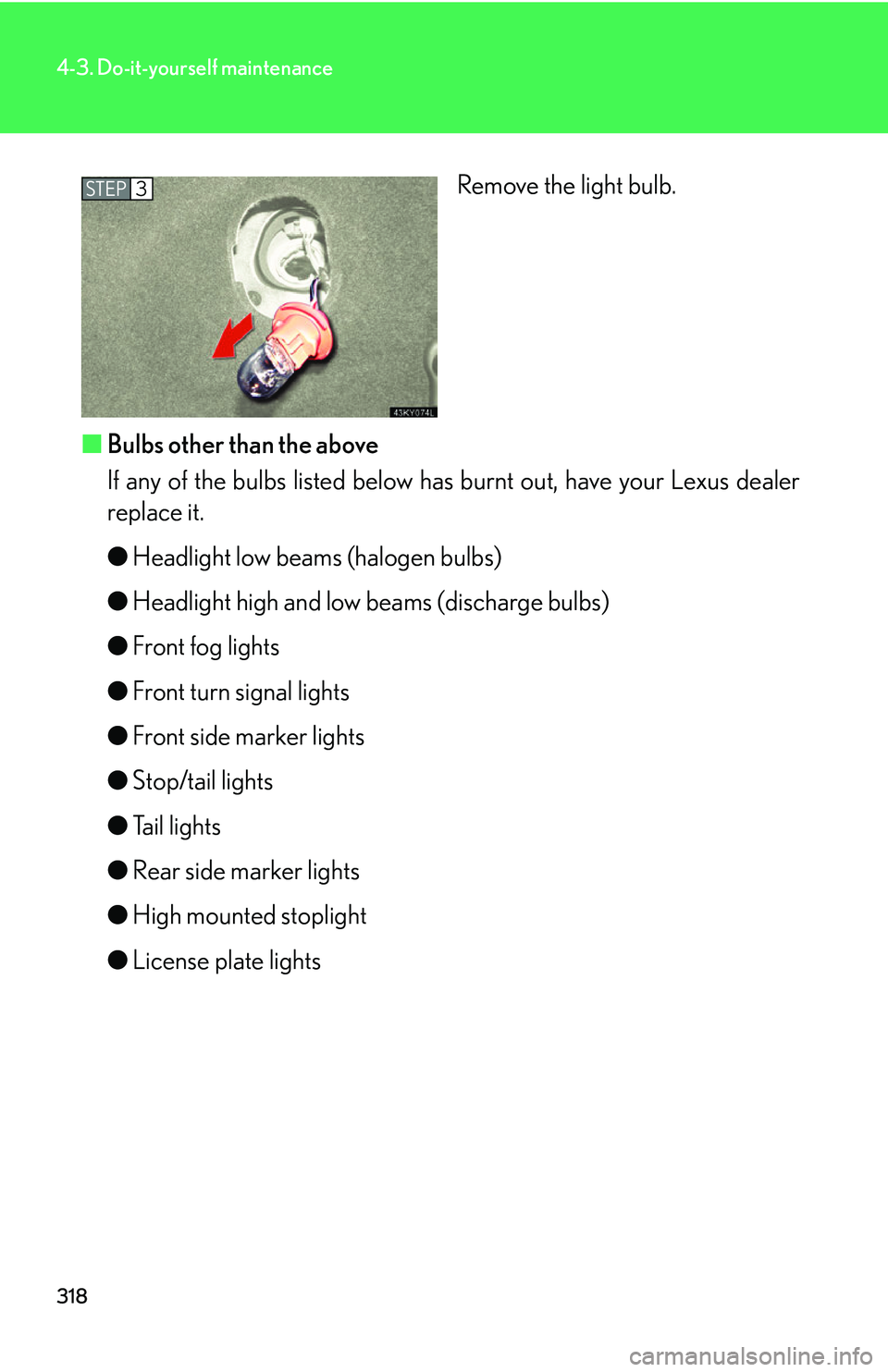

Remove the light bulb.
■ Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (halogen bulbs)
● Headlight high and low beams (discharge bulbs)
● Front fog lights
● Front turn signal lights
● Front side marker lights
● Stop/tail lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● License plate lightsSTEP3

320
4-3. Do-it-yourself maintenance

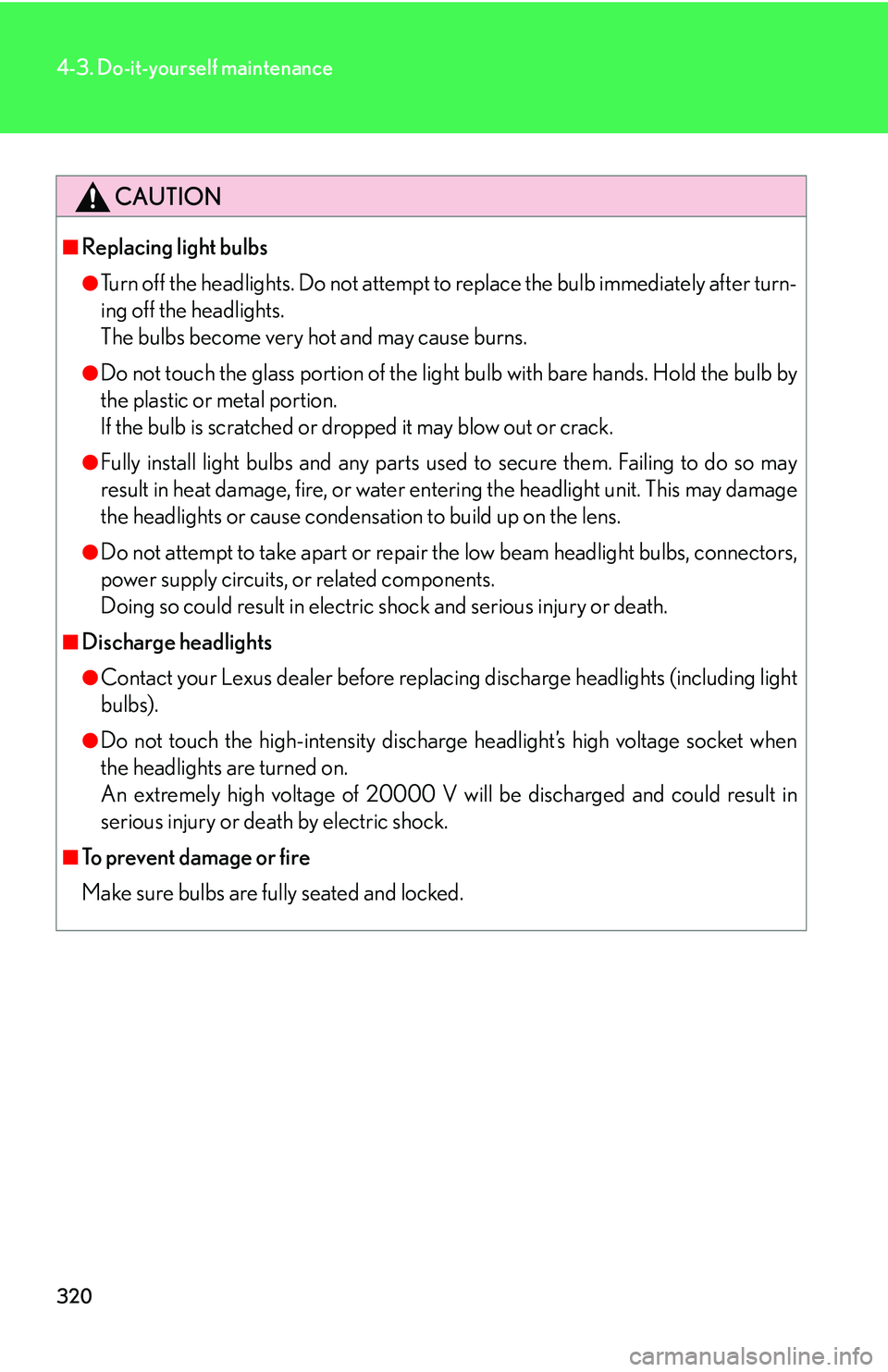

CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water en tering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam headligh t bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■Discharge headlights
●Contact your Lexus dealer be fore replacing discharge headlights (including light
bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V wi ll be discharged and could result in
serious injury or death by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

388
6-1. Specifications

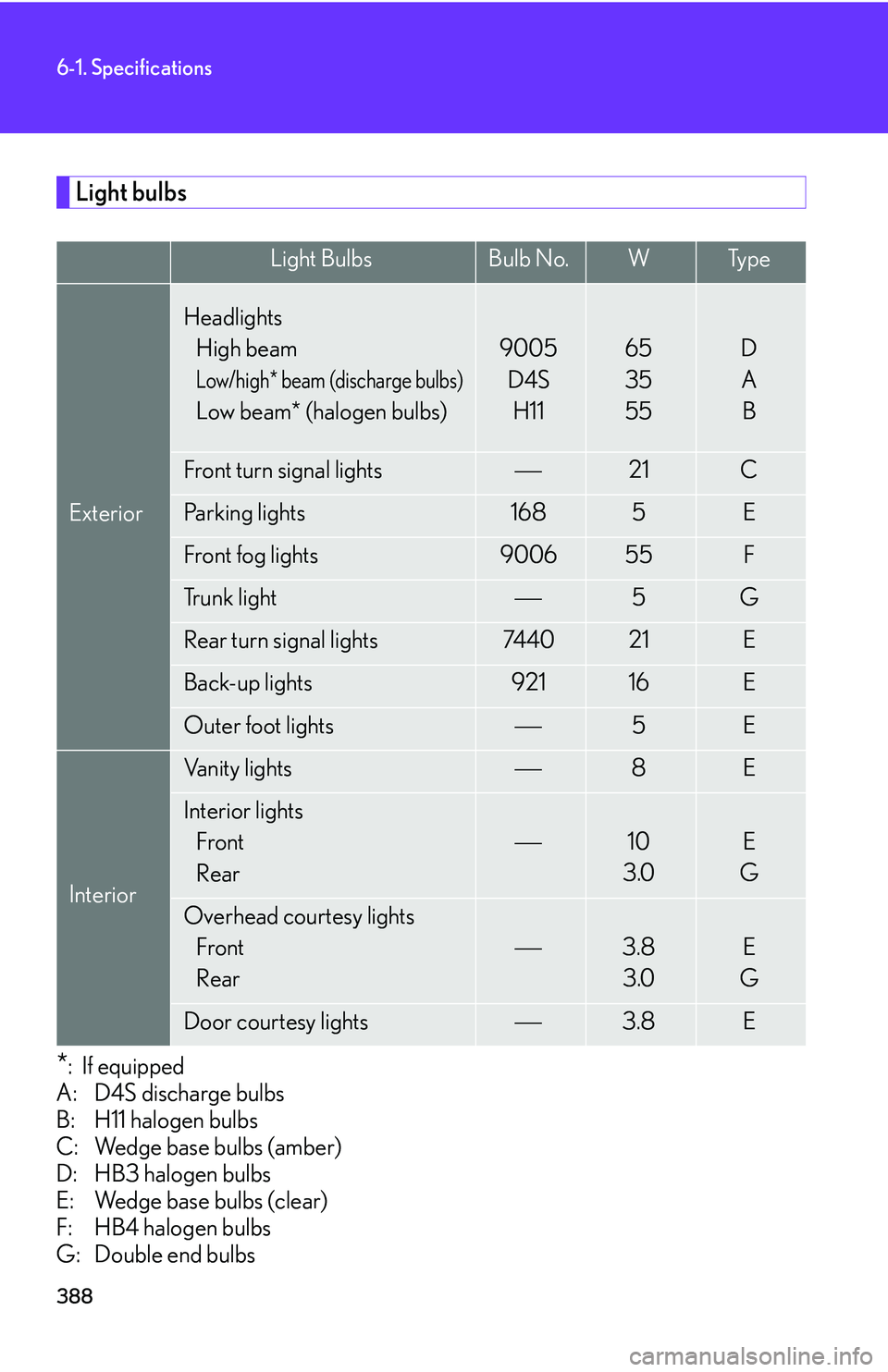

Light bulbs
*:If equipped
A: D4S discharge bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: HB3 halogen bulbs
E: Wedge base bulbs (clear)
F: HB4 halogen bulbs
G: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
High beam
Low/high* beam (discharge bulbs)
Low beam* (halogen bulbs)
9005
D4SH1165
35
55D A B
Front turn signal lights21C
Parking lights1685E
Front fog lights900655F
Trunk light5G
Rear turn signal lights74 4 021E
Back-up lights92116E
Outer foot lights5E
Interior
Vanity lights8E
Interior lights
Front
Rear
10
3.0E
G
Overhead courtesy lights Front
Rear
3.83.0E
G
Door courtesy lights3.8E
