5
When trouble arises
477
5-2. Steps to take in an emergency
■If the tire pressure warning system is inoperative
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer
●If a different set of tires has been selected using the satellite switch
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby
●If a radio set at similar frequencies is in use in the vehicle
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings
●If non-genuine Lexus wheels are used (Even if you use Lexus wheels, the tire
pressure warning system may not work properly with some types of tires.)
●If tire chains are used
■If the tire pressure warning light freque ntly comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute
when the “ENGINE START STOP” switch is turned to IGNITION ON mode, have
it checked by your Lexus dealer.
■Customization that can be configured at Lexus dealer
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features  P. 5 5 3 )

488

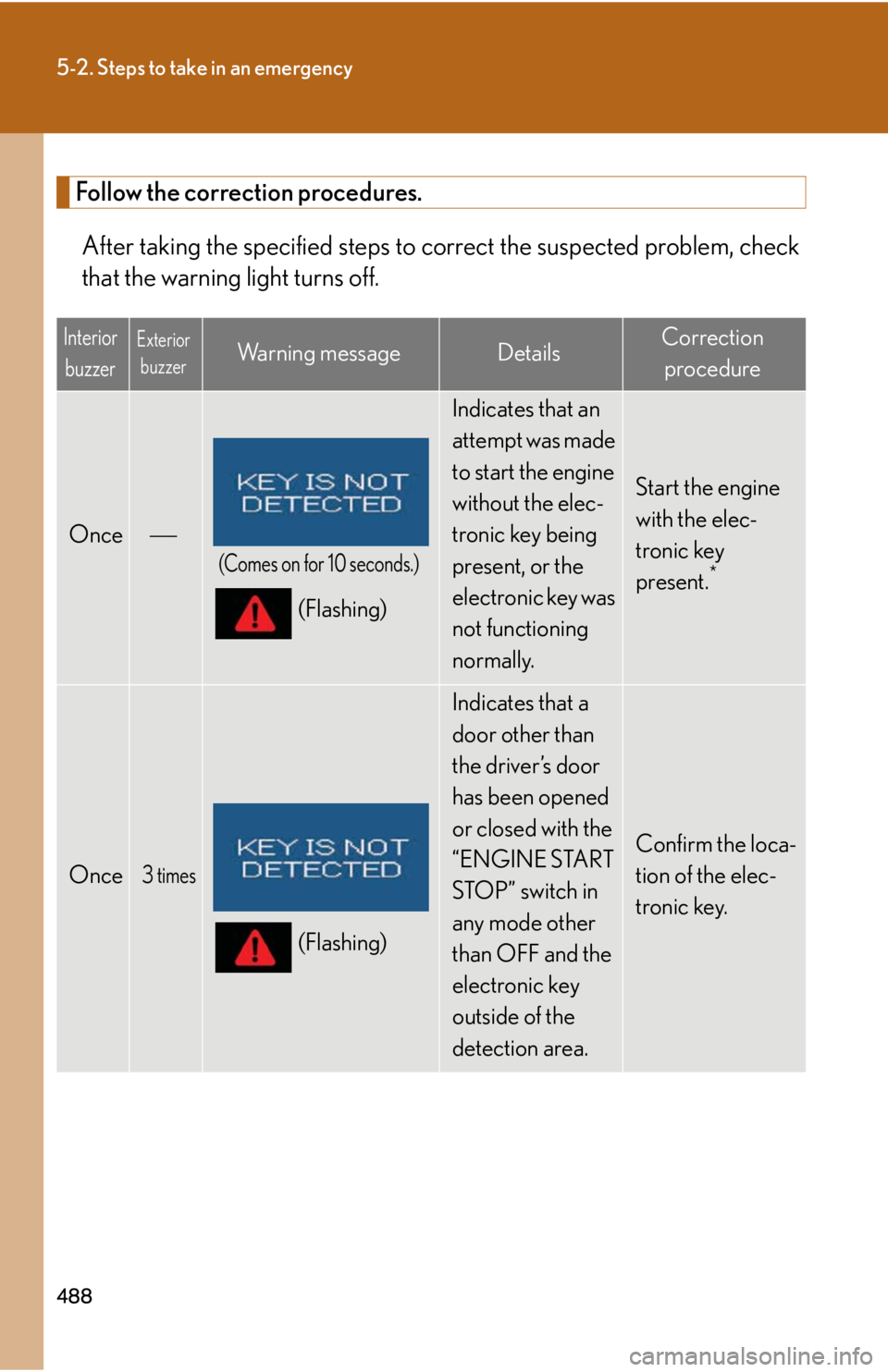

5-2. Steps to take in an emergency
Follow the correction procedures.After taking the specified steps to co rrect the suspected problem, check
that the warning light turns off.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Once
(Comes on for 10 seconds.)
(Flashing)
Indicates that an
attempt was made
to start the engine
without the elec-
tronic key being
present, or the
electronic key was
not functioning
normally.
Start the engine
with the elec-
tronic key
present.
*
Once3 times
(Flashing)
Indicates that a
door other than
the driver’s door
has been opened
or closed with the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Confirm the loca-
tion of the elec-
tronic key.

5
When trouble arises
497
5-2. Steps to take in an emergency
■When using the compact spare tire
As the compact spare tire is not equipped with the tire pressure warning valve and
transmitter, low inflation pressure of the spare tire will not be indicated. Also, if you
replace the compact spare tire after the tire pressure warning light comes on, the
light remains on.
■If you have a flat rear tire on a road covered with snow or ice
Install the compact spare tire on the front of the vehicle. Perform the following steps
and fit tire chains to the rear tires.
Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the vehi-
cle.
Fit tire chains to the rear tires.
■After completing the tire change
The tire pressure warning system must be reset. ( P. 4 1 4 )
CAUTION
■Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the vehicle
suddenly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do no t use other tire jacks for replacing tires
on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported by a jack.
●Do not start or run the engine while your vehicle is supported by the jack.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greate r than that required to replace the tire.
STEP1
STEP2
STEP3

5
When trouble arises
511
5-2. Steps to take in an emergency
■Avoiding a discharged battery
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehicle
is not in use, due to natural discharge and the draining effects of certain electrical
appliances. If the vehicle is left for a long time, the battery may discharge, and the
engine may be unable to start. (The batt ery recharges automatically during driving.)
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any pa rt other than the intended terminal.
●Do not allow the jumper cables to come into contact with the “+” and “-” termi-
nals.
●Do not allow open flame or use matches, cigarette lighters or smoke near the
battery.
Maintain the engine speed of th e second vehicle and turn the
“ENGINE START STOP” switch to IGNITION ON mode,
then start the vehicle’s engine.
Once the vehicle’s engine ha s started, remove the jumper
cables in the exact reverse ord er in which they were con-
nected.
Once the engine starts, have the ve hicle checked at your Lexus dealer
as soon as possible.STEP5
STEP6

528

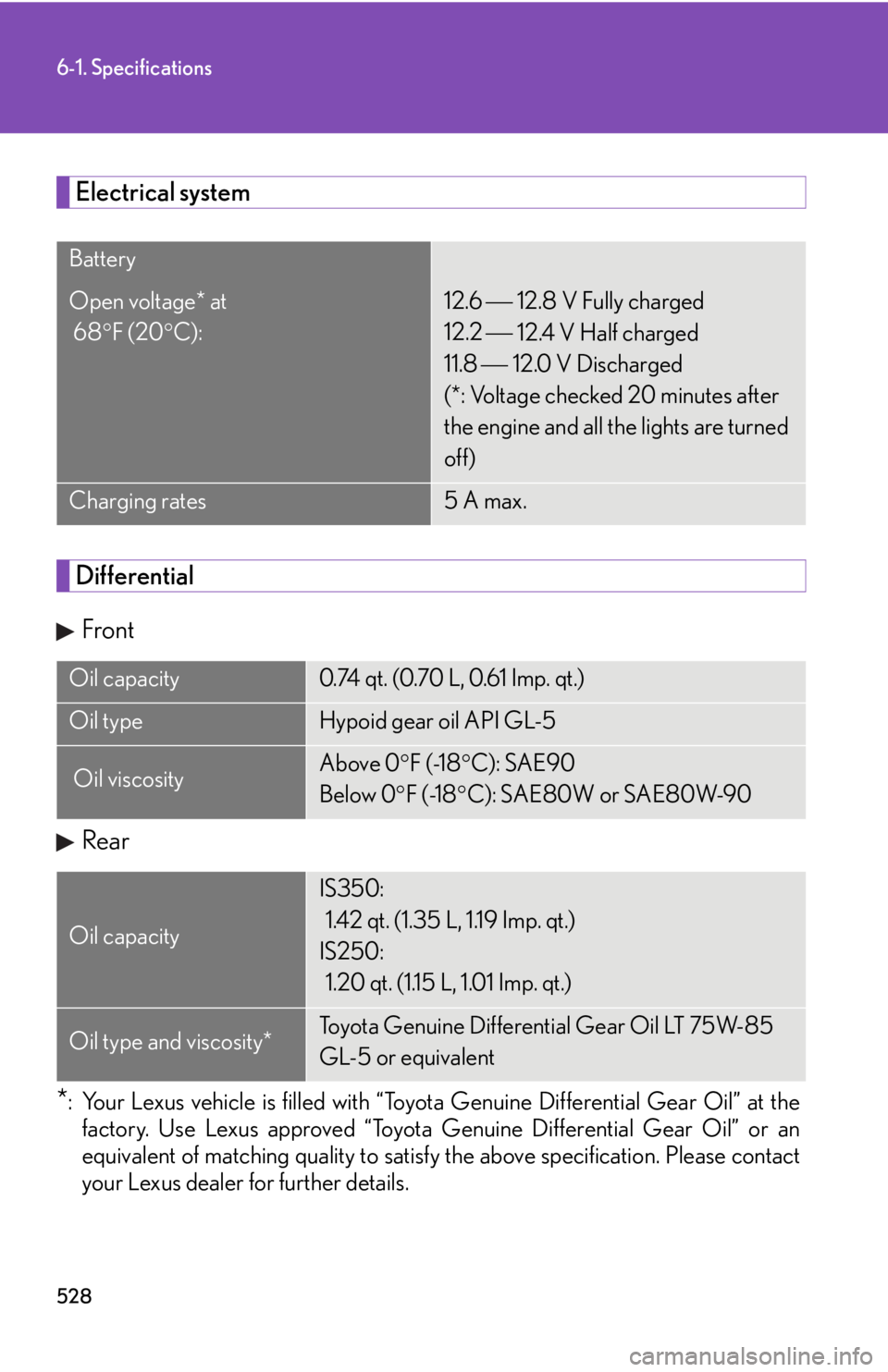

6-1. Specifications
Electrical system
DifferentialFront
Rear
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to satisf y the above specification. Please contact
your Lexus dealer for further details.
Battery
Open voltage* at
68 F (20 C):12.6 12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(*: Voltage checked 20 minutes after
the engine and all the lights are turned
off)
Charging rates5 A max.
Oil capacity0.74 qt. (0.70 L, 0.61 Imp. qt.)
Oil typeHypoid gear oil API GL-5
Oil viscosityAbove 0 F (-18 C): SAE90
Below 0 F (-18 C): SAE80W or SAE80W-90
Oil capacity
IS350:
1.42 qt. (1.35 L, 1.19 Imp. qt.)
IS250: 1.20 qt. (1.15 L, 1.01 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent

581
Alphabetical index
If you have a flat tire ........................ 492
If you lose your keys ........................ 504
If you think something is wrong................................................... 469
If your vehicle becomes stuck ......516
If your vehicle has to be stopped in an emergency.............................. 518
If your vehicle needs to be towed ................................................... 463
If your vehicle overheats.................. 513
Emergency flashers Switch ...................................................... 462
Engine Compartment ..................................... 397
Engine switch .......................................... 141
Hood ....................................................... 394
How to start the engine...................... 141
Identification number......................... 521
If the engine will not start ................ 501
Ignition switch.......................................... 141
Overheating........................................... 513
Engine compartment cover............. 399
Engine coolant Capacity..................................................527
Checking ............................................... 404
Preparing and checking before winter .................................... 206 Engine coolant temperature
gauge....................................................... 158
Engine immobilizer system..................90
Engine oil Capacity .................................................524
Checking ................................................ 401
Preparing and checking before winter ................................... 206
EPS .............................................................. 196
Event data recorder .................................21
First-aid kit storage belt ..................... 357
Floor mat ..................................................356
Fluid Brake ....................................................... 406
Washer ...................................................... 411
Fog lights Switch.........................................................176
Wattage ................................................. 536
Footwell lights ........................................ 325
Front fog lights Switch.........................................................176
Wattage ................................................. 536
Front passenger occupant classification system .......................... 109
Front passenger's seat belt reminder light...................................... 473
F
*: For vehicles with a navigation system, refe r to the “Navigation System Owner’s Manual”.

588
Alphabetical index
Warning buzzersBrake system ......................................... 471
Open door .......................................... 473
Seat belt reminder............................. 473
Warning lights Anti-lock brake system....................472
Brake assist system............................472
Brake system ......................................... 471
Charging system ................................472
Electric power steering warning light ......................................472
Low fuel level ....................................... 473
Malfunction indicator lamp............472
Master warning light ........................ 473
Open door ........................................... 473
Pretensioners........................................472
Seat belt reminder light .................. 473
SRS airbags ...........................................472
Tire pressure warning light ........................................................ 473 Warning messages
AWD system....................................... 482
Engine oil level.................................... 484
Engine oil maintenance.................. 484
Engine oil pressure............................. 481
Hood ....................................................... 484
Intuitive parking assist ......... 482, 484
Moon roof............................................. 484
Open door ........................................... 484
Parking brake...................................... 484
Smart access system with push-button start ........................... 488
Steering lock........................................ 482
Tire pressure warning system................... 482, 484
Trunk........................................................ 484
Washer fluid ........................................ 484
Washer Checking................................................... 411
Preparing and checking before winter.................................... 206
Switch ........................................................ 178
Washing and waxing........................... 378W
