4608-2. Steps to take in an emergency
IS350/250_U (OM53758U)
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recomm ended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure la bel (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should stop and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a significantly under-inflated tire causes the
tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency
and tire tread life, and ma y affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure wa rning system) is not a substitute for proper
tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure,
even if under-inflation has no t reached the level to trigger illumination of the TPMS low
tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indi cator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one minu te and then remain continuously illumi-
nated. This sequence will cont inue upon subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfun ctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning syst em) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressure warning system) to continue to function
properly.
NOTICE
■Precaution when inst alling a different tire
When differently constructed tires or tires of different makers, models or tread pat-
terns are installed, the tire pressure warning system may not operate properly.

4618-2. Steps to take in an emergency
8
When trouble arises
IS350/250_U (OM53758U)
Master warning light
The master warning light also comes on or flashes in order to indicate that a
message is currently being displayed on the multi-information display.
Multi-information display
If any of the warning lights come on again after the following actions have been
performed, contact your Lexus dealer.
If a warning message is displayed
If a warning is shown on the multi-information display, stay calm and perform
the following actions:
Except F SPORT modelsF SPORT models (when the main
meter is in the center position)
F SPORT models (when the main
meter is in the right-side position)
1
2

4628-2. Steps to take in an emergency
IS350/250_U (OM53758U)

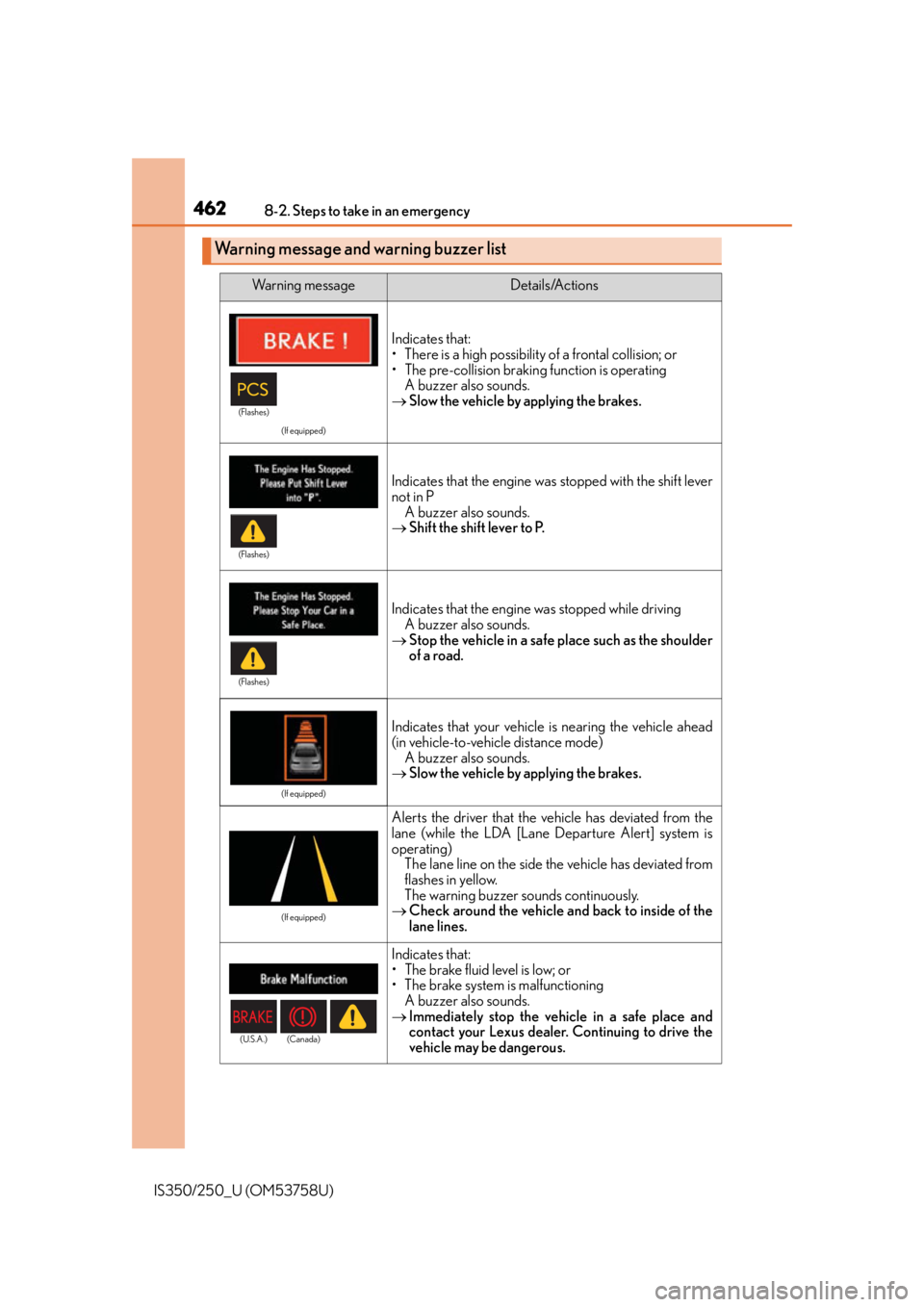

Warning message and warning buzzer list
Wa r n i n g m e s s a g eDetails/Actions
(If equipped)
Indicates that:
• There is a high possibility of a frontal collision; or
• The pre-collision braking function is operatingA buzzer also sounds.
 Slow the vehicle by applying the brakes.
Indicates that the engine was stopped with the shift lever
not in P
A buzzer also sounds.
 Shift the shift lever to P.
Indicates that the engine was stopped while driving
A buzzer also sounds.
 Stop the vehicle in a safe place such as the shoulder
of a road.
(If equipped)
Indicates that your vehicle is nearing the vehicle ahead
(in vehicle-to-vehicle distance mode)
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(If equipped)
Alerts the driver that the vehicle has deviated from the
lane (while the LDA [Lane Departure Alert] system is
operating)
The lane line on the side the vehicle has deviated from
flashes in yellow.
The warning buzzer sounds continuously.
 Check around the vehicle and back to inside of the
lane lines.
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact your Lexus dealer. Continuing to drive the
vehicle may be dangerous.
(Flashes)
(Flashes)
(Flashes)
(U.S.A.) (Canada)

4638-2. Steps to take in an emergency
8
When trouble arises
IS350/250_U (OM53758U)

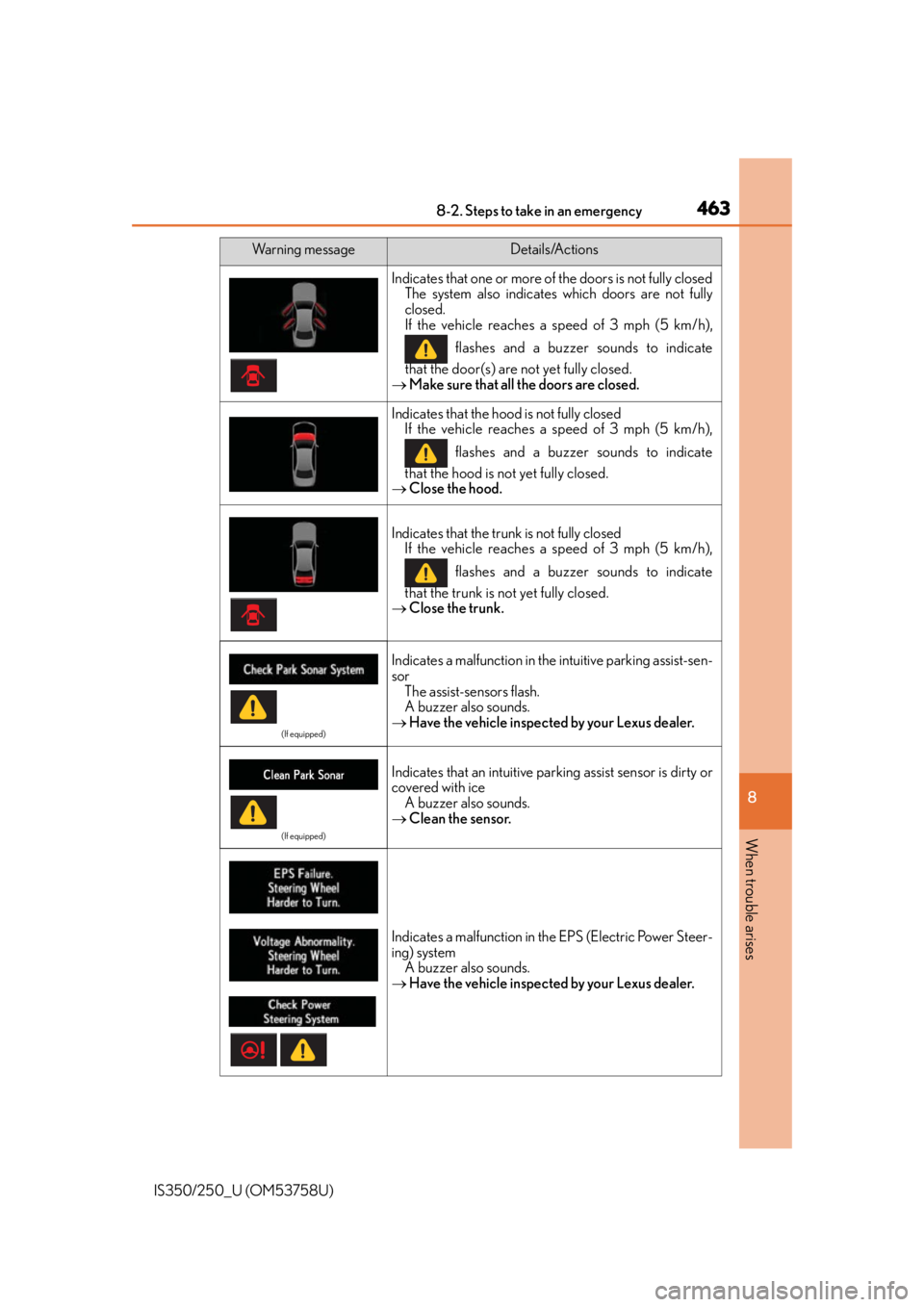

Indicates that one or more of the doors is not fully closed
The system also indicates which doors are not fully
closed.
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the door(s) are not yet fully closed.
 Make sure that all the doors are closed.
Indicates that the hood is not fully closed
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the hood is not yet fully closed.
 Close the hood.
Indicates that the trunk is not fully closed
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the trunk is not yet fully closed.
 Close the trunk.
(If equipped)
Indicates a malfunction in the intuitive parking assist-sen-
sor The assist-sensors flash.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that an intuitive par king assist sensor is dirty or
covered with ice
A buzzer also sounds.
 Clean the sensor.
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Wa r n i n g m e s s a g eDetails/Actions

4648-2. Steps to take in an emergency
IS350/250_U (OM53758U)

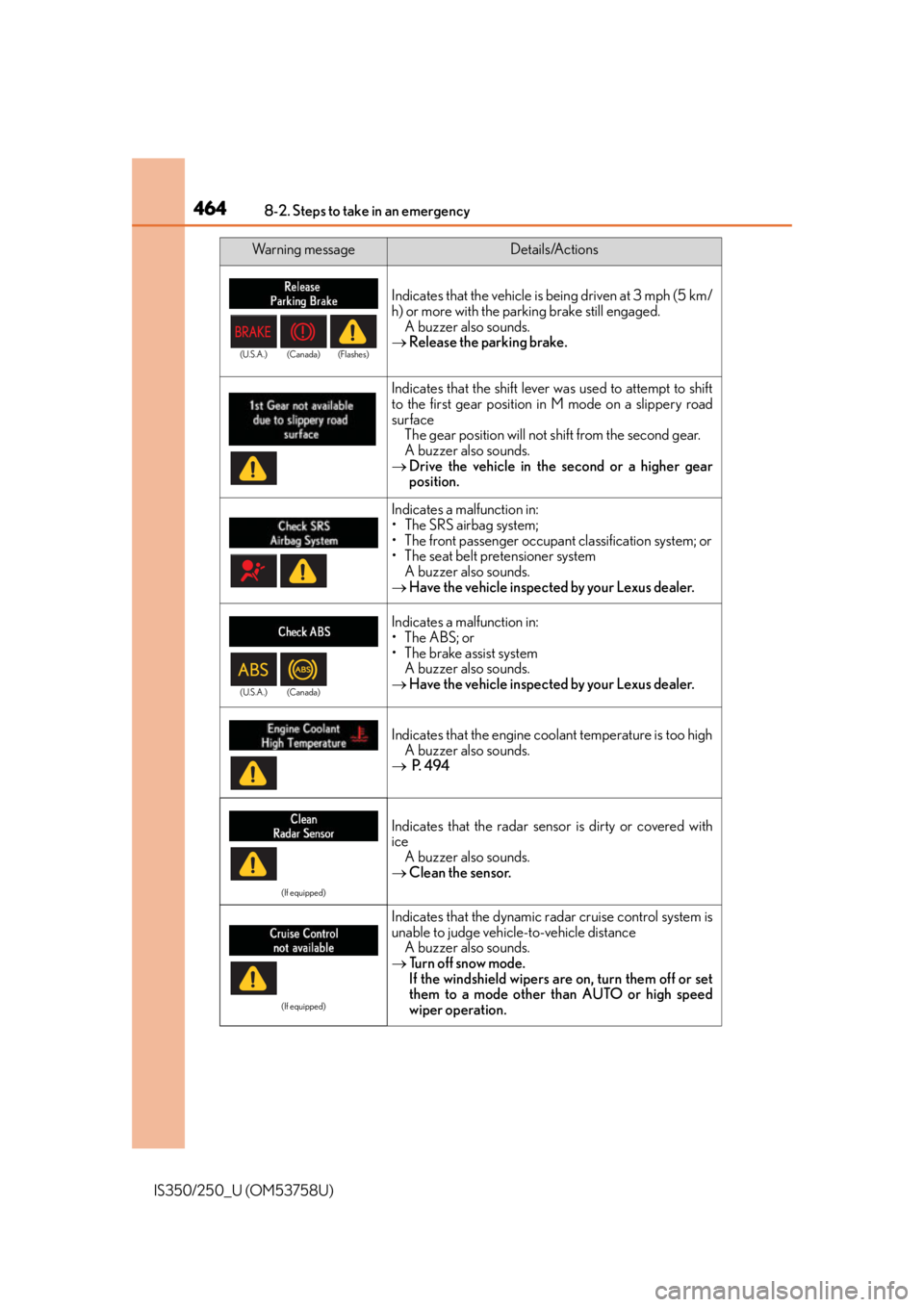

Indicates that the vehicle is being driven at 3 mph (5 km/
h) or more with the parking brake still engaged. A buzzer also sounds.
 Release the parking brake.
Indicates that the shift lever was used to attempt to shift
to the first gear position in M mode on a slippery road
surface
The gear position will not sh ift from the second gear.
A buzzer also sounds.
 Drive the vehicle in the second or a higher gear
position.
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates a malfunction in:
• The ABS; or
• The brake assist system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates that the engine coolant temperature is too high
A buzzer also sounds.
 P. 4 9 4
(If equipped)
Indicates that the radar sensor is dirty or covered with
ice
A buzzer also sounds.
 Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control system is
unable to judge vehicle-to-vehicle distance
A buzzer also sounds.
 Tu r n o f f s n o w m o d e .
If the windshield wipers are on, turn them off or set
them to a mode other than AUTO or high speed
wiper operation.
Wa r n i n g m e s s a g eDetails/Actions
(U.S.A.) (Canada) (Flashes)
(U.S.A.) (Canada)

4658-2. Steps to take in an emergency
8
When trouble arises
IS350/250_U (OM53758U)

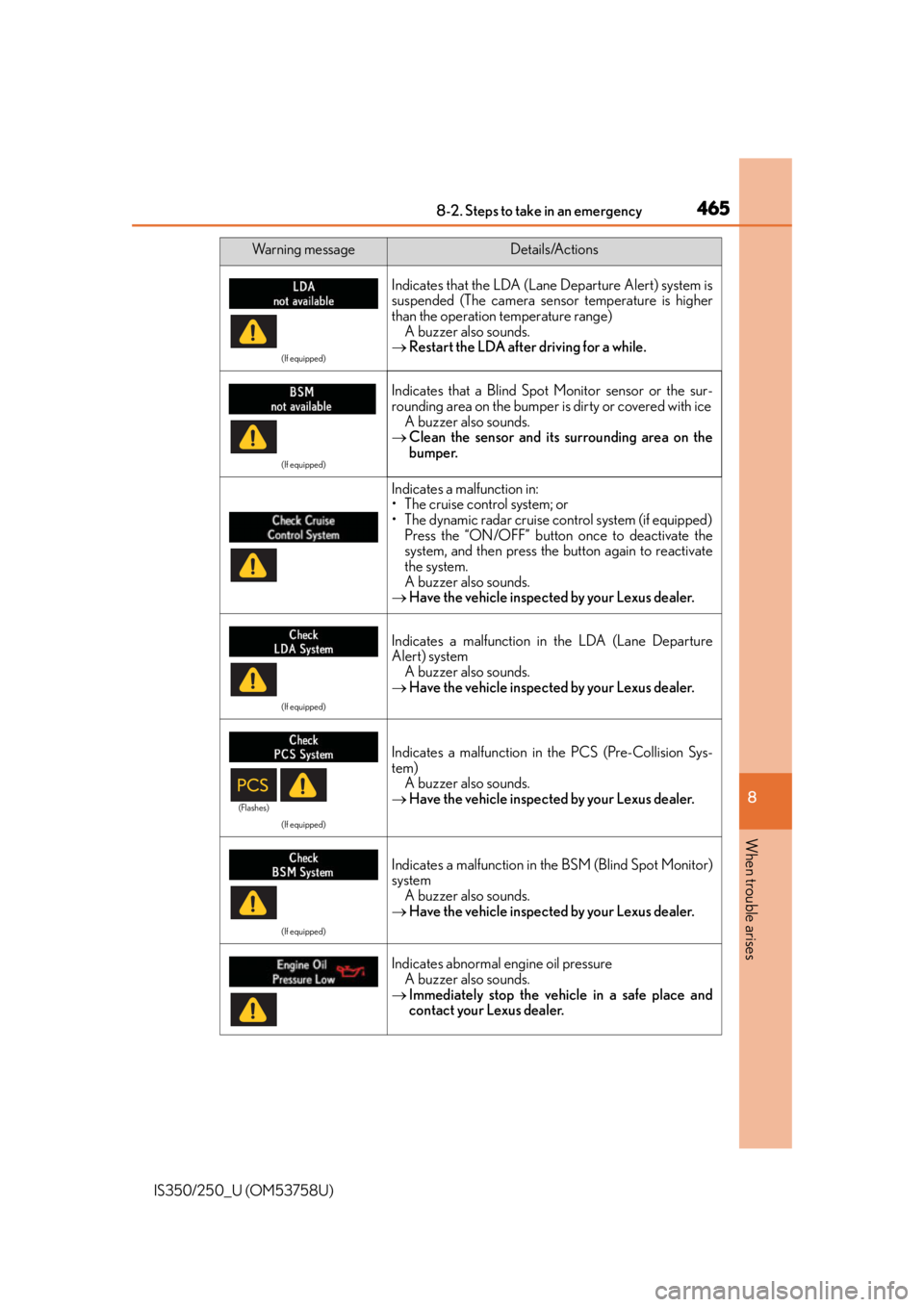

(If equipped)
Indicates that the LDA (Lane Departure Alert) system is
suspended (The camera sensor temperature is higher
than the operation temperature range)
A buzzer also sounds.
 Restart the LDA after driving for a while.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area on the
bumper.
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control system (if equipped)
Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the LDA (Lane Departure
Alert) system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision Sys-
tem)
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates abnormal engine oil pressure
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

4668-2. Steps to take in an emergency
IS350/250_U (OM53758U)

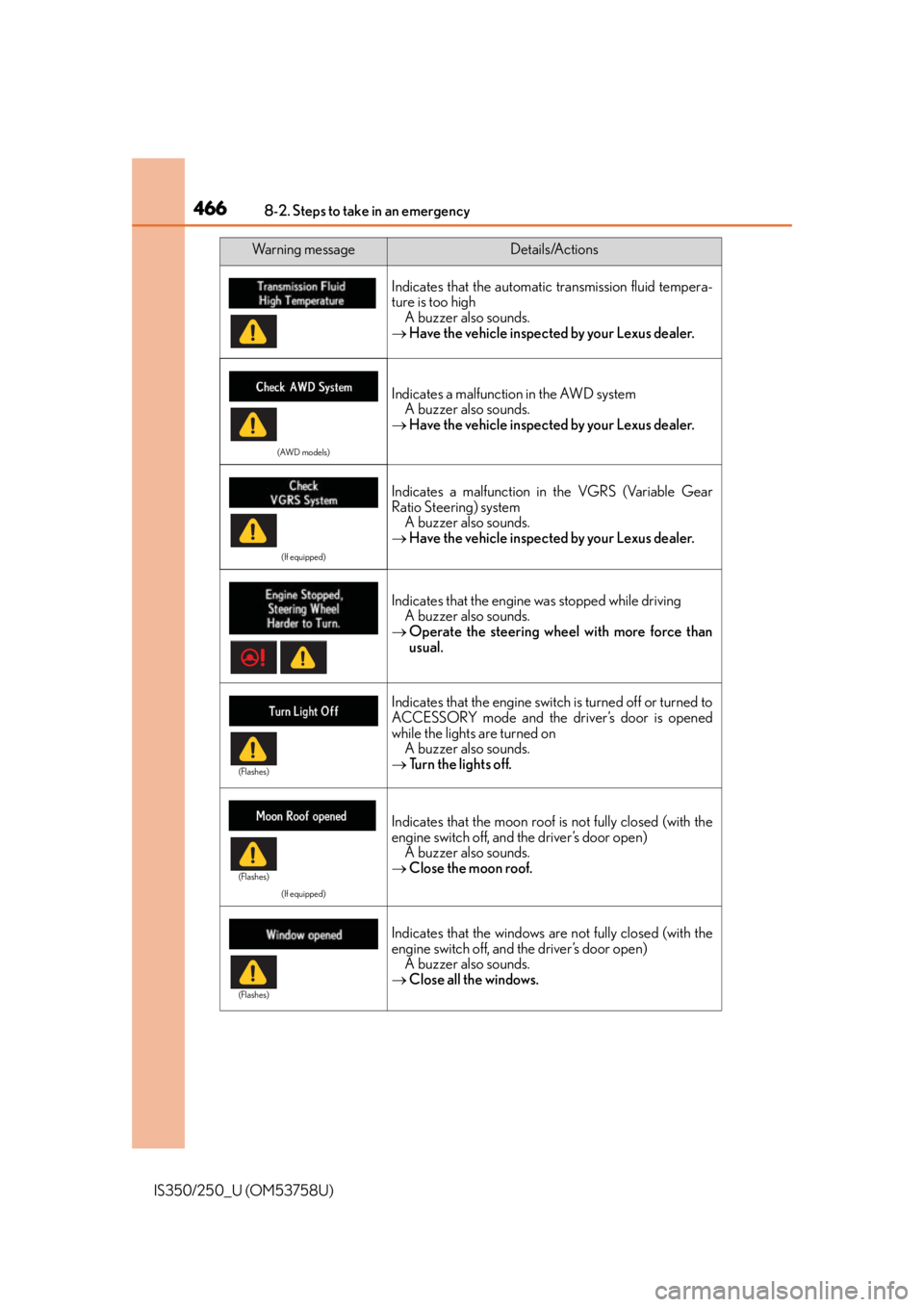

Indicates that the automatic transmission fluid tempera-
ture is too highA buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(AWD models)
Indicates a malfunctio n in the AWD system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the VGRS (Variable Gear
Ratio Steering) system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates that the engine was stopped while driving
A buzzer also sounds.
 Operate the steering wheel with more force than
usual.
Indicates that the engine switch is turned off or turned to
ACCESSORY mode and the driver’s door is opened
while the lights are turned on
A buzzer also sounds.
 Turn the lights off.
(If equipped)
Indicates that the moon roof is not fully closed (with the
engine switch off, and the driver’s door open)
A buzzer also sounds.
 Close the moon roof.
Indicates that the windows are not fully closed (with the
engine switch off, and the driver’s door open)
A buzzer also sounds.
 Close all the windows.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
(Flashes)

4678-2. Steps to take in an emergency
8
When trouble arises
IS350/250_U (OM53758U)
(If equipped)

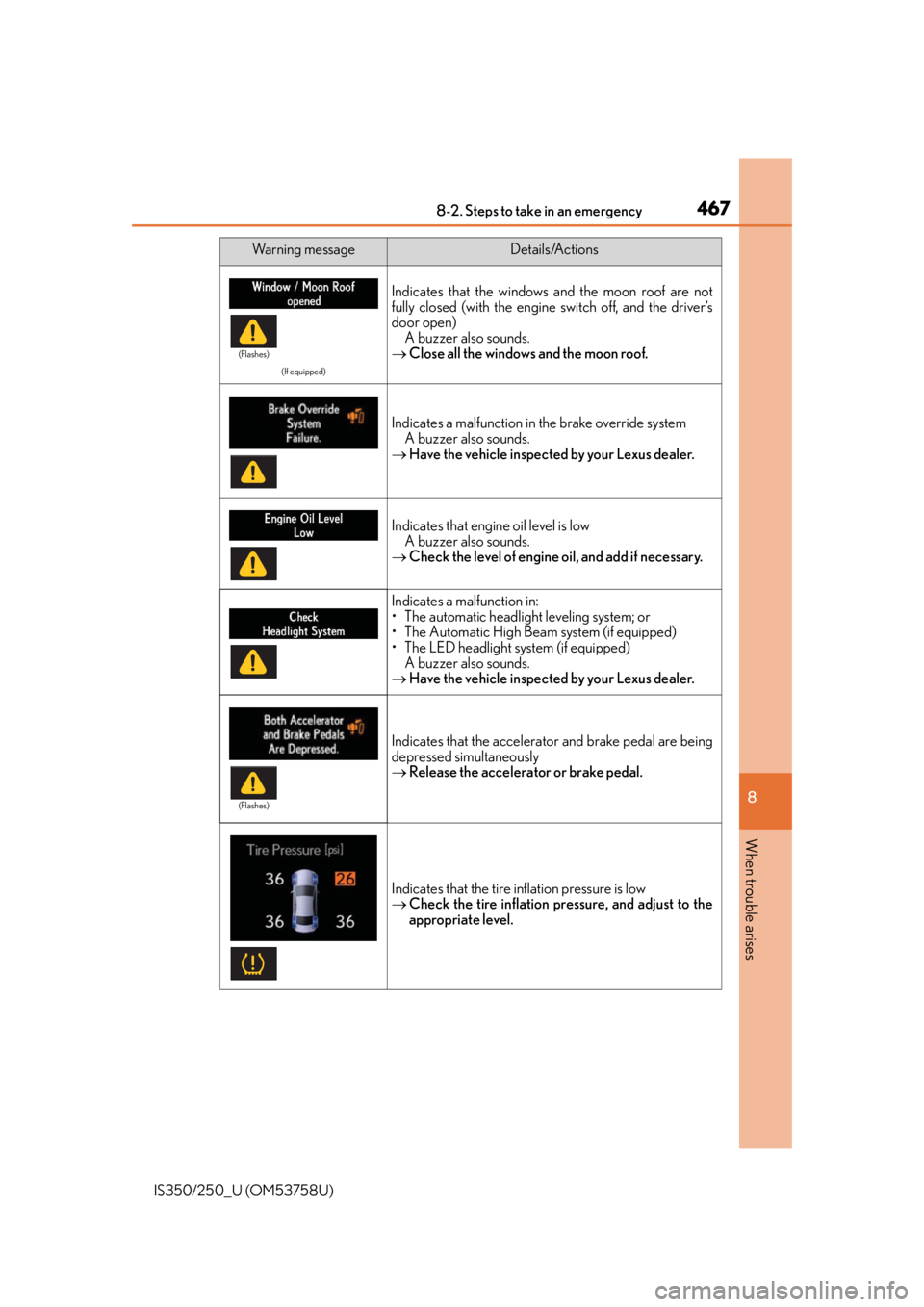

Indicates that the windows and the moon roof are not
fully closed (with the engine switch off, and the driver’s
door open)A buzzer also sounds.
 Close all the windows and the moon roof.
Indicates a malfunction in the brake override system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates that engine oil level is low
A buzzer also sounds.
 Check the level of engine oil, and add if necessary.
Indicates a malfunction in:
• The automatic headlig ht leveling system; or
• The Automatic High Beam system (if equipped)
• The LED headlight system (if equipped)
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates that the accelerator and brake pedal are being
depressed simultaneously
Release the accelerator or brake pedal.
Indicates that the tire in flation pressure is low
 Check the tire inflation pressure, and adjust to the
appropriate level.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)

4688-2. Steps to take in an emergency
IS350/250_U (OM53758U)
Indicates a malfunction in the tire pressure warning sys-
tem
 Stop the vehicle in a safe place and turn the engine
switch off then on again.
If the tire pressure warning indicator flashes for 1
minute then illuminates, there is a malfunction in the
system. Have the vehicle inspected at your Lexus
dealer.
Indicates that the tire position information cannot be rec-
ognized
Drive for a short while an d check if the display
updates.
If the radio wave conditions improve, the display
may return to normal. If th e tire pressure is still not
displayed after driving for several minutes, stop the
vehicle in a safe place, turn the engine switch off
then on again, and start driving.
If the tire pressure is still not displayed even after
repeating this process several times, have the vehi-
cle inspected at your Lexus dealer.
Indicates that the wash er fluid level is low
 Add washer fluid.
Indicates that remaining fuel is approximately 2.6 gal.
(10 L, 2.2 Imp. gal.) or less
 Refuel the vehicle.
Indicates that the TRAC (Tra ction Control) system has
been deactivated
 Tu r n t h e T R A C o n . ( P. 2 3 6 )
(U.S.A. only)
Indicates that all maintenance according to the driven
distance on the maintenance schedule
* should be per-
formed soon.
Comes on approximately 4500 miles (7200 km) after
the maintenance data has been reset.
 If necessary, perform maintenance.
Wa r n i n g m e s s a g eDetails/Actions

4698-2. Steps to take in an emergency
8
When trouble arises
IS350/250_U (OM53758U)
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supplement”
for the maintenance interval applicable to your vehicle.
(U.S.A. only)

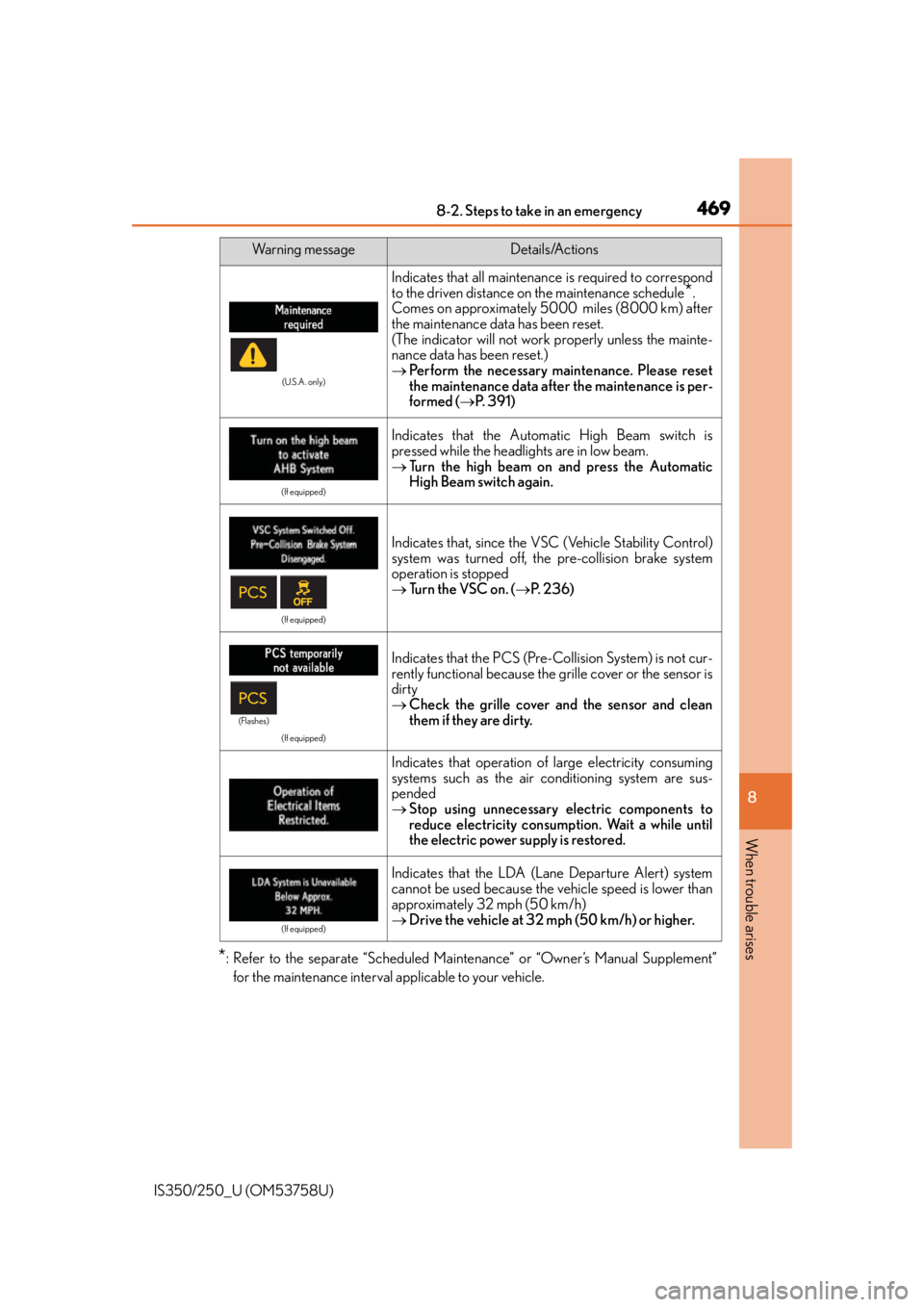

Indicates that all maintenance is required to correspond
to the driven distance on the maintenance schedule*.
Comes on approximately 5000 miles (8000 km) after
the maintenance data has been reset.
(The indicator will not work properly unless the mainte-
nance data has been reset.)
 Perform the necessary maintenance. Please reset
the maintenance data afte r the maintenance is per-
formed ( P. 3 9 1 )
(If equipped)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
 Turn the high beam on and press the Automatic
High Beam switch again.
(If equipped)
Indicates that, since the VSC (Vehicle Stability Control)
system was turned off, the pre-collision brake system
operation is stopped
 Turn the VSC on. ( P. 2 3 6 )
(If equipped)
Indicates that the PCS (Pre-Collision System) is not cur-
rently functional because the grille cover or the sensor is
dirty
 Check the grille cover and the sensor and clean
them if they are dirty.
Indicates that operation of large electricity consuming
systems such as the air conditioning system are sus-
pended
Stop using unnecessary electric components to
reduce electricity consumption. Wait a while until
the electric power supply is restored.
(If equipped)
Indicates that the LDA (Lane Departure Alert) system
cannot be used because the vehicle speed is lower than
approximately 32 mph (50 km/h)
Drive the vehicle at 32 mph (50 km/h) or higher.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
