4617-3. Do-it-yourself maintenance
7
Maintenance and care
IS350/300/200t_U (OM53D76U)
WARNING
The engine compartment contains many mechanisms and fluids that may move suddenly,
become hot, or become electrically energize d. To avoid death or serious injury, observe
the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driving
as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel and
battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and corro-
sive sulfuric acid.
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fans may auto-
matically start to run if the air conditioning is on and/or the coolant temperature is high.
( → P. 471)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting in
your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner f ilter removed may cause excessive engine wear due to dirt
in the air.

4687-3. Do-it-yourself maintenance
IS350/300/200t_U (OM53D76U)
■After changing the engine oil (IS200t)
The engine oil maintenance data should be reset. Perform the following procedures:
Select on the multi-information display. ( →P. 92)
Press the or meter control switch on the steering wheel to select “Vehicle
Settings” then “Oil Maintenance” . (To confirm setting, press .)
Select “Yes” an d then press .
A message is displayed on th e multi-information display.
WARNING
■Used engine oil
●Used engine oil contains potentially harm ful contaminants which may cause skin dis-
orders such as inflammation and skin cance r, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a sa fe and acceptable manner. Do not dispose of
used oil and filters in household tras h, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information concerning
recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil fille r cap is properly tightened.
1
2
3
4

5388-2. Steps to take in an emergency
IS350/300/200t_U (OM53D76U)
(If equipped)
Indicates that the engine oil is scheduled to be changed.
(The indicator will not work properly unless the message
has been reset.)
→Check the engine oil, and change if necessary.
After changing the engine oil, the message should
be reset.
(If equipped)
Indicates that all maintenance according to the driven
distance on the maintenance schedule* should be per-
formed soon.
→ Comes on approximately 4500 miles (7200 km)
after the message has been reset.
If necessary, perform maintenance. Please reset
the message after the maintenance is performed.
(→ P. 454)
(If equipped)
Indicates that the engine oil should be changed. (After
the engine oil is changed and the message has been
reset.)
→ Check and change the engine oil, and oil filter by
your Lexus dealer. After chan ging the engine oil, the
message should be reset. ( →P. 468)
(If equipped)
Indicates that all maintenanc e is required to correspond
to the driven distance on the maintenance schedule
*.
→ Comes on approximately 5000 miles (8000 km)
after the message has been reset. (The indicator will
not work properly unless the message has been
reset.)
Perform the necessary maintenance. Please reset
the message after the maintenance is performed.
(→ P. 454)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
→ Turn the high beam on and press the Automatic
High Beam switch again.
Warning messageDetails/Actions

5779-1. Specifications
9
Vehicle specifications
IS350/300/200t_U (OM53D76U)
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engineoil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.

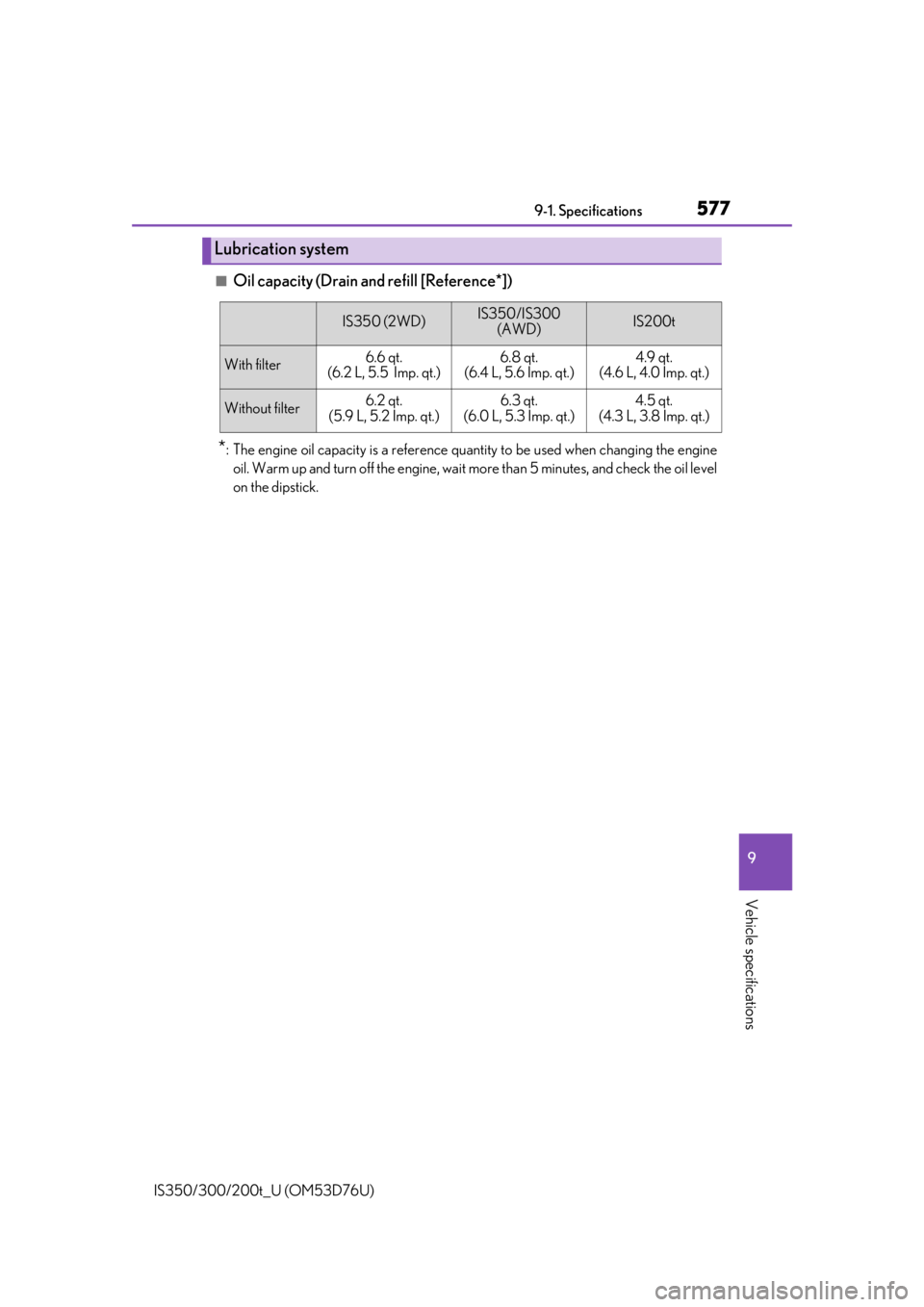

Lubrication system
IS350 (2WD)IS350/IS300 (AWD)IS200t
With filter6.6 qt.
(6.2 L, 5.5 Imp. qt.)6.8 qt.
(6.4 L, 5.6 Imp. qt.)4.9 qt.
(4.6 L, 4.0 Imp. qt.)
Without filter6.2 qt.
(5.9 L, 5.2 Imp. qt.)6.3 qt.
(6.0 L, 5.3 Imp. qt.)4.5 qt.
(4.3 L, 3.8 Imp. qt.)
