buttons Lexus IS350 2017 Owner's Manual / LEXUS 2017 IS200T,IS300,IS350 OWNERS MANUAL QUICK GUIDE (OM53E12U)

5
OverviewInstrument Panel
Windshield wiper and washer switch P.20
Multi-information display P.12
Turn signal lever
Headlight switch P.11
P.17
Inside lock buttons*
Driving position memory
switches
∗*
See P.8
See P.7
Window lock switch
*
Outside rear view
mirror switches
*
Power window switches*
Door lock switches*
Tire pressure warn ing reset switch P.31

41
■Basic operation
Display the audio source selection
screen
Display the sound setting screen
Adjust volume
Turn the audio system on/off
Select a radio/media mode
Play/Pause
Turn mute on/off
■ Radio
Display the cache radio operation but-
tons
Display the radio preset buttons
Scan for receivable stations/channels
Select to store artist and song title
information
Display a list of receivable stations
Select a preset station/channel
Seek for a station/channel
Step up/down frequencies/channels
Move up/down the list
■Entering station/channel presets
Select the desired stat ion/channel by using the tune, th e seek or the scan function.
Select “Presets”.
Select one of the sc reen buttons and hold it until a beep is heard, indicating that the sta-
tion/channel has been set.
1
2
3
4
5
1
2
3
4
5
6
7
1
2
3

49
Audio System (with Lexus Display Audio)
■Lexus Display Audio operation buttons
Eject a disc.
Select a radio station band, track or file.
Except radio and A/V mode: Pause or resume playing a track.
Radio and A/V mode: Turn mute on/off.
Seek up or down for a radio station, or to access a desired track or file.
Disc slot
Display the media top screen.
Display the radio top screen.
Press to turn the audio system on/off, and turn to adjust the volume.
■ Using the steering wheel switch es to change audio sources
Press the “MODE” switch when the audio system is turned on. The audio source changes
each time the “MODE” switch is pressed.
1
2
3
4
5
6
7
8

62

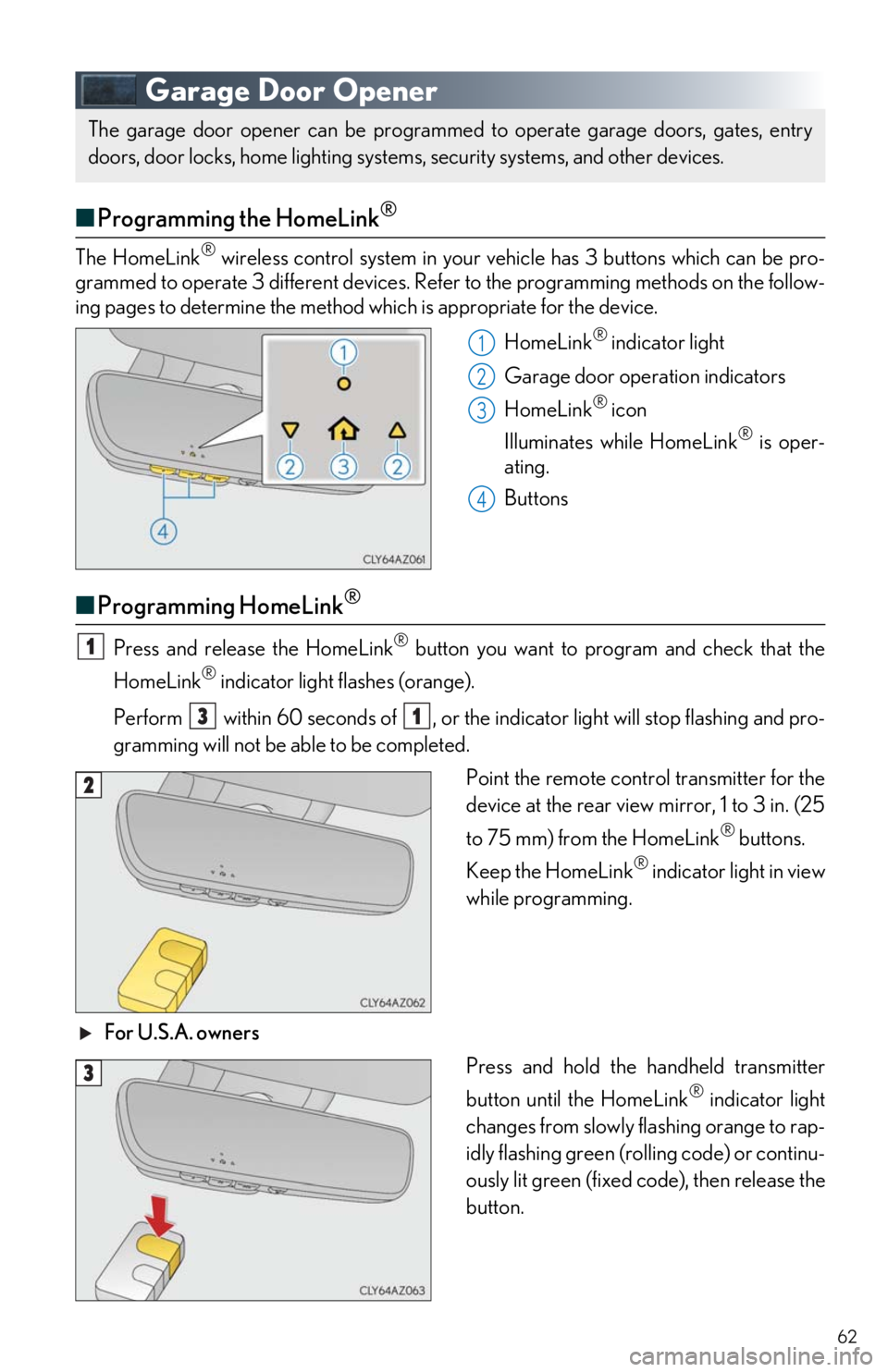

Garage Door Opener
■Programming the HomeLink®
The HomeLink® wireless control system in your ve hicle has 3 buttons which can be pro-
grammed to operate 3 different devices. Refe r to the programming methods on the follow-
ing pages to determine the method which is appropriate for the device.
HomeLink
® indicator light
Garage door operation indicators
HomeLink
® icon
Illuminates while HomeLink
® is oper-
ating.
Buttons
■ Programming HomeLink®
Press and release the HomeLink® button you want to program and check that the
HomeLink
® indicator light flashes (orange).
Perform within 60 seconds of , or the indicator light will stop flashing and pro-
gramming will not be able to be completed.
Point the remote control transmitter for the
device at the rear view mirror, 1 to 3 in. (25
to 75 mm) from the HomeLink
® buttons.
Keep the HomeLink
® indicator light in view
while programming.
For U.S.A. owners Press and hold the handheld transmitter
button until the HomeLink
® indicator light
changes from slowly flashing orange to rap-
idly flashing green (rolling code) or continu-
ously lit green (fixed code), then release the
button.
The garage door opener can be programmed to operate ga rage doors, gates, entry
doors, door locks, home lighting systems, security systems, and other devices.
1
2
23
34
1
31
2
3

63
Programming an entry gate (for U.S.A. owners)/Programming a device in the Cana-
dian market
Press and release the remote co ntrol transmitter button at 2 second intervals, repeat-
edly, until the HomeLink
® indicator light changes from slowly flashing (orange) to rap-
idly flashing (green) (rolling code) or continuously lit (g reen) (fixed code).
Test the HomeLink
® operation by pressing the newly programmed button and observ-
ing the indicator light:
● Device with fixed code: If the indicator light is solid/continuous, programming has
been completed and your garage door or other device should operate when the
HomeLink
® button is pressed and released.
● Device with rolling code: If the indicator light flashes rapidly, your garage door
opener motor (or other device) is equipp ed with a rolling code. Complete the pro-
gramming process by firmly pressing and holding the programmed HomeLink
®
button for 2 seconds and then release the button.
● If the garage door or other device does not operate, proceed to “If your garage
door is of the rolling code type:”.
Repeat the steps above to program another device for any of the remaining Home-
Link
® buttons.
If your garage door is of the rolling code type:
Press the training button on the motor-head unit in your garage.
Press and hold the vehicle’s programmed HomeLink
® button for 2 seconds and
release it. Repeat this step once again.
If the door does not open, press and release the same button once again.
■ Programming other devices
For U.S.A. owners:
To program an entry gate, see the Owner’s Manual.
To program other devices, contact your Lexus dealer.
For Canadian owners: To program all other devices, follow the same procedure as for garage door programming.
■Operating HomeLink®
Press the appropriate HomeLink® button. The HomeLink® indicator light should turn on.
3
4
5
6
7
