Lexus IS350 2018 Owner's Manual / LEXUS 2018 IS300,IS350 OWNER'S MANUAL (OM53E34U)

3014-6. Driving tips
4
Driving
IS350 AWD/IS350/IS300 AWD/IS300_U(OM53E34U)

302
IS350 AWD/IS350/IS300 AWD/IS300_U(OM53E34U)
5-1. Basic Operations
Lexus Display Audio system ..........................................304
Steering wheel audio switches........................................ 310
Mobile Assistant............................ 311
USB/AUX ports ......................... 313
5-2. Setup Setup menu ................................... 316
General settings ...........................317
Voice settings ..............................320
Display settings ............................ 321
5-3. Using the audio system Selecting the au dio source .... 322
Optimal use of the audio system .......................................... 323
Audio settings ............................. 324
Audio menu screen operation .................................... 327
5-4. Using the radio Radio operation..........................330
5-5. Playing an audio CD and MP3/WMA/AAC discs
CD player operation ................ 336
Lexus Display Audio system
5

303
Lexus DisplayAudio system
5
IS350 AWD/IS350/IS300 AWD/IS300_U(OM53E34U)
5-6. Using an external device
Listening to an iPod ...................343
Using USB memory device ........................................... 347
Using the AUX port .................. 351
5-7. Connecting Bluetooth
®
Steps for using Bluetooth
®
devices .........................................352
Registering a Bluetooth
®
device...........................................354
Selecting a Bluetooth
®
device.......................................... 355
Connecting a Bluetooth
®
audio player ...............................356
Connecting a Bluetooth
®
phone ...........................................357
Displaying a Bluetooth
®
device details ........................... 358
Detailed Bluetooth
®
settings........................................ 359
5-8. Bluetooth
® Audio
Listening to Bluetooth
®
Audio............................................362 5-9. Bluetooth
® Phone
Using a Bluetooth
® Phone.... 363
Making a call ................................ 365
Receiving a call ...........................368
Speaking on the phone............ 369
Using a Bluetooth
®
phone message..........................371
Using the steering wheel switches....................................... 373
Bluetooth
® phone settings .... 374
5-10. Phonebook Contact settings ......................... 376
Messaging setting...................... 379
5-11. Bluetooth
®
What to do if... (Troubleshooting).................. 380
Bluetooth
®...................................384
5-12. Other function “Information” screen.................. 391
USB photo .................................... 393
Weather information................395
Voice command system ......... 396

304
IS350 AWD/IS350/IS300 AWD/IS300_U(OM53E34U)
5-1. Basic Operations
Eject a disc.
Select preset radio stations, or
access a desired track or file.
Except radio and A/V mode: Pause or resume playing a track or file.
Radio and A/V mode: Turn mute on/off.
“TUNE•SCROLL” knob
Select a radio station band, track or file.
Disc slot
Display the media top screen.
Display the radio top screen.
“PWR•VOL” knob
Press to turn the audio system on/o ff, and turn to adjust the volume.
Lexus Display Audio system∗
∗
: If equipped
Use the following buttons to star t listening to the audio system.
Lexus Display Audio operation buttons
1
2
3
4
5
6
7
8

3055-1. Basic Operations
5
Lexus Display Audio system
IS350 AWD/IS350/IS300 AWD/IS300_U(OM53E34U)

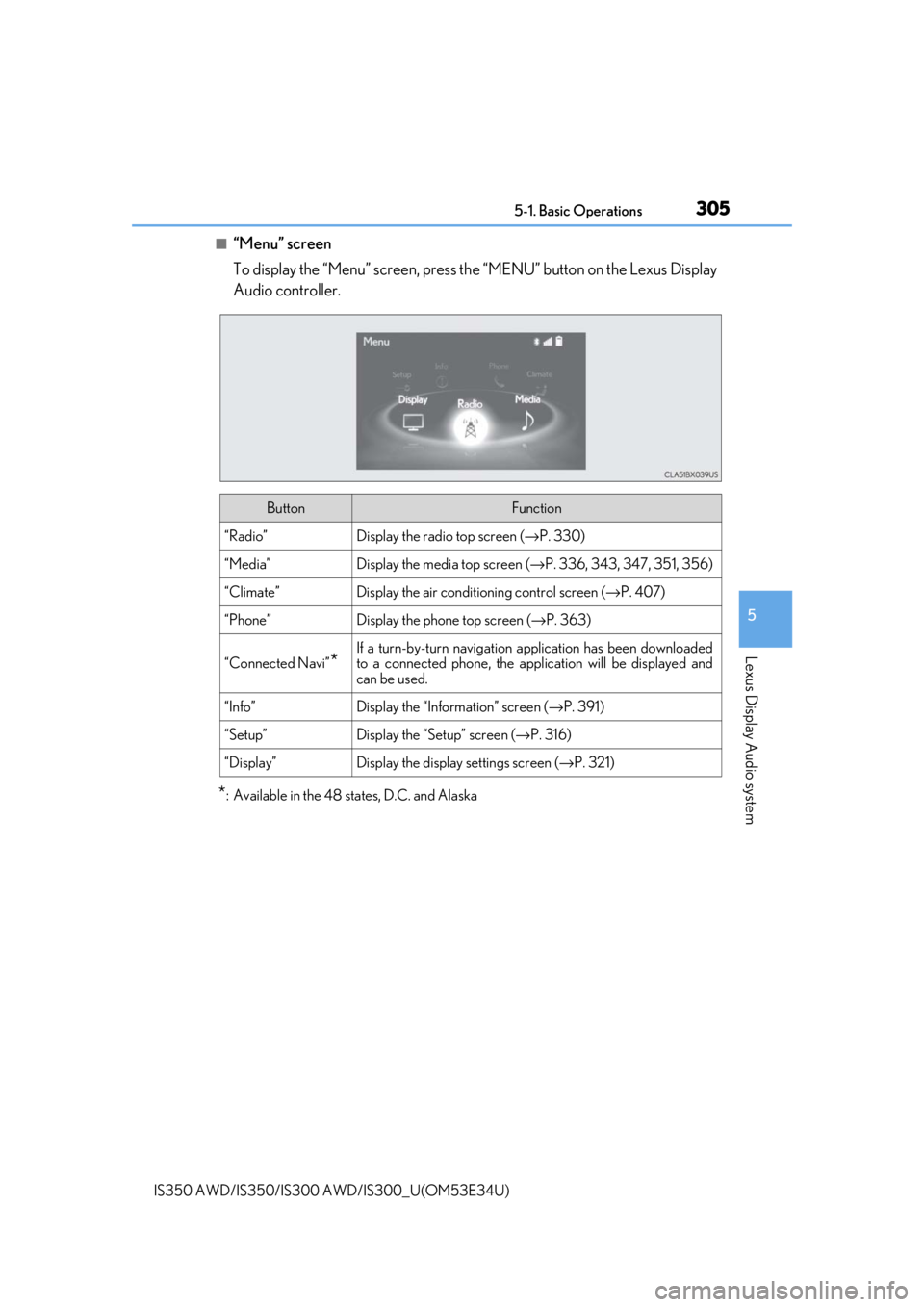

■“Menu” screen
To display the “Menu” screen, press th e “MENU” button on the Lexus Display
Audio controller.
*: Available in the 48 states, D.C. and Alaska
ButtonFunction
“Radio”Display the radio top screen ( →P. 330)
“Media”Display the media top screen ( →P. 336, 343, 347, 351, 356)
“Climate”Display the air conditioning control screen ( →P. 407)
“Phone”Display the phone top screen ( →P. 363)
“Connected Navi”*
If a turn-by-turn navigation application has been downloaded
to a connected phone, the appl ication will be displayed and
can be used.
“Info”Display the “Information” screen ( →P. 391)
“Setup”Display the “Setup” screen ( →P. 316)
“Display”Display the display settings screen ( →P. 321)

3065-1. Basic Operations
IS350 AWD/IS350/IS300 AWD/IS300_U(OM53E34U)
By using the Lexus Display Audio controlle r, you can control the audio system,
hands-free system, etc.
Display the “Source” screen or
audio top screen ( →P. 322)
Display the “Menu” screen
(→ P. 305)
Back button
Display the previous screen
Turn or move the controller to select
a function and number.
Move the controller to display the le ft or right side of the screen.
Push the controller to enter the selected function and number.
■Using the Lexus Display Audio controller
Select: Turn or move the control-
ler.
Enter: Push the controller.
Lexus Display Audio controller
1
2
3
4
1
2

3075-1. Basic Operations
5
Lexus Display Audio system
IS350 AWD/IS350/IS300 AWD/IS300_U(OM53E34U)
■Basic screen operation
When a list is displayed, use the approp riate button to scroll through the list.
Select the list by turning the con-
troller.
Return to the previous screen.
Indicator turns on when you can
move the controller left to view
additional screen text.
Indicator turns on when you can
move the controller right to view
additional screen text.
1
2
3
4

3085-1. Basic Operations
IS350 AWD/IS350/IS300 AWD/IS300_U(OM53E34U)
■Input mode
Letters and numbers are inputted via the screen.
Turn the controller to select the
desired character and press the
controller to input the character.
When this indicator is shown, you
can change input fields by moving
the controller forward.
When this indicator is shown, you
can change character types by
moving the controller to the right
and then selecting the desired
character type.
Select to erase characters one by one. Select and hold to erase all charac-
ters.
Select to complete data input.
■Input field mode
When in the input field you can move the cursor to the desired position.
Turn the controller to move the
cursor left or right.
When this indicator is shown, you
can move the cursor to the right
input field by moving the control-
ler to the right.
When this indicator is shown, you
can move the cursor to the left
input field by moving the control-
ler to the left.
When this indicator is shown, you can change to input mode by moving the
controller backward.
Inputting letters and numbers
1
2
3
4
5
1
2
3
4

3095-1. Basic Operations
5
Lexus Display Audio system
IS350 AWD/IS350/IS300 AWD/IS300_U(OM53E34U)
■When using the screen
●Under extremely cold conditions, the Lexus Display Audio controller may react slowly.
●If the screen is cold, the display may be dark, or the system may seem to be operating
slightly slower than normal.
●The screen may seem dark and hard to see when viewed through sunglasses. Change
your angle of viewing, adjust the display on the “Display” screen ( →P. 321) or remove
your sunglasses.
■Using cellular phones
Interference may be heard through the audi o system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
WARNING
■Using the Lexus Display Audio controller
Be careful when touching the Lexus Display Audio controller in extreme temperatures
as it may become very hot or cold due to the temperature inside the vehicle.
■Laser product
●CAUTION
USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PROCE-
DURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARD-
OUS RADIATION EXPOSURE.
●CAUTION
THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL
INCREASE EYE HAZARD.
NOTICE
■To prevent Lexus Display Au dio controller malfunction
●Do not allow the Lexus Display Audio controll er to come into contact with food, liq-
uid, stickers or lit cigarettes as doing so may cause it to change color, emit a strange
odor or stop functioning.
●Do not subject the Lexus Display Audio controller to excessive pressure or strong
impact as the controller may bend or break off.
■To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is off.
■To avoid damaging the audio system
Take care not to spill drinks or other fluids on the audio system.

3105-1. Basic Operations
IS350 AWD/IS350/IS300 AWD/IS300_U(OM53E34U)
Volume switch
• Increases/decreases volume
• Press and hold: Continuously increases/decreases volume
Radio mode: • Press: Select a radio station
• Press and hold: Seek up/down
CD, MP3/WMA/AAC disc, Bluetooth
®, iPod or USB mode:
• Press: Select a track/file/video
• Press and hold: Quickly move up/dow n through tracks/files/videos. (MP3/
WMA/AAC disc or USB)
“MODE” switch • Turns the power on, selects audio source
• Press and hold this switch to mute or pause the current operation. To can-
cel the mute or pause, press and hold.
Steering wheel audio switches
Some audio features can be controlled using the switches on the steering
wheel.
Operation may differ depending on th e type of audio system or navigation
system. For details, refer to the manual provided with the audio system or nav-
igation system.
Depending on the type of audio source , certain functions may not be avail-
able.
Operating the audio system us ing the steering wheel switches
1
2
WARNING
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
3
