1944-2. Driving procedures
IS350 AWD/IS350/IS300 AWD/IS300_U
To enter M mode, shift the shift lever to M. Gears can then be selected by oper-
ating the shift lever or paddle shift switch es, allowing you to drive in the gear of
your choice.
Upshifting
Downshifting
The gear changes once every time the
shift lever or paddle shift switch is oper-
ated.
8-speed models: Th e selected gear,
from M1 to M8, will be fixed and dis-
played in the meter.
6-speed models: The selected gear,
from M1 to M6, will be fixed and dis-
played in the meter.
When in the M position, the gear will not change unless the shift lever \
or pad-
dle shift switches are operated.
However, even when in the M positi on, the gears will be automatically
changed in the following situation:
●When vehicle speed drops (downshift only).
●When the automatic transmission fluid or engine coolant temperature is
low.
●When automatic transmission fluid temperature is high.
●When the needle of the tachometer is in the red zone (the range which
exceeds the allowable revs of the engine).
In the following situations, the gear will no t shift even if the shift lever or paddle
shift switches are operated.
●“Slippery Road. Cannot Shift to Lowe r Gear” is displayed on the multi
information display.
●The vehicle speed is low (upshift only).
Selecting gears in the M position
1
2

1954-2. Driving procedures
4
Driving
IS350 AWD/IS350/IS300 AWD/IS300_U
■Automatic deactivation of shift range selection in the D position
Shift range selection in the D position will be deactivated in the following situations:
●When the vehicle comes to a stop
●If the accelerator pedal is depressed fo r more than a certain period of time
●When the shift lever is shifted to a position other than D
■To protect the automatic transmission
“Transmission Fluid Temp High See Owner’s Manual” is displayed on the multi-informa-
tion display and a function is adopted that automatically selects a higher shift range when
the fluid temperature is high. Have the vehicle inspected by your Lexus dealer.
■Downshifting restriction warning buzzer
To help ensure safety and driving performance, downshifti ng operation may sometimes
be restricted. In some circum stances, downshifting may not be possible even when the
shift lever or paddle shif t switch is operated. (A buzzer will sound twice.)
■Snow mode automatic deactivation
Snow mode is automatically deactivated if the engine switch is turn ed off after driving in
snow mode.
■Gear position display on the multi-information display
When Gear positions is selected for a Drive Information screen on the multi-information
display and the shift lever is in the D or M position, the currently selected gear position
will be displayed on the multi-information disp lay. (The display changes according to the
shift lever position and driving conditions.)
■When driving with dynamic radar cruise control activated
Even when performing the following actions with the intent of enabling engine braking,
engine braking will not activate because dy namic radar cruise control will not be can-
celed.
●8-speed models: While driving in the D posi tion, downshifting to 7, 6, 5 or 4.
(  P. 248)
●6-speed models: While driving in the D position, downshifting to 5 or 4.
( P. 248)
●When switching the driving mode to sport mode while driving in D position.
( P. 297)
■Restraining sudden start (Drive-Start Control)
●When the following unusual operation is performed, the engine output may be
restrained.
• When the shift lever is shifted from R to D, D to R, N to R, P to D, or P to R (D
includes M) with the accelerator pedal depressed, a warning message appears on
the multi-information display. ( P. 537)
• When the accelerator pedal is depressed t oo much while the vehicle is in reverse.

5258-2. Steps to take in an emergency
8
When trouble arises
IS350 AWD/IS350/IS300 AWD/IS300_U

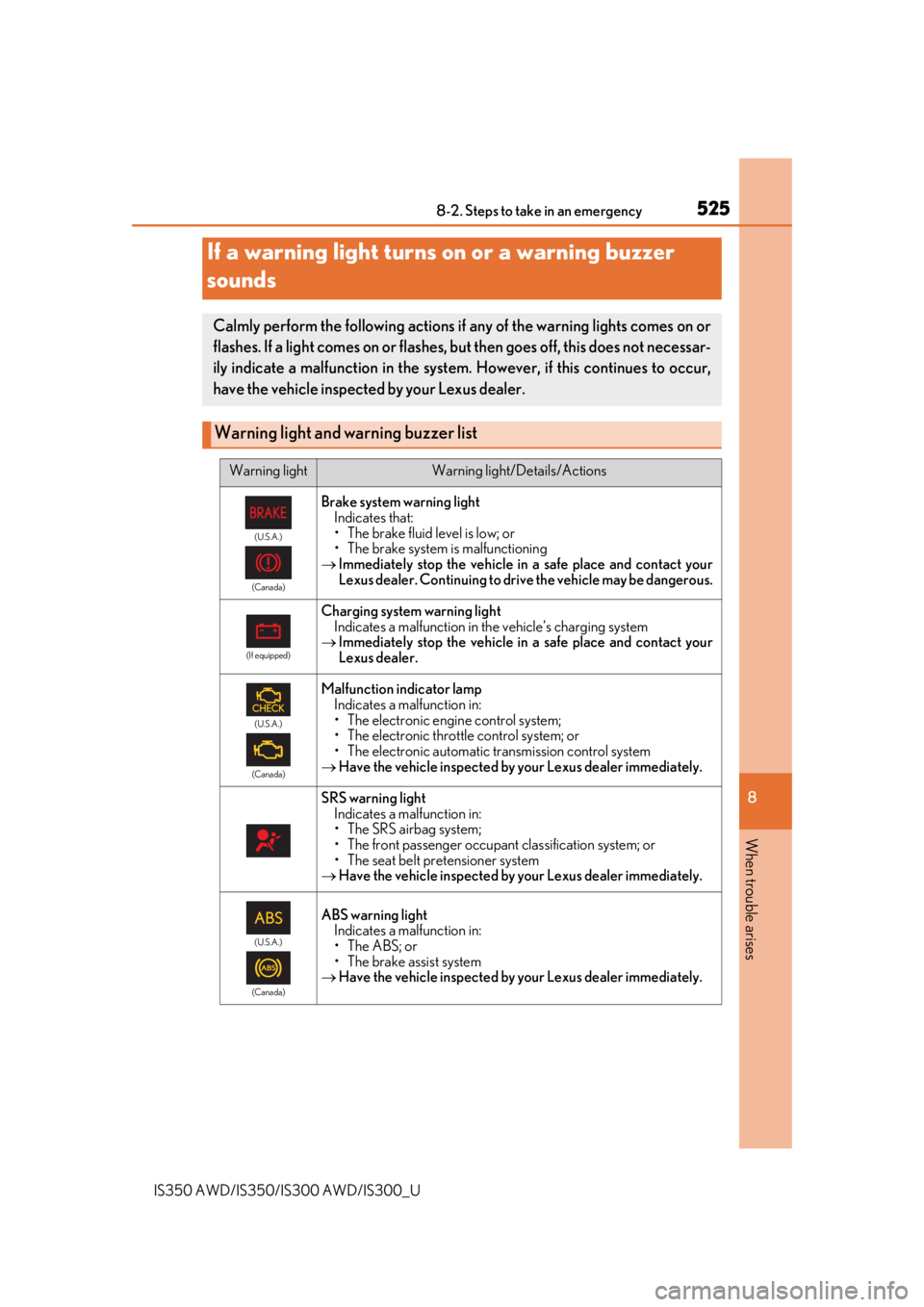

If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspecte d by your Lexus dealer.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
(U.S.A.)
(Canada)
Brake system warning light Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer. Continuing to drive the vehicle may be dangerous.
(If equipped)
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and contact your
Lexus dealer.
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
 Have the vehicle inspected by your Lexus dealer immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
 Have the vehicle inspected by your Lexus dealer immediately.
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
• The ABS; or
• The brake assist system
 Have the vehicle inspected by your Lexus dealer immediately.

5448-2. Steps to take in an emergency
IS350 AWD/IS350/IS300 AWD/IS300_U

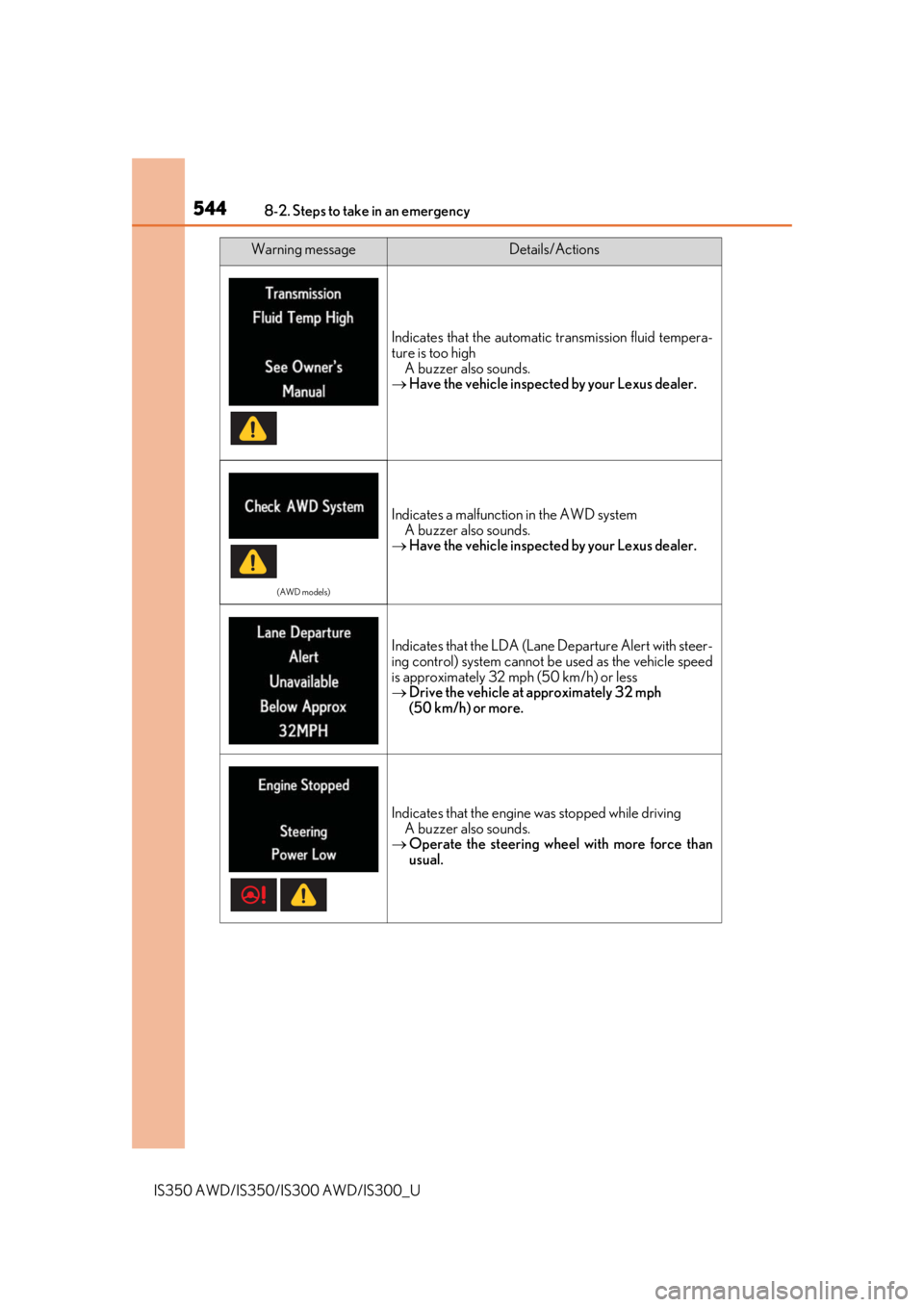

Indicates that the automatic transmission fluid tempera-
ture is too highA buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(AWD models)
Indicates a malfunctio n in the AWD system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates that the LDA (Lane Departure Alert with steer-
ing control) system cannot be used as the vehicle speed
is approximately 32 mph (50 km/h) or less
 Drive the vehicle at approximately 32 mph
(50 km/h) or more.
Indicates that the engine was stopped while driving
A buzzer also sounds.
 Operate the steering wheel with more force than
usual.
Warning messageDetails/Actions

5939-1. Specifications
9
Vehicle specifications
IS350 AWD/IS350/IS300 AWD/IS300_U
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Lexus dealer.
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Genuine Differen tial Gear Oil” or an equivalent oil of
matching quality to satisfy the above specific ation. Please contact your Lexus dealer for
further details.
Automatic transmission
Fluid capacity*
IS350 (2WD)10.0 qt. (9.5 L, 8.4 Imp. qt.)
IS350 AWD/
IS300 AWD
(AWD)
10.6 qt. (10.0 L, 8.8 Imp. qt.)
IS3009.2 qt. (8.7 L, 7.7 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of your transm ission accompanied by vibration, and ulti-
mately damage the transmission of your vehicle.
Front differential (AWD models)
Oil capacity 0.74 qt. (0.70 L, 0.61 Imp. qt.)
Oil type and viscosity
Toyota Genuine Differential gear oil GL-5 or equivalent
Above 0 F (-18 C): SAE90
Below 0 F (-18 C): SAE80W or SAE80W-90
