automatic transmission Lexus IS350 2021 Owner's Manual / LEXUS 2021 IS 300, IS 350 OWNER'S MANUAL (OM53E98U)

3TABLE OF CONTENTS
1
2
3
4
5
6
7
8
9
Automatic transmission..............138
Turn signal lever............................. 142
Parking brake ................................. 143
Brake Hold....................................... 146
ASC (Active Sound Control) .. 147
4-3. Operating the lights and wipers Headlight switch ............................ 149
AHB (Automatic High Beam) ............................................................. 151
Windshield wipers and washer ............................................................ 154
4-4. Refueling Opening the fuel tank cap.......... 161
4-5. Using the driving support systems Lexus Safety System + 2.5 ........ 164
PCS (Pre-Collision System)..... 170
LTA (Lane Tracing Assist)......... 180
RSA (Road Sign Assist) .............. 189
Dynamic radar crui se control with
full-speed range.......................... 192
BSM (Blind Spot Monitor) ....... 202
PKSA (Parking Support Alert) ........................................................... 208
Intuitive parking assist ................. 210
RCTA (Rear Cross Traffic Alert) function ........................................... 216
PKSB (Parking Support Brake) ............................................................ 221
Parking Support Brake function (static objects) ............................ 226
Parking Support Brake function (rear-crossing vehicles).......... 232
Driving mode select switch...... 236
Driving assist systems ................. 238
4-6. Driving tips Winter driving tips ....................... 2435-1. Remote Touch/Display
Remote Touch............................... 248
Center Display.............................. 250
5-2. Using the air conditioning system and defogger
Automatic air conditioning system.......................................................... 253
Heated steering wheel/seat heat- ers/seat ventilators..................... 261
5-3. Using the interior lights Interior lights list ........................... 263
5-4. Using the storage features List of storage features .............. 266
Trunk features ............................... 268
5-5. Using the other interior features Other interior features .............. 270
Garage door opener ................. 273
6-1. Maintenance and care Cleaning and protecting the vehi-cle exterior................................... 280
Cleaning and protecting the vehi- cle interior .................................... 283
6-2. Maintenance Maintenance re quirements .....286
General maintenance................ 287
Emission inspection and mainte- nance (I/M) program s

............290
6-3. Do-it-yourself maintenance Do-it-yourself service precautions............................................................ 291
Hood ................................................. 293
5Interior features
6Maintenance and care

123
4
4
Driving
Driving
.4-1. Before drivingDriving the vehicle ..................... 124
Cargo and luggage ................... 130
Vehicle load limits ...................... 132
Trailer towing ............................... 132
Dinghy towing ............................. 133
4-2. Driving procedures Engine (ignition) switch ........... 134
Automatic transmission........... 138
Turn signal lever.......................... 142
Parking brake .............................. 143
Brake Hold.................................... 146
ASC (Active Sound Control) ......................................................... 147
4-3. Operating the lights and wipers Headlight switch ......................... 149
AHB (Automatic High Beam) .......................................................... 151
Windshield wipers and washer ......................................................... 154
4-4. Refueling Opening the fuel tank cap....... 161
4-5. Using the driving support sys- tems
Lexus Safety System + 2.5 ..... 164
PCS (Pre-Collision System) ......................................................... 170
LTA (Lane Tracing Assist)...... 180
RSA (Road Sign Assist) ........... 189Dynamic radar cruise control with
full-speed range....................... 192
BSM (Blind Spot Monitor) .... 202
PKSA (Parking Support Alert) ....................................................... 208
Intuitive parking assist .............. 210
RCTA (Rear Cross Traffic Alert) function........................................ 216
PKSB (Parking Support Brake) ......................................................... 221
Parking Support Brake function (static objects) ......................... 226
Parking Support Brake function (rear-crossing vehicles) ...... 232
Driving mode select switch .. 236
Driving assist systems.............. 238
4-6. Driving tips Winter driving tips .................... 243

1384-2. Driving procedures
*1: To improve fuel efficiency and reduce noise, shift the shift lever to D for normal
driving.
*2: Any gear range can be fixed when driv-ing in M mode.
■To protect the automatic transmission
“High Transmission Fluid Temp See
Owner's Manual” is displayed on the
multi-information display and a function is
adopted that automatically selects a higher
shift range when the fluid temperature is
high. Have the vehicle inspected by your
Lexus dealer.
■When driving with dynamic radar cruise
control with full-speed range activated
Even when performing the following
actions with the intent of enabling engine
braking, engine braking will not activate
because dynamic radar cruise control with
full-speed range will not be canceled.
●8-speed models: While driving in the D
position, downshifting to 7, 6, 5 or 4.
(  P.192)
●6-speed models: While driving in the D
position, downshifting to 5 or 4.
( P.192)
●When switching the driving mode to
sport mode while driving in the D position
( P.236)
■Restraining sudden start (Drive-Start
Control)
 P.129
■Gear position display on the multi-infor-
mation display
When Gear positions is selected for a Drive
Information screen on the multi-information
display and the shift lever is in the D or M
position, the currently selected gear posi-
tion will be displayed on the multi-informa-
tion display. (The display changes
according to the shift lever position and
driving conditions.)
■AI-SHIFT
The AI-SHIFT automatica lly selects the suit-
able gear according to driver performance
and driving conditions.
The AI-SHIFT automatically operates when
the shift lever is in D position. (Shifting the
shift lever to the M position cancels the
function.)
Automatic transmission
Shift position purpose and func-
tions
Shift posi-
tionObjective or function
PParking the vehicle/starting the engine
RReversing
NNeutral (Condition in which
the power is not transmitted)
DNormal driving*1
MM mode driving*2 (  P.141)
WARNING
■When driving on slippery road sur-
faces
Be careful of downsh ifting and sudden
acceleration, as this could result in the
vehicle skidding to the side or spinning.

1414-2. Driving procedures
4
Driving
A lower shift range will provide greater
engine braking forces than a higher shift
range.
■Automatic deactivation of shift range
selection in the D position
Shift range selection in the D position will
be deactivated in the following situations:
●When the vehicle comes to a stop
●If the accelerator pedal is depressed for
more than a certain period of time
●When the shift lever is shifted to a posi-
tion other than D
■Downshifting restriction warning
buzzer
To help ensure safety and driving perfor-
mance, downshifting operation may some-
times be restricted. In some circumstances,
downshifting may not be possible even
when the paddle shift switch is operated. (A
buzzer will sound twice.)
To enter M mode, shift the shift lever to
M. Gears can then be selected by
operating the shift lever or paddle shift
switches, allowing you to drive in the
gear of your choice. Except F SPORT models
F SPORT models
1 Upshifting
2 DownshiftingThe gear changes once every time the shift
lever or paddle shift switch is operated.
8-speed models: The selected gear, from
M1 to M8, will be fixed and displayed on
the multi-information display.
6-speed models: The selected gear, from
M1 to M6, will be fixed and displayed on
the multi-information display.
When in the M position, the gear will
not change unless the shift lever or
paddle shift switches are operated.
However, even when in the M position,
the gears will be automatically
changed in the following situation:
 When vehicle speed drops (down-
shift only).
 When the automatic transmission
fluid or engine coolant temperature
Selecting gears in the M position
A
B

1424-2. Driving procedures
is low.
 When automatic transmission fluid
temperature is high.
 When the needle of the tachometer
is in the red zone (the range which
exceeds the allowable revs of the
engine).
In the following situations, the gear will
not shift even if the shift lever or paddle
shift switches are operated.
 “Slippery Road Cannot Shift to
Lower Gear” is displayed on the
multi-information display.
 The vehicle speed is low (upshift
only).
■Downshifting restriction warning
buzzer
To help ensure safety and driving perfor-
mance, downshifting operation may some-
times be restricted. In some circumstances,
downshifting may not be possible even
when the shift lever or paddle shift switch is
operated. (A buzzer will sound twice.)
The lever will return to its original posi-
tion immediately after operation.
1 Right turn
2 Lane change to the right (move the
lever partway and release it)
The right hand signals will flash 3 times.
3Lane change to the left (move the
lever partway and release it)
The left hand signals will flash 3 times.
4Left turn
■If the turn signals do not stop flash-
ing after turning left or right, or if
you want to stop them flashing
Operate the lever in the opposite
direction to either position 2 or 3.
If you move the lever to either position
1 or 4, the selected turn signals will
flash.
Turn signal lever
Operating instructions

2374-5. Using the driving support systems
4
Driving
selected, the “Customize” indicator will be
illuminated.
When Eco drive mode or sport mode is
selected, pressing the switch changes the
driving mode to normal mode.
•Normal mode
Provides an optimal ba lance of fuel econ-
omy, quietness, and dynamic performance.
Suitable for city driving.
• Customized mode
Allows you to drive with the following func-
tions set to your preferred settings. Cus-
tomized mode settings can only be
changed on the drive mode customization
display of the Center Display. ( P.250)
2 Eco drive mode
Helps the driver accelerate in an
eco-friendly manner and improve fuel
economy through moderate throttle char-
acteristics and by controlling the operation
of the air conditioning system (heat-
ing/cooling).
When not in Eco drive mode, if the driving
mode select switch is turned to the left, the
Eco drive mode indicator will come on.
3Sport mode
•SPORT S mode
Controls the transmission and engine to
provide quick, powerful acceleration. This
mode is suitable for when agile driving response is desired,
such as when driving
on roads with many curves.
When not in SPORT S mode, if the driving
mode select switch is turned to the right,
the “SPORT S” indicator will come on.
•SPORT S+ mode
Helps to ensure stee ring performance and
driving stability by simultaneously con-
trolling the steering and suspension in
addition to the transmission and engine.
Suitable for sportier driving.
When in SPORT S mode, if the driving
mode select switch is turned to the right,
the “SPORT S+” indicator will come on.
■Operation of the air conditioning sys-
tem in Eco drive mode
Eco drive mode controls the heating/cool-
ing operations and fan speed of the air con-
ditioning system to enhance fuel efficiency.
To improve air condit ioning performance,
adjust the fan speed or turn off Eco drive
mode.
■Automatic deactivation of sport mode
and customized mode
If the engine switch is turned off after driv-
ing in sport mode or customized mode, the
drive mode will be changed to normal
mode.
■Driving mode pop-up display (10.3-inch
display only)
When the driving mode is changed, the
selected driving mode will be temporarily
displayed on the side display. ( P.251)
FunctionSetting
Powertrain
Normal
Power
Eco
ChassisNormal
Sport
Air conditioning sys-
temNormal
Eco

3387-2. Steps to take in an emergency
■Charging system warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
■Low engine oil pressure warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
■Malfunction indicator lamp (warning buzzer)
■SRS warning light (warning buzzer)
Warning lightDetails/Actions
Indicates a malfunction in the vehicle’s charging system
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
Warning lightDetails/Actions
Indicates that the engine oil pressure is too low
 Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
Warning lightDetails/Actions
(U.S.A.)
or
(Canada)
Indicates a malfunction in:
 The electronic engine control system;
 The electronic throttle control system; or
 The electronic automatic transmission control system
 Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
Warning lightDetails/Actions
Indicates a malfunction in:
 The SRS airbag system;
 The front passenger occupant classification system; or
 The seat belt pretensioner system
 Have the vehicle inspected by your Lexus dealer immediately.

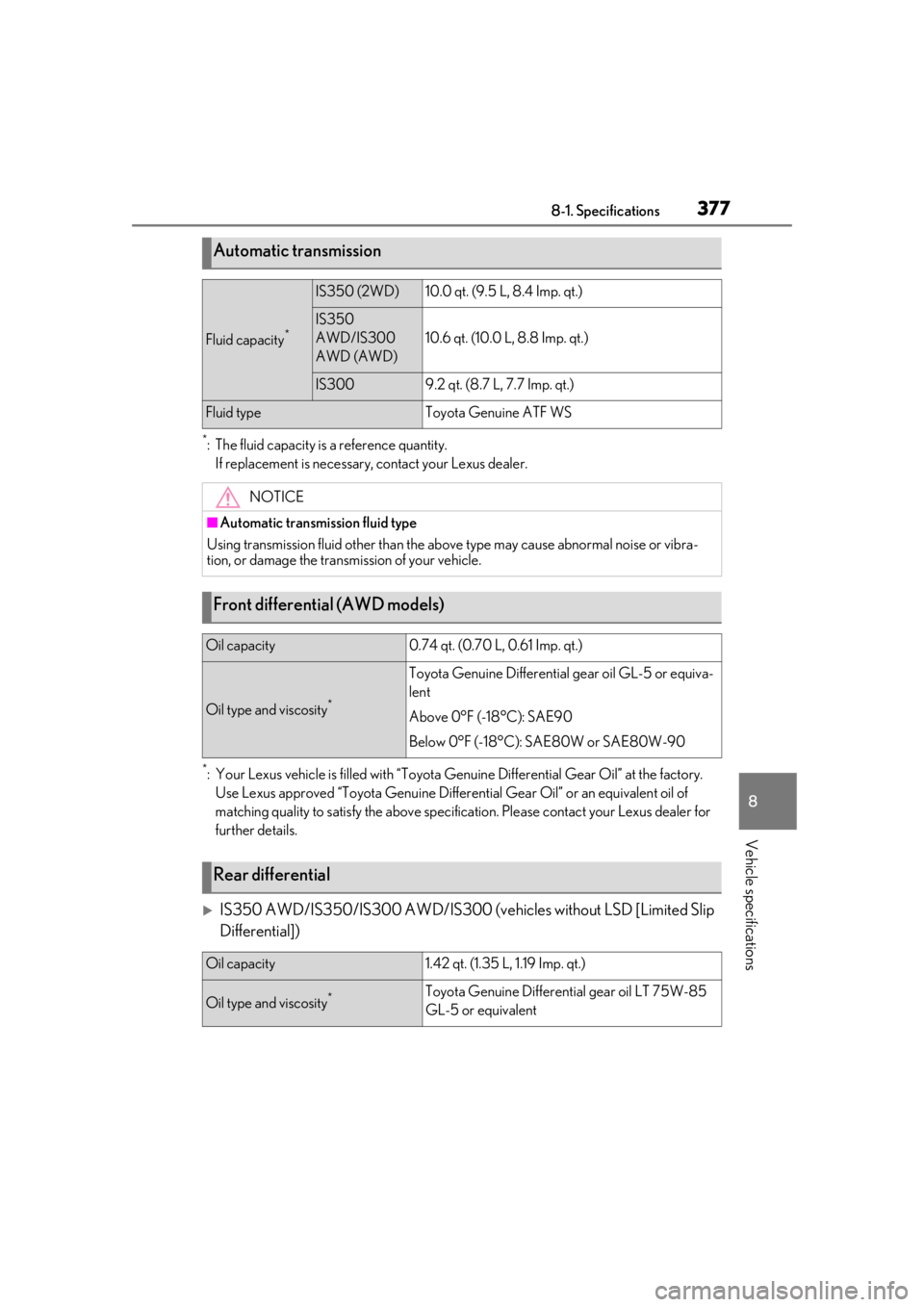

3778-1. Specifications
8
Vehicle specifications
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Lexus dealer.
*: Your Lexus vehicle is filled with “Toyota Genu ine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Ge nuine Differential Gear Oil” or an equivalent oil of
matching quality to satisfy th e above specification. Please contact your Lexus dealer for
further details.
IS350 AWD/IS350/IS300 AWD/IS300 (veh icles without LSD [Limited Slip
Differential])
Automatic transmission
Fluid capacity*
IS350 (2WD)10.0 qt. (9.5 L, 8.4 Imp. qt.)
IS350
AWD/IS300
AWD (AWD)
10.6 qt. (10.0 L, 8.8 Imp. qt.)
IS3009.2 qt. (8.7 L, 7.7 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Automatic transmission fluid type
Using transmission fluid other than the above type may cause abnormal noise or vibra-
tion, or damage the transmission of your vehicle.
Front differential (AWD models)
Oil capacity0.74 qt. (0.70 L, 0.61 Imp. qt.)
Oil type and viscosity*
Toyota Genuine Differential gear oil GL-5 or equiva-
lent
Above 0°F (-18°C): SAE90
Below 0°F (-18°C): SAE80W or SAE80W-90
Rear differential
Oil capacity1.42 qt. (1.35 L, 1.19 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

421Alphabetical Index
Alphabetical Index
A
A/CAir conditioning filter .................................315
Automatic air conditioning system ... 253
Micro dust and pollen filter...................258
ABS (Anti-lock Brake System).............. 238 Warning light ............................................... 339
ACA (Active Cornering Assist) ........... 238
Active Cornering Assist (ACA) ........... 238
Active Sound Control (ASC) .................. 147
Adaptive Variable Suspension system238
AHB (Automatic High Beam) .................. 151
Air conditioning filter ...................................315
Air conditioning system Air conditioning filter .................................315
Automatic air conditioning system ... 253
Micro dust and pollen filter...................258
Airbags Airbag operating conditions................... 30
Airbag precautions for your child ........ 33
Correct driving posture .............................23
Curtain shield airbag operating condi- tions .................................................................. 30
Curtain shield airbag precautions ....... 33
Front passenger occupant classification system ............................................................. 36
General airbag precautions ................... 33
Locations of airbags.................................... 28
Modification and disposal of airbags . 35
Side airbag operating conditions ......... 30
Side airbag precautions ............................ 33
Side and curtain shield airbags operating conditions...................................................... 30
Side and curtain shield airbags precau- tions .................................................................. 33
SRS airbags ..................................................... 28
SRS warning light ......................................338
Alarm ................................................................... 62 Warning buzzer ......................................... 337
Anchor brackets .......................................42, 51 Antennas (smart acc
ess system with
push-button start)........................................ 99
Anti-lock Brake System (ABS).............. 238 Warning light ...............................................339
Approach warning........................................ 197
Armrest............................................................ 270
ASC (Active Sound Control) .................. 147
Assist grips ..................................................... 270
Audio system-linked display ........................81
Automatic air conditioning system ...... 253
Automatic headlight leveling system ... 150
Automatic High Beam ................................. 151
Automatic light control system................149
Automatic transmission ............................. 138 M mode ............................................................. 141
Paddle shift switches .........................140, 141
Snow mode.................................................... 140
Average fuel economy..................................79
Average vehicle speed .................................79
B
Back-up lights Replacing light bulbs ................................ 322
Battery If the battery is discharged ..................... 361
Preparing and checking before winter.......................................................................... 243
Warning light .............................................. 338
Blind Spot Monitor (BSM)....................... 202
Boost gauge...................................................... 80
Brake Brake hold ...................................................... 146
Fluid......................................................300, 378
Parking brake ................................................143
Warning light ............................................... 337
Brake assist .................................................... 238
Break-in tips.....................................................125
Brightness control Instrument panel light control................. 75
BSM (Blind Spot Monitor)....................... 202

424Alphabetical Index
Hood................................................................ 293
How to start the engine............................134
Identification number ............................... 373
If the engine will not start ....................... 357
If your vehicle has to be stopped in an
emergency ................................................ 328
Ignition switch (engine switch) ............. 134
Overheating.................................................365
Tachometer ............................................... 71, 72
Engine coolant Capacity ......................................................... 376
Checking .......................................................298
Preparing and checking before winter......................................................................... 243
Engine coolant temperature gauge . 71, 72
Engine immobilizer system ........................ 60
Engine oil Capacity ......................................................... 374
Checking ....................................................... 296
Preparing and checking before winter......................................................................... 243
Warning light ...............................................338
Engine oil maintenance data .................. 298
Engine oil pressure gauge .......................... 80
Engine oil temperature gauge .................. 80
Engine switch ..................................................134 Auto power off function ...........................136
Changing the engine switch modes..136
If your vehicle has to be stopped in an
emergency ................................................ 328
Enhanced Vehicle Stability Control (Enhanced VSC) ...................................... 238
Enhanced VSC (Enhanced Vehicle Stabil- ity Control) .................................................. 238
EPS (Electric Power Steering) .............. 238 Warning light ...............................................340
Event data recorder (EDR) ............................7
F
First-aid kit storage belt ............................ 268
Flat tire Tire pressure warning system ............ 305 Vehicles with a spare tire.......................349
Floor mats ...........................................................22
Fluid Automatic transmission .......................... 377
Brake ................................................................378
Washer ...........................................................302
Footwell lights ............................................... 263 Wattage ........................................................... 381
Front passenger occupant classification system .............................................................. 36
Front seats Adjustment ..................................................... 106
Cleaning .........................................................283
Correct driving posture ............................ 23
Driving position memory ........................ 108
Head restraints................................................. 111
Memory recall function............................ 109
Power easy access system .................... 108
Seat heaters ....................................................261
Seat position memory ..............................108
Seat ventilators ..............................................261
Front side marker light Light switch .................................................... 149
Replacing light bulbs ................................ 322
Front turn signal lights Replacing light bulbs .................... 322, 323
Turn signal lever ...........................................142
Wattage ........................................................... 381
Fuel Capacity ......................................................... 374
Fuel gauge ..................................................71, 72
Fuel pump shut off system.....................336
Information ....................................................382
Refueling............................................................ 161
Type .................................................................. 374
Warning light .............................................. 340
Fuel consumption Average fuel economy .............................. 79
Current fuel consumption ........................ 79
Fuel filler door If the fuel filler do or cannot be opened
......................................................................... 359
