TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ...................................................... 28
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 32
Wireless remote control .............. 44
Doors.................................................... 47
Trunk...................................................... 51
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats .......................................... 55
Driving position memory .............. 61
Seat position memory ................... 65
Head restraints................................. 67
Seat belts ............................................ 70
Steering wheel.................................. 76 Anti-glare inside rear
view mirror...................................... 78
Outside rear view mirrors ........... 79
1-4. Opening and closing the windows and
retractable hardtop
Power windows................................ 82
Retractable hardtop....................... 86
1-5. Refueling Opening the fuel tank cap........... 95
1-6. Theft deterrent system Engine immobilizer system ......... 98
Alarm.................................................. 100
Theft prevention labels (U.S.A.) ........................................... 103
1-7. Safety information Correct driving posture ............. 104
SRS airbags ..................................... 106
Front passenger occupant classification system ................... 118
Child restraint sy stems ............... 123
Installing child restraints .............. 127
1Before driving
For vehicles with a navigation system, refer to the “Navigation System Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Air conditioning
• Climate control
• Rear view monitor system • Audio/video system
• Rear window and outside rear view
mirror defogging
• Intuitive parking assist

1
2
3
4
5
6
7
5
3-6. Using the storage featuresList of storage fe atures................ 361
• Glove box .................................... 362
• Console box ................................ 363
• Cup holders................................. 364
• Auxiliary box ............................... 367
3-7. Other interior features Sun visors........................................ 368
Vanity mirror .................................. 369
Clock ................................................. 370
Satellite switches ........................... 371
Ashtrays ........................................... 374
Cigarette lighter ........................... 375
Power outlet ................................... 376
Seat heaters and ve ntilators .... 377
Floor mat......................................... 380
Trunk features................................. 381
Garage door opener................. 384
Compass......................................... 390
Safety Connect ............................. 394 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior................... 402
Cleaning and protecting the vehicle interior .................... 407
4-2. Maintenance Maintenance requirements ...... 410
General maintena nce ................. 412
Emission inspection and maintenance (I/M)
programs ....................................... 415
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................... 416
Hood .................................................. 419
Positioning a floor jack............... 420
Engine compartment.................. 422
Tires ................................................... 437
Tire inflation pressure................. 447
Wheels .............................................. 451
Air conditioning filter.................. 453
Electronic key battery ................ 456
Checking and replacing fuses ............................................... 458
Headlight aim ................................ 473
Light bulbs ....................................... 475
4Maintenance and care

TABLE OF CONTENTSIndex
6
5-1. Essential informationEmergency flashers.................... 486
If your vehicle needs to be towed ....................................... 487
If you think something is wrong ......................................... 493
Fuel pump shut off system ........ 494
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds... ........................................ 495
If a warning message is displayed ...................................... 504
If you have a flat tire (vehicles with standard
tires) ................................................. 518
If you have a flat tire (vehicles with run-flat
tires) ................................................ 527
If the engine will not start .......... 529
If the shift lever cannot be shifted from P......................... 531
If you lose your keys .................... 532
If the electronic key does not operate properly .............. 533
If the vehicle battery is discharged .................................. 538
If your vehicle overheats ........... 542 If the vehicle becomes
stuck................................................ 545
If the retractable hardtop does not close............................. 547
If your vehicle has to be stopped in an emergency ...... 557
6-1. Specifications Maintenance data (fuel, oil level, etc.).................... 560
Fuel information ............................ 578
Tire information............................ 582
6-2. Customization Customizable features.............. 595
6-3. Initialization Items to initialize .......................... 600
Reporting safety defects for U.S. owners........................... 602
Seat belt instructions for Canadian owners
(in French) ................................... 603
SRS airbag instructions for Canadian owners
(in French) ................................... 606
5When trouble arises
6Vehicle specifications
7For owners

24
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, im pair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full at tention to driving. Anything that distracts
the driver, such as adjusting controls, ta lking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precaution regarding children’s safety
Never leave children unattended in the vehi cle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the retractable hardtop, or other features of the vehicle. In
addition, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.

Before driving1
27
1-1. Key informationKeys .............................................. 28
1-2. Opening, closing and locking the doors and
trunk

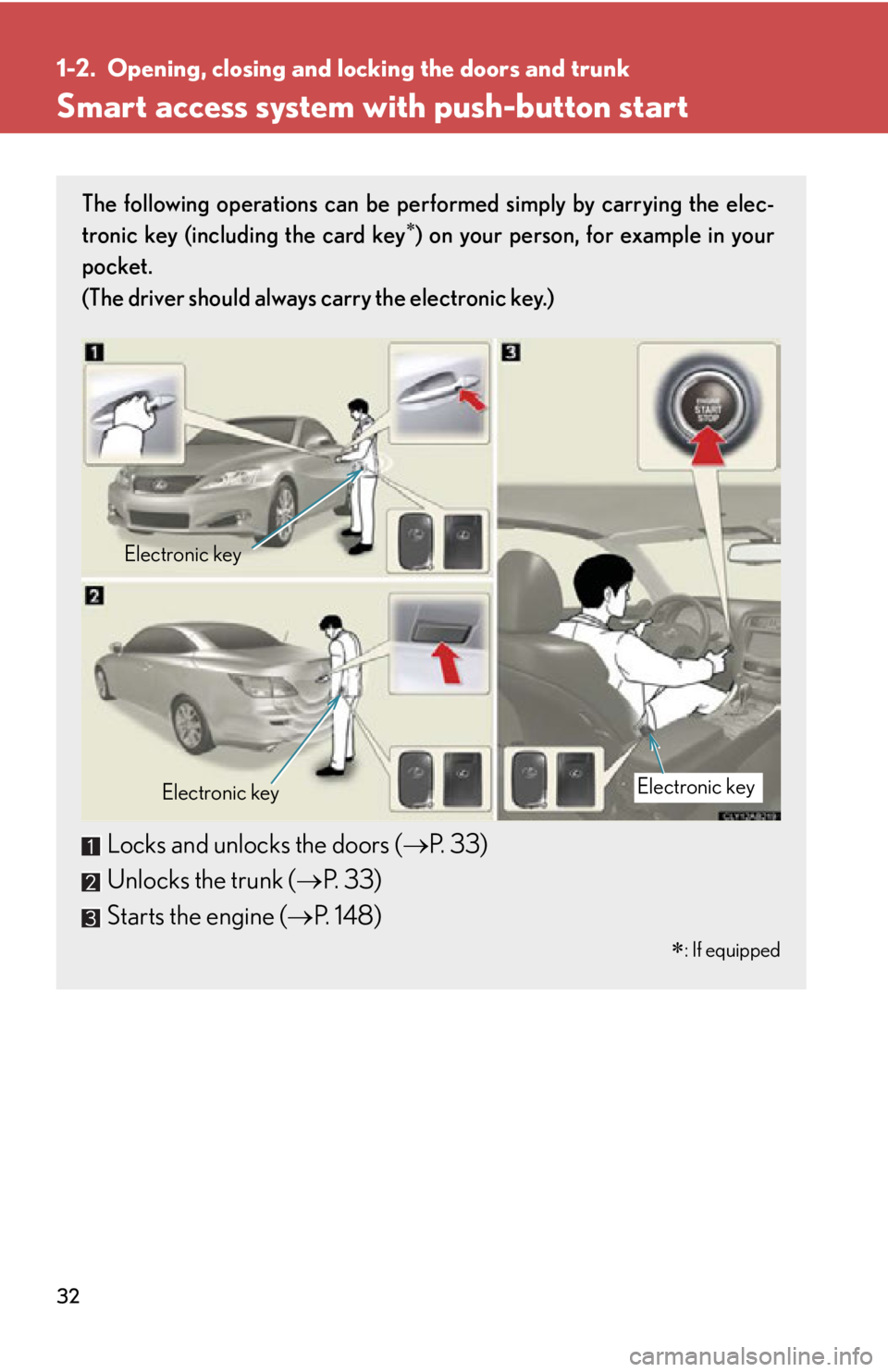

Smart access system with push-button start ................... 32
Wireless remote control ......... 44
Doors ............................................ 47
Trunk .............................................. 51
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ................................... 55
Driving position memory ......... 61
Seat position memory.............. 65
Head restraints .......................... 67
Seat belts ..................................... 70
Steering wheel ........................... 76
Anti-glare inside rear view mirror ............................... 78
Outside rear view mirrors ...... 79 1-4. Opening and closing
the windows and
retractable hardtop
Power windows .......................... 82
Retractable hardtop ................ 86
1-5. Refueling Opening the fuel tank cap ..... 95
1-6. Theft deterrent system Engine immobilizer system........................................ 98
Alarm.......................................... 100
Theft prevention labels (U.S.A.).................................... 103
1-7. Safety information Correct driving posture ....... 104
SRS airbags .............................. 106
Front passenger occupant classification system............. 118
Child restraint systems ......... 123
Installing child restraints........ 127

28
1-1. Key information
Keys
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart accesssystem with push-button start
( P. 3 2 )
• Operating the wireless remote control function
( P. 44)
Mechanical keys
Key number plate
■ Card key (if equipped)
Electronic key
Operating the smart access sys-
tem with push-button start
( P. 3 2 )
Mechanical key

29
1-1. Key information
1
Before driving
Using the mechanical keyTake out the mechanical key.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock
cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
( P. 5 3 3 )
■Card key
●The mechanical key that is stored inside the card key should be used only if a
problem arises, such as when the key does not operate properly.
●If it is difficult to take out the mechanical key, push down the lock release button
using a pen tip etc. If it is difficult to pull it out, use a coin etc.
●To store the mechanical key in the card
key, insert it inside while pressing the
lock release button.

30
1-1. Key information
●The card key is not waterproof.
■When required to leave a key to the vehicle with a parking attendant
Turn the trunk opener main switch off and lock the glove box as circumstances
demand. (P. 5 1 , 3 6 2 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. ( P. 5 3 2 )
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc, ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves
that could interfere with the operation of the aircraft.
●If the battery cover is not installed and
the battery falls out or if the battery was
removed because the key got wet, rein-
stall the battery with the positive termi-
nal facing the Lexus emblem.

31
1-1. Key information
1
Before driving
NOTICE
■To prevent key damage
Observe the following.
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for a long period of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys close to
such materials.
●Do not disassemble the electronic keys.
●Do not place the keys near objects that produce magnetic fields, such as TVs,
audio systems, glass top ranges, or medical electrical equipment, such as low-fre-
quency therapy equipment.
■Precautions for handling the card keys
●Do not apply excess force when inserting the mechanical key to the card key.
Doing so may damage the card key.
●If the battery or card key terminals get wet, the battery may corrode and the card
key may stop working.
If the key is dropped into water, or if drinking water etc. is spilled on the key,
immediately remove the battery cover and wipe the battery and terminals. (To
remove the battery cover, lightly grasp it and pull.) If the battery is corroded, have
your Lexus dealer replace the battery.
●Do not crush the battery cover or use a screwdriver to remove the battery cover.
Forcibly removing the battery co ver may bend or damage the key.
●If the battery cover is frequently removed, the battery cover may become loose.
●When installing the battery, make sure to check the direction of the battery.
Installing the battery in the wrong direct ion may cause the battery to deplete rap-
idly.
●The surface of the card key may be damaged, or its coating may peel off in the
following situations.
• The card key is carried together with hard objects, such as coins or keys.
• The card key is scraped with a sharp object, such as a tip of mechanical pencil.
• The surface of the card key is wiped with thinners or benzene.

32
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key (including the card key) on your person, for example in your
pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors ( P. 3 3 )
Unlocks the trunk ( P. 3 3 )
Starts the engine ( P. 1 4 8 )

: If equipped
Electronic key
Electronic key
Electronic key
